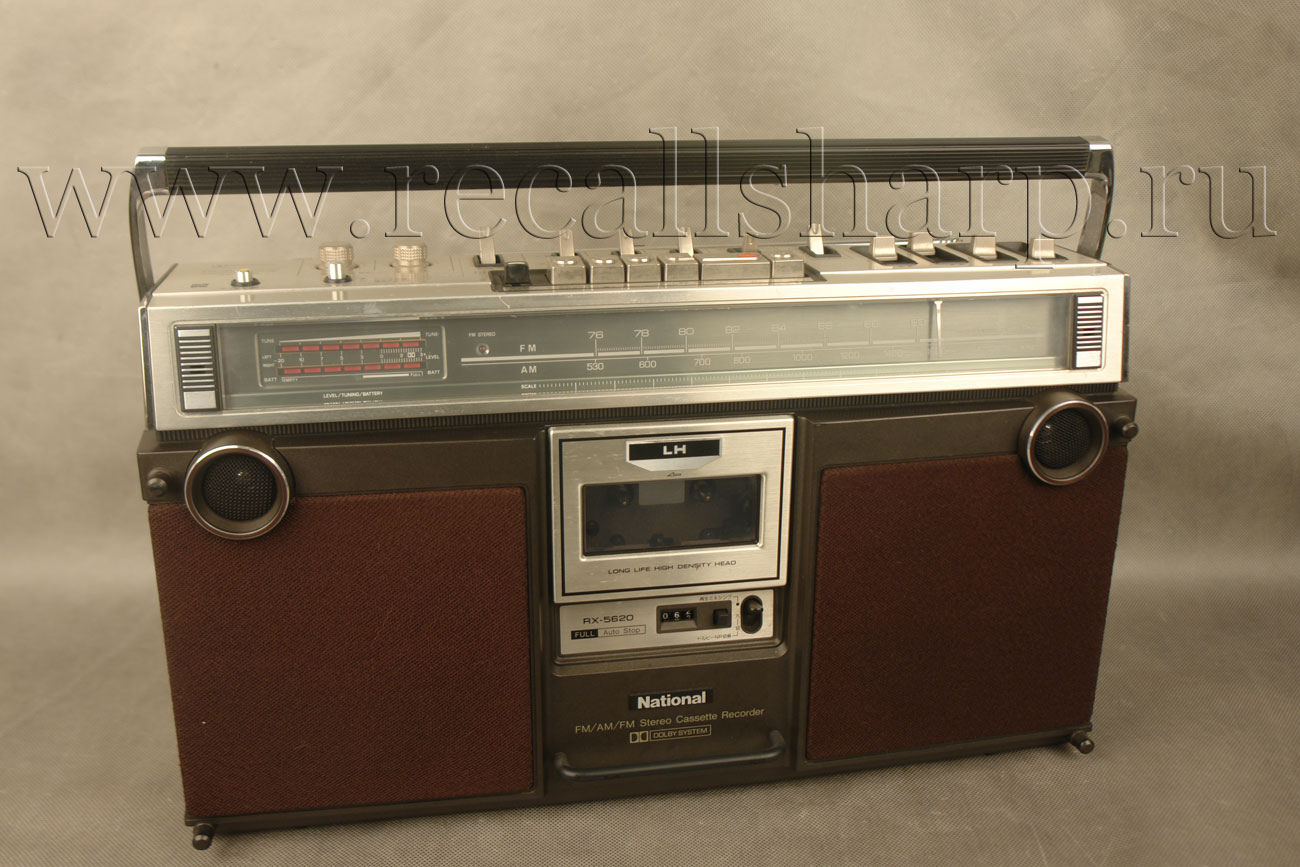

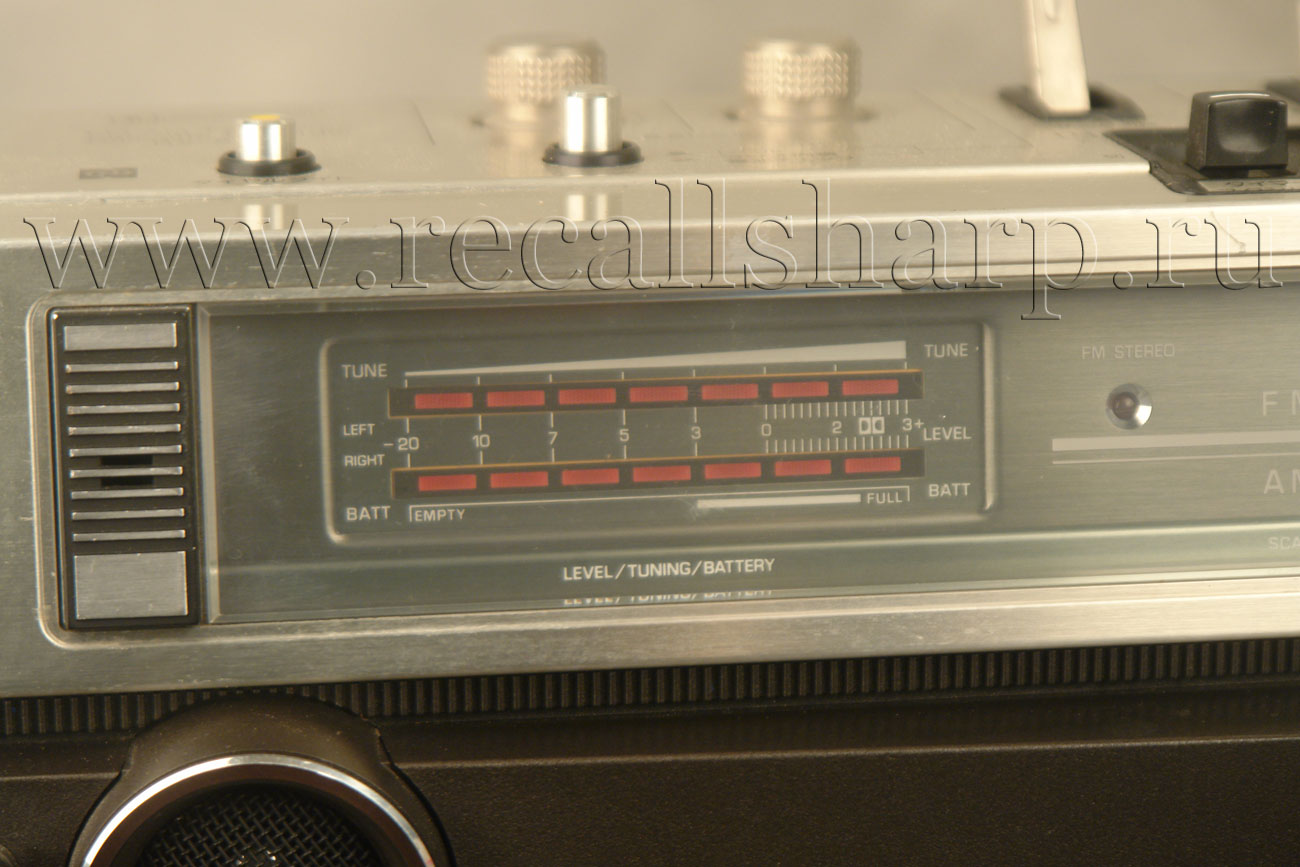

National RX-5620



: 1979


Specifications (Catalog specifications for sales)
Power requirement: AC;100V, 50Hz\60Hz
Power consumption; 15 W
Battery; 12V (8- R20 size dry batteries)

Power output: 12W (6Wx2) ... RMS (max)
Frequency range:
50-14,000Hz (with CrO2 tape)
50-12,000 Hz(with normal tape)
Recording system; AC bias, AC erase

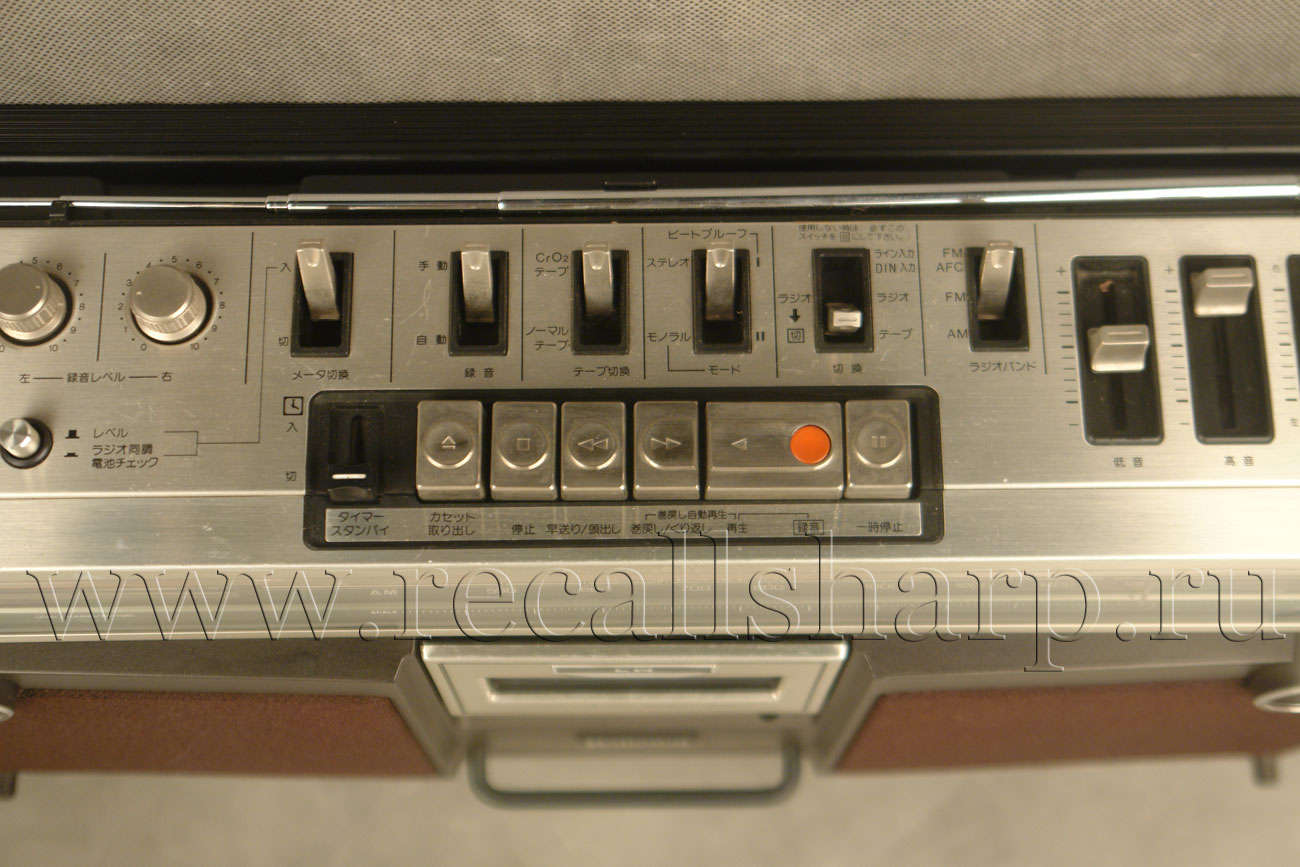

Operations: Push button one-touch recording with Full Auto-
Stop and memory play mechanism
Tape speed: 4.8cm/s
Program time: 1 hour with C-60 cassette tape
Fast forward and
rewind time: Approx. 90 seconds with C-60 cassette tape
Track system: 4-track stereo recording and playback

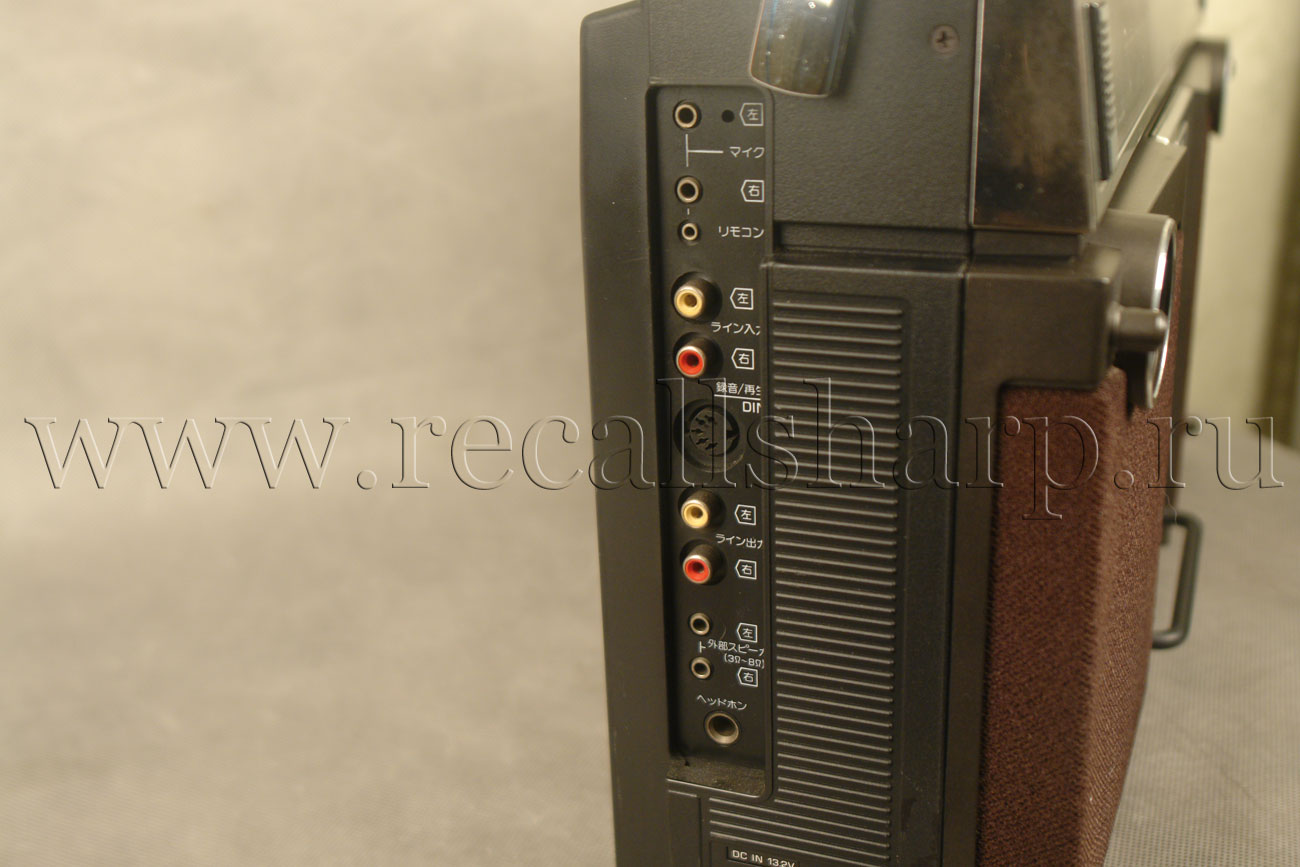

Input: MIC; sensitivity 0.25mV/applicable microphone
impedance 200-600Ohm (recommended microphone RP-8135N)
LINE; sensitivity 63mV/560KOhm
DC IN:9V
Output:
LINE; output level 0.46V load impedance
50 KOhm over
EXT SP:8Ohm
HEADPHONES; 8Ω
REMOTE; for start and stop at hand

OUT; 0.43 V/3.6KOhm
Speakers:
WOOFER; 16cm PM dynamic speaker
TWEETER; 5cm PM dynamic speaker
Radio frequency range:
FM; 76-90MHz
AM; 525-1605kHz

Dimensions: 51.4cm(W) x 28.9cm(H) x 16.3cm(D)
Weight: 8.3kg (without batteries)

:
