Год начала выпуска: 1980
Регион: Европа
SPECIFICATIONS

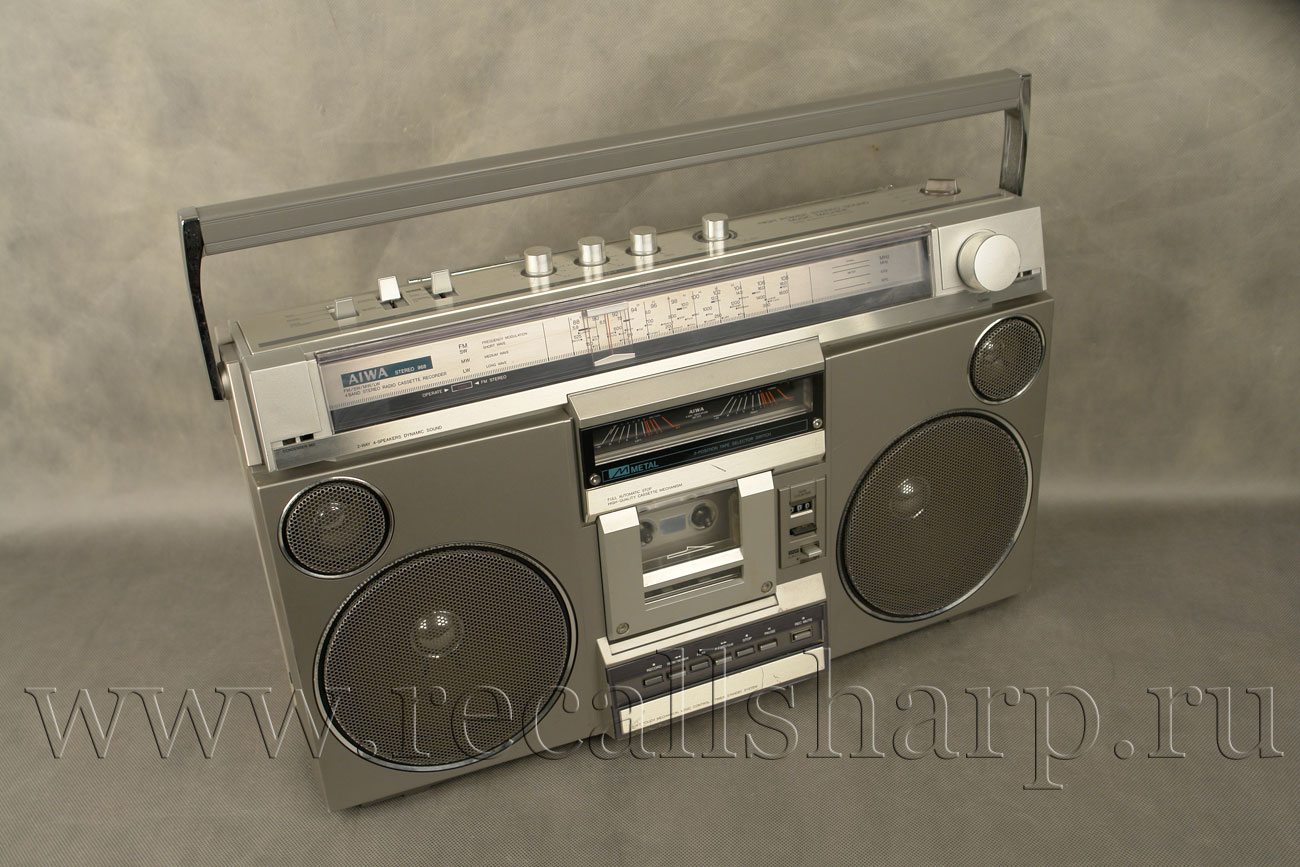

Type Stereo multiband radio cassette recorder
Circuitry
27 transistors, 17 diodes, 4 ICs, 7 LEDs, 1 FET
Power source Batteries,DC 12 V (UM-1 x 8)
AC 110—120 V/220—240 V (switchable)
50—60 Hz
Car battery (thru car adaptor)
Output maximum 4.2 W + 4.2 W
Power consumption 20W
Speakers 160 mm cone (2)
50 mm dome (2)
Tape Recorder Section
Built-in microphones Electret condenser microphones
Tape speed 4.8 cm/sec
Recording system AC bias
Erasing system AC erase
Recording time 90 minutes (C-90 cassette, both directions)
Frequency response)
LH tape: 50—12 000 Hz ±3dB
Cr02 tape: 50—13 000 Hz ±3dB
METAL tape: 50—14 000 Hz ±3dB
Signal-to-noise ratio
53 dB (LH tape, Dolby NR OFF) (PEAK LEVEL) 65 dB
(METAL tape, Dolby NR ON)
Wow and flutter 0.07% (WRMS)
Radio Section
Frequency ranges FM: 87.5—108 MHz
MW: 525—1605 kHz
SW: 5.9—18.0 MHz
LW: 150—300 kHz
Antennas
Whip antenna for FM and SW2
Ferrite bar antenna for MW and SW,
External antenna terminals for FM
Dimensions (WxHxD)567 x 331 x 177 (mm)
Weight 7.2 kg
Accessories
AC power cord 1
Cassette tape 1
The specifications and external appearance of this set are subject to change without prior notice.
|
