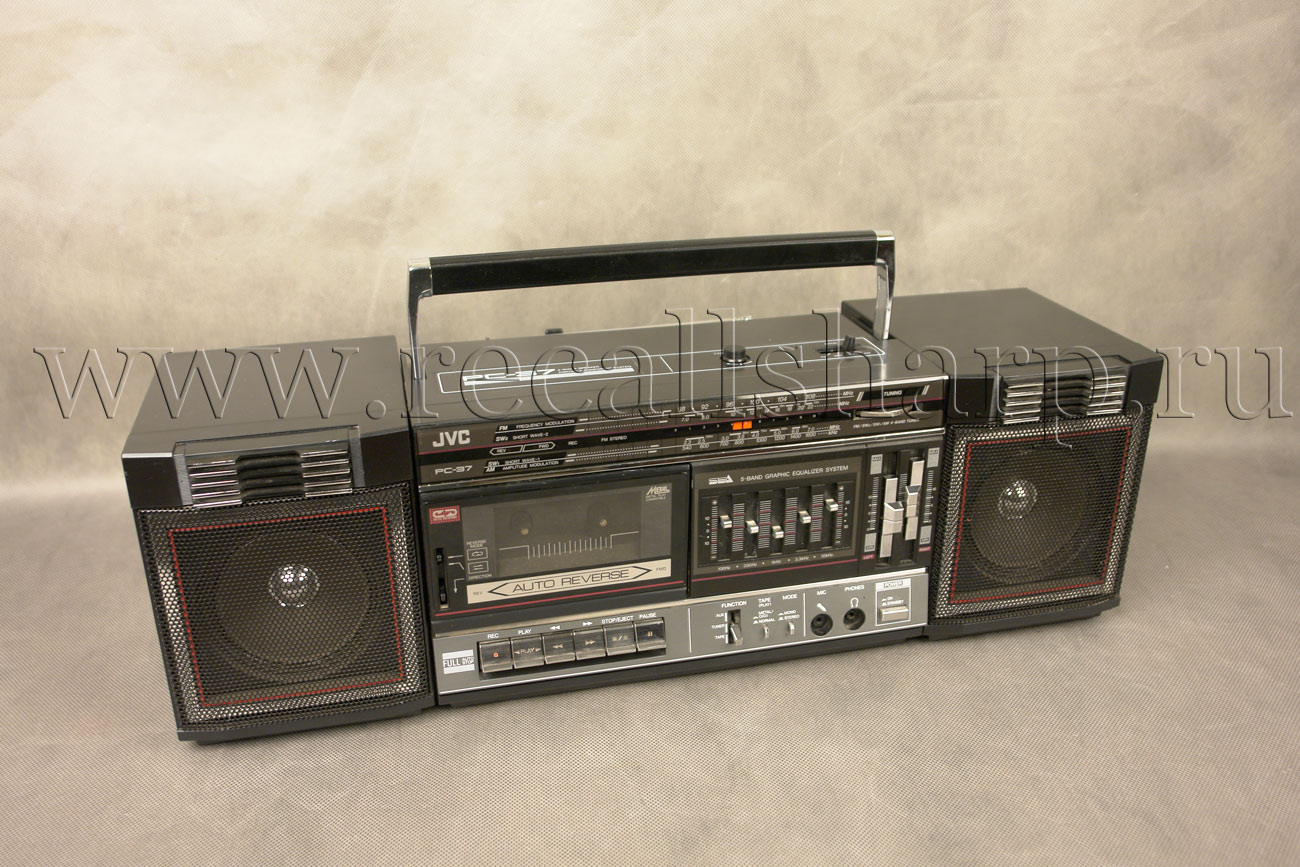

JVC PC-37 J



: 1986


SPECIFICATIONS

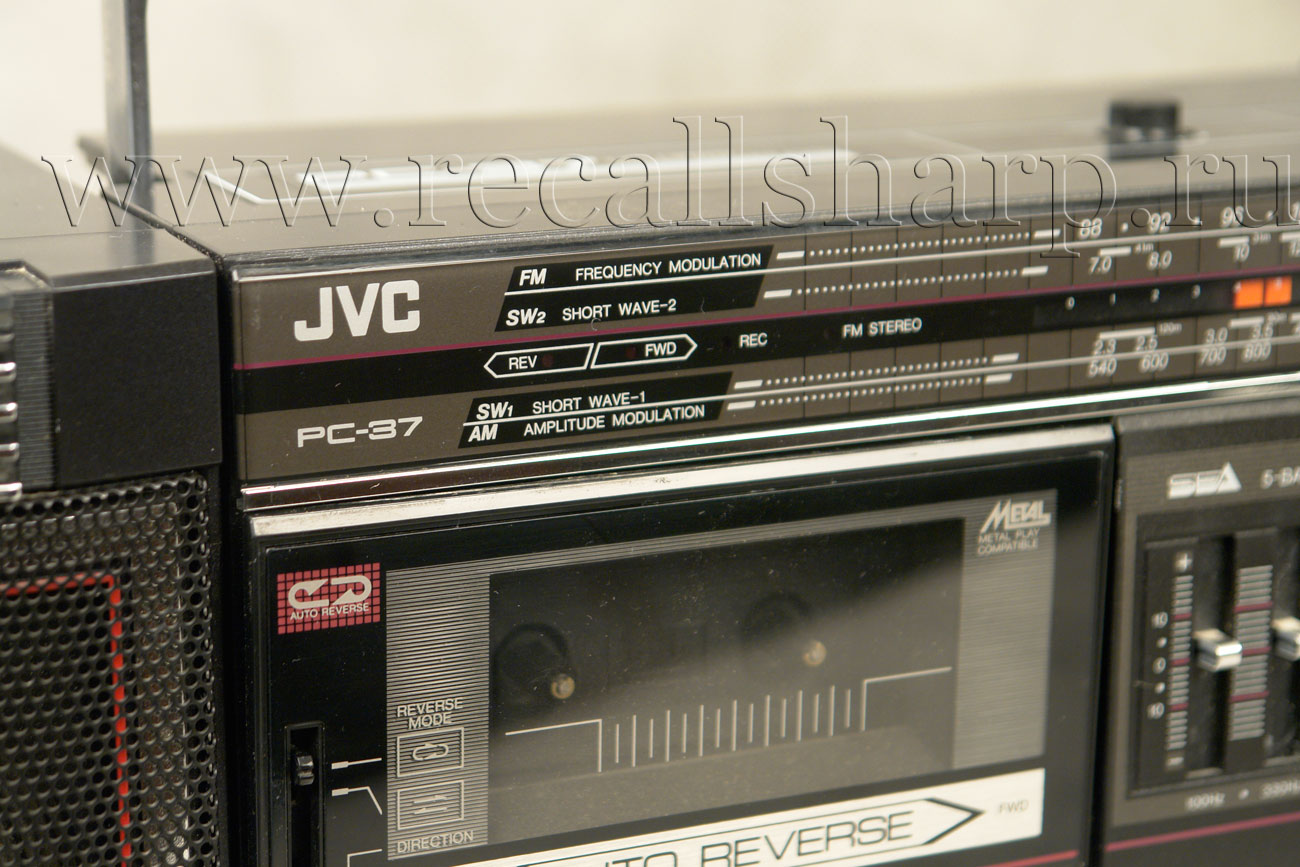

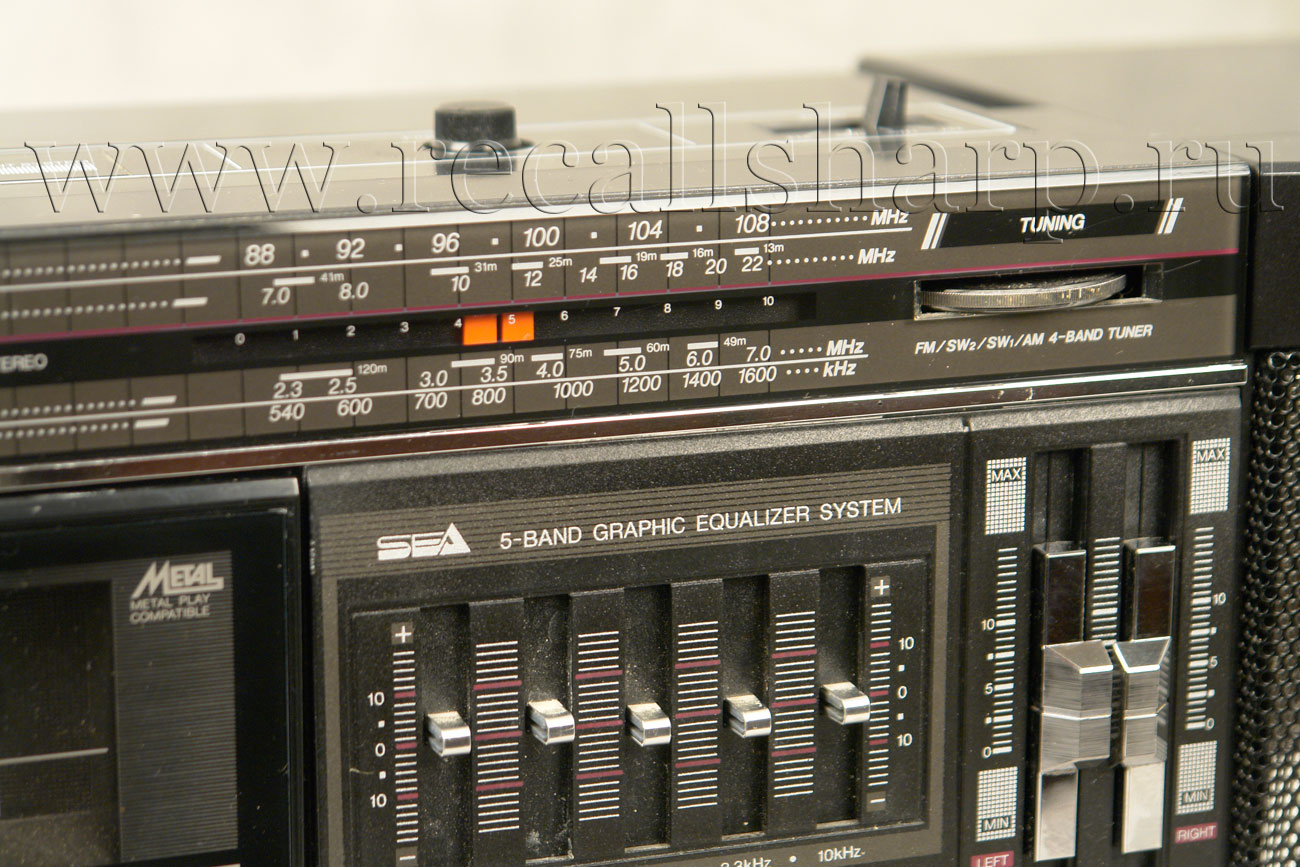

Radio section
Frequency ranges : FM 88- 108 MHz
AM 540- 1600 kHz
SW1 2.3 - 7 MHz
SW2 7- 22 MHz
Antennas : Telescopic antenna for FM
&SW
Ferrite core antenna for AM & SW1
Ext. antenna terminal (75 )

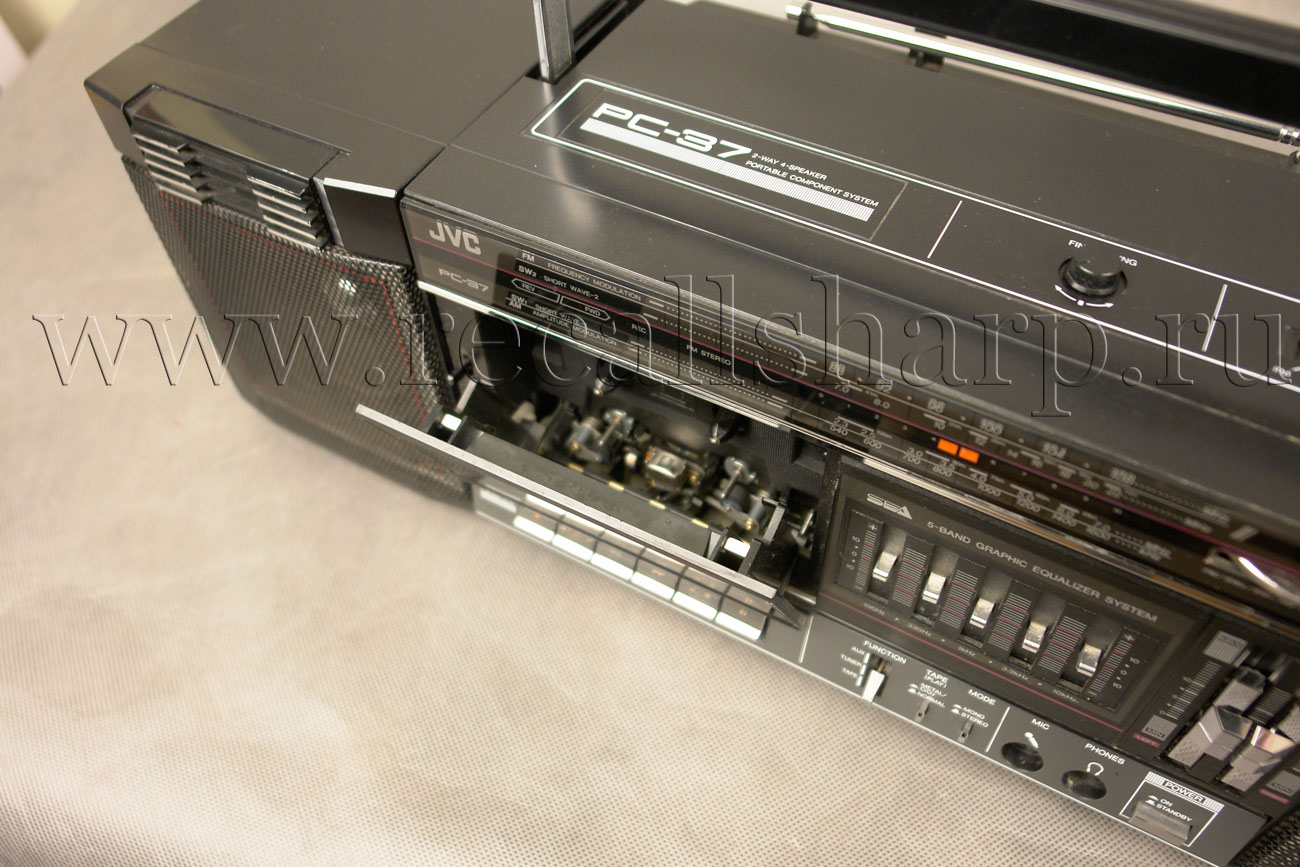

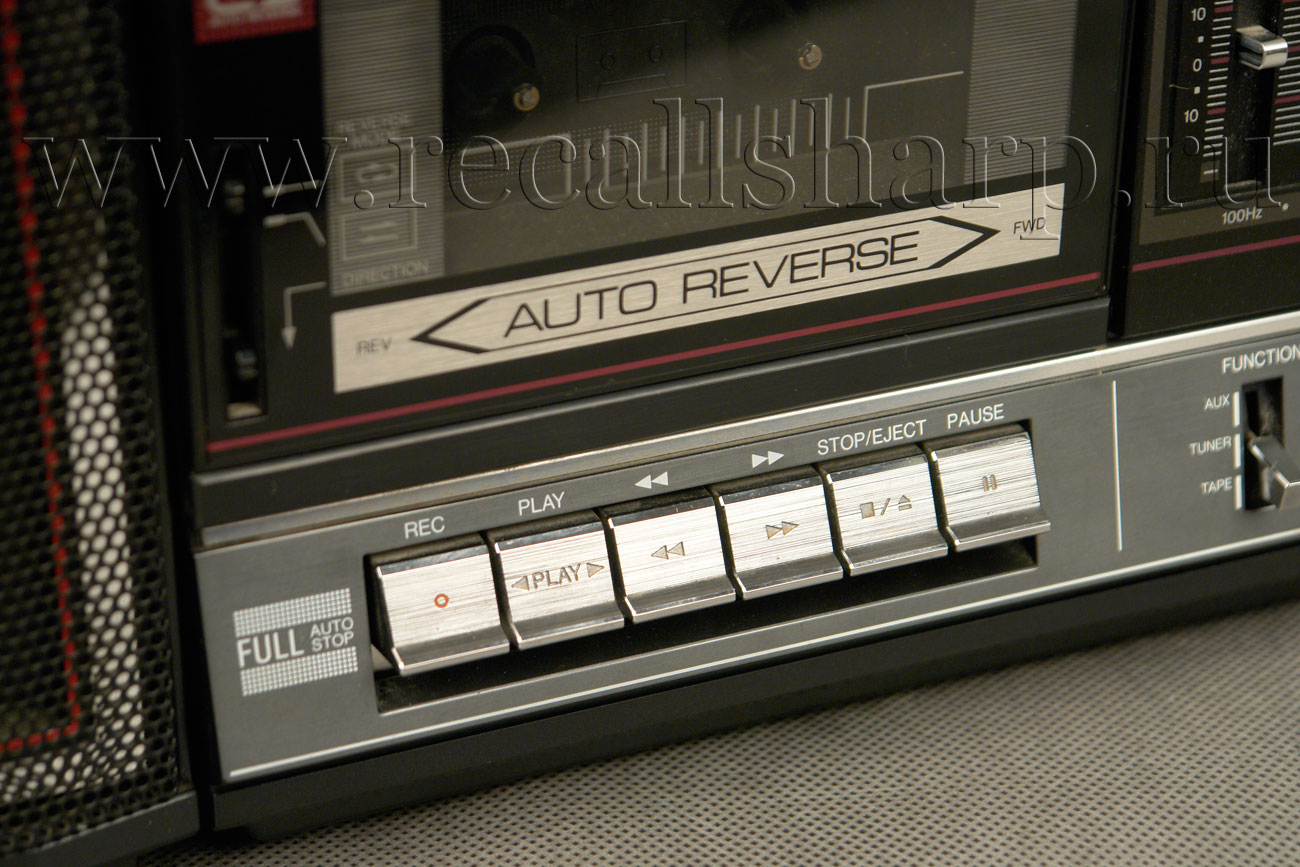

Tape recorder section
Track system : 4-track 2-channel stereo
Motors : Electronic governor DC
motor for capstan&reel
Heads : METAPERM head for playback /recording/ Magnet Head for erasure
Frequency response ;60-12,000 Hz (with normal tape)

Wow and flutter : 0.15 % (WRMS)
Fast wind time : Approx. 130 sec.(C-60 cassette)

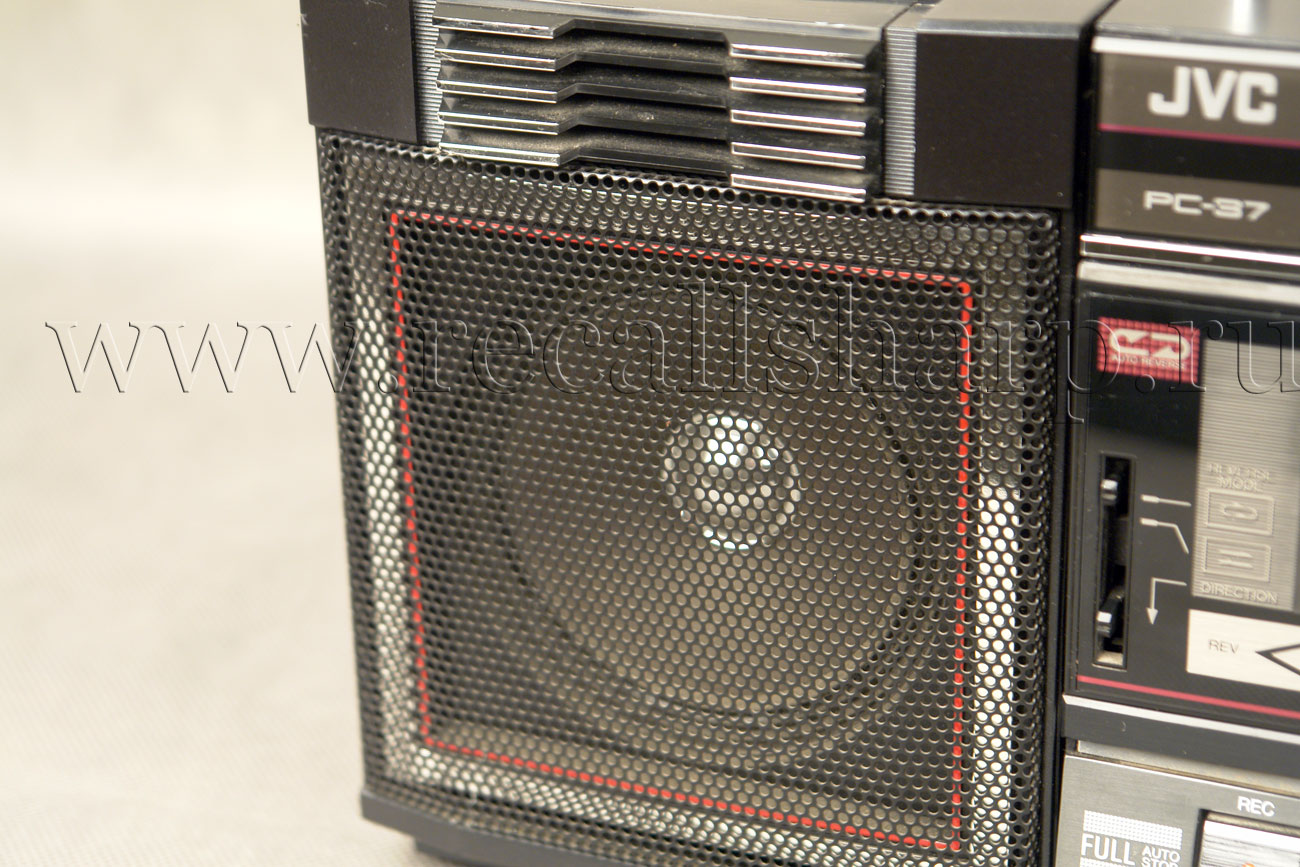

Speaker section (each unit)
Speaker : 10 cm x 1,
1.5 cm x 1
Impedance : 3.2 Ohm
Dimensions : 135(W) x 177(H) x 168(D)mm
Weight : Approx. 0.75 kg
General

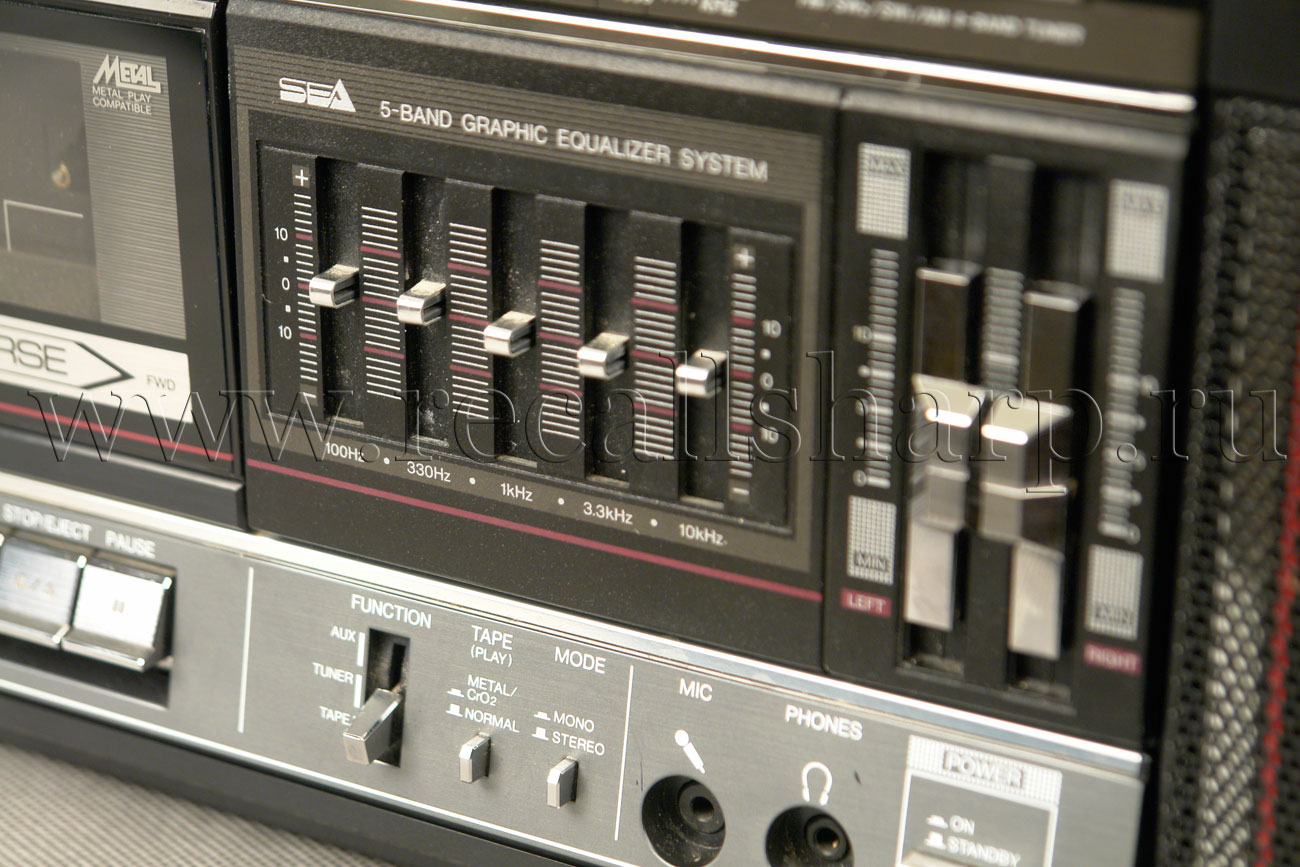

S.E.A characteristics
Center frequencies: 100Hz/330 Hz/1 kHz/
3.3 kHz/10 kHz
Control range :±8 dB

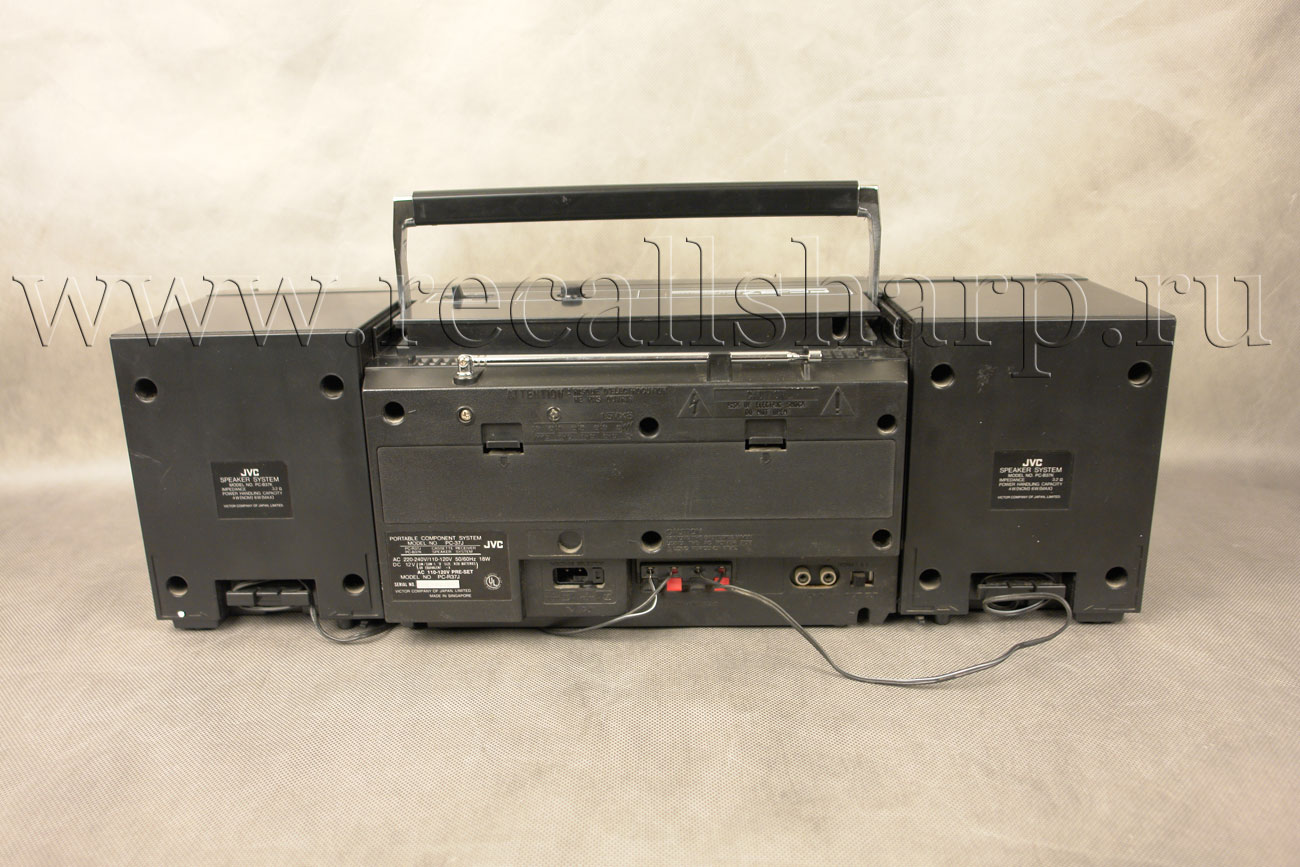

Input jacks : MIC x 1 (Min. input level:
0.8 mV(-62dBV)Matching impedance: 200 Ohm - 2kOhm)
AUX IN x2 (250 mV/ 47 kOhm)
Output jacks :SPEAKER x 2, (matching impedance 3.2- 8Ohm).
HEADPHONES x 1 (Output level: 0~ 30 mW/8 Ohm, Matching impedance: 8 Ohm — 1 kOhm)


Power sources : AC 220 - 240/120-110 V,
50/60 Hz
DC 12 V("R20"x 8),
Power consumption : 18 watts
Dimensions : 556(W) x 182(H) x 188(D) mm
including knobs

Weight :Approx. 4.4kgwithout batteries
Approx. 5.2 kg with batteries



:
