JVC 1927 . : ,

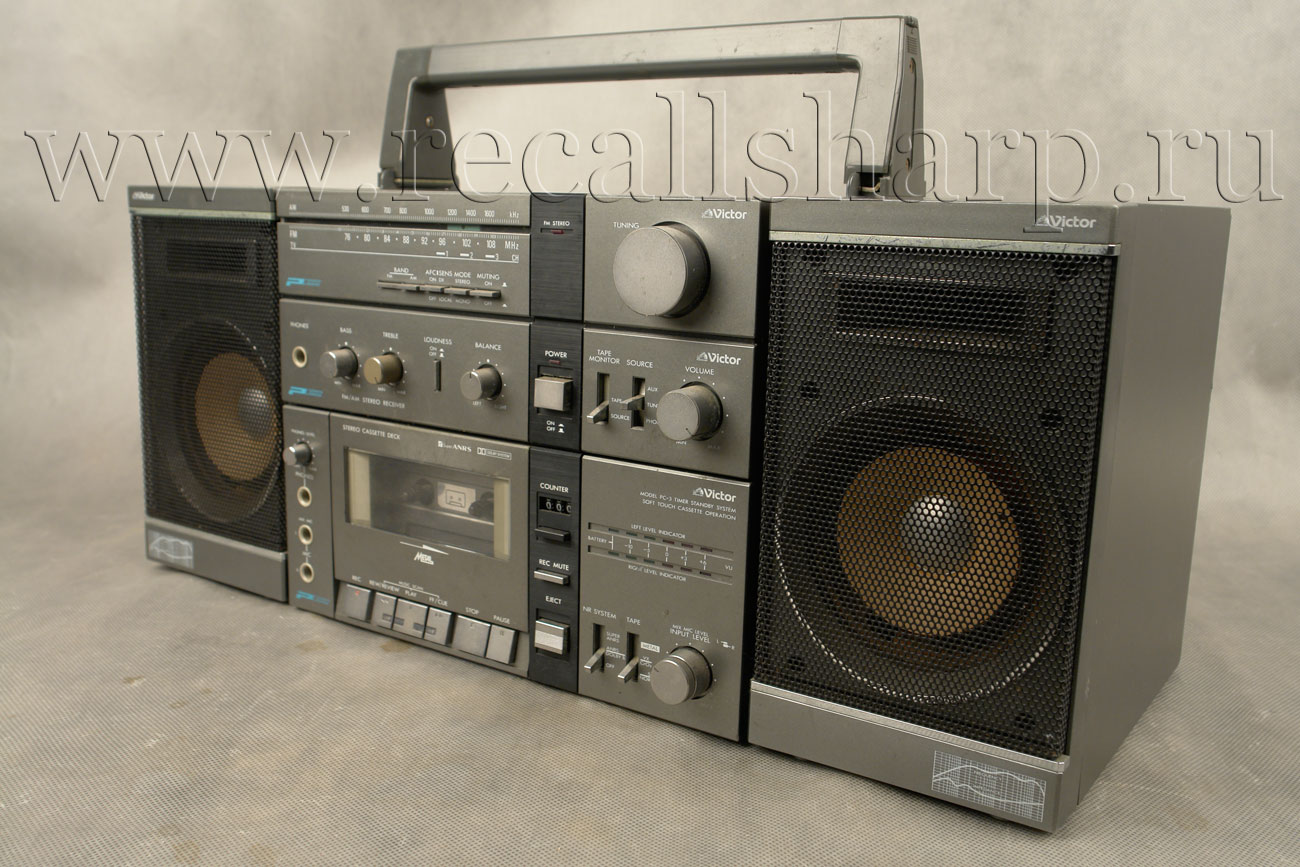

Victor PC-3





SPECIFICATIONS

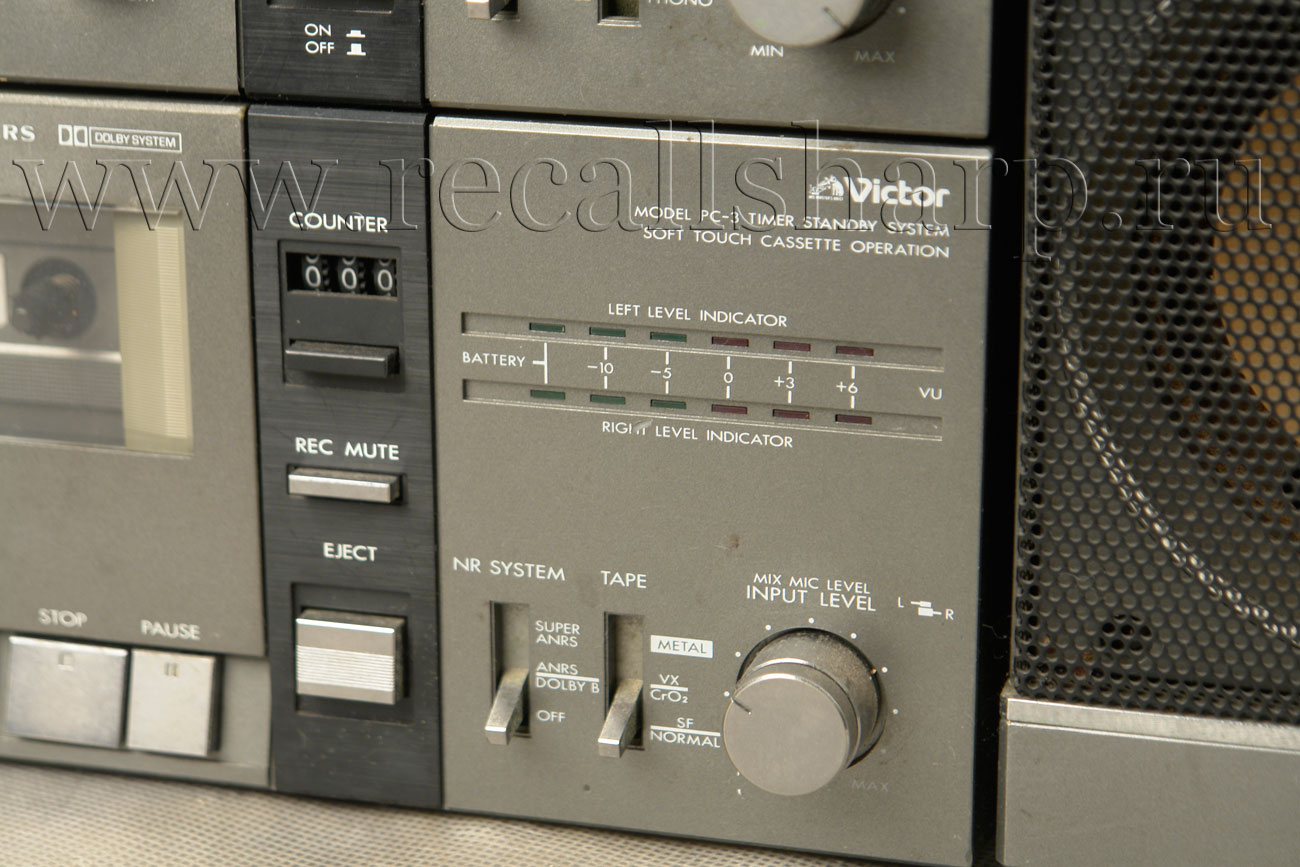

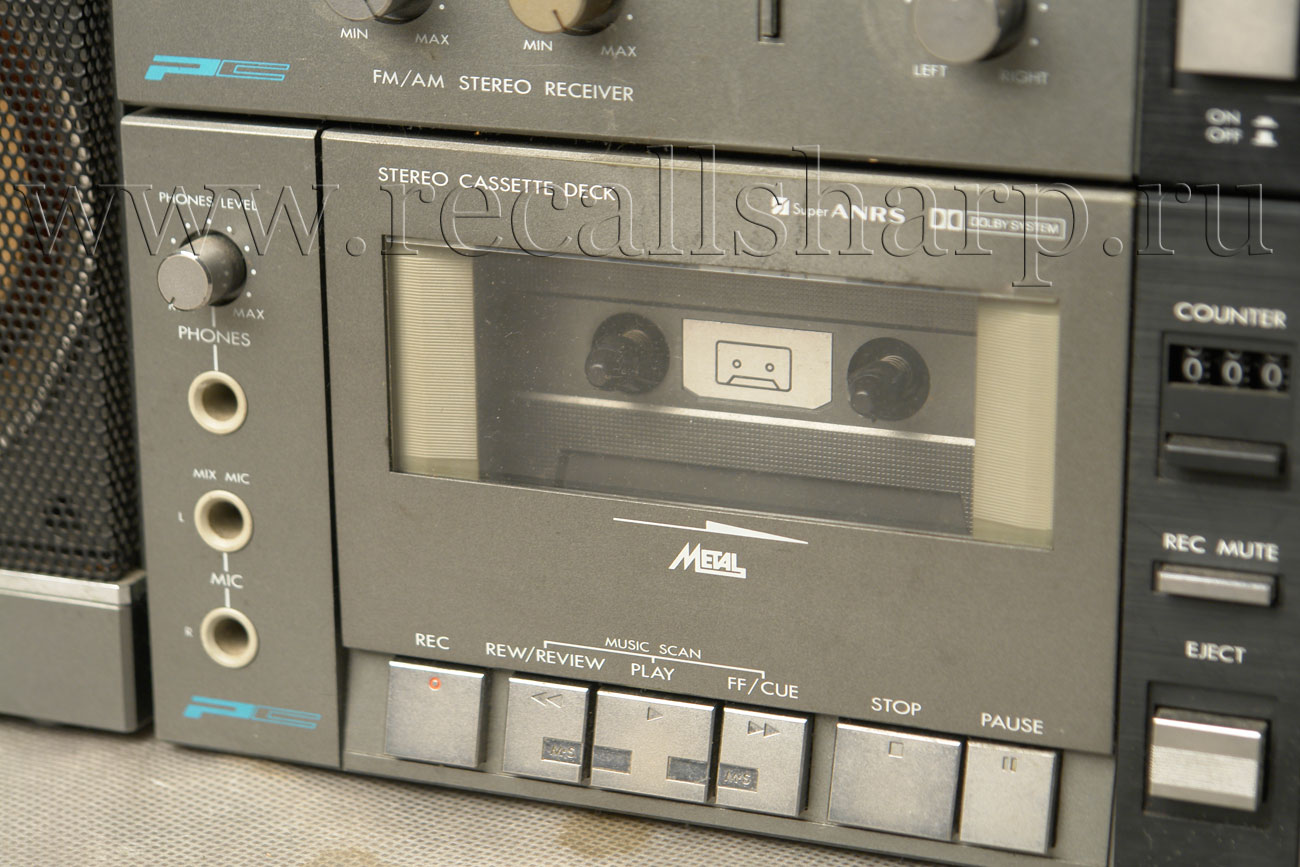

Cassette Deck PC-D3

Track system : 4-track 2-channel stereo

Motors : Electronic governor DCmotor for capstan & reel

Heads : METAPERM head for recording/playback;

2-Gap Ferrite head for erasure


Frequency response : 30 — 17,000 Hz (with metal tape)

30 - 16,000 Hz (with chrome tape)

30 - 15,000 Hz (with normal tape)

Signal-to-noise ratio : 54 dB (weighted, at 1 kHz,

3 %THD with metal tape, with ANRS/DOLBY B NR OFF)

Improved by 5 dB at 1 kHz and by 10 dB at 5 kHz

or more with ANRS/DOLBY B NR ON

Effect of Super ANRS (normal tape)

Improvement of : The same as with AN RS/

S/N DOLBY B NR

Improvement of : 0 VU recording; 6 dB at frequency response 10 kHz

+5 VU recording; 12 dB at 10 kHz

Improvement of : 0 VU recording; 3 % or less distortion at 10 kHz

+5 VU recording; 3 % or less at 10 kHz

Channel separation : 40 dB (1 kHz)

Crosstalk : 65dB(1kHz)

Third harmonic distortion : 0.5 % (metal tape, at 1 kHz)

Wow and flutter : 0.05 % (WRMS)

Fast forward time : Within 95 sec (C-60 cassette)

Rewind time : Within 95 sec (C-60 cassette)

Bias system : AC bias

Input terminals : MIC x 2 (Maximum

sensitivity: 0.3 mV/-68 dBs,

Matching impedance: 200Ω- 2 kΩ), LINE IN x 2 (Minimum input level: 100 mV/-18 dBs, Input impedance: 47 kΩ)


Output terminals : LINE OUT x 2 (Output level: 300 mV, Output impedance: 5 k!2),

PHONES x 1 (Output level: 0-0.3 mW/8 12, Matching impedance: 8Ω 1 kΩ),

DC OUT x 1 (12 V)

DIN socket : Min. input level: 0.1 mV/kΩ

Input impedance: 10kΩ

Output level: 300 mV

Output impedance: 5 kΩ

Matching impedance: 50 kΩor more

Remote control : 8-pin DIN connector terminal

(Rewind, fast forward, play, record, stop, pause, record muting are remote controlled with optional R-15E unit.)

Semiconductors : 6 ICs, 42 transistors

Power sources : DC 12 V ("R20" x 8, optional BP-12K rechargeable battery pack),

EXTDC(car battery via optional CN-333K car adapter)

Dimensions : 270(W) x110(H)x218(D)mm

including pads and knobs

Weight : 3.4 kgwith batteries

2.6 kgwithout batteries

Receiver PC-R3

Circuitry : BTL-connected SEPP circuit

Power output: Max. 40 W (20W + 20W)6Ω,AC

Frequency response: 30 Hz to 30,000 Hz (±3 dB)

Signal-to-noise ratio: 75 dB (new IHF)

Tone control: Bass 8 dB (100 Hz),

Treble 8 dB (10 kHz)

Input terminals: PHONO x 2 (3 mV/47 kΩ),

TUNER x 2 (300 mV/68 kΩ),

AUX x 2 (300 mV/68 kΩ),

TAPE PLAY x 2 (300 mV/68 kΩ)

Output terminals: TAPE REC x 2 (300 mV/ 10 kΩ),

SPEAKER x2 (load impedance 6 8Ω)

DC OUT x 2 (12 V, switched)

Semiconductors: 5 ICs, 23 transistors

Power sources: AC 100 V, 50/60 Hz,

DC 12 V (supplied from the deck; car battery via optional CN-333K car adapter)

Dimensions: 270(W) x 110(H) x 229(D)mm

including pads and knobs

Weight: 3.5 kg

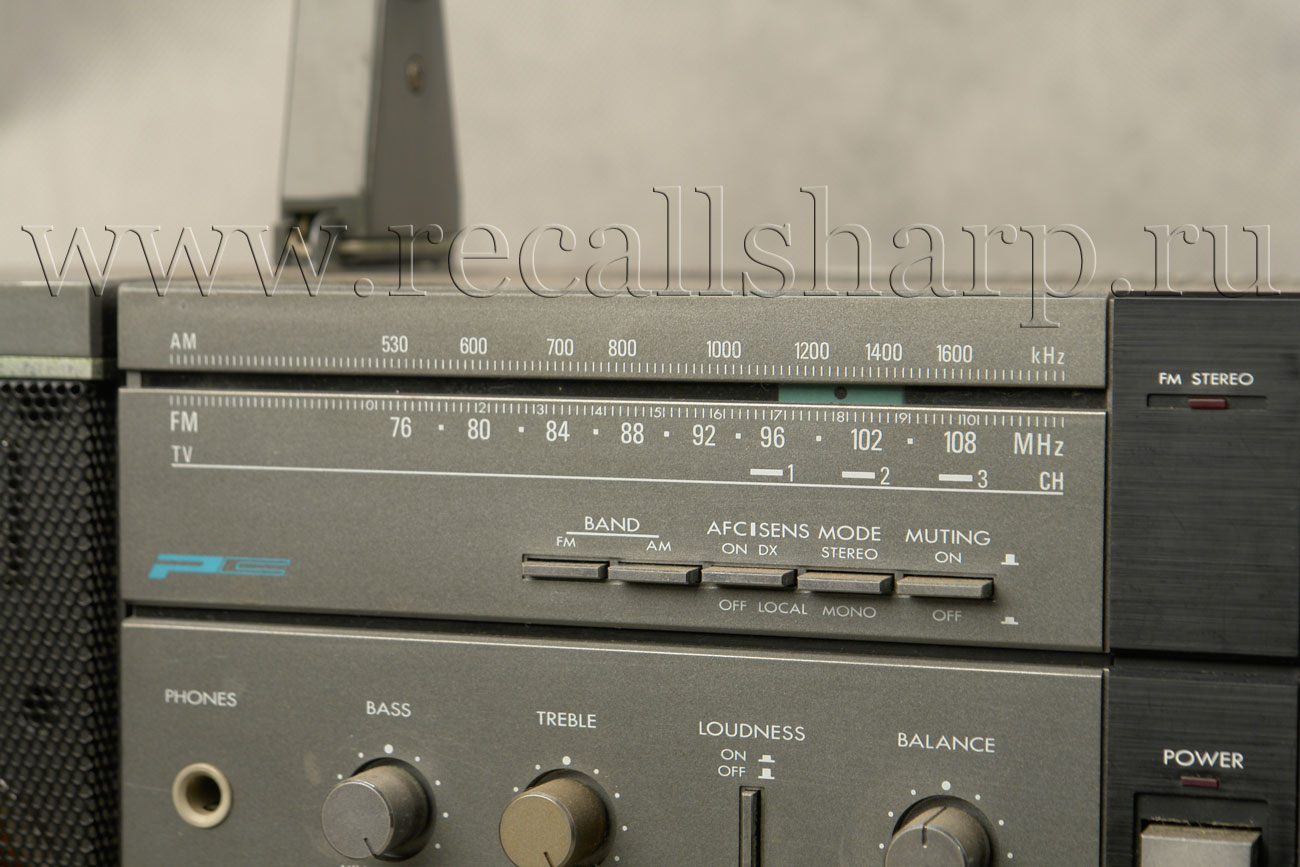

FM tuner section

Frequency ranges : FM 76- 108 MHz

AM 530 - 1600 kHz

Usable sensitivity2.8μV/75Ω


Signal-to-noise ratio60 dB (MONO)


Total harmonic distortion0.35 % (1 kHz)


Capture ratio Selectivity2.0 dB


Stereo separation40 dB (1 kHz)


Frequency response25 - 15,000 Hz



AntennasTelescopic antenna x 2 Ext. antenna terminal (300Ω)


AM tuner section

Sensitivity AM250μV/m (IEC)



Total harmonic distortion0.6 %


Signal-to-noise ratio 50 dB


Selectivity 30 dB


Antenna Telescopic antenna (FW)

Ferrite core antenna (AM)

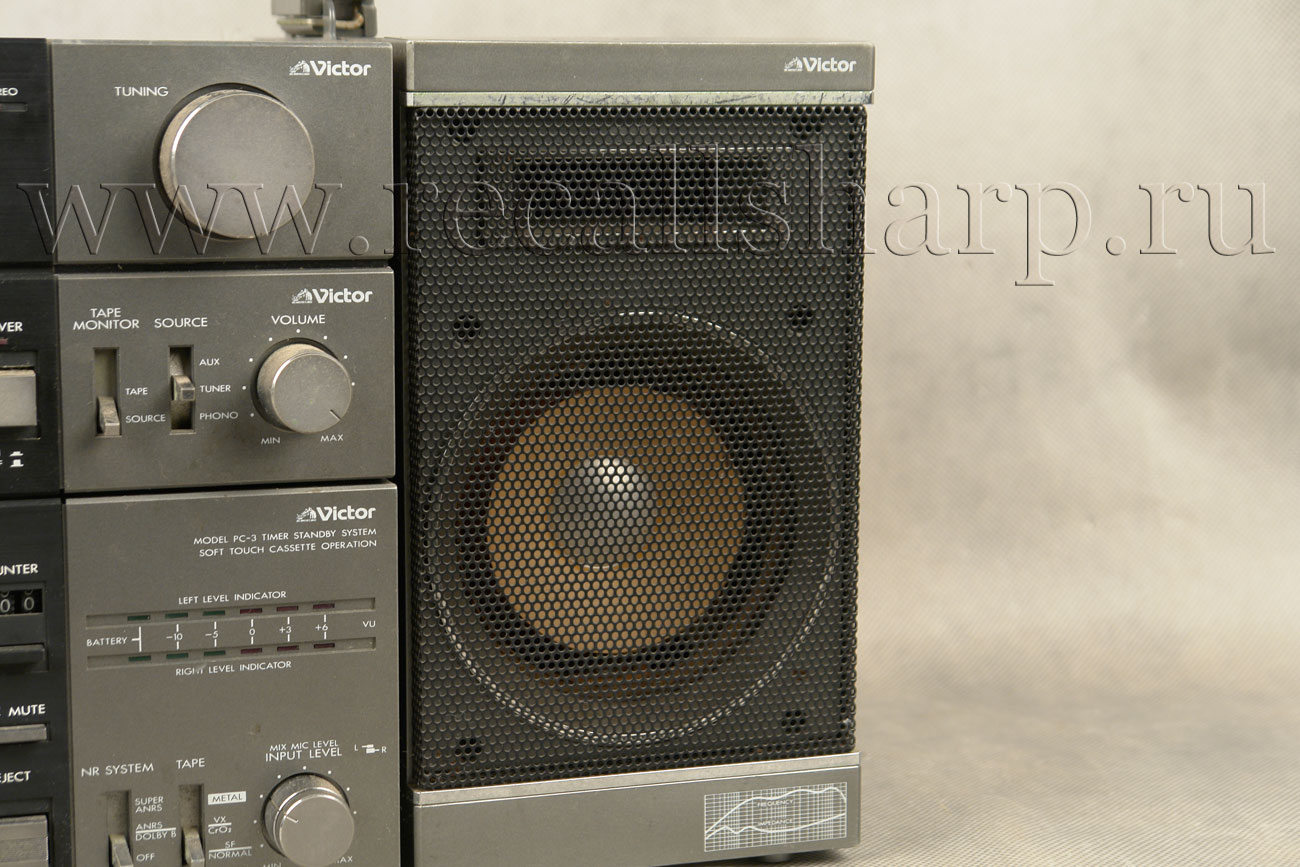

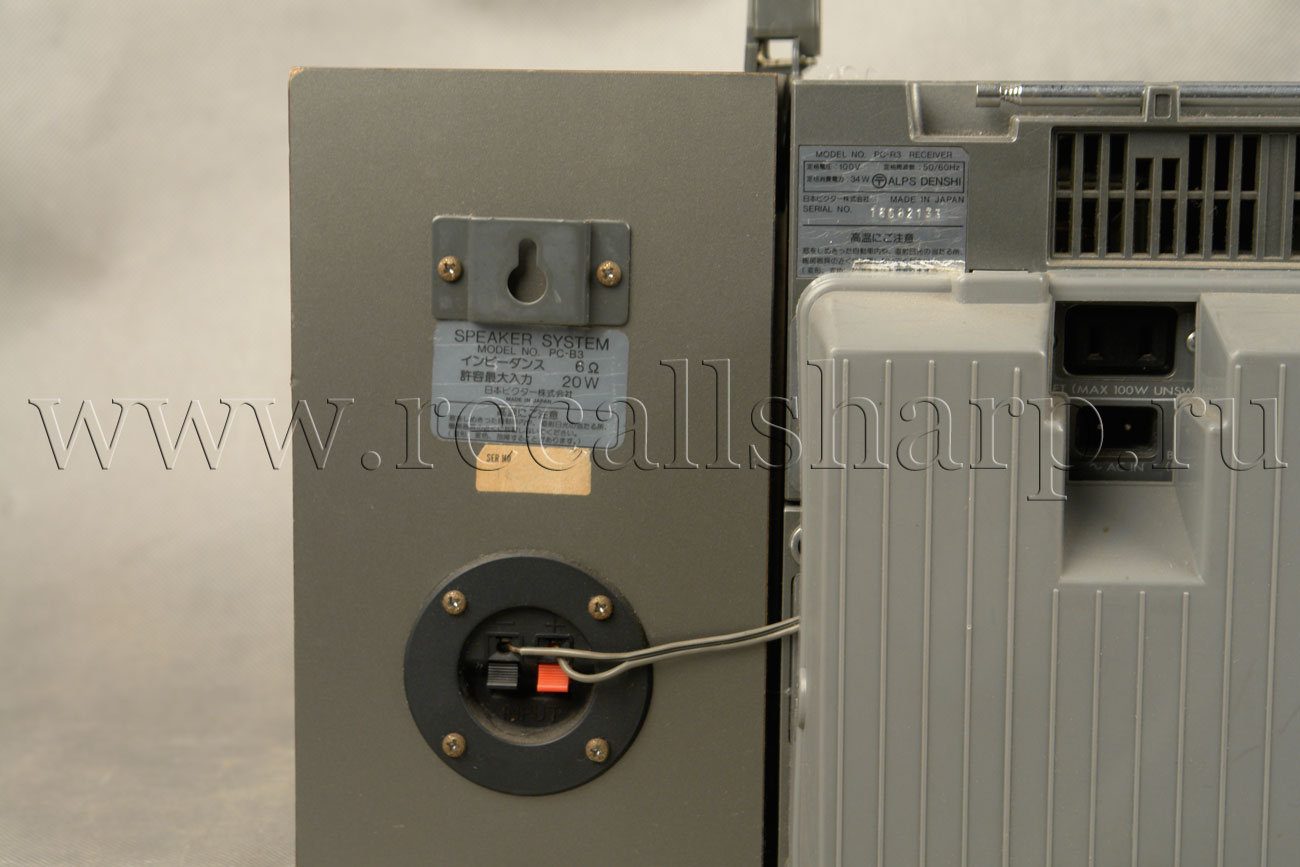

Speaker PC-B3


Type Full-range bass reflex system (book-shelf type)


Speaker units 10 cm(4") cone


Impedance 6Ω


Playback frequency response75 - 17,000 Hz


Output sound pressure level 90 dB


Rated input 15 watts

Maximum input 25 watts

Dimensions 124(W)x 218(H) x206(D)mm (4-15/16" x 8-5/8" x 8-1/8") including pads

Weight 2.0 kg



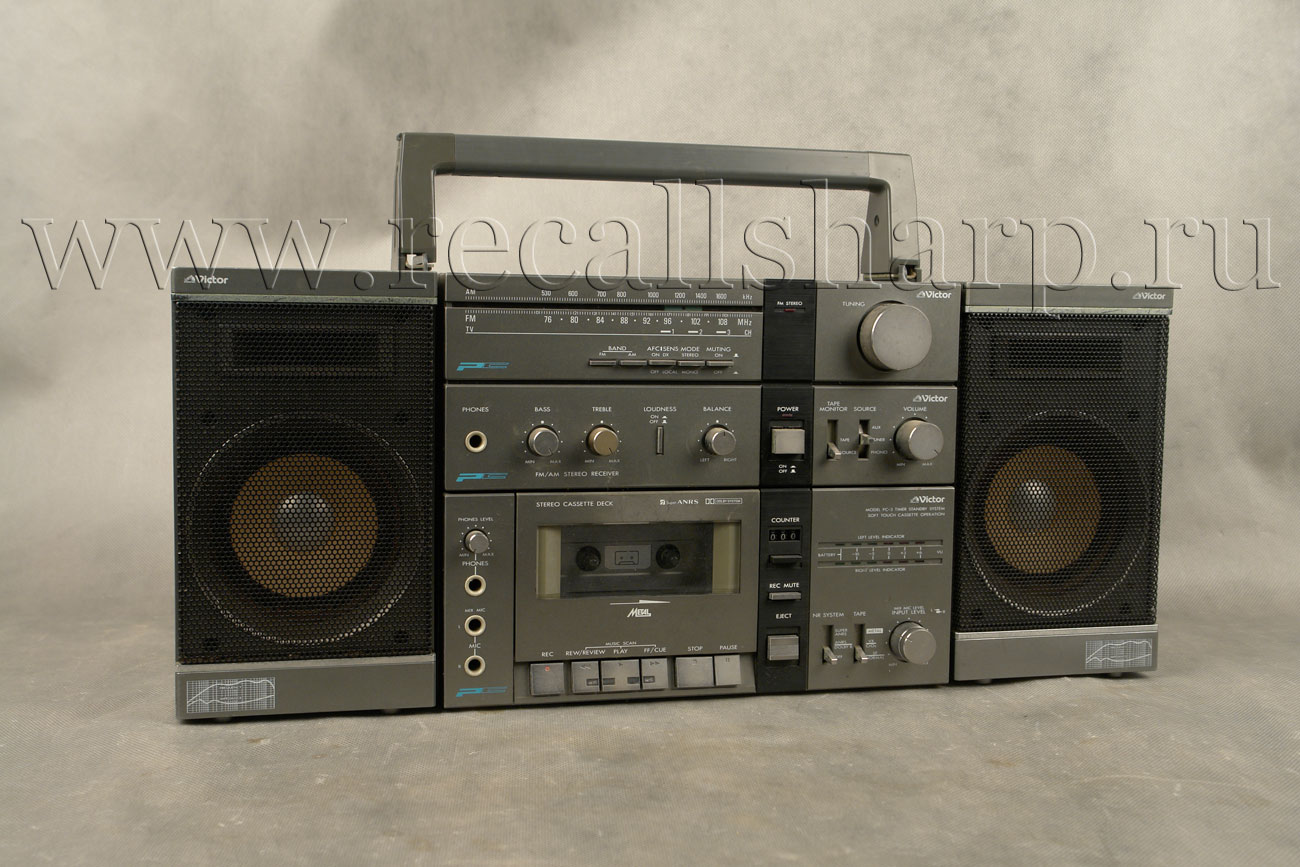

System PC-3

Power sources AC 240/220/110 V, 50/60 Hz

Dry batteries DC 12 V ("R20" x 8)

Rechargeable battery pack DC 12 V (optional BP-12K)

Car battery DC 12 V via optional CN-333K car adapter

Power consumption 34 watts (AC)

Dimensions : 524(W) x 294(H) x 258(D)mm

including pads, knobs,

handle with all components joined with provided fixtures


Weight : 11.4 kg(includingfixtures and batteries)



:
JVC PC-3 C
