JVC RC-M60 JW



: 1980


Specifications
Semiconductors : 11 ICs (including 2 for the microphone),
87 transistors (including 2 for the motor)
Speakers: 16cm (3.2 Ohm) x 2,
5cm (4Ohm) x 2

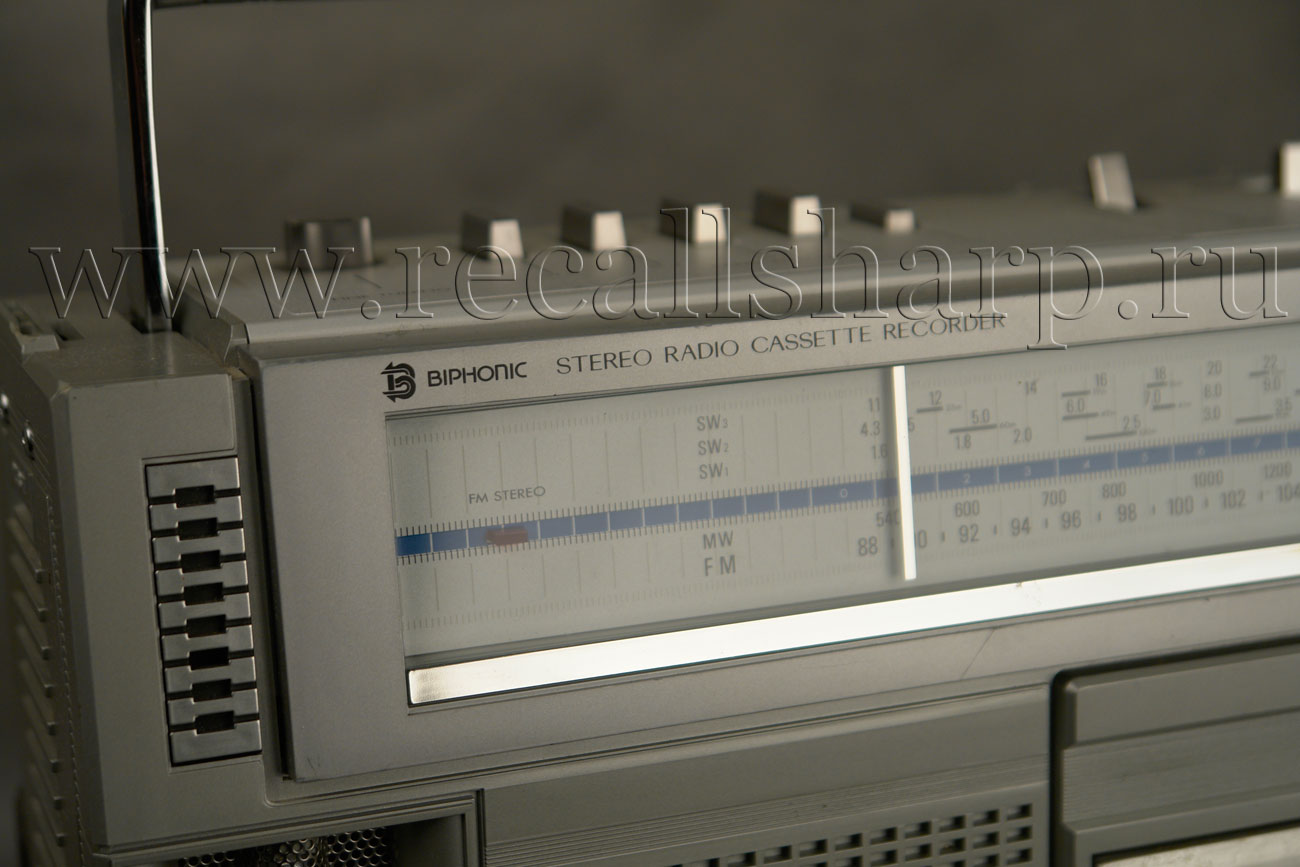

Tuner section
Frequency ranges : FM 88—108MHz
MW 540 - 1600kHz
SW1 1,6-4,3 MHz
SW2 4.3-11.0 MHz
SW2 11.0 - 26 MHz
Antennas : Telescopic antennas for FM, SW
Ferrite core antenna for MW & LW

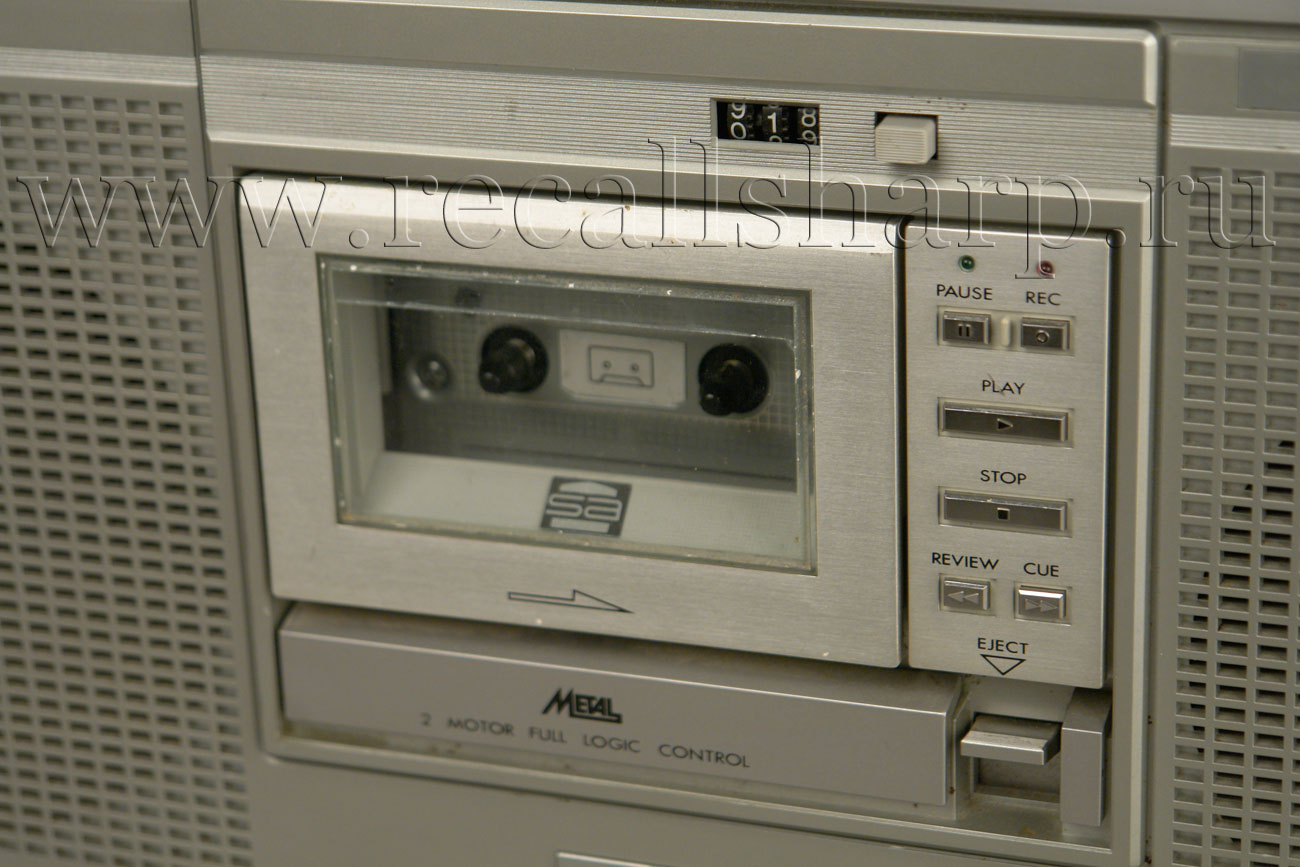

Tape recorder section
Track system : 4-Track 2-channel stereo
Frequency response :30 - 16,000Hz (with metal tape)
30 - 15,000Hz (with chrome tape)
30 - 14,000Hz (with normal tape)
Heads : SA head for recording/playback
2 Gap SA head for erasure
Motors : Electronic governed DC motor for
capstan DC motor for reel
Wow & flutter : 0.06% (WRMS)
S/N ratio ; 50dB
Rewind time : Within 90 sea (C-60 cassette)
Fast forward time : Within 90 sec. (C-60 cassette)
Amplifier section
Power output : 8W(4W+4W) (DC) at 10% THD

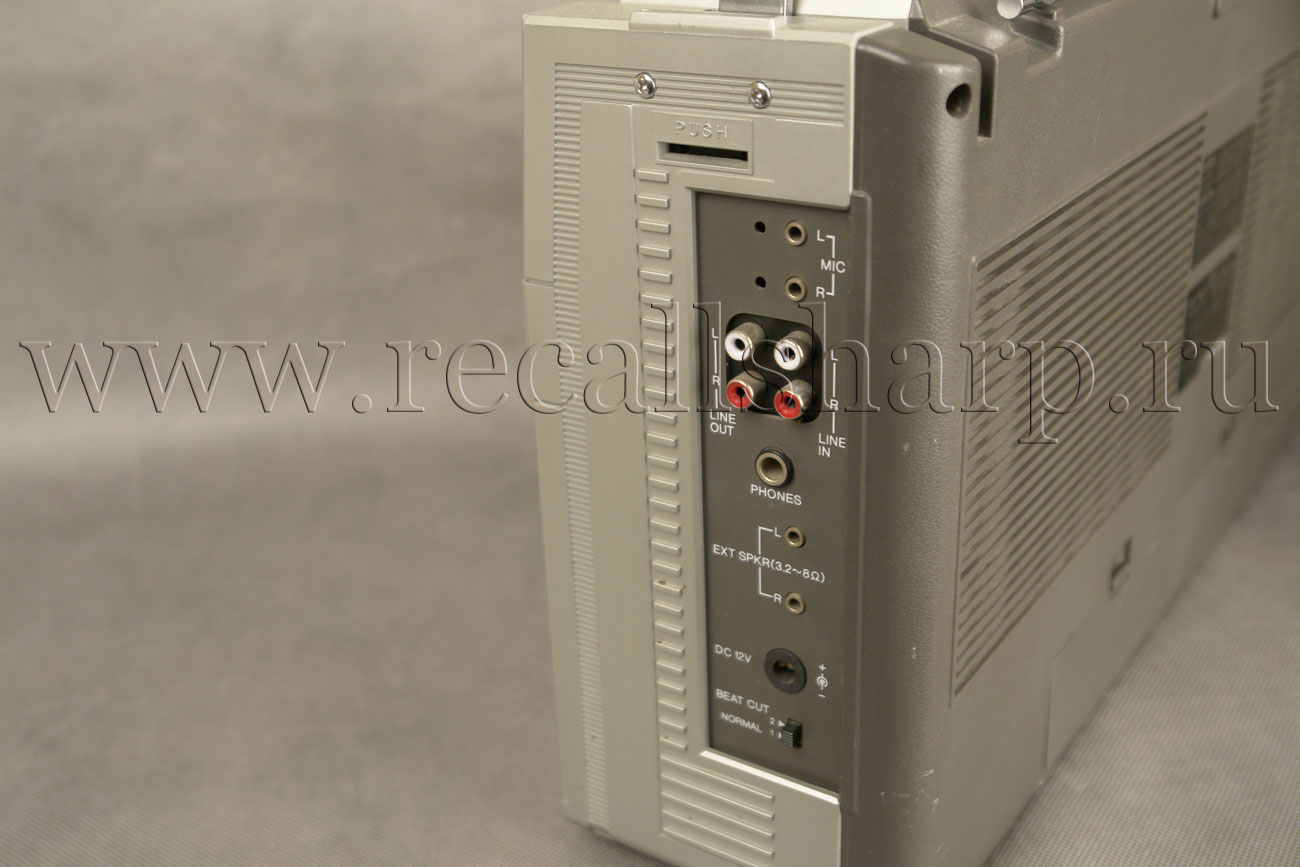

Max. 12W (6W+6W) Input jacks : Mic x 2 (low impedance)
Remote jack x 1 Output jacks : Ext. speaker x 2 (load impedance3.2 ~ 8
Ω)
Headphones x 1
Input/output jack :
Power supply : DC 12V (8 "R 20" cells)
Car battery through a car batteryadapter
AC 240/220/110V, 50/60Hz
Power consumption : 18W
Dimensions : 501(W) x 267(H) x 127(D)mm
Weight : 5.8kg (without batteries)
6.6kg (with batteries)

:
JVC RC-M60 L
