PIONEER Nozomu Matsumoto 1937 -8

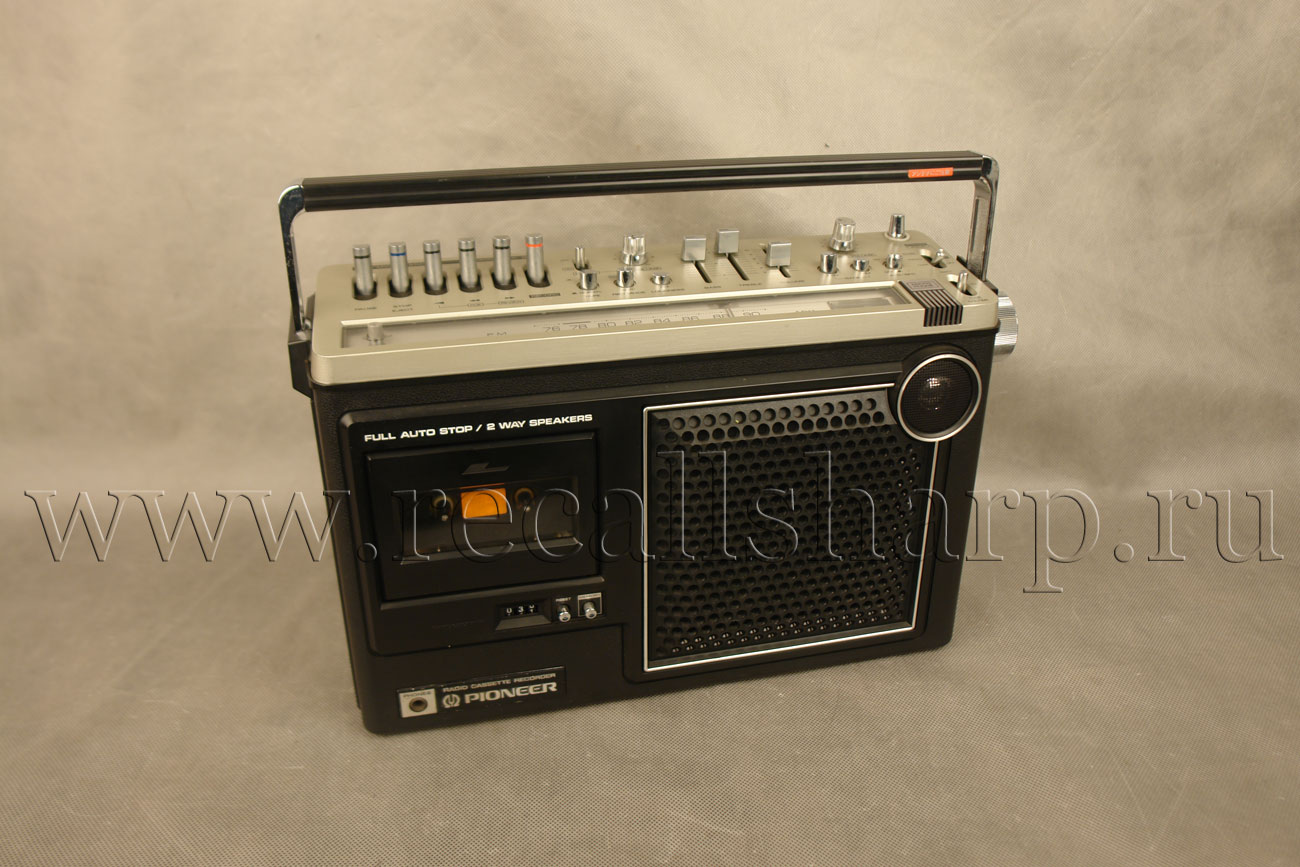

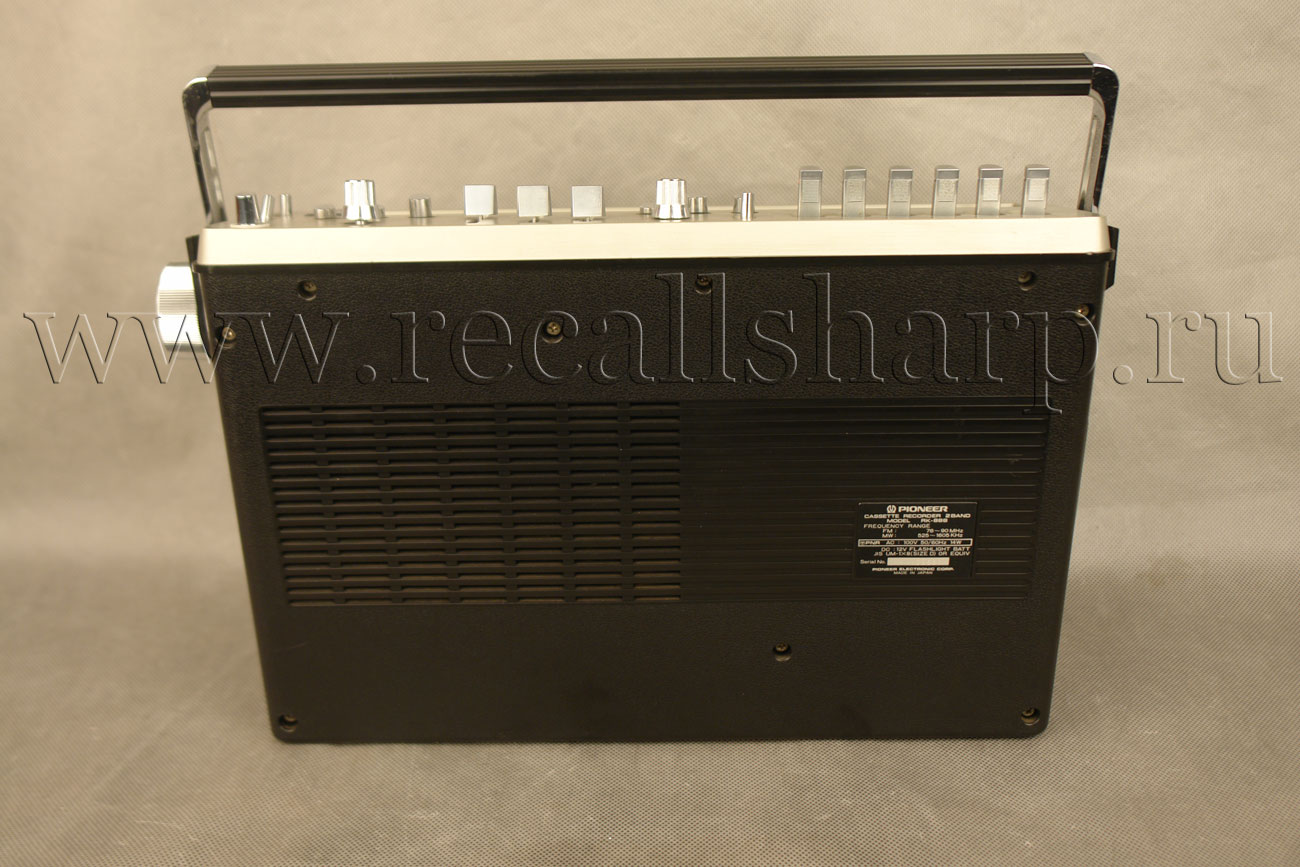

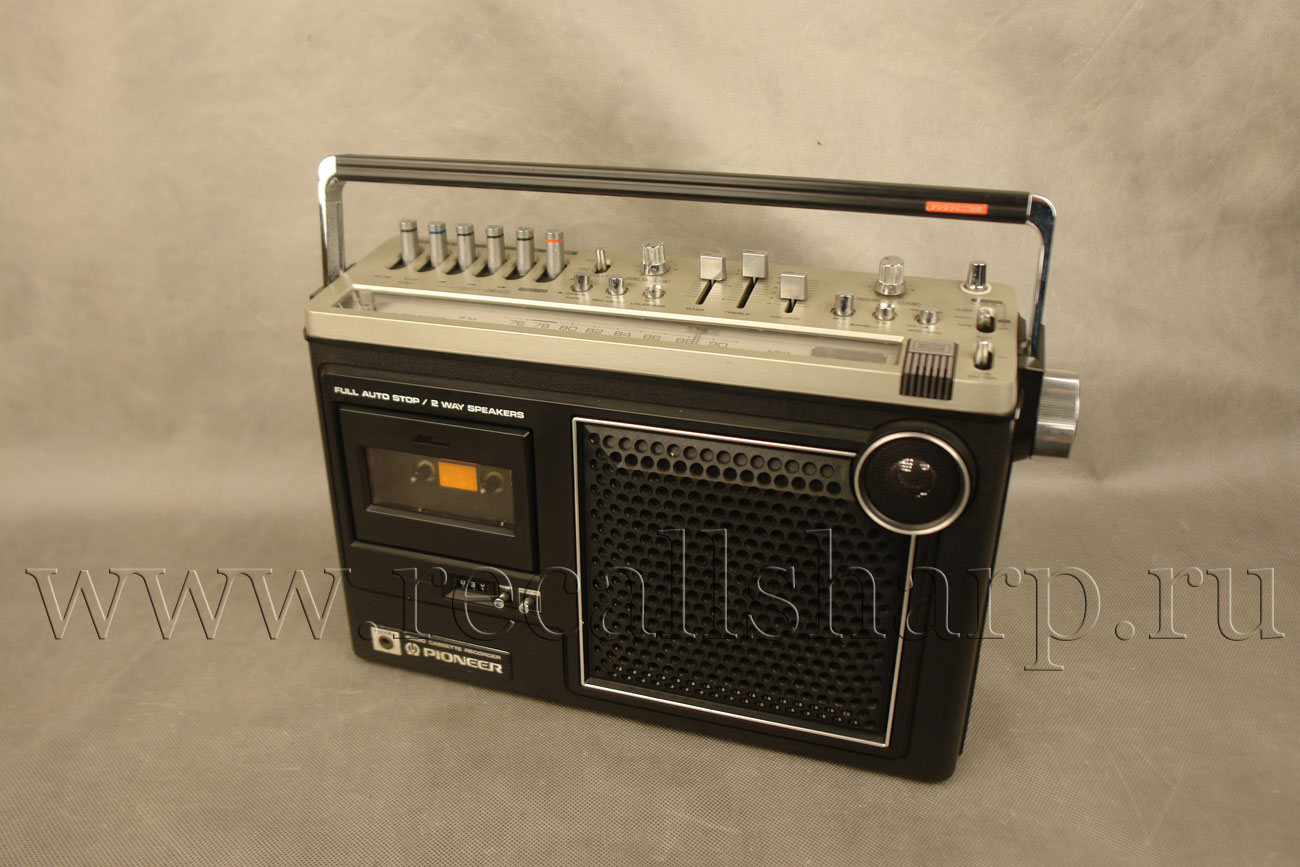

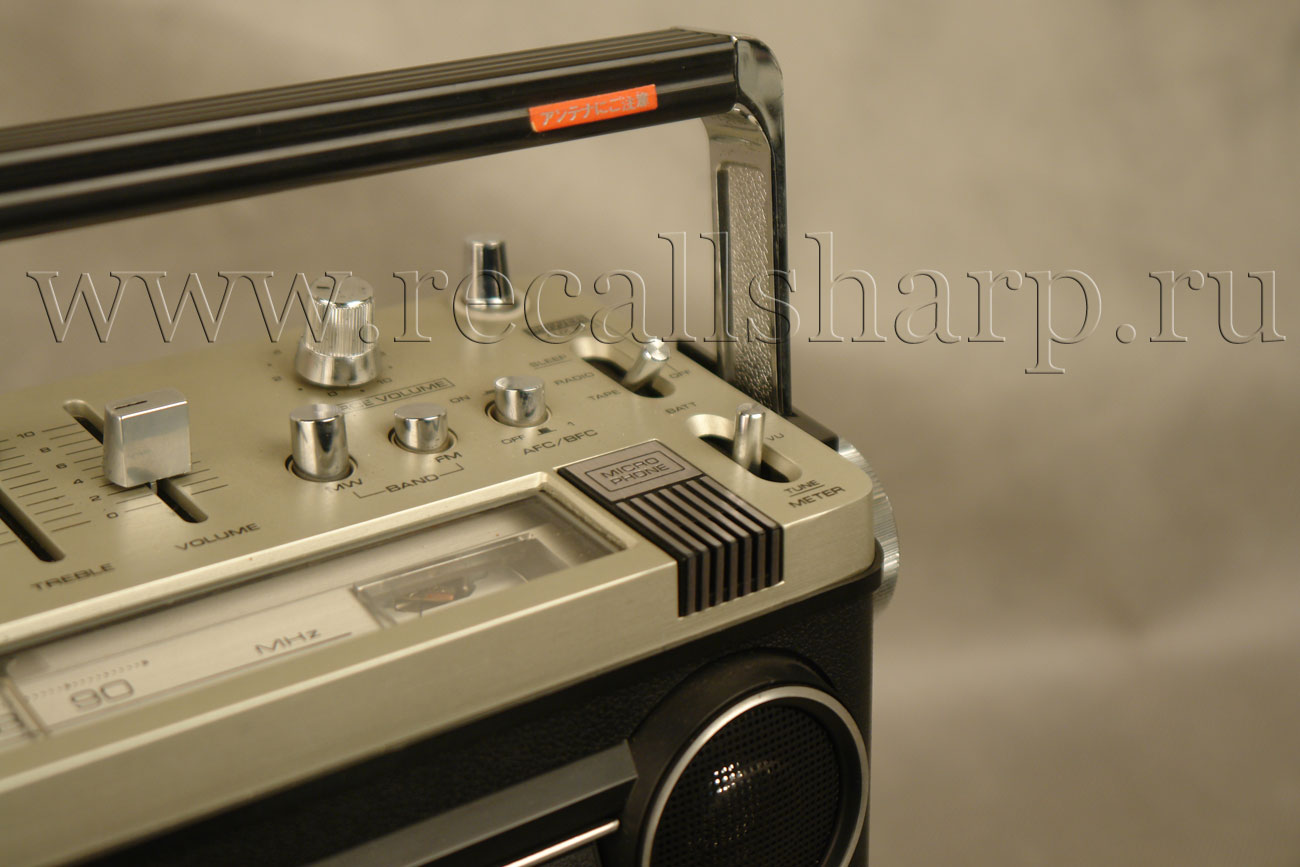

Pioneer RK-888



: 1976


Specifications

Max. music power...….....3000mW EIAJ(8Ω,AC/DC 10% THD)

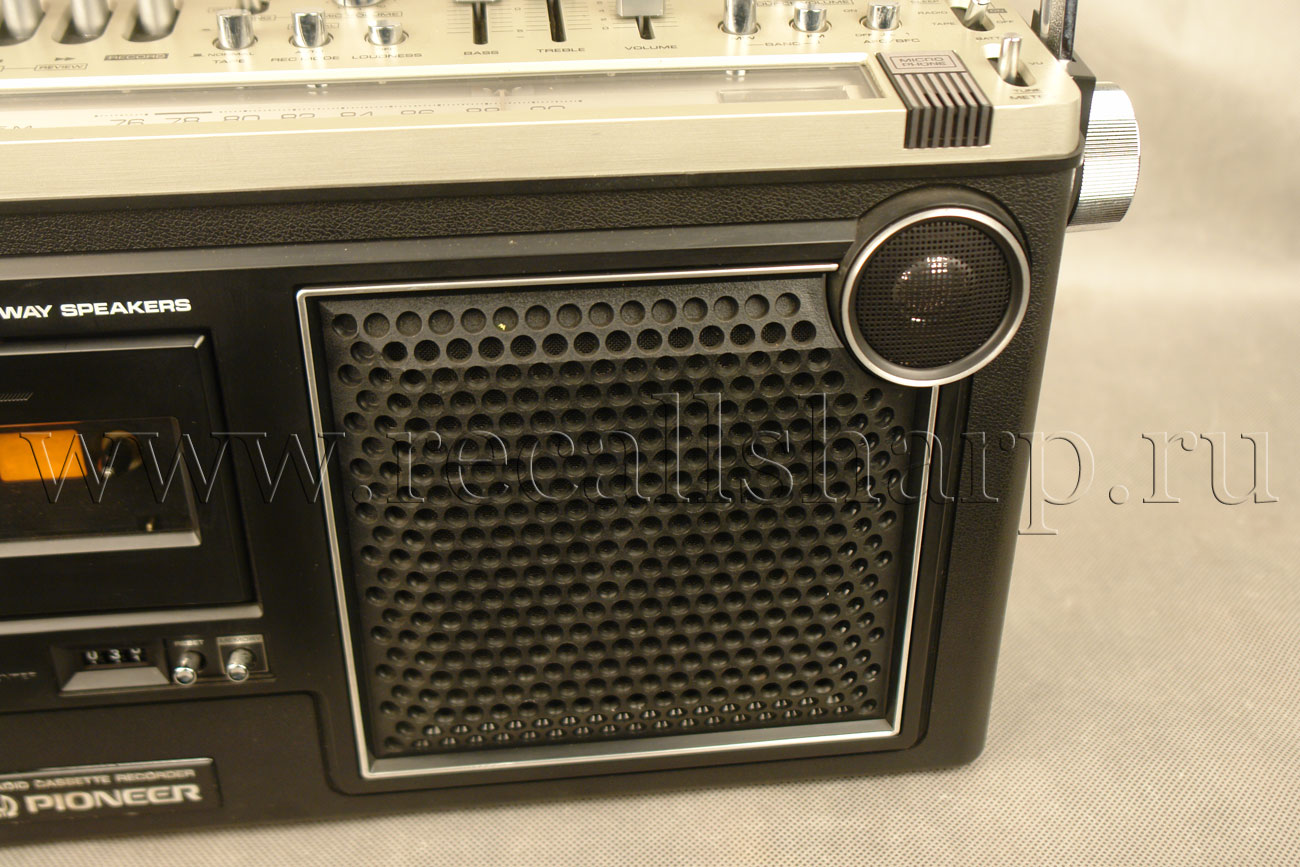

Speakers ................................. 16cm Woofer
4,2cm Tweeter

TapeRecorder

Track System 2-track 1 channel (monaural)

Tape PHILIPS compact cassette tape

Recording system AC-bias AC-erase

Tape speed 4.8cm/sec

frequency ................50~10,000Hz (±3dB) (Normal tape)

50~12,000Hz (3dB) (Cr02 tape)

S/N ratio..................................45dB

Wow&flutter..............................0.2%WRMS

Semi-Conductors IC,s -2

Transistors -11

Diodes -16

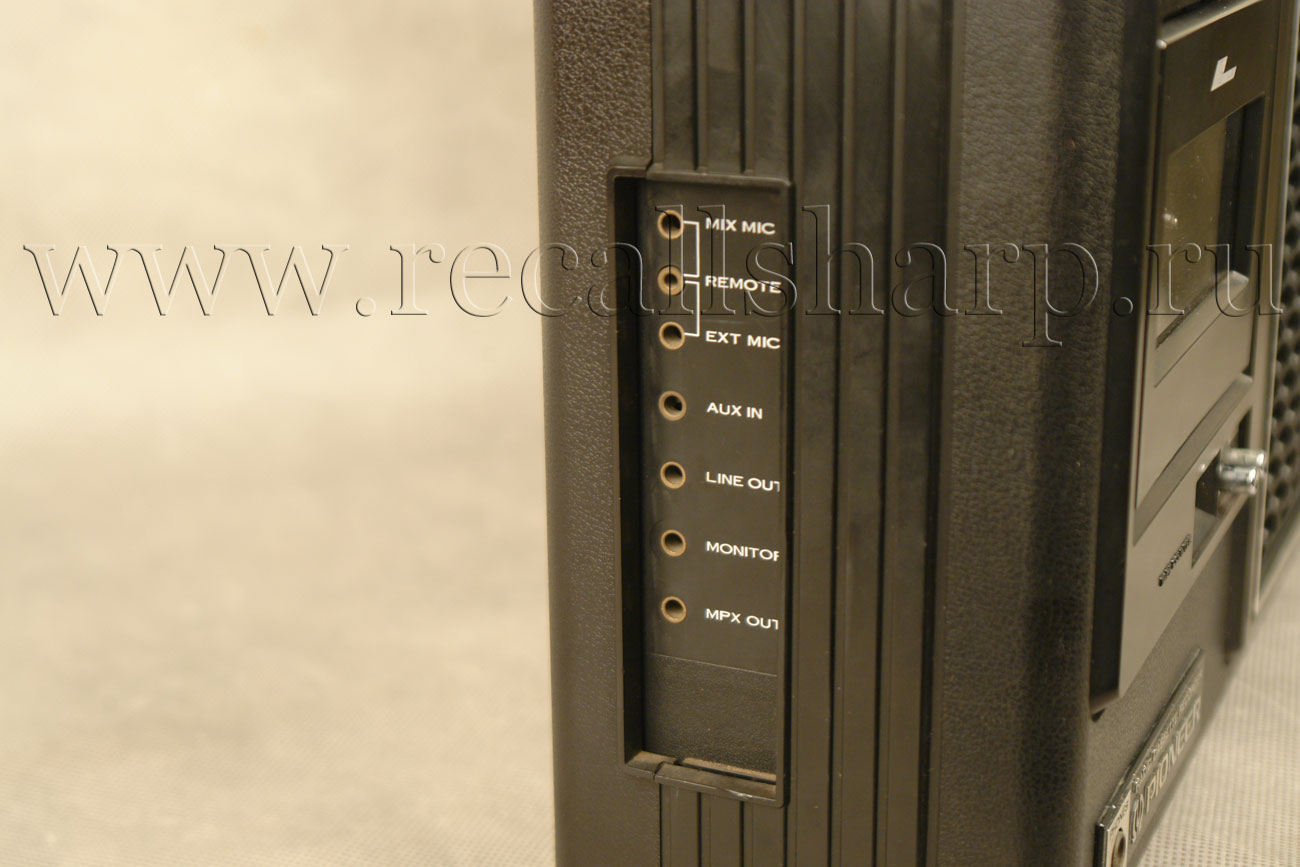

Input.......................................AUX, PHONO, MIC (also functions as MIX
MIC), EXT. ANT

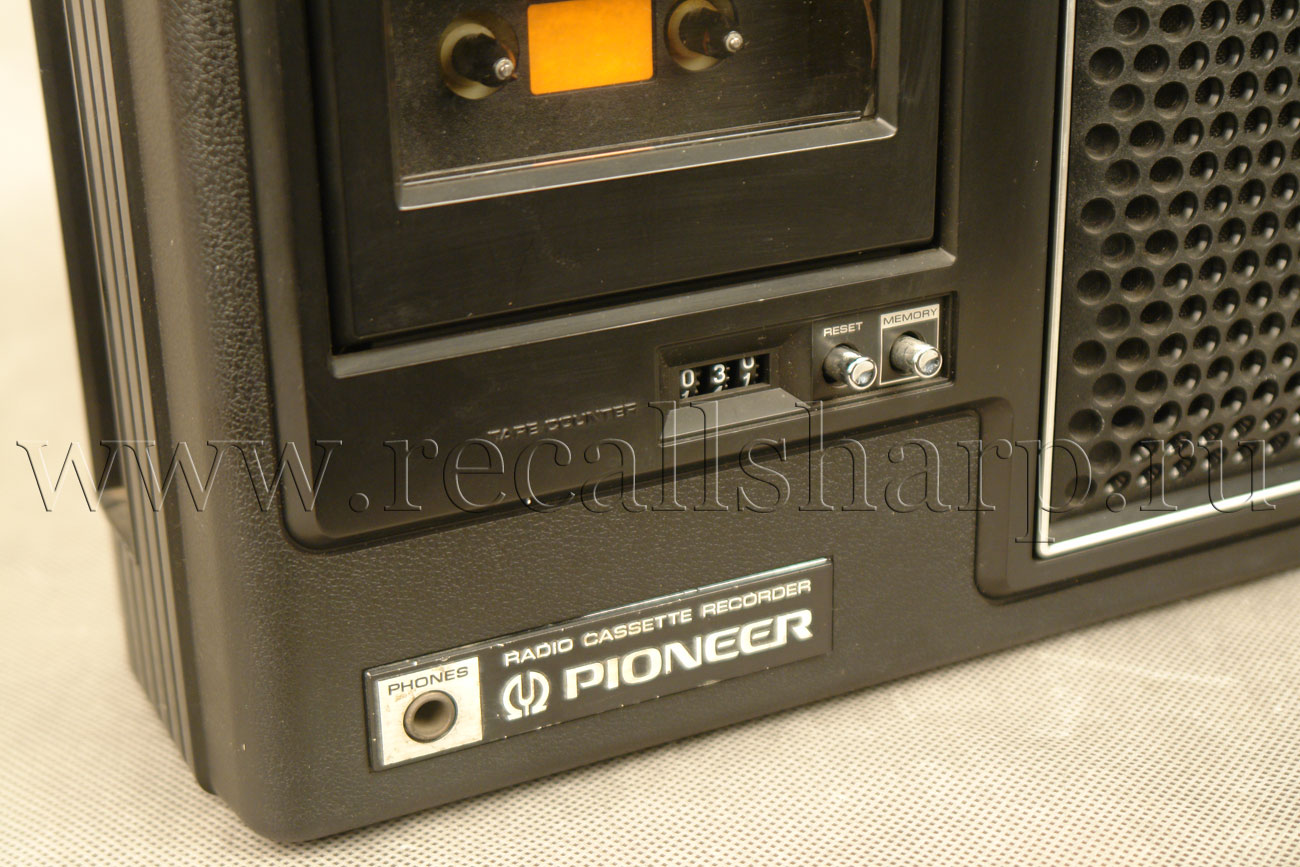

Output....................................LINE OUT, PHONES

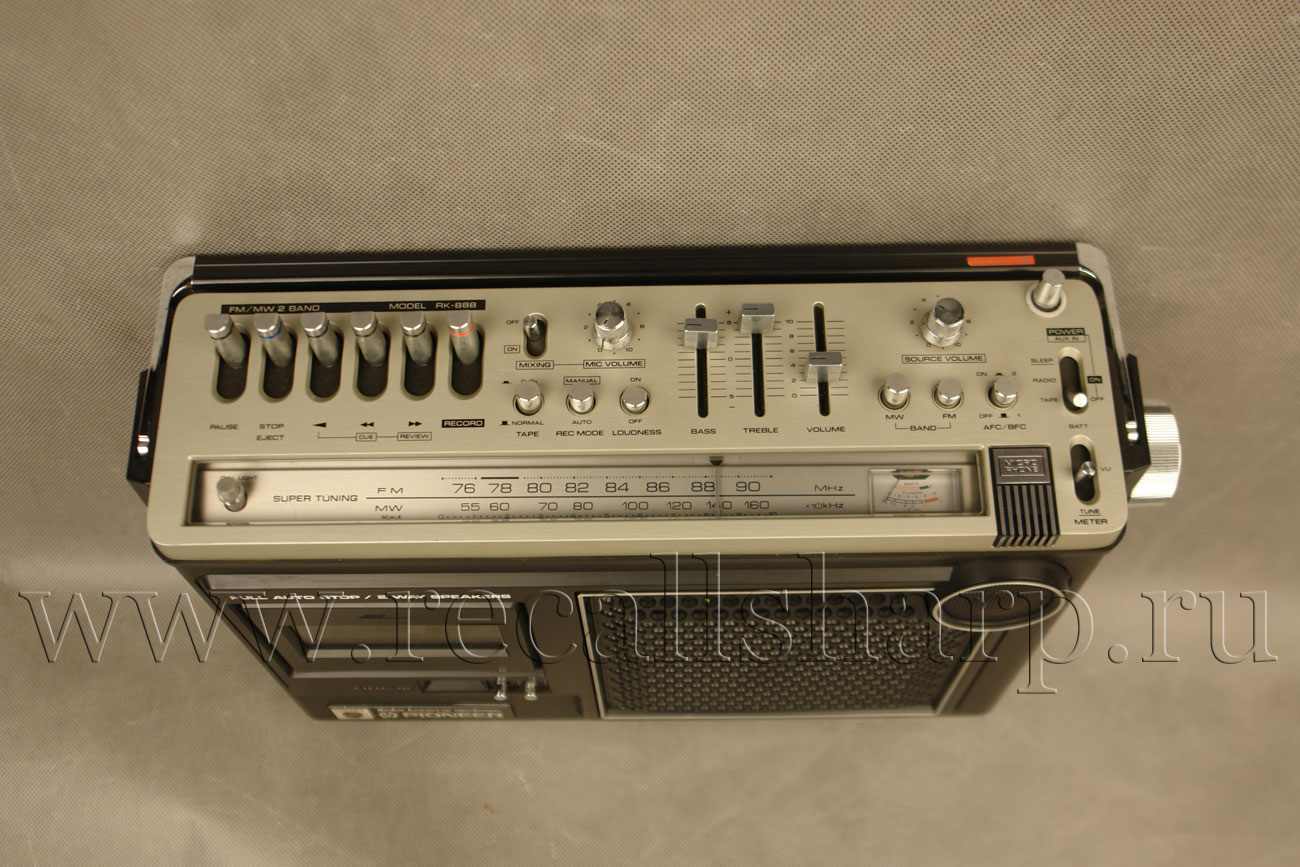

Radio section
Frequency range........................FM: 76~ 90 MHz

MW: 525~1,605kHz

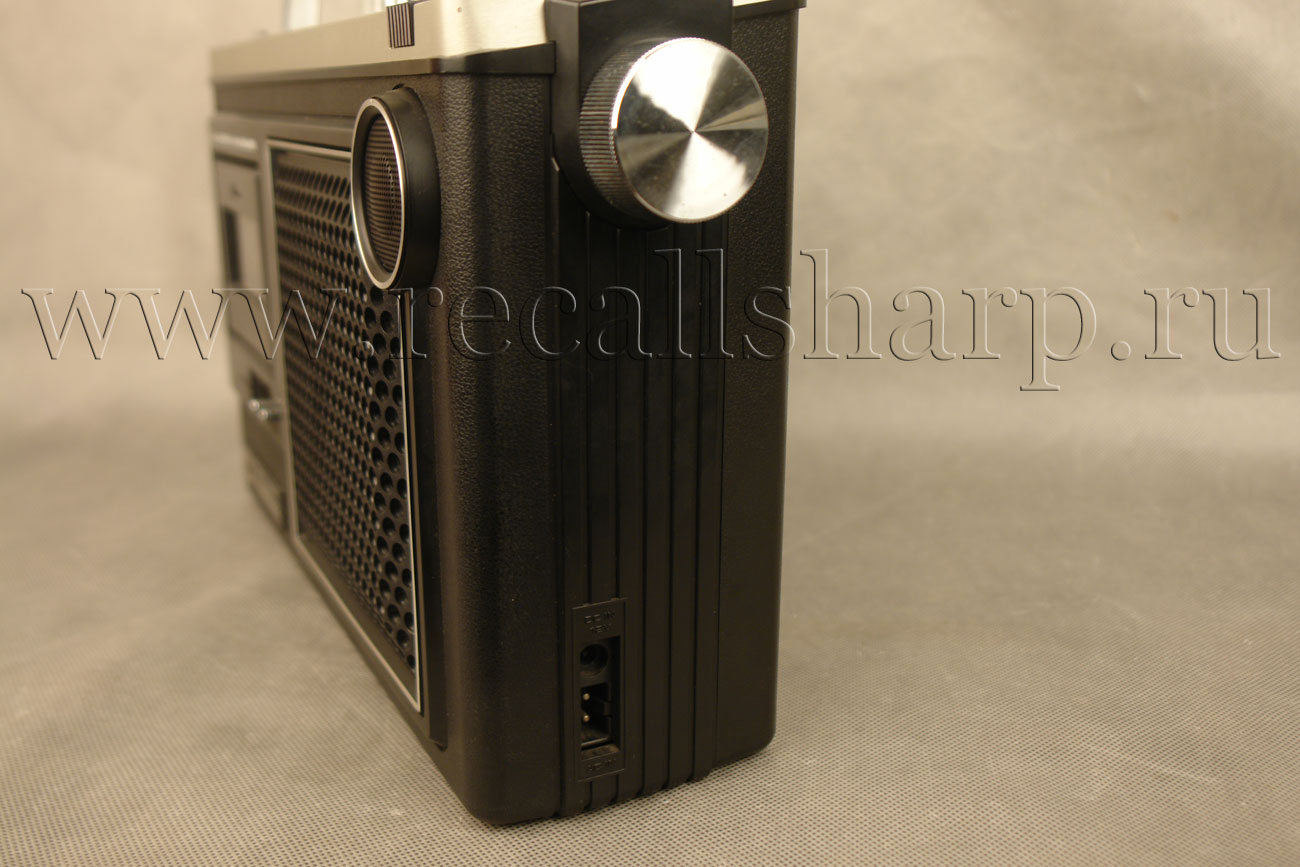

Power source...........................100V AC, 50/60Hz; 14W
8 size "D"
flashlight batteries (1.5V);
EXT 12V DC (12~15V)
Dimensions (WxHxD)...............366x240x110mm

Weight....................................4.6kg

Note: Specifications and design are subject to change without notice.
