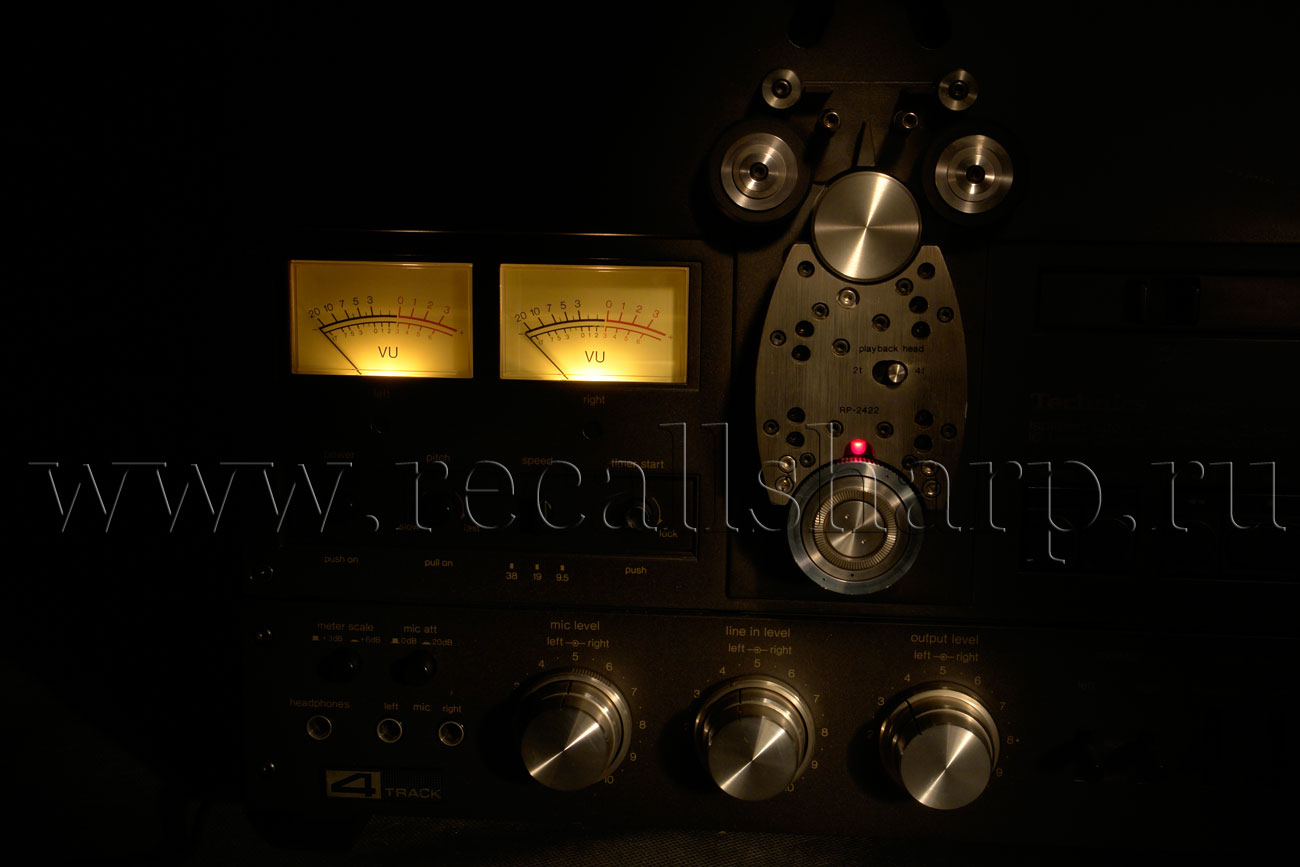

Год начала выпуска: 1977
Регион: Япония

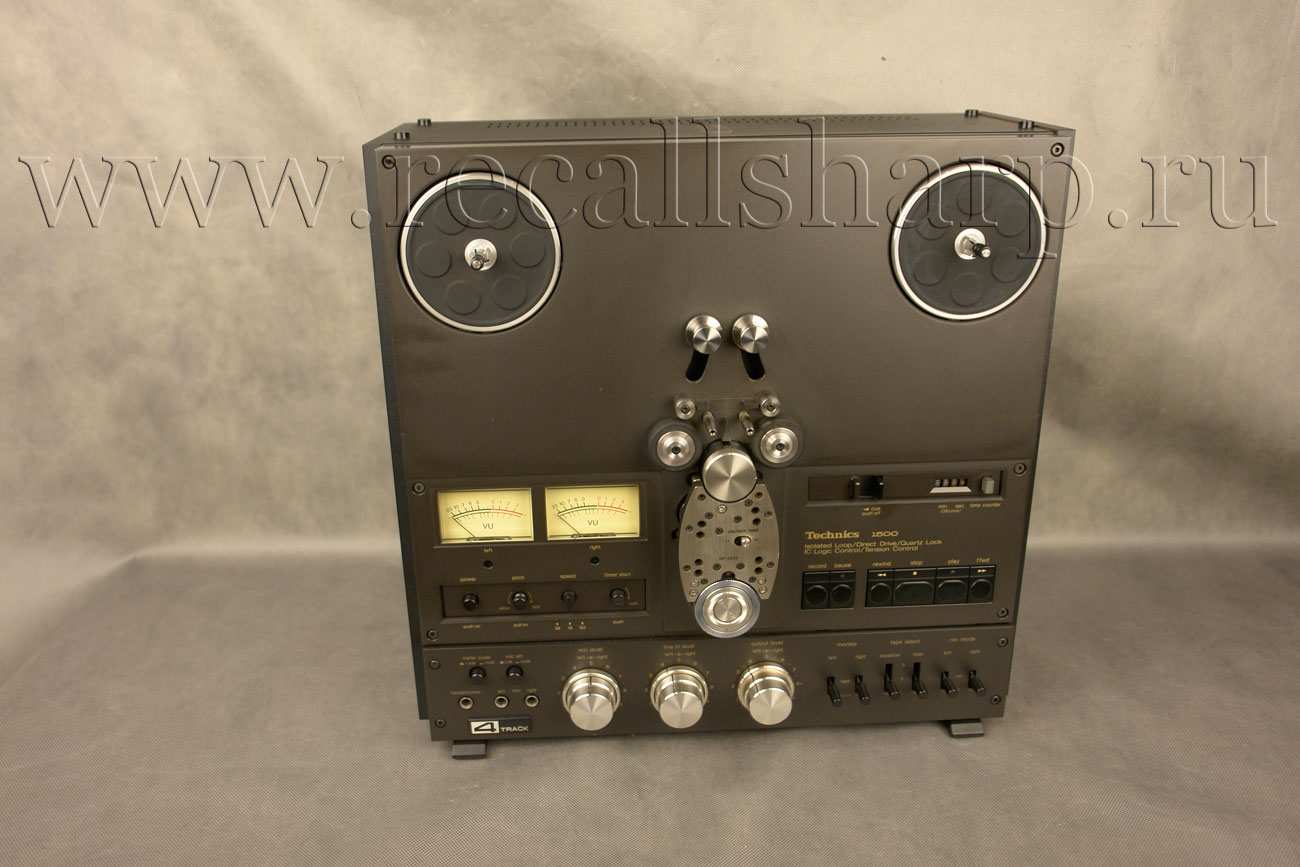

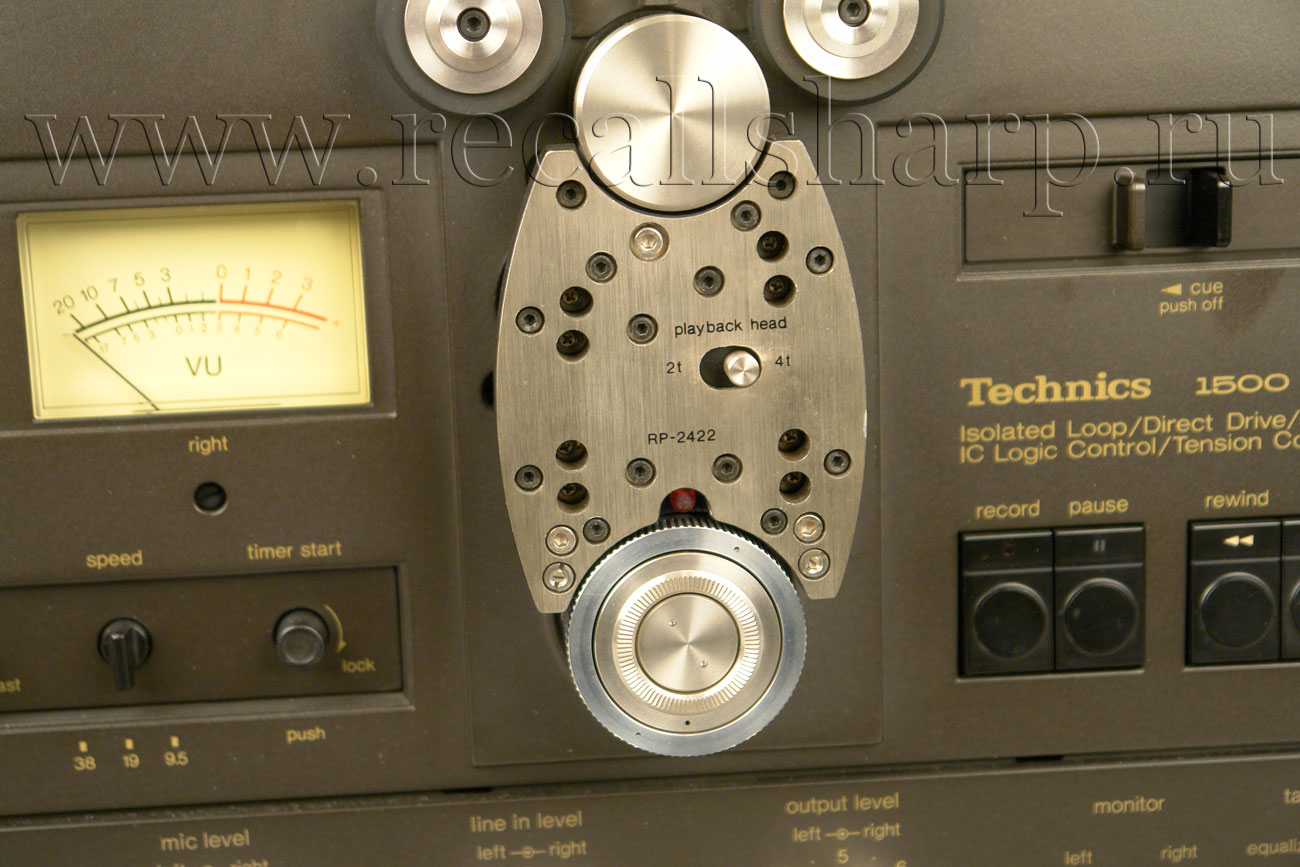

Track System: RS-1500U 2-track 2-channel recording/playback, and 4-track 2-channel playback
RS-1506U 4-track 2-channel recording/playback and 2-track 2-channel playback 3-direct

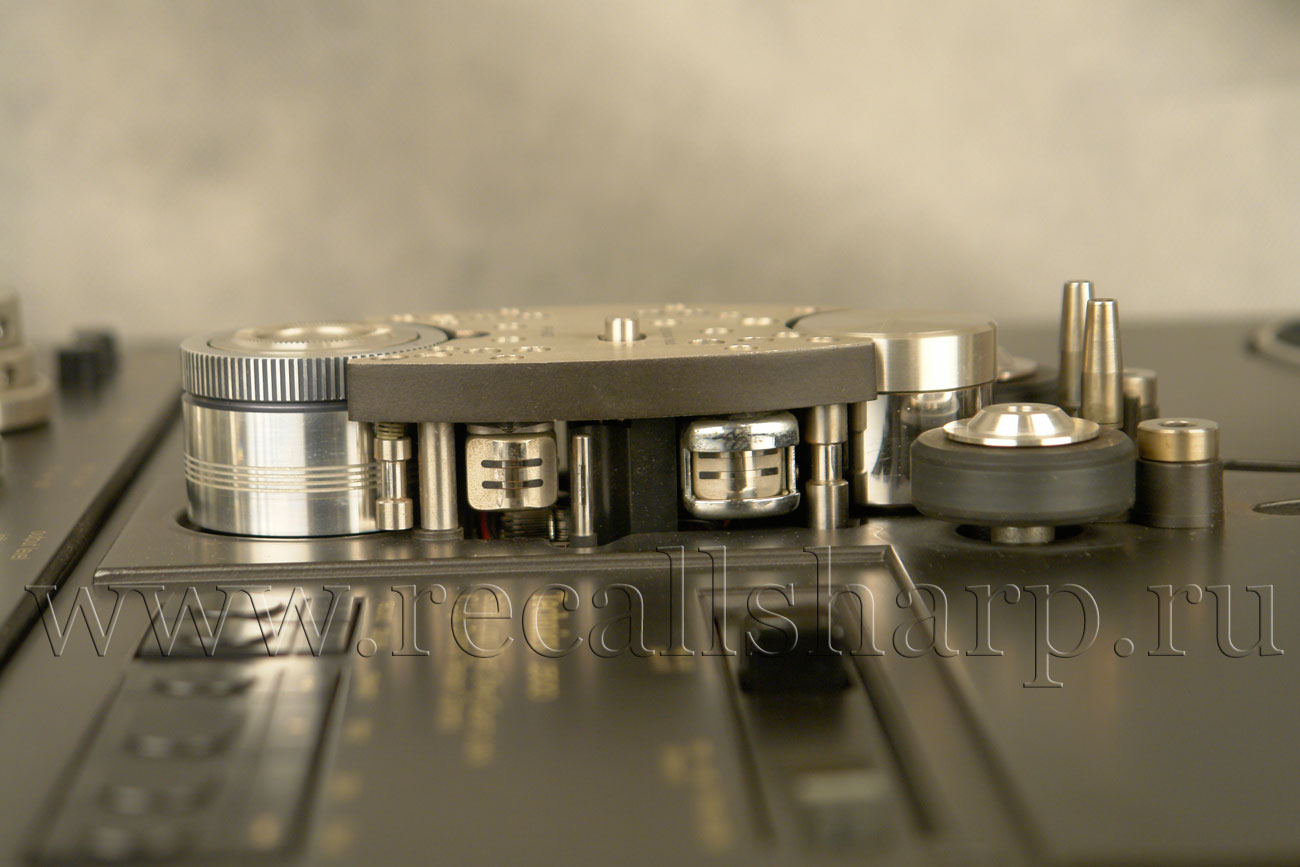

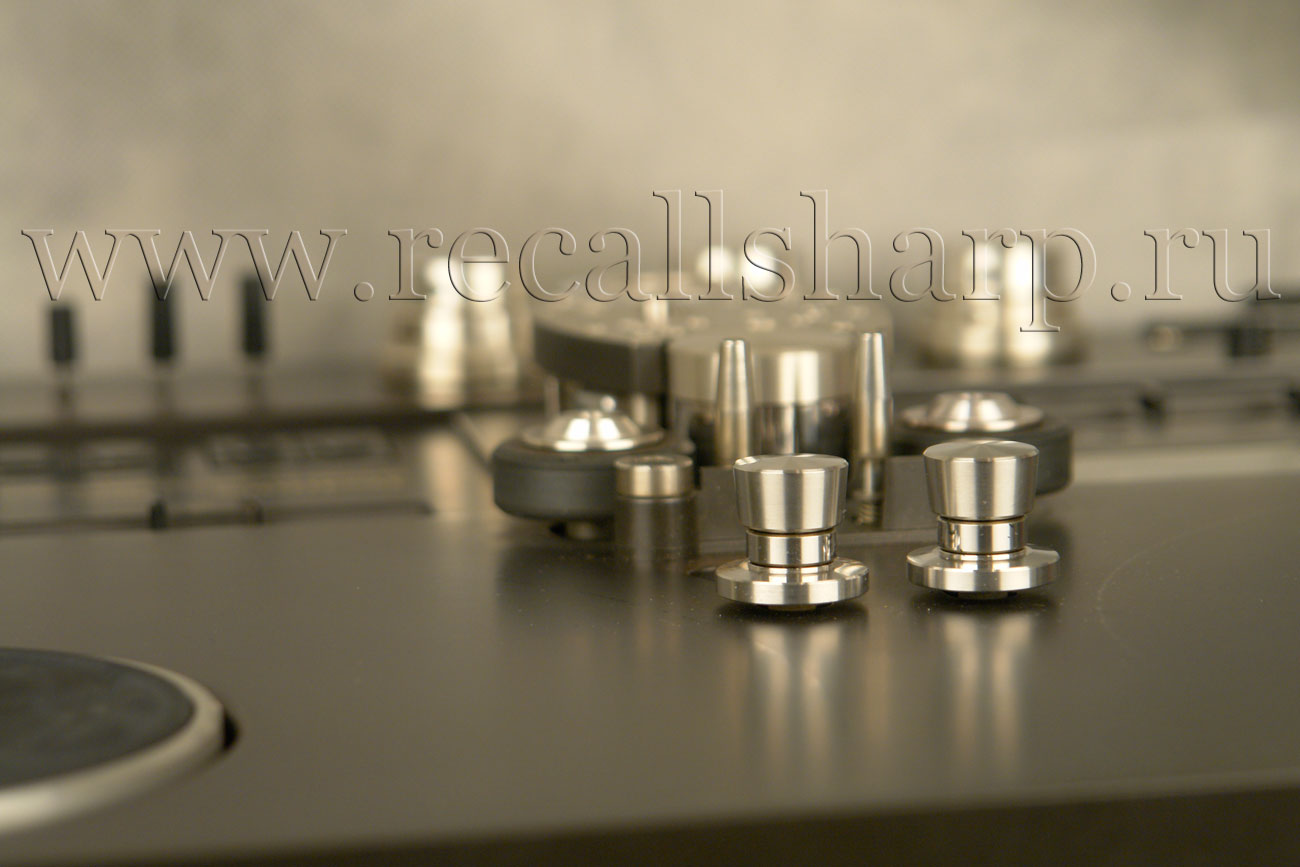

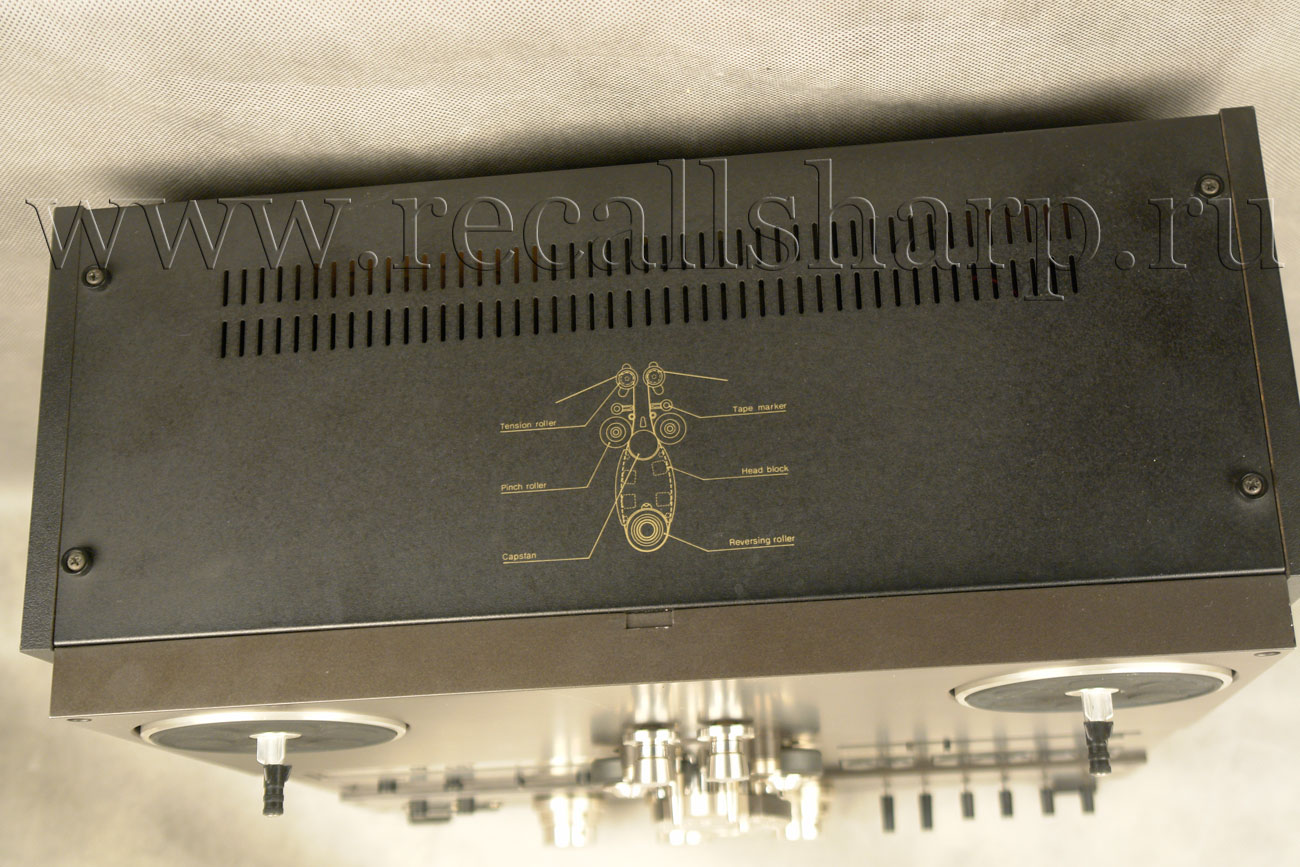

Motors: 3-direct-drive motor system
Capstan: Quartz control phase-locked DC brushless servo direct-drive motor
Reel Tables: 2-tape tension controlled DC brushless direct-drive motor
Reel Size: 13 cm to 26.5 cm (5” to 10-1/2”) outside diameter
Tape Tension Control: Automatic control for above size of reel
Tape Speed: 38 cm/s, 19 cm/s and 9.5 cm/s (15 ips, 7-1/2 ips and 3-3/4 ips)
Speed Deviation: ±0.1% at 38 cm/s (15 ips) 0.05%
Speed Fluctuation: 0.05% at 38 cm/s (15 ips)

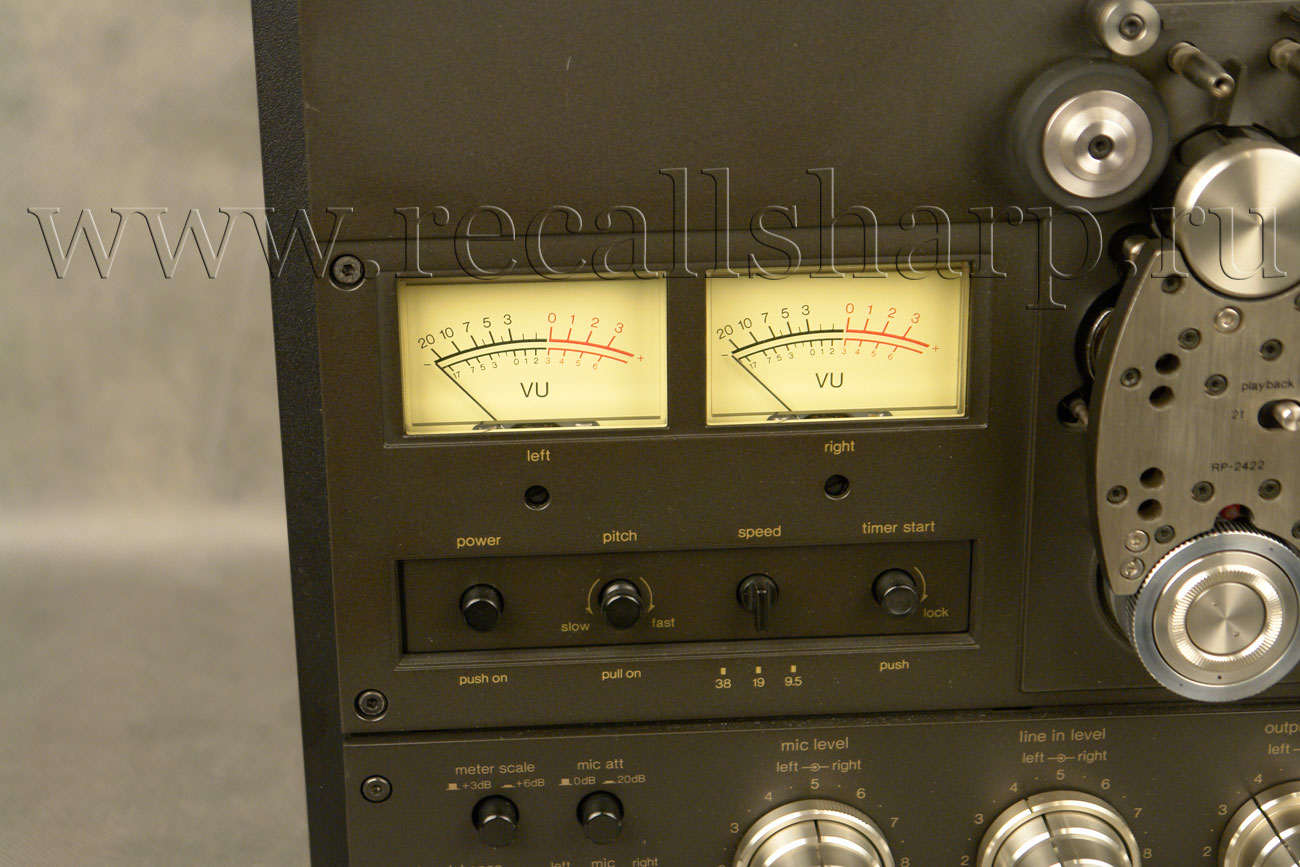

Pitch Control: ±6% (recording and playback)
Wow and Flutter: (recording and playback)
38 cm/s (15 ips); 0.018% (WRMS), ±0.035% (DIN)
19 cm/s (7-1/2 ips); 0.03% (WRMS), ±0.06% (DIN)
9.5 cm/s (3-3/4 ips); 0.06% (WRMS), ±0.12% (DIN)

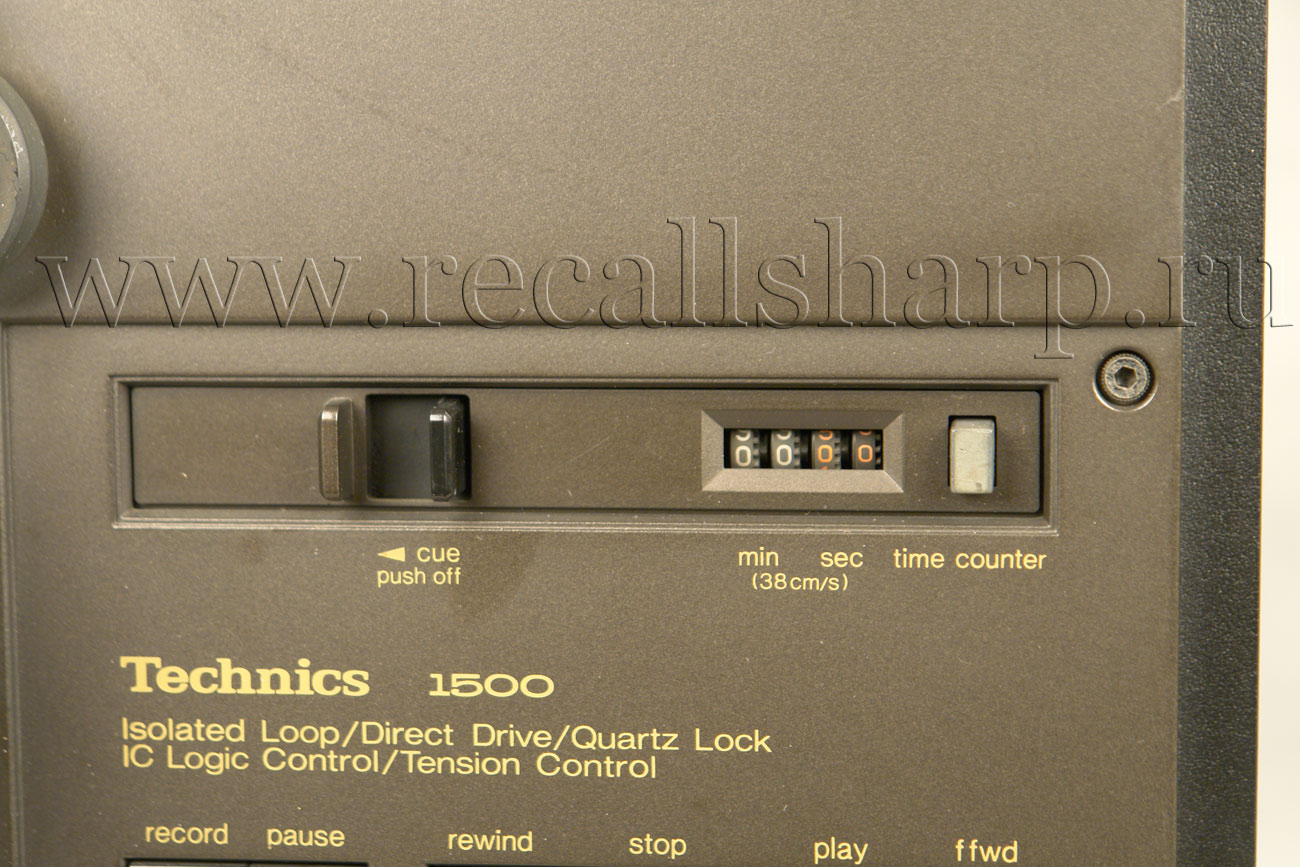

Time Counter
Accuracy: ±1% at 38 cm/s (15 ips)
Fast Winding Time: 150 sec. for 762 m (2500 feet) tape
End of Tape; Tension roller switches
During Running; within 3 sec after accidental stop of tape
Frequency Response:
38 cm/s (15 ips); 30-30,000 Hz ±3 dB
(rec. level = —10 dB from 0 VU)
19 cm/s (7-1/2 ips); 20-25,000 Hz ±3 dB
(rec. level = —20 dB from 0 VU)
9.5 cm/s (3-3/4 ips); 20-15,000 Hz ±3 dB
(rec. level = —20 dB from 0 VU)
Signal-to-Noise Ratio: NAB weighted (185 nWb/m +6 dB)
38 cm/s (15 ips); 60 dB (RS-1500U), 57 dB (RS-1506U)
19 cm/s (7-1/2 ips); 60 dB (RS-1500U), 57 dB (RS-1506U)
9.5 cm/s (3-3/4 ips); 58 dB (RS-1500U), 55 dB (RS-1506U)
Distortion (THD): measured via tape at 400 Hz (at any speed)
Peak level
(185 nW/m +6 dB); less than 2%
Operating level
(0 VU); less than 0.8%
Channel Separation: better than 50 dB
Erasing Ratio: better than 65 dB (rec. level =
+ 10 dB at 1 kHz)
Recording Bias: 120 kHz
Bias level; Tape Selector at "1” 90%
at "2” 100%
at ”3" 110%
Equalization: NAB standard
position "2" of "EQ" and "BIAS" selectors set for Technics RT-10B218 (Scotch No. 207) tape
Recording Level
Calibration: referenced to 185 nWb/m

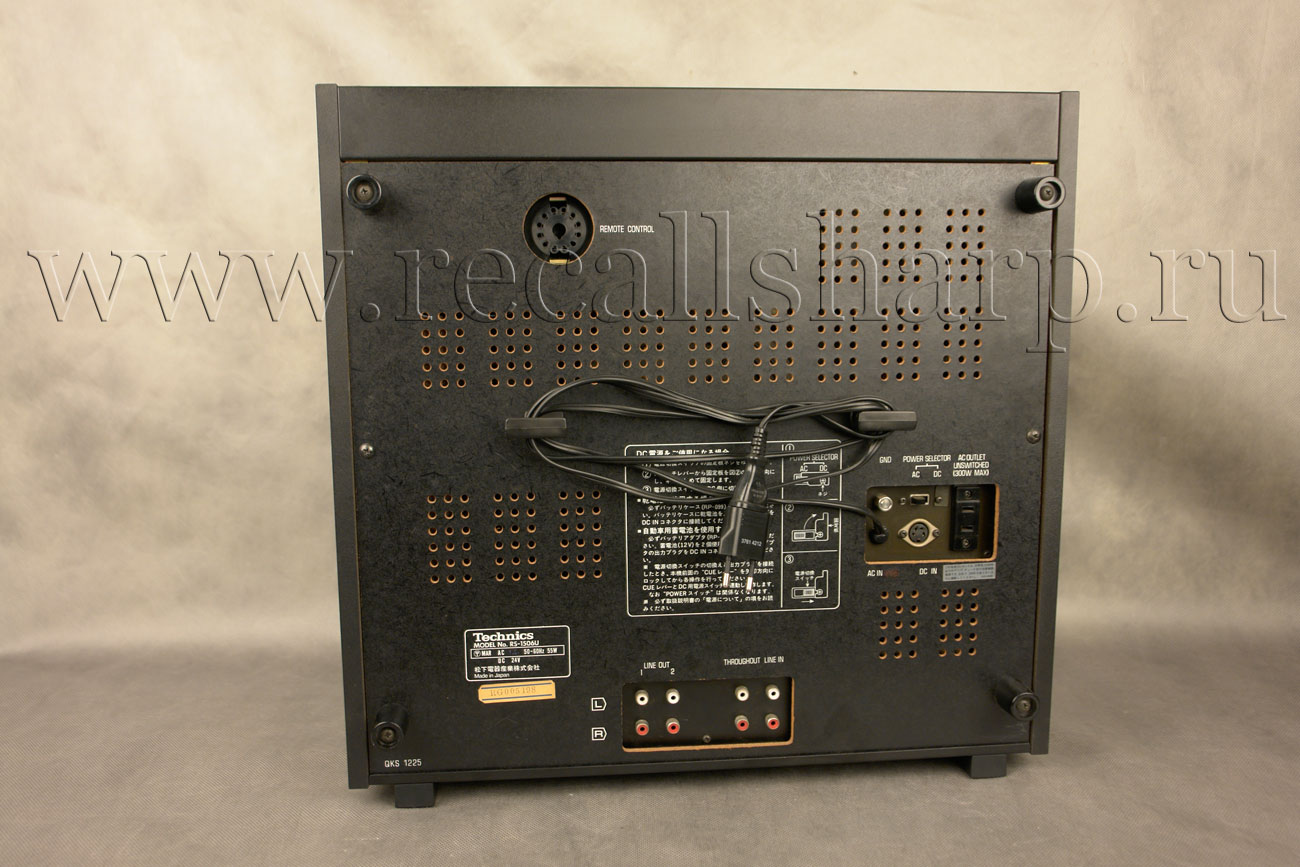

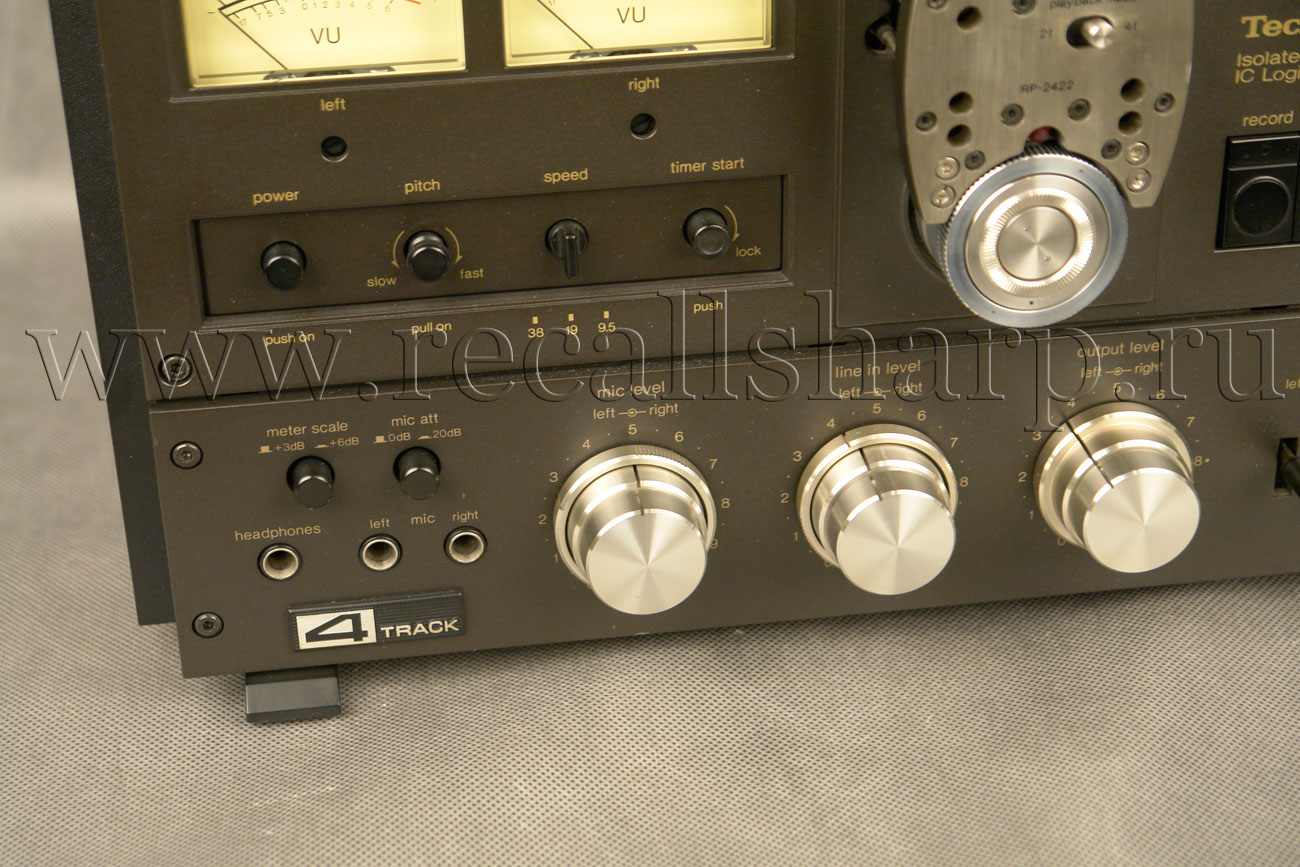

Inputs:
MIC; Unbalanced phone type jack Sensitivity 0.25 mV ( -72 dB)/4.7 kilohms (at 0 VU, Mic level control max. position)
2.5 mV (-52 dB)/4.7 kilohms with
20 dB mic. attenuator switch on Overload margin 55 dB (75 dB with 20 dB mic. att.)
Applicable microphone impedance 200 ohms-10 kilohms
LINE Phono type jack
Sensitivity 60 mV (-24 dB)/150 kilohms
Overload margin =infinity
(line input connected to LINE IN level control before passing through the amplifier)
THROUGH OUT; same as LINE IN (connected in parallel to LINE IN)
Outputs:
LINE; 2 pairs of phono type jack
Output level 0.55 V at 0 VU (output level control at "8")
0.775 V or more at output level control max.
Output impedance less than 3 kilohms
Load impedance 22 kilohms over
HEADPHONE; Stereo phone type jack
Output level 80 mV at 0.55 V line output
Load impedance 8 ohms
Power Requirements: AC 100 V, 50/60 Hz or
DC 24 V, 4.5 A (with optional battery adaptor)
Power Consumption: 55 W
Weight: 25 kg (55 lbs)
Dimensions
(W x H x D): 45.6 cm X44.6 cm X25.8 cm (18” x 17-1/2" x 10-1/8”)
|
Specifications based on use of Technics RT-10B218 (Scotch No. 207) tape.
|
Specifications are subject to change without notice
|
