Silver Shin-Shirasuno Electric Corporation. . 100 .

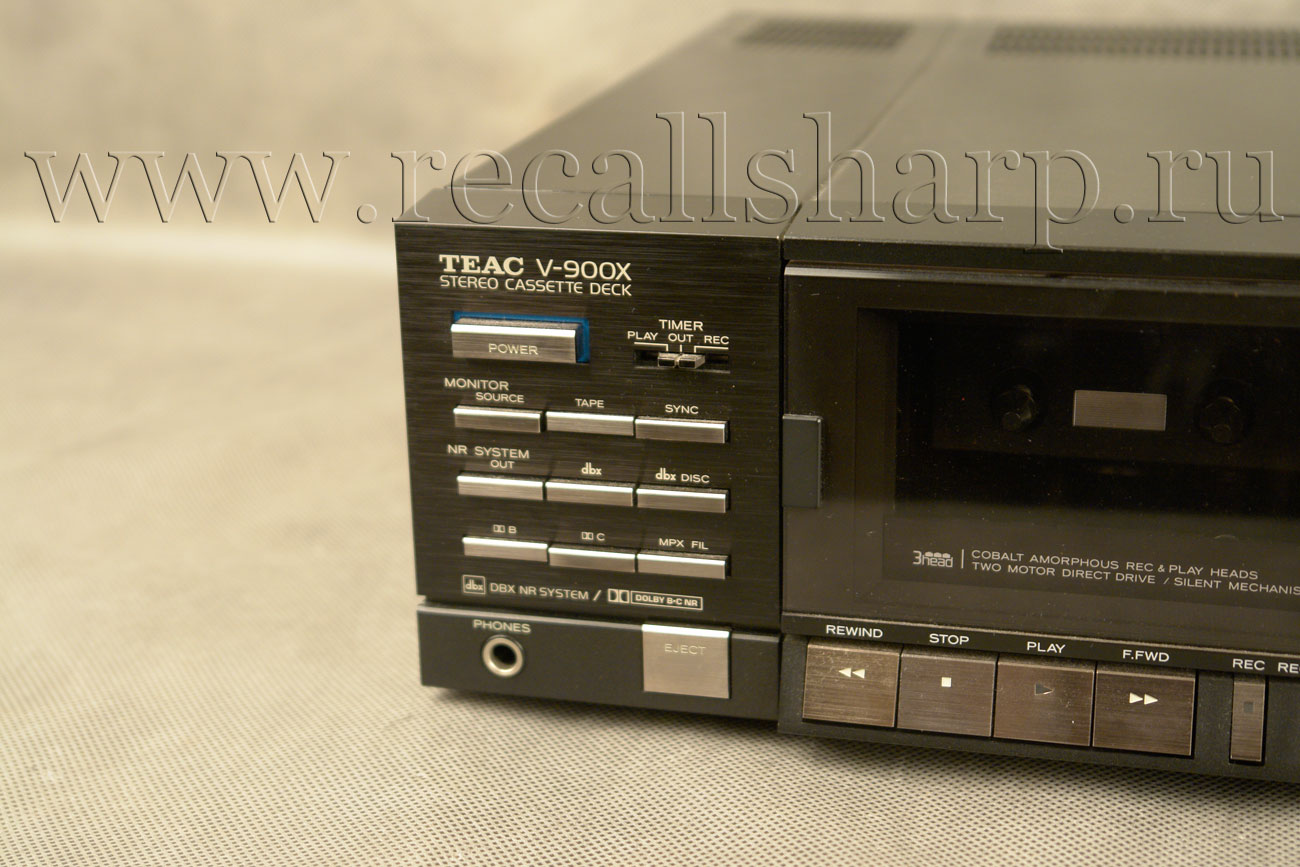

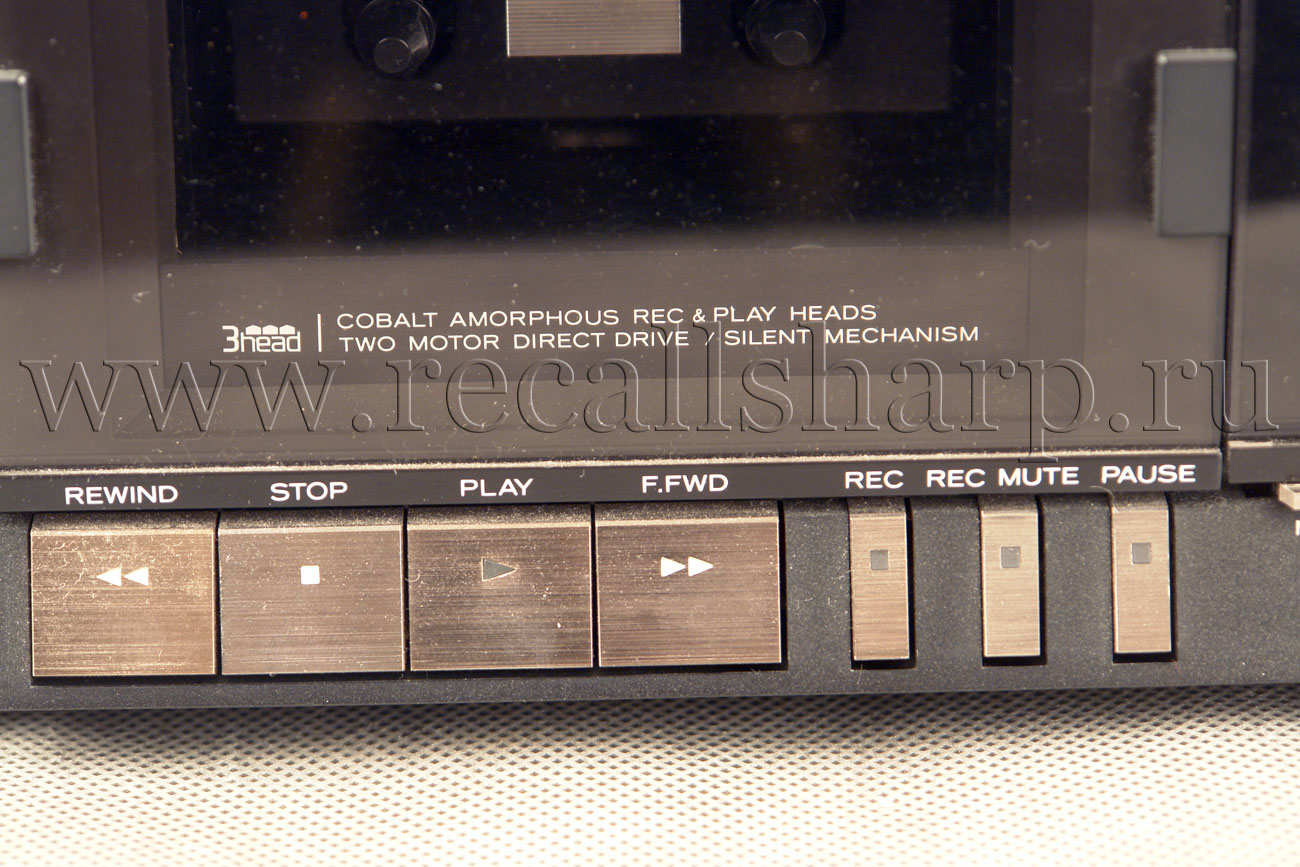

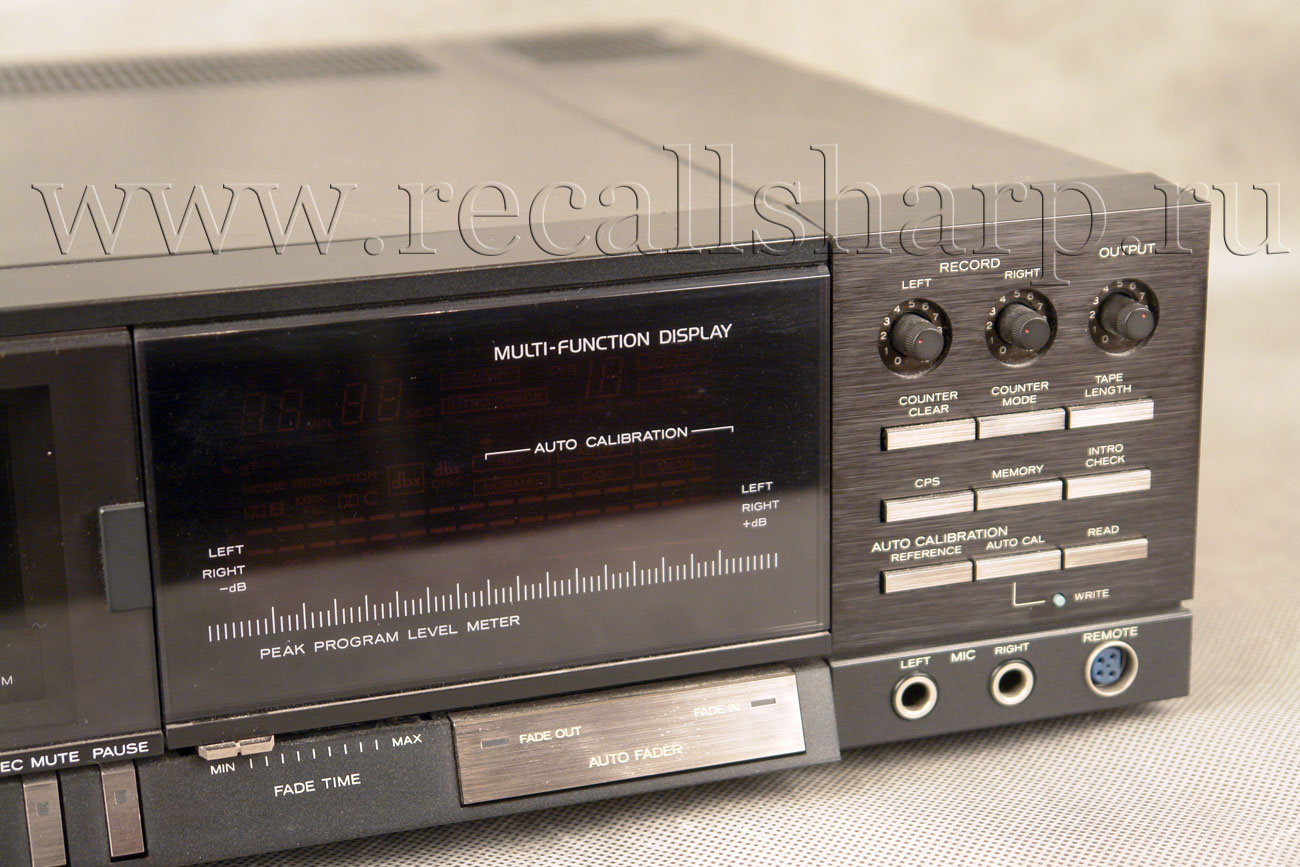

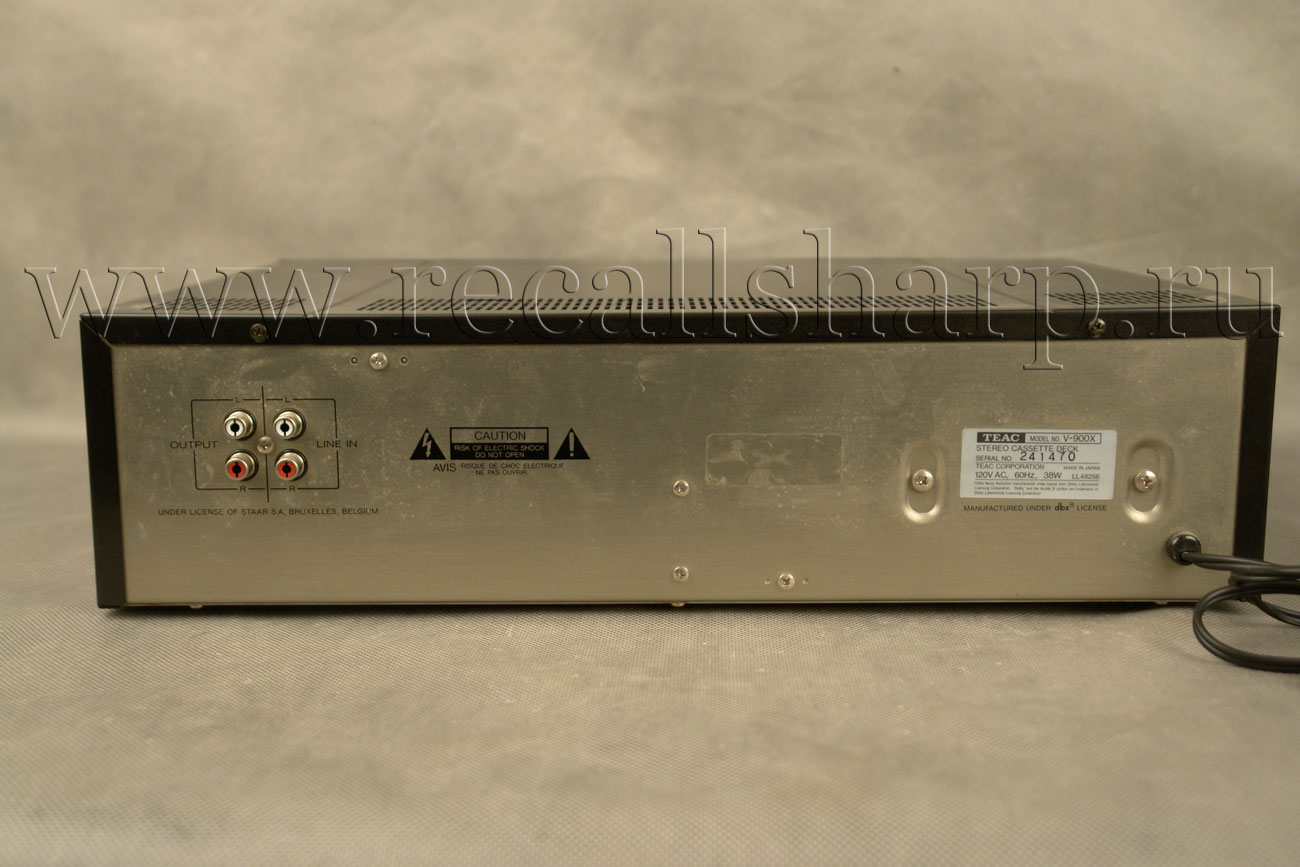

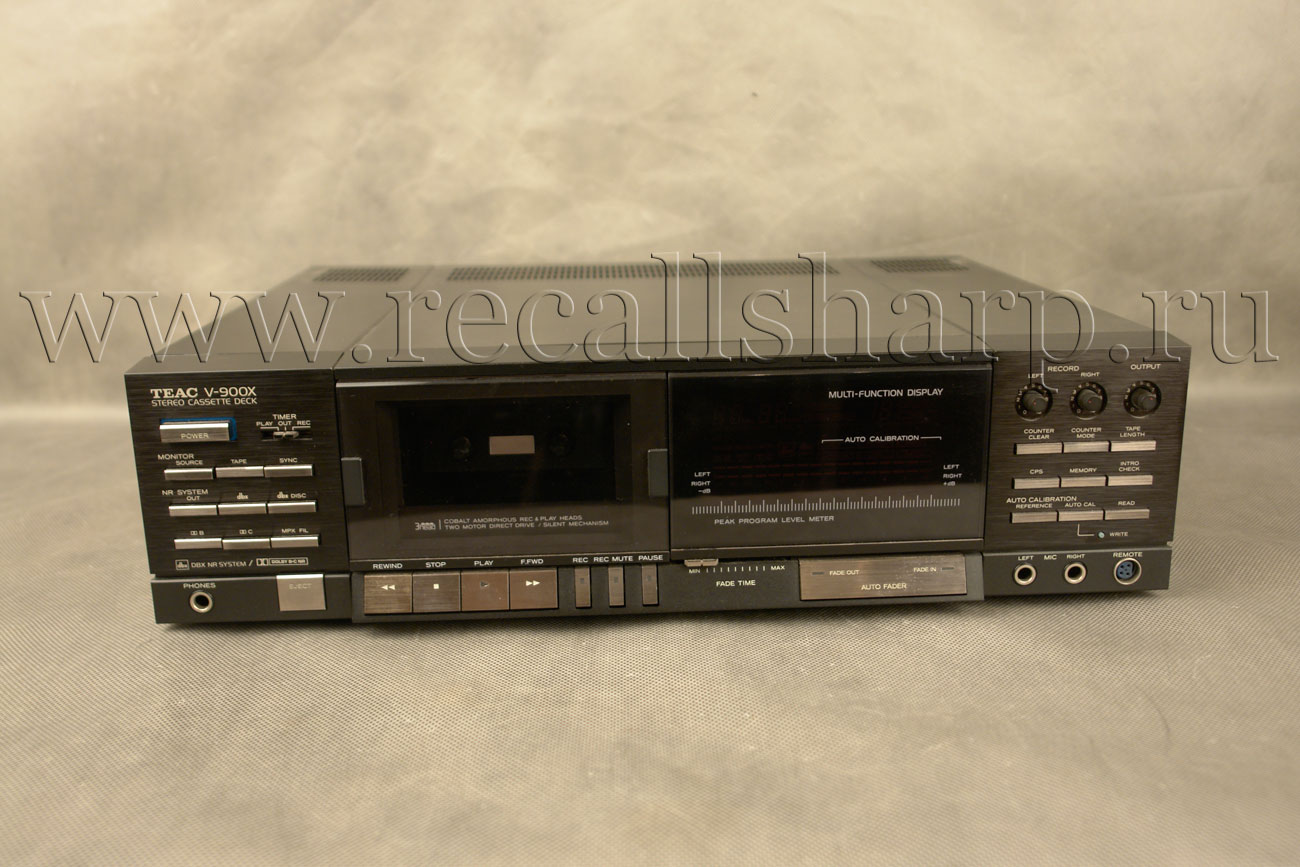

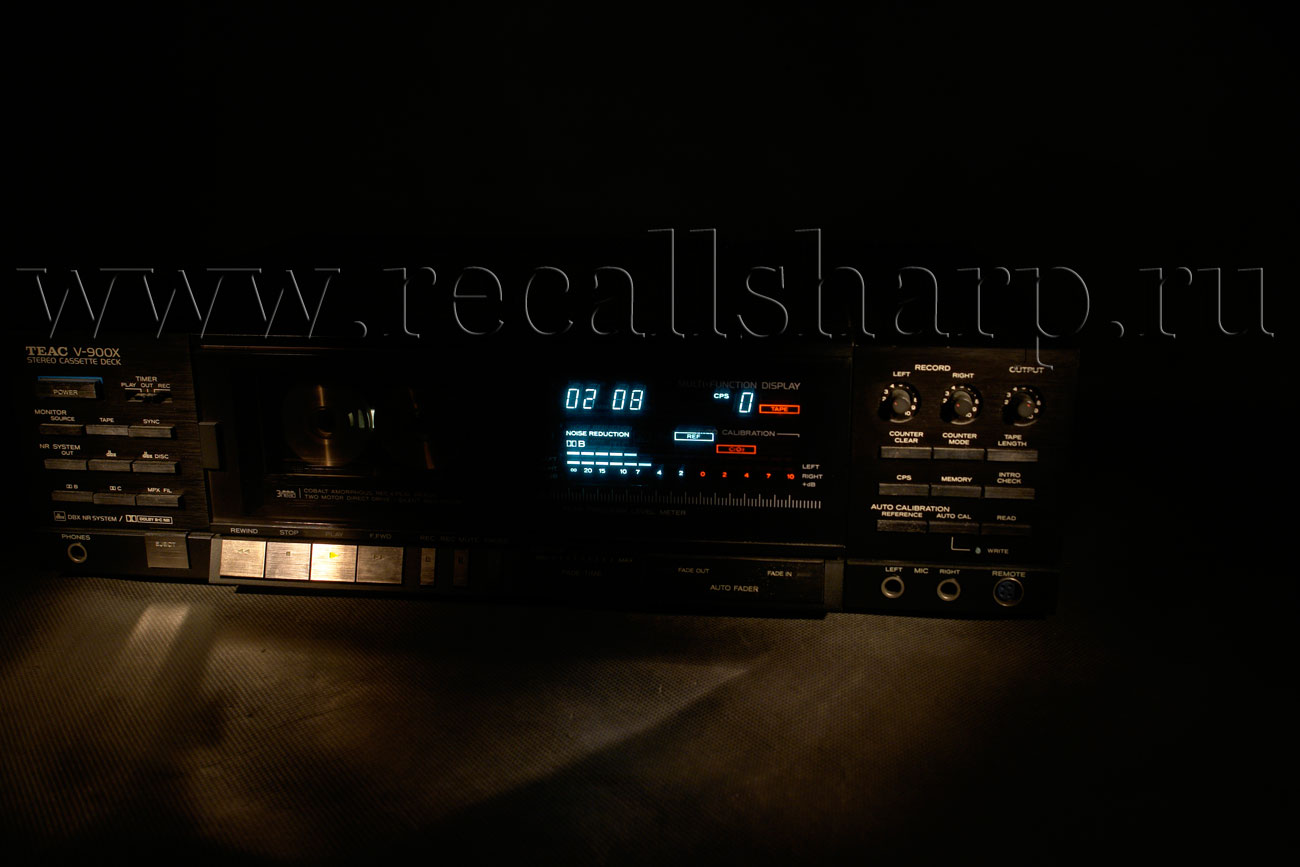

TEAC V-900 X



: 1984


Specifications:
Track System: 4 track, 2 channel stereo system
Tape: Philips type cassette
Tape Speed: 4.76 cm/s ±1% (1-7/8 ips 1% )
Heads: Cobalt amourphous- head for recording x1
Cobalt amourphous-head for playback x1
Erase head x1
Motors: DC FG servo for DD capstanmotorx1
DC motor for reel drive x1
Mechanism control motor x 1
Wow & Flutter: 0.028% WRMS,
Tape winding time: 90sec using a C-60 cassette tape
Frequency Response: Normal 30to 19,000 Hz3 dB (-20VU)
CrO2 30to 20,000 Hz3 dB (-20VU)
Metal 30to 21,000 Hz3 dB (-20VU)


Signal to Noise Ratio: Metal: Better than 60 dB
(measured via tape with peak recording level)
Dolby B-type NR switch ON:Improves up to 5dB at 1kHz ,10 dB above 5 kHz
Dolby C-type NR switch ON:Improves up to 15dB at 500Hz ,20 dB at 1kHzto 10 kHz
Harmonic Distortion: 1kHz,3rd harmonic distortion ,
Metal: Less than 0,8%

Input Line: 70 mV(Input impedance 47kohms)
Output Line:410 mV at 0 VU
. Required load impedance: More than 20 kohms
Phone: 1,3 mV/8 ohms at 0 VU

Power Requirements: 100V 50/60 Hz for Japan
120V/60 Hz for U.S.A. & Canada
220V/50 Hz for European Countries except U.K.
240V/50 Hz for U.K. & Australia
110/120/220/240V (Switchable), 50/60 Hz for the other
countries
Dimensions: 432(W) x 114(H) x 327(D) mm

Weight: 7.5 kg
