Silver Shin-Shirasuno Electric Corporation. . 100 .

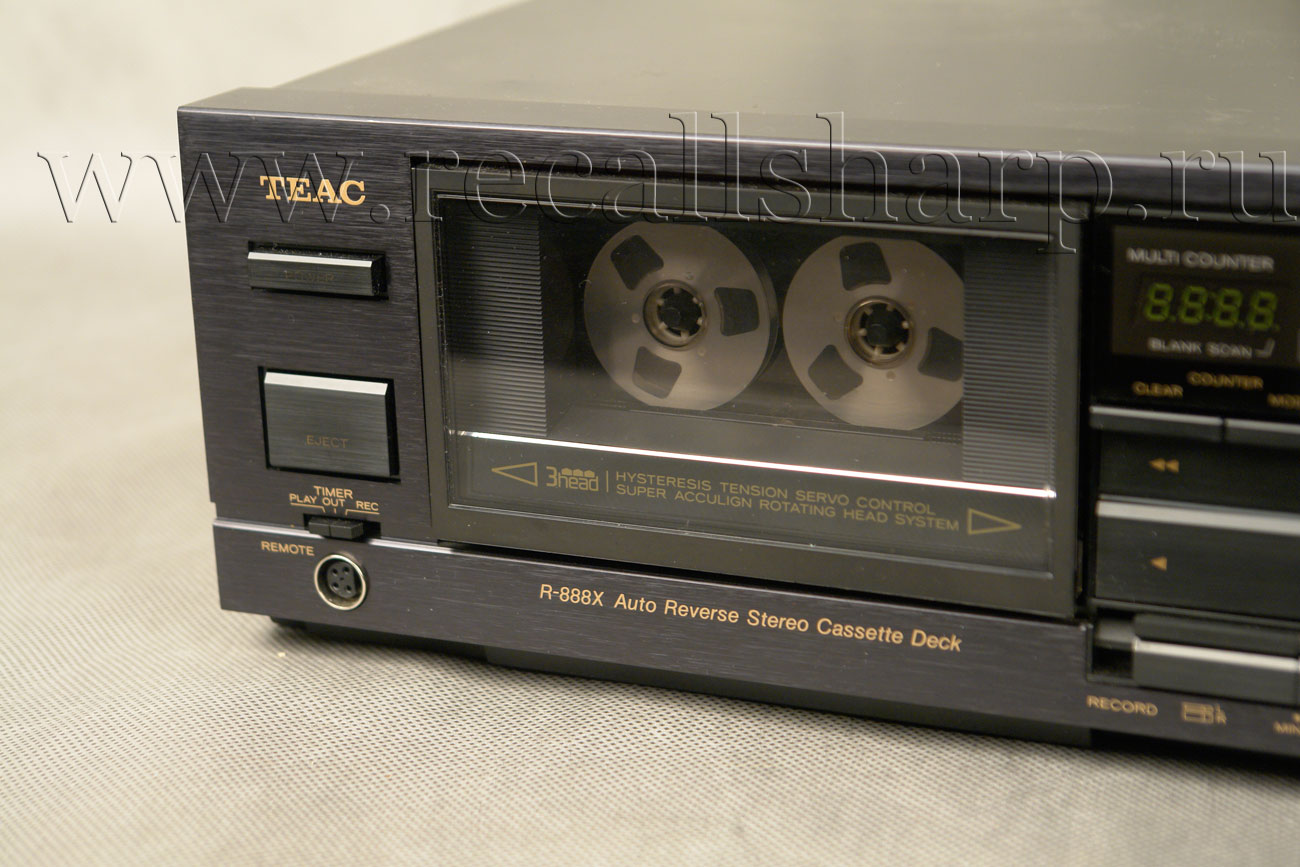

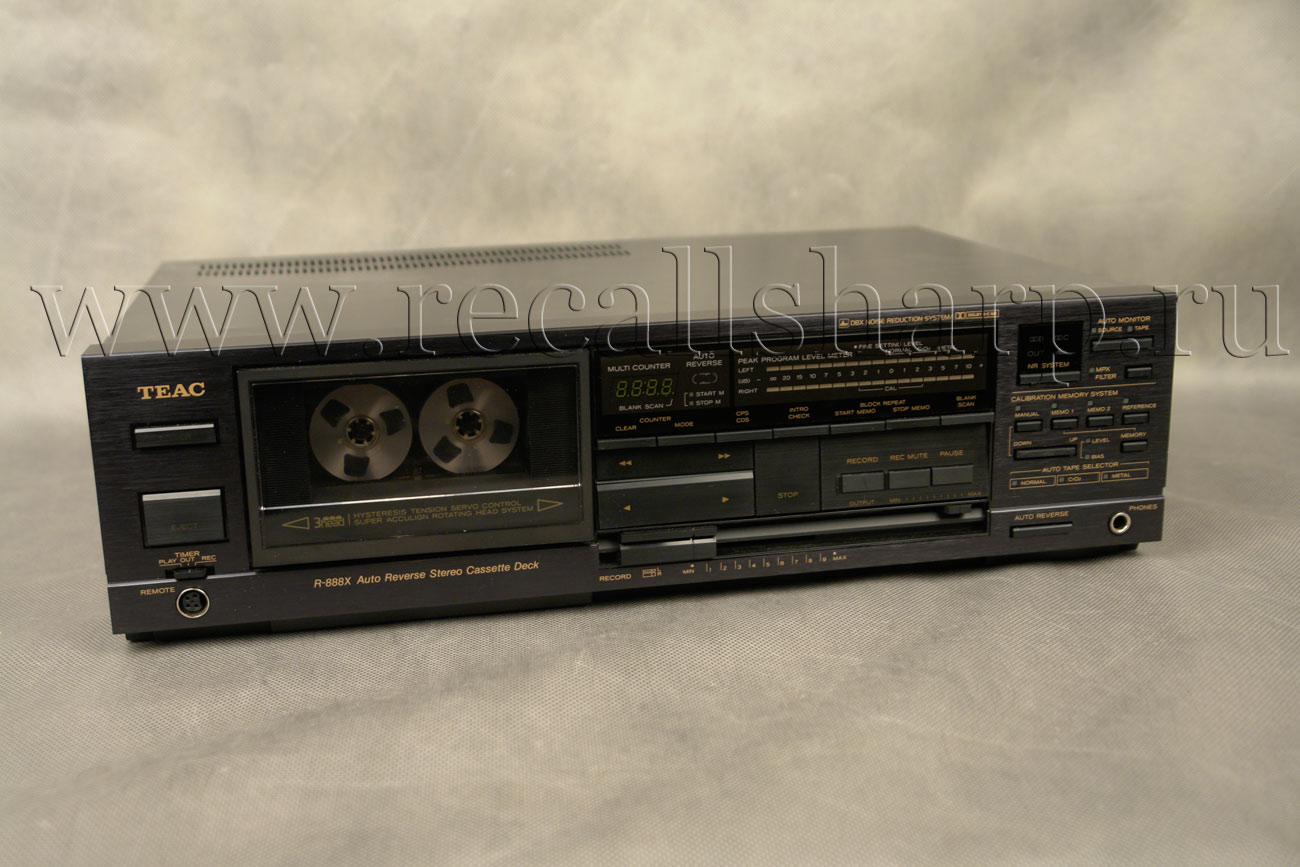

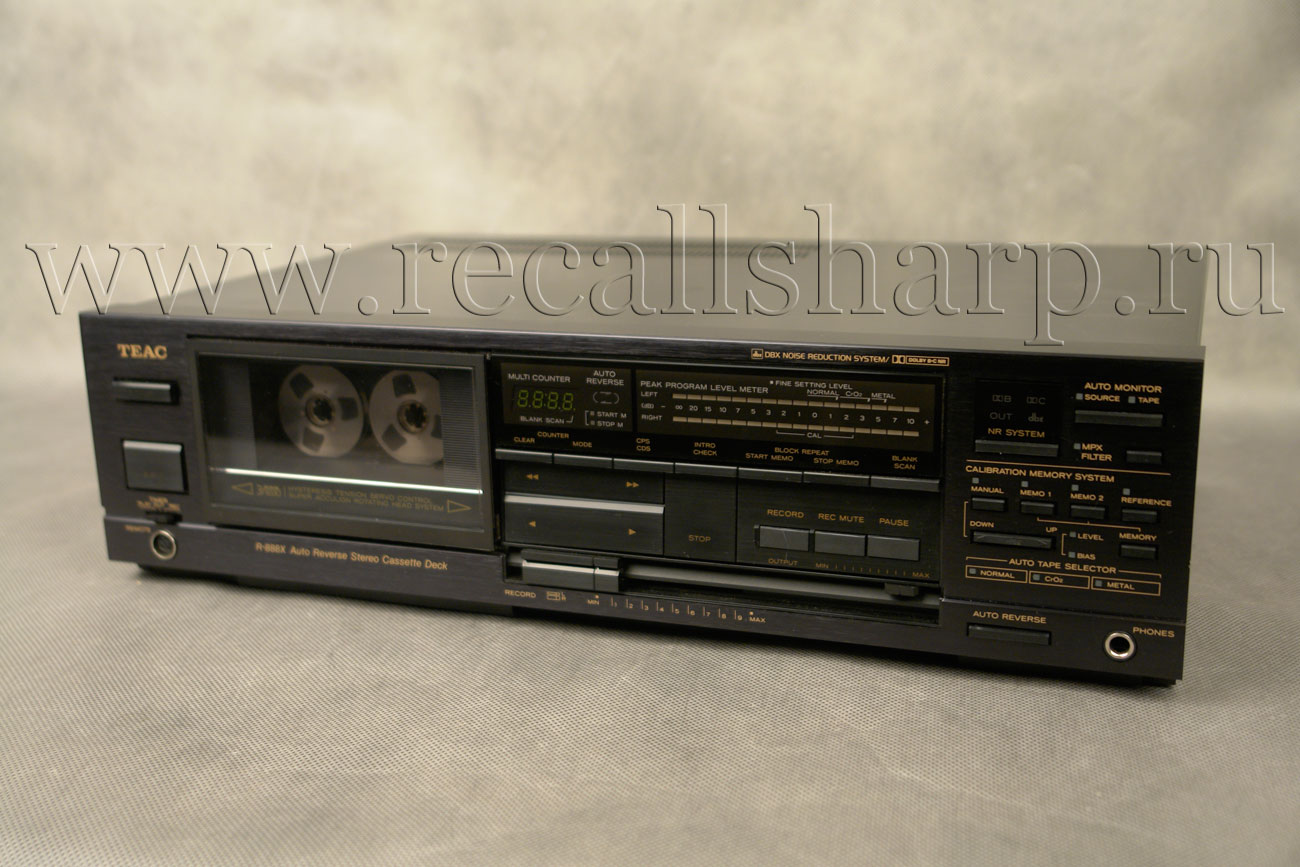

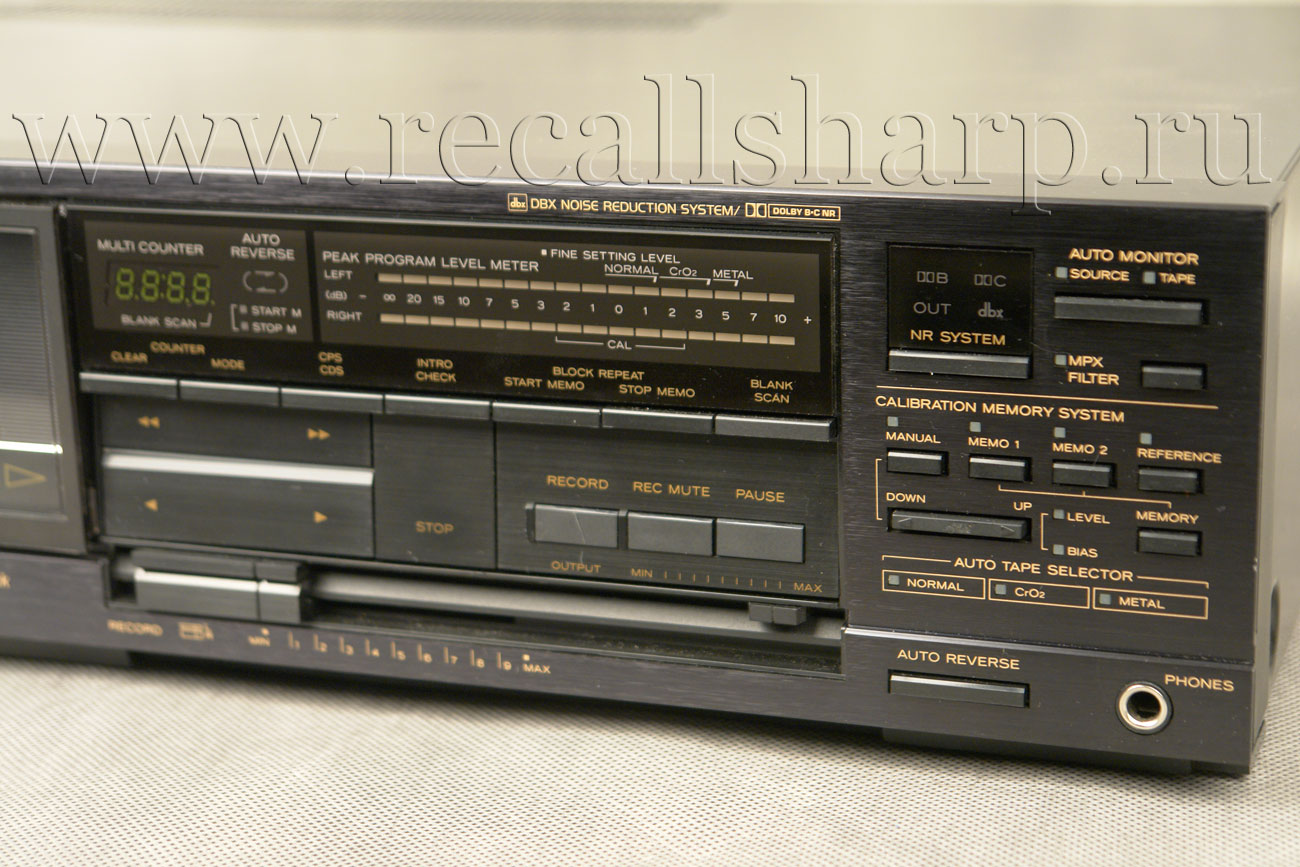

TEAC R-888 X



: 1985


Specifications:
Track System: 4 track, 2 channel stereo system
Tape: Philips type cassette
Tape Speed: 4.76 cm/s ±1% (1-7/8 ips 1% )
Heads: Erase head x2,head for recording x1(rotary)
head for playback x1(rotary)
Motors: DC servomotor x1 (forcapstan drive)
DC motor for reel drive x1
Mechanism control motor x1 (for ancillary control)
Wow & Flutter: 0.029% WRMS,
Tape winding time: 70sec using a C-60 cassette tape
Frequency Response: Normal 20to 18,000 Hz3 dB (-20VU)
CrO2 20to 20,000 Hz3 dB (-20VU)
Metal 20to 21,000 Hz3 dB (-20VU)


Signal to Noise Ratio: Metal: Better than 60 dB
(measured via tape with peak recording level)
Dolby B-type NR switch ON:Improves up to 10dB at 1kHz ,10 dB above 5 kHz
Dolby C-type NR switch ON:Improves up to 20dB at 500Hz ,20 dB at 1kHzto 10 kHz
dBx NR IN at 1kHz 92dB
Dynamic range 110 dB(dBx NR IN at 1kHz peak level)
Harmonic Distortion: 1kHz,3rd harmonic distortion ,
Metal: Less than 0,8%

Input Line: 60 mV(Input impedance 50kohms)
Output Line:430 mV at 0 VU
. Required load impedance: More than 50 kohms
Phone: 1,3 mV/8 ohms at 0 VU

Power Requirements: 100V 50/60 Hz for Japan
120V/60 Hz for U.S.A. & Canada
220V/50 Hz for European Countries except U.K.
240V/50 Hz for U.K. & Australia

Dimensions: 432(W) x 118(H) x 290(D) mm

Weight: 6.0 kg
