Aurex PC-D12



: 1980


TECHNICAL DATA
HEADS recording/playback head; Super AP (Super-hard permalloy) x1
Erase head: AF(2 gap ferrite) x1
TAPE TRANSPORT DUAL Motor IC logic control
MOTORS 2: One Electronically Speed Controlled DC motor for Capstan Drive
One DC Motor for Reel Drive)
F.F. & REWIND TIME 80 sec, using a C-60 Tape
TAPE SPEED 4.76cm/sec 1-7/8 ips
WOW & FLUTTER 0.04% WRMS
FREQUENCY RESPONSE
25 to 18,000 Hz for METAL position
25 to 17,000 Hz for Crome position
25 to 16,000 Hz for normal position

DISTORTION 0.7% at (400Hz 0dB)

SIGNAL TO NOISE RATIO
60 dB (Line in,Peak level,WTD)
Dolby NR switch ON: Improves up to 5 dB above 1 kHz
Improves up to 10 dB above 5 kHz
Semiconductors: ICs: 11
Transistors: 43
FETs: 4
Diodes: 47
LEDs: 25

BIAS FREQUENCY 85 kHz

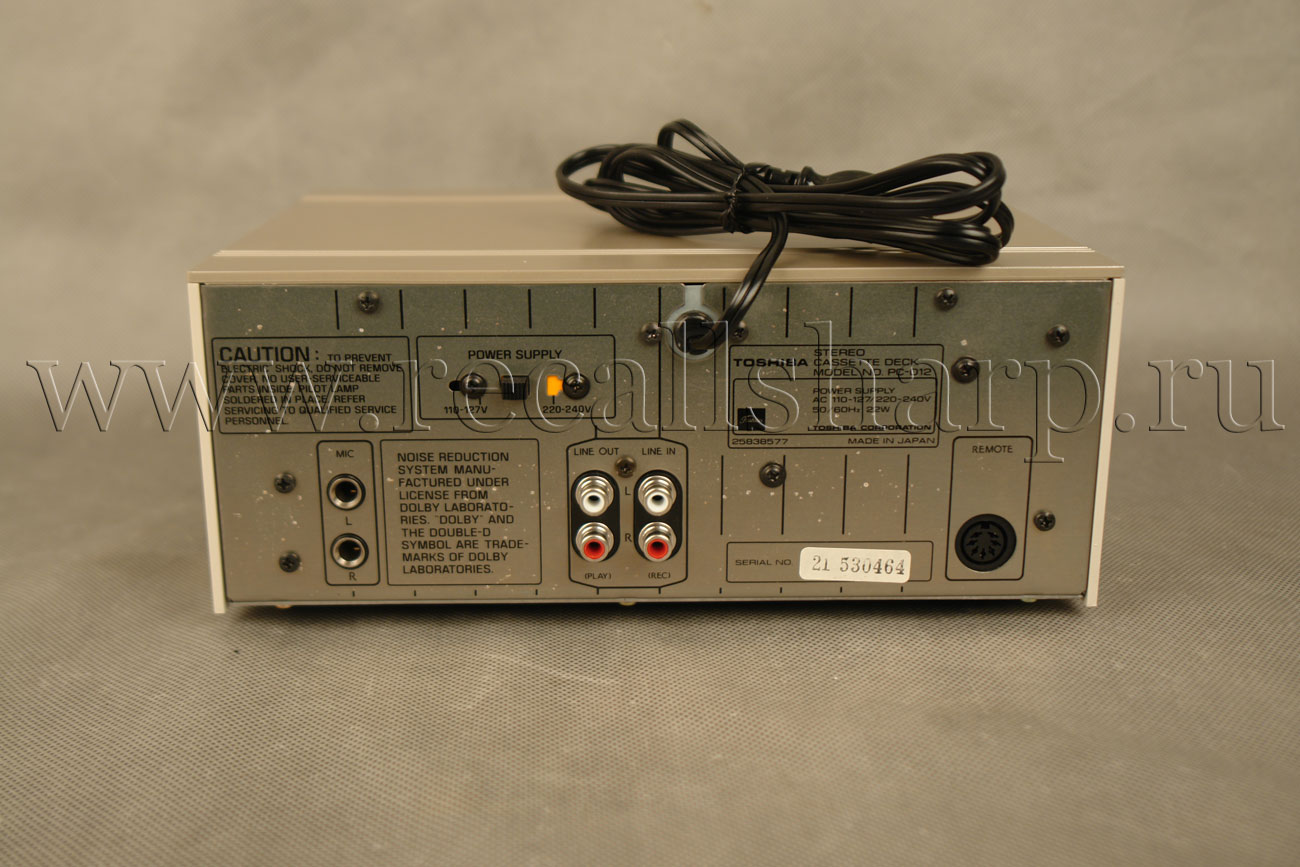

OUTPUT JACKS
Line (2): 410mV(OVU)
Required load impedance: more than 20 kohms
Phone (1): 100 mV/8 ohms
INPUT JACKS Microphone (2): 0.25mV (input impedance 5 kohms)
Required microphone impedance: 600 ohms
Line (2): 70 mV (input impedance 100 kohms)

POWER REQUIREMENTS

110-127V/220-240V, 50/60 Hz

DIMENSIONS 257(W) x 214
(D)x 106(H)mm
Power consumption; 22W
WEIGHT 3.8 kg

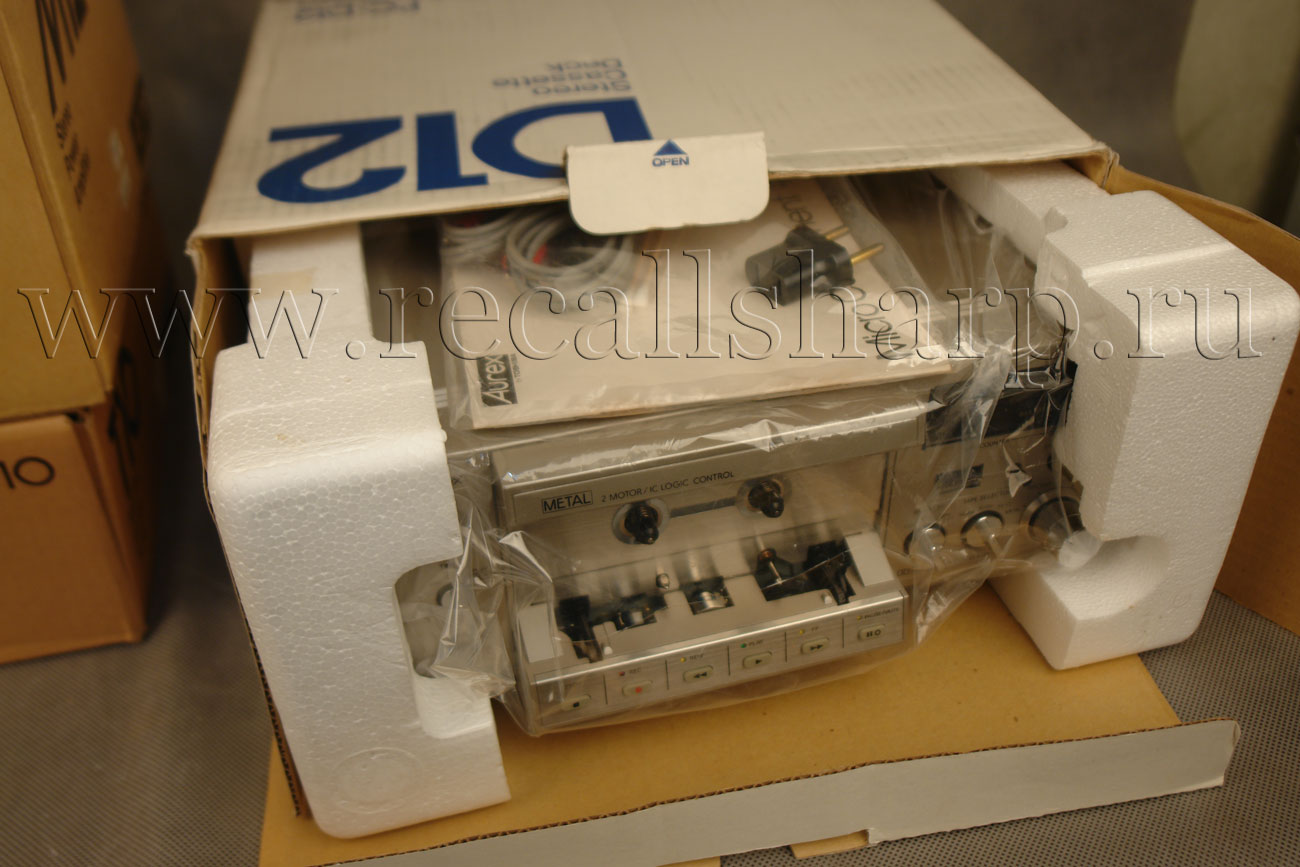

Accessories: Audio cables x2
Dustcover
Head cleaner
