Matsushita Electric Industrial , Ltd. (MEI), Panasonic, National, Technics Quasar, , .

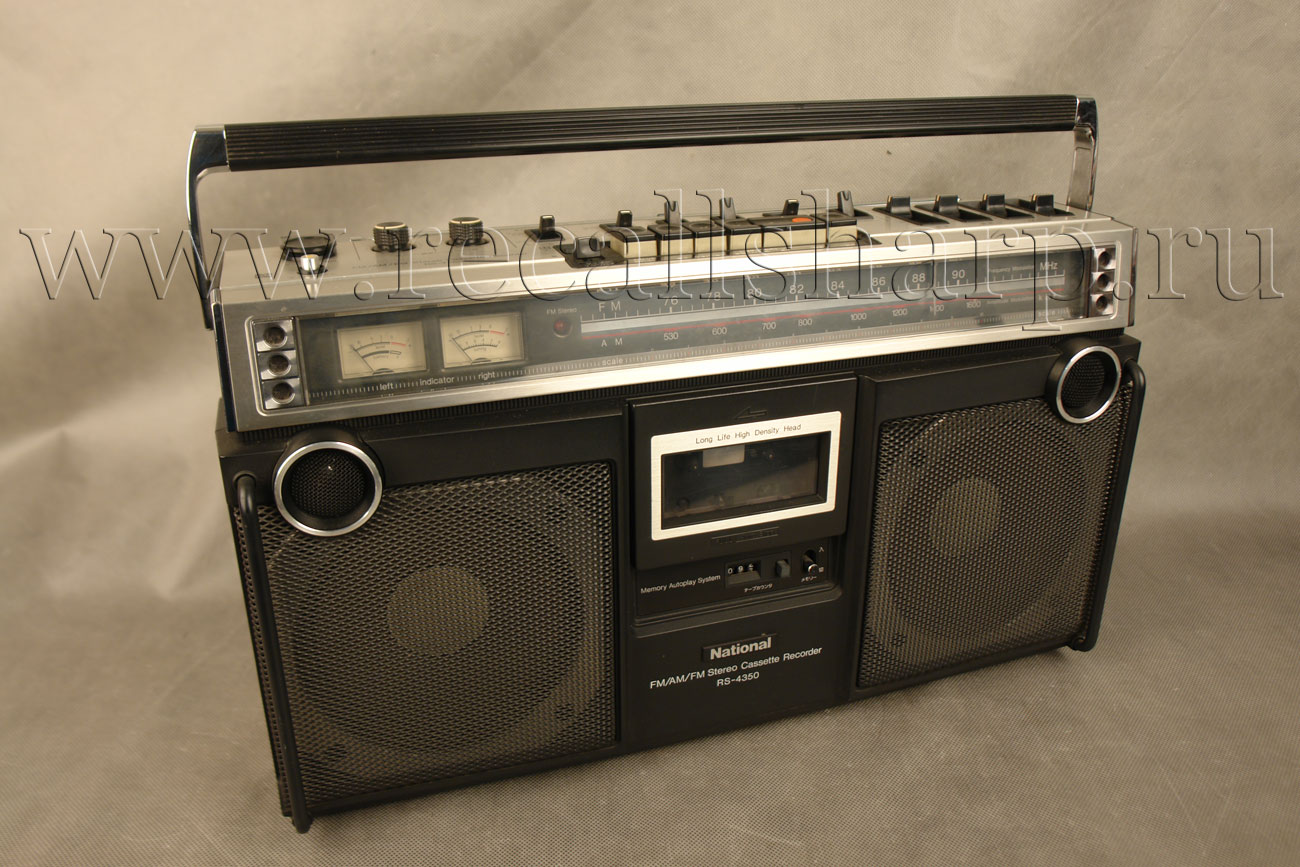

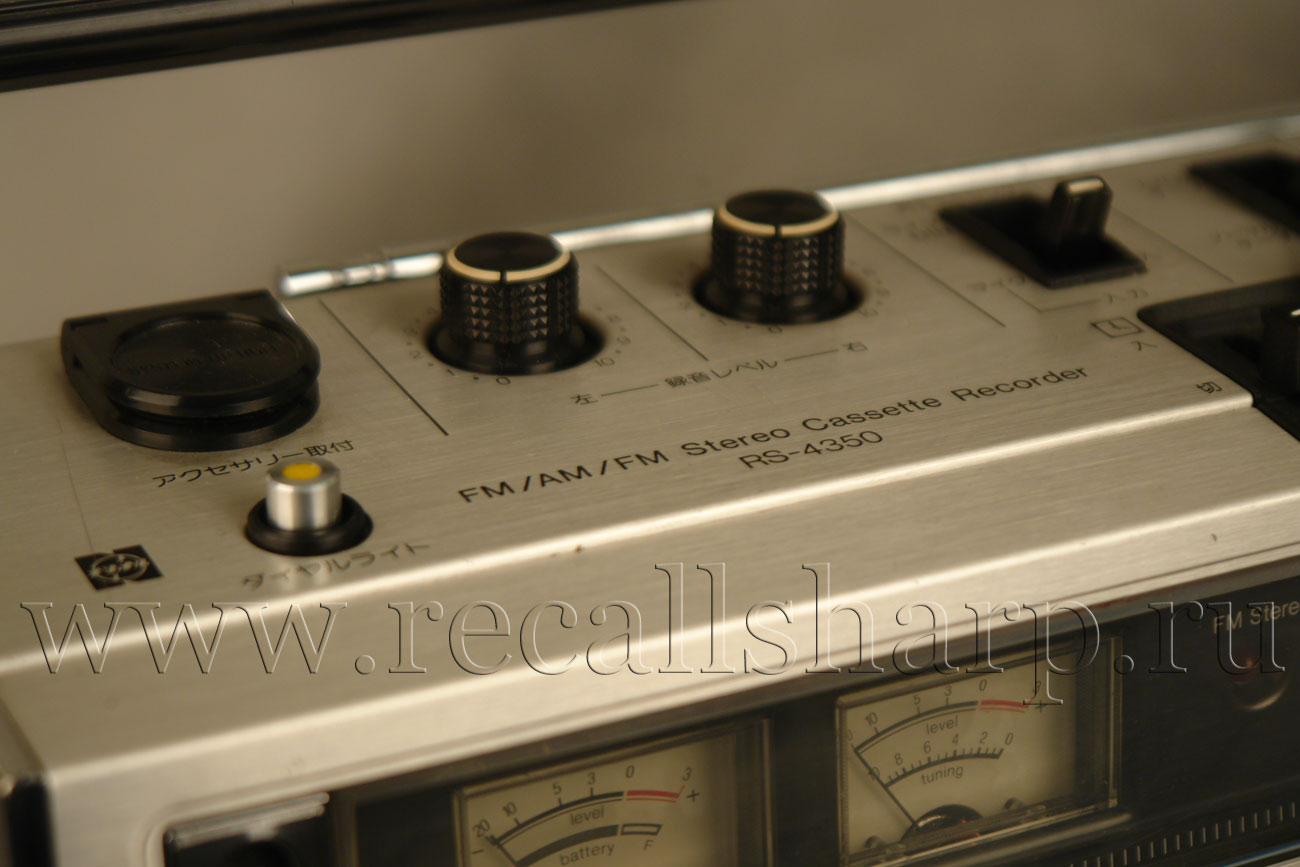

National RS-4350



: 1978


RS-4350 MECHANISM SERIES
Specifications (Catalog specifications for sales)
Power requirement: AC;100V, 50\60Hz
Power consumption; 13 W
Battery; 9V (six- R20 size dry batteries)
Car/boat battery; with optional car/boat adaptor RP-917

Power output: 6.6W (3.3Wx2) ... (EIAJ/DC)

Frequency range:
50-13,000Hz (with CrO2 tape)
50-10,000 Hz(with normal tape)
Recording system; AC bias, AC erase
S/N 50dB
W&F 0.09%

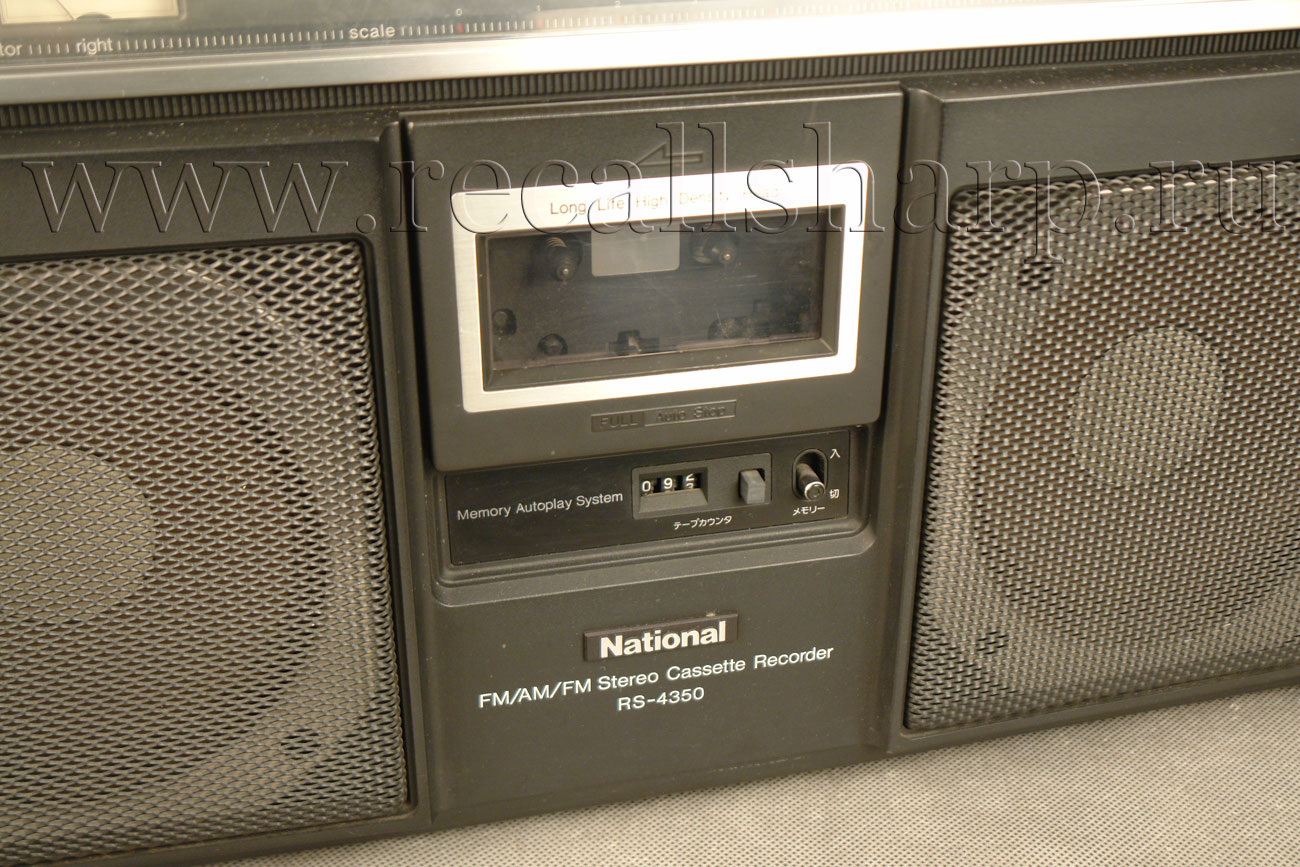

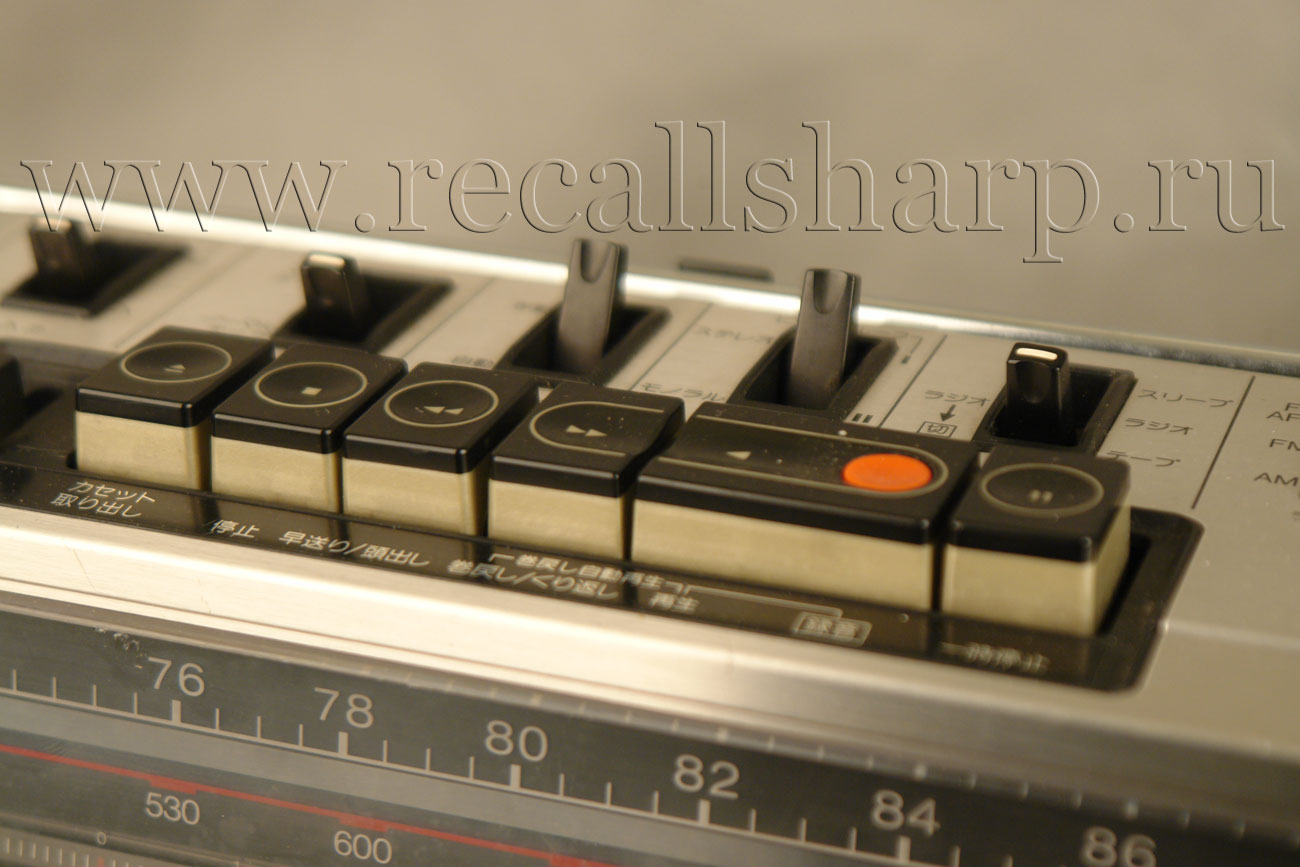

Operations: Push button one-touch recording with Full Auto-
Stop and memory play mechanism
Tape speed: 4.8cm/s
Program time: 1 hour with C-60 cassette tape
Fast forward and
rewind time: Approx. 90 seconds with C-60 cassette tape
Track system: 4-track stereo recording and playback

Input: MIC; sensitivity 0.25mV/applicable microphone
impedance 200-600Ohm (recommended microphone RP-8135N)
LINE; sensitivity 63mV/560KOhm
DC IN:9V

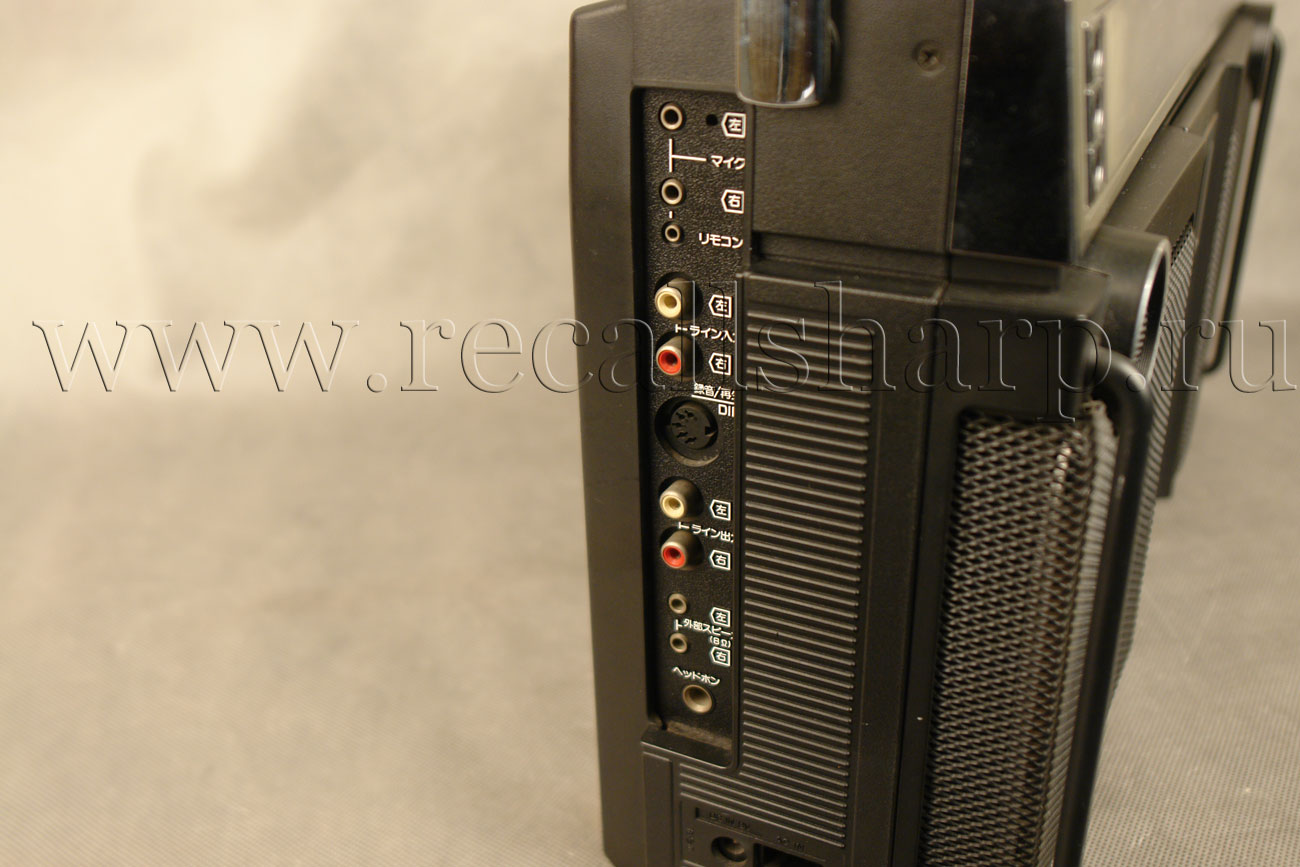

Output:
LINE; output level 0.46V load impedance
50 KOhm over
EXT SP:8Ω
HEADPHONES; 8Ω
REMOTE; for start and stop at hand
REC/PB. connection: 5P DIN type; IN; 63mV/22KOhm
OUT; 0.43 V/3.6KOhm

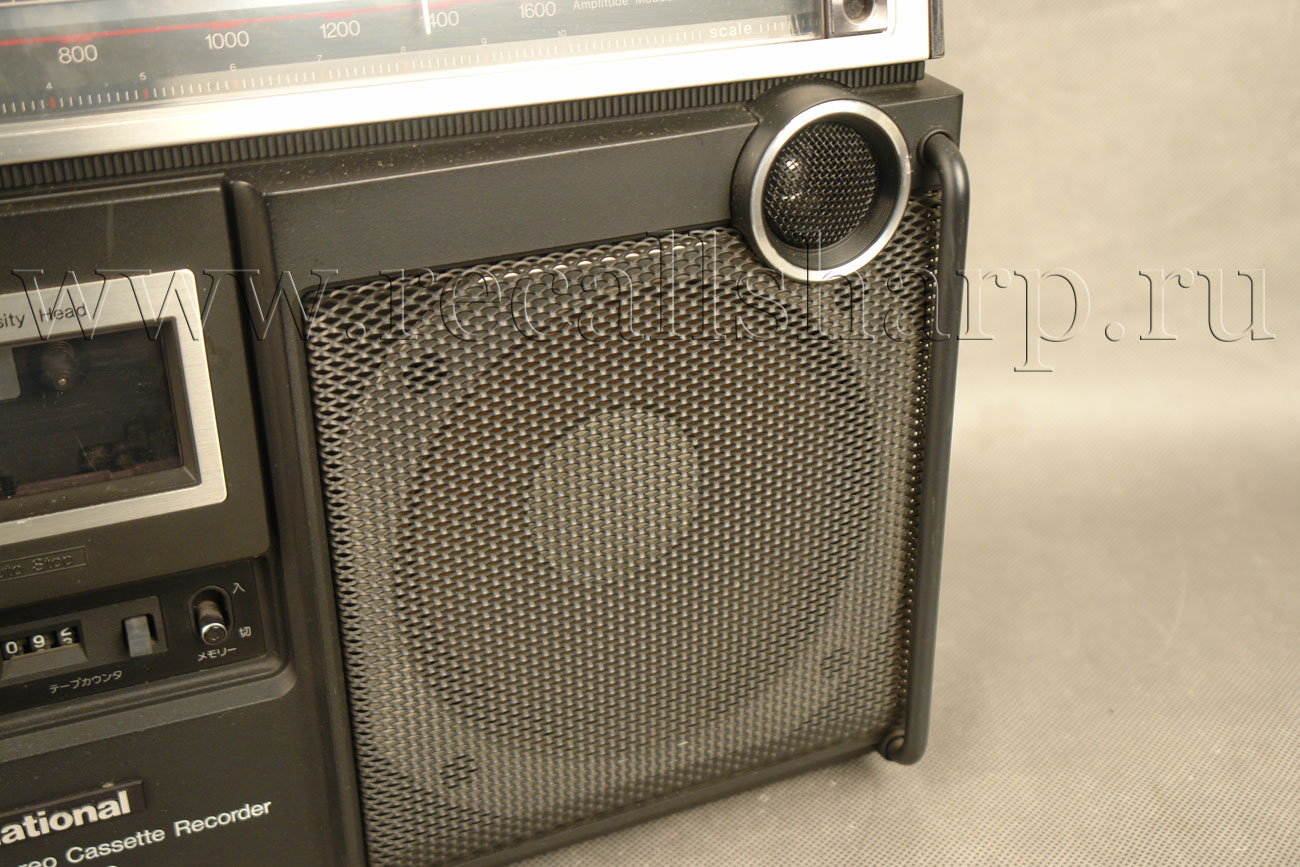

Speakers:
WOOFER; 16cm PM dynamic speaker
TWEETER; 3cm PM dynamic speaker

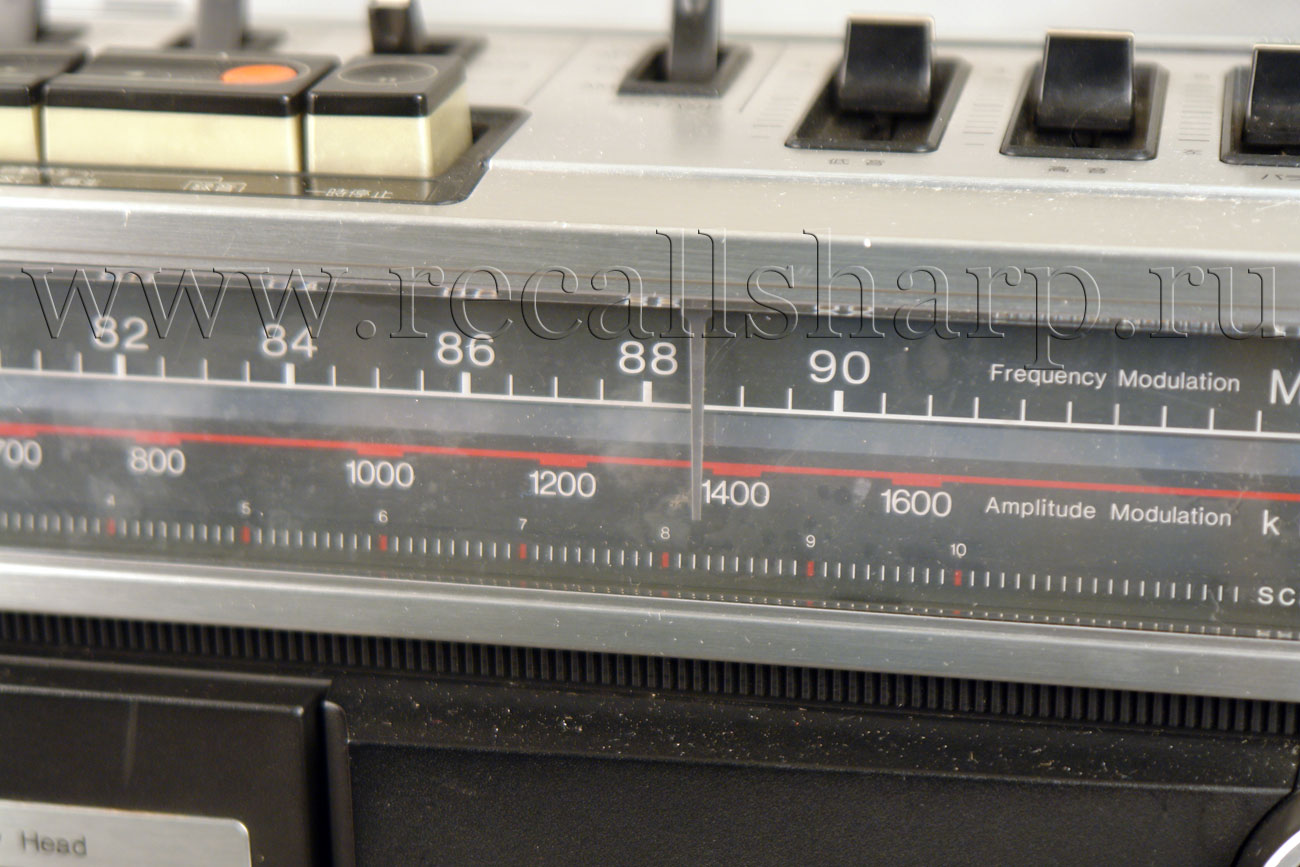

Radio frequency range:
FM; 76-90MHz
AM; 525-1605kHz


Dimensions: 51.4cm(W) x 29.0cm(H) x 16.25cm(D)
Weight: 7.9kg (with batteries)

:
Panasonic RQ-4350
Panasonic RS-4350 LJ
