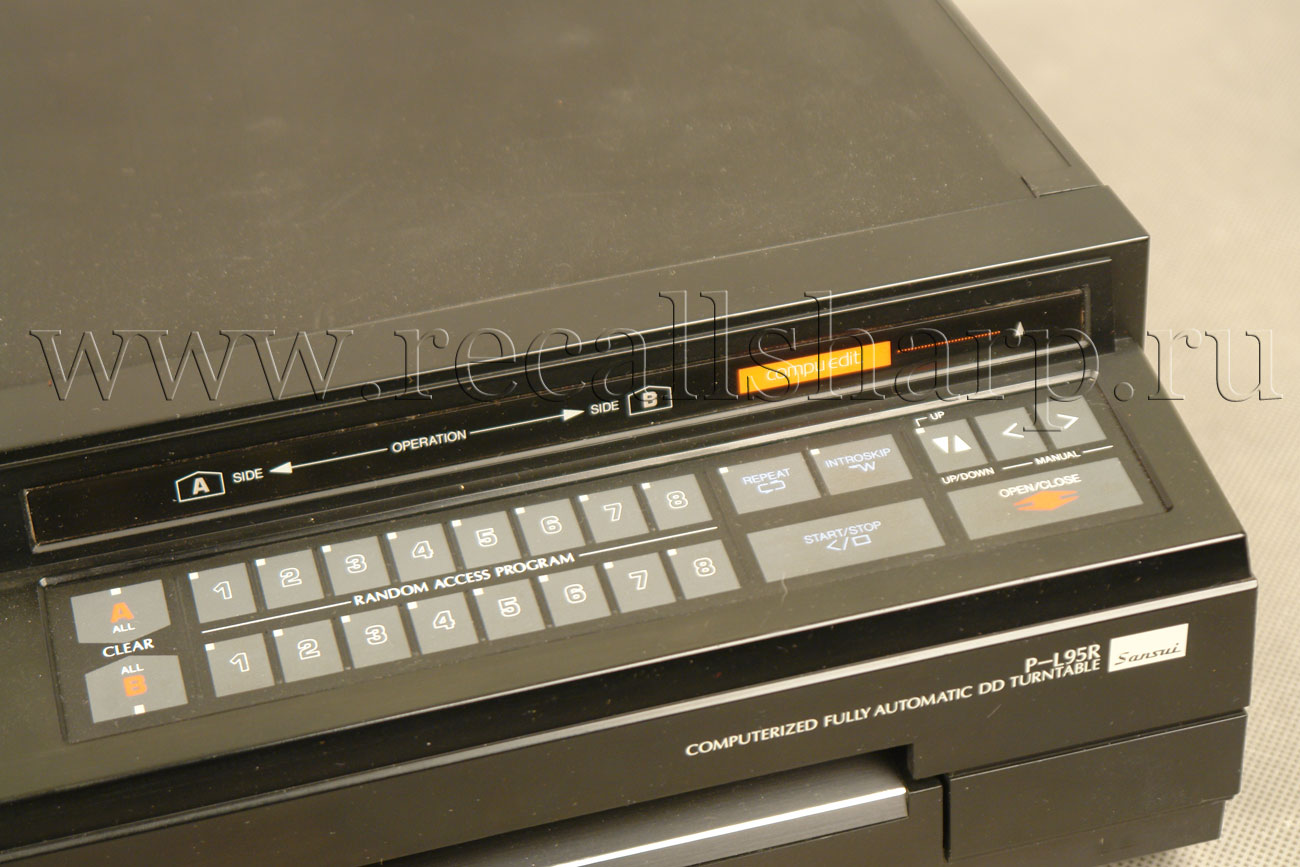

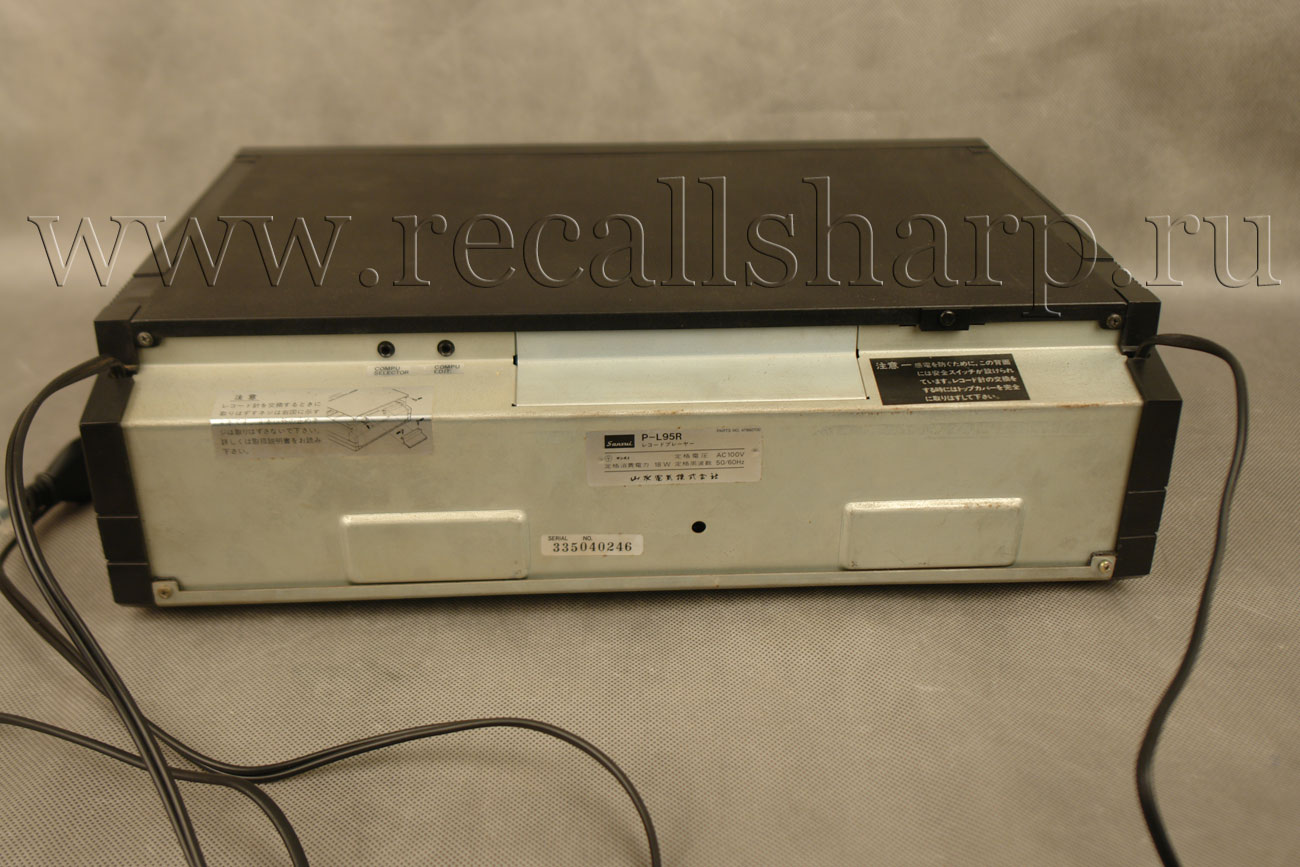

Sansui P-L 95 R



: 1984


SPECIFICATIONS
GENERAL
Power supply: 100V, 50/60Hz AC
Power consumption: 18 W
Dimensions: Width; 435mm
Height; 128mm
Depth; 355mm
Weight: 8,2 kg
DRIVING SYSTEM
Type: Direct Drive Turntable
Motors: Coreless& Brushless DC \FG servo
Speeds: 33-1/3 rpm and 45 rpm
Wow and flutter: ±0.08%
S/N ratio: better 72 dB (DIN "B")
TONEARM
Type:
linear tracking
Effective Tonearm length: 70mm
Tracking error angle: 0.3°
CARTRIDGE
Type:
Dual magnet type
Frequency response: 10Hz - 20,000Hz
Output voltage: 2.5mV (1kHz, 35.4mm/sec.)
Channel separation: 20 dB
Tracking force: 2.5 g
Impedance: 47 kohms
Compliance: 5 x 10~6 cm/dyne
Stylus: 0.6mil diamonds stylus (SN-909)
