Nakamichi (. 中道) . 中道 — , 1948 . 19731993 Nakamichi - (. 中道仁郎) . 1993 , , , , 1990-. Nakamichi Grande Holdings, Niro Nakamichi. Nakamichi .

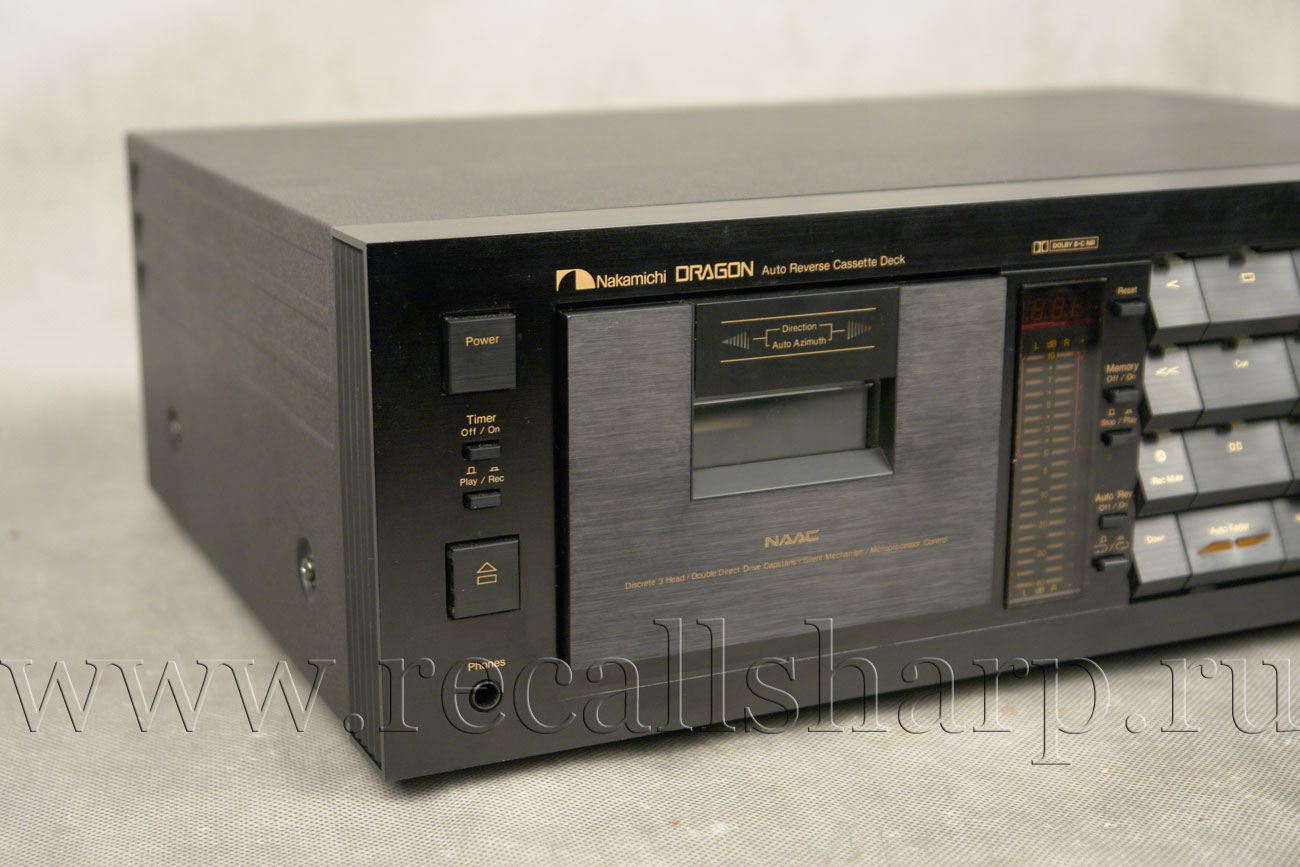

Nakamichi Dragon



: 1983


Specifications:
Track System: 4 track, 2 channel stereo system
Tape: Philips type cassette
Tape Speed: 4.76 cm/s ±1% (1-7/8 ips 1% )
Heads: 3 ( head for record head x 1,playback head x1,Erase head x1)
Motors: /Tape Transport/
QuartzPLL DC ,brushless,slotless, coreless Super Linear Torque motor ( capstan drive x 2)
DCmotor ( reel drive) x1
/Mechanism/
DCmotor x1
DC motor ( auto azimuth correction) x1
Wow & Flutter: Less than0.019% WTD Peak
Less than0.04% WTD RMS,
Power Requirements: 220V , 50/60 Hz
Power Consumption: 45 Watts
Tape winding time: 80sec using a C-60 cassette tape

Frequency Response: 20to 21,000 Hz3 dB (recording level -20dB, SX,EX 2 tape)
20to 22,000 Hz3 dB (recording level -20dB, ZX tape)


Signal to Noise Ratio: Dolby B-type NR switch ON:(70μs ,ZX tape)Better than 66 dB
Dolby C-type NR switch ON: (70μs ,ZX tape)Better than 72 dB
Total Harmonic Distortion: Less than 0,8% (400Hz,0 dB ,ZX tape)
Less than 1,0% (400Hz,0 dB ,SX, EX2 tape)

Input Line: 50 mV(Input impedance 40kohms)
Output Line:1V at 0 VU
. Required load impedance: More than 2.2 kohms
Phone: 12 mV/8 ohms at 0 VU
BlackBox Series DC Output 10 V, 125 mA Max


Dimensions: 450(W) x 135(H) x 300(D) mm

Weight: 9.5 kg
