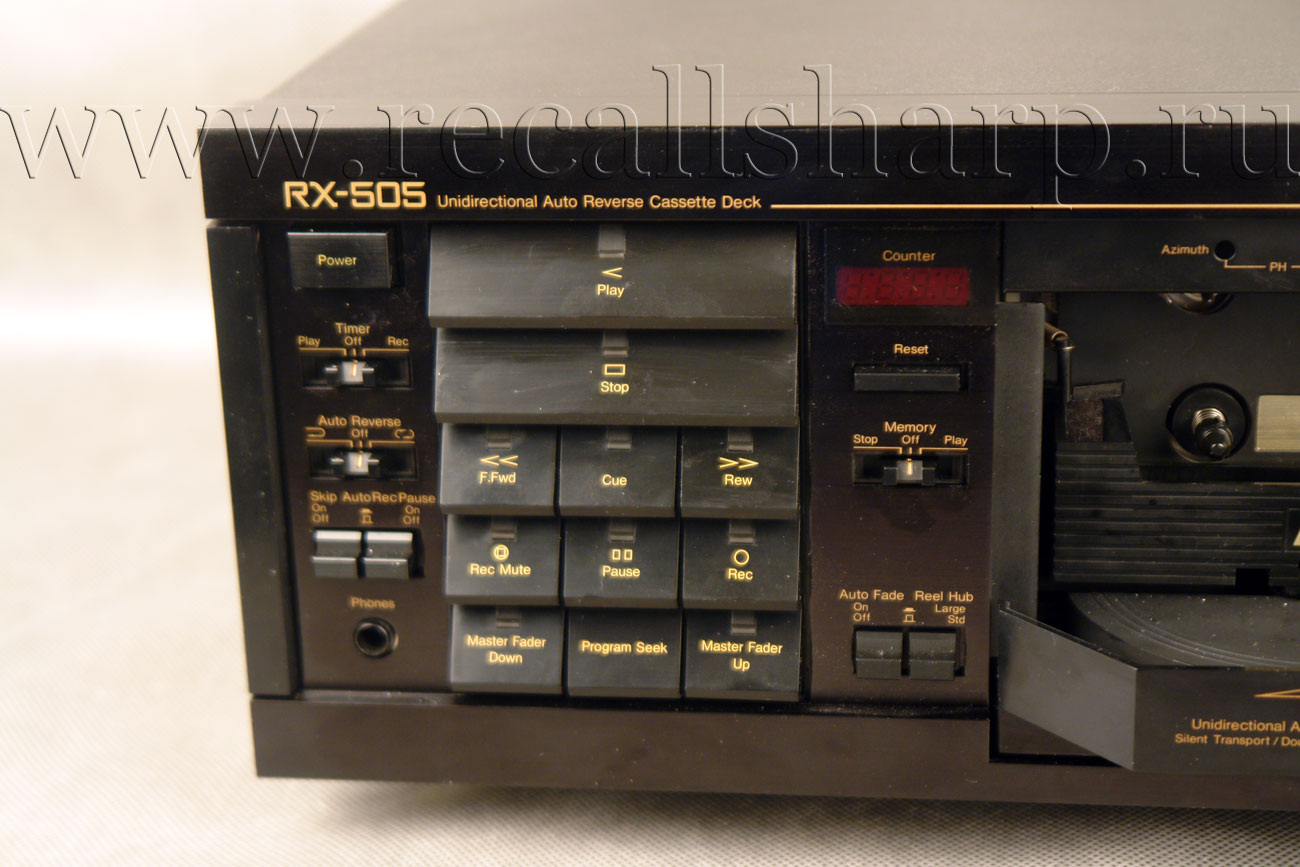

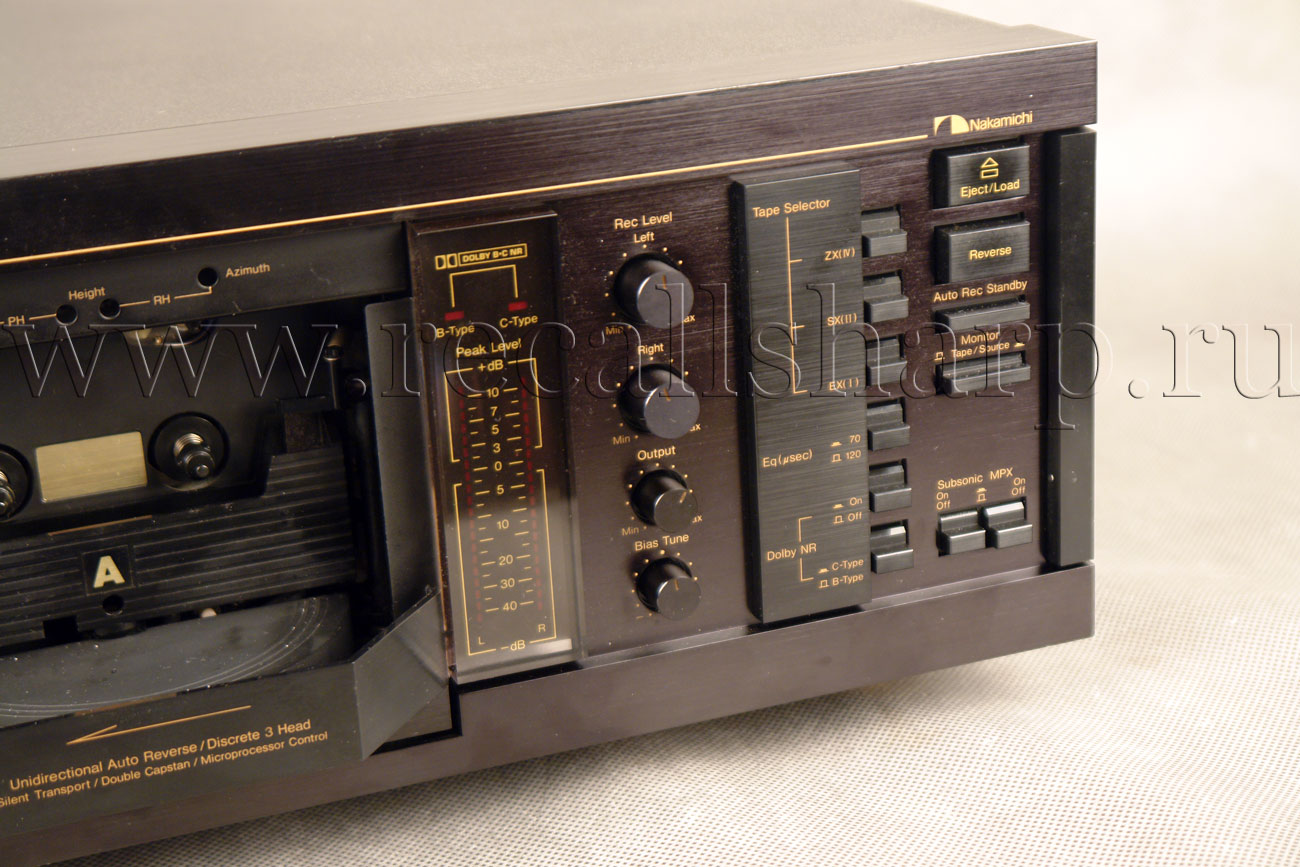

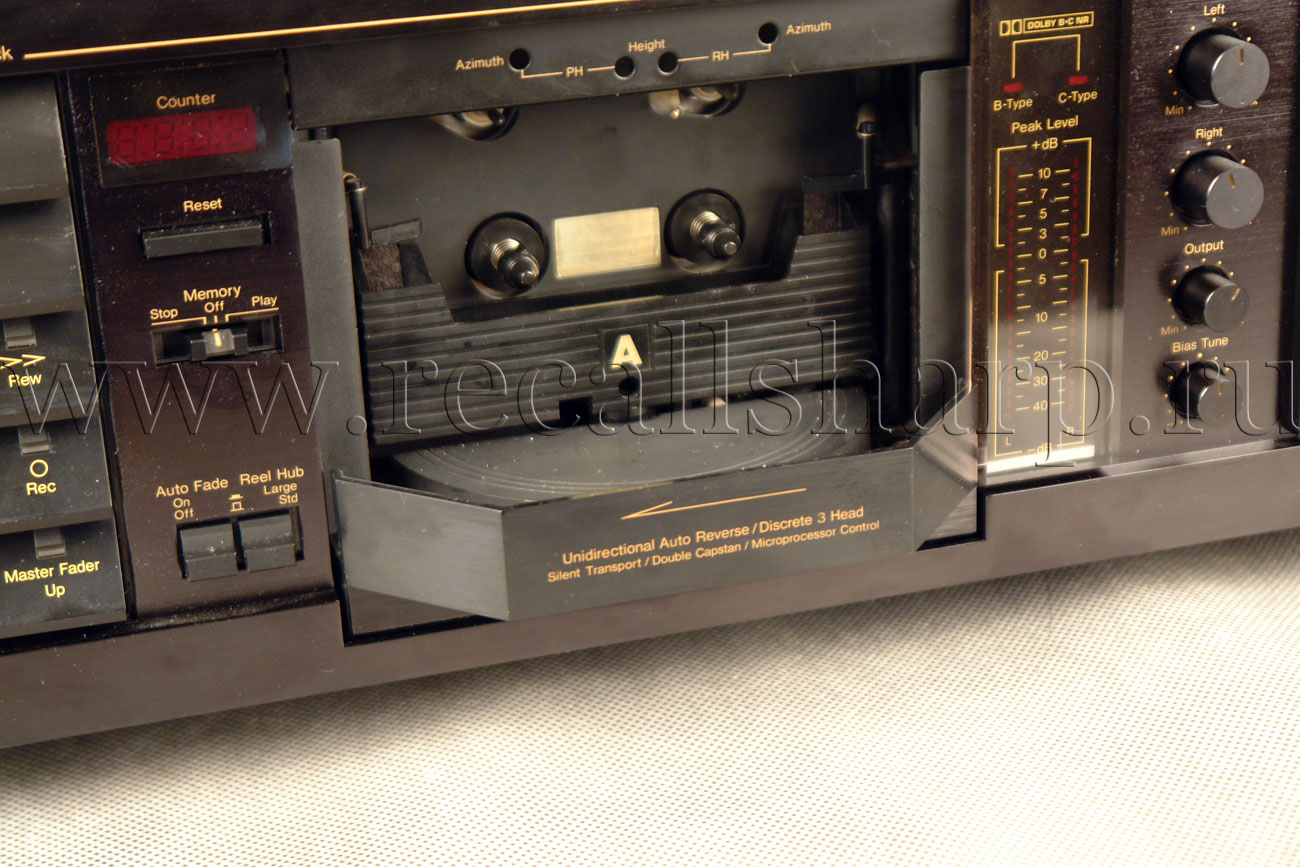

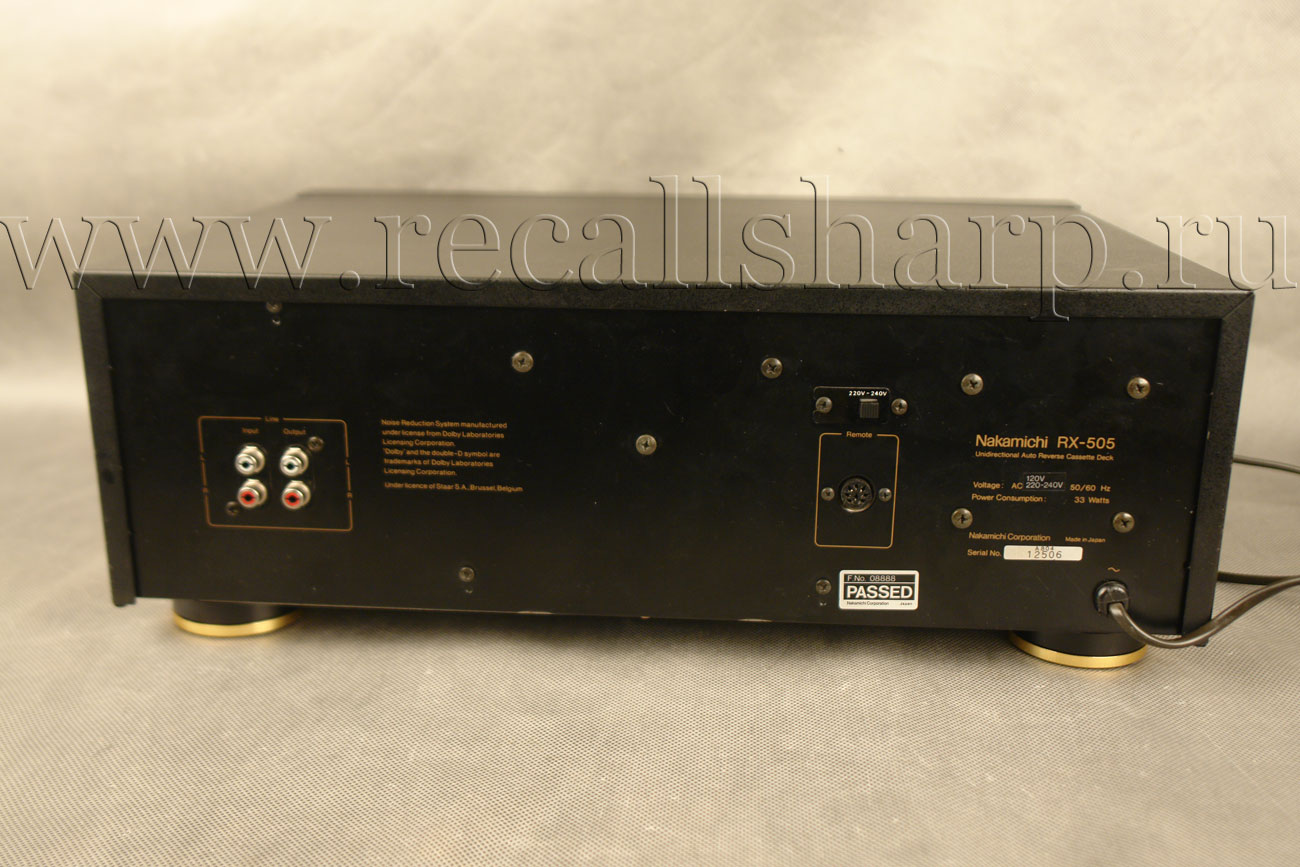

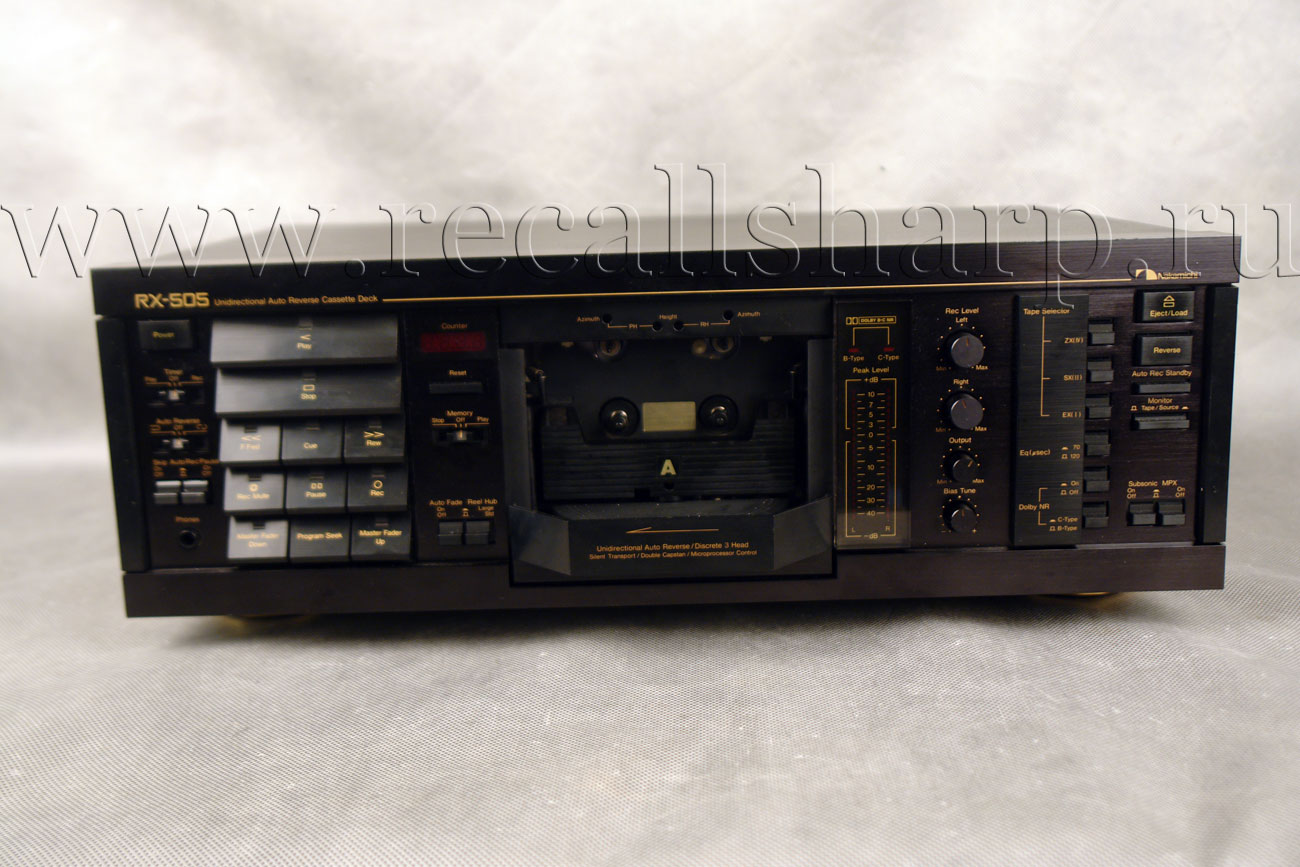

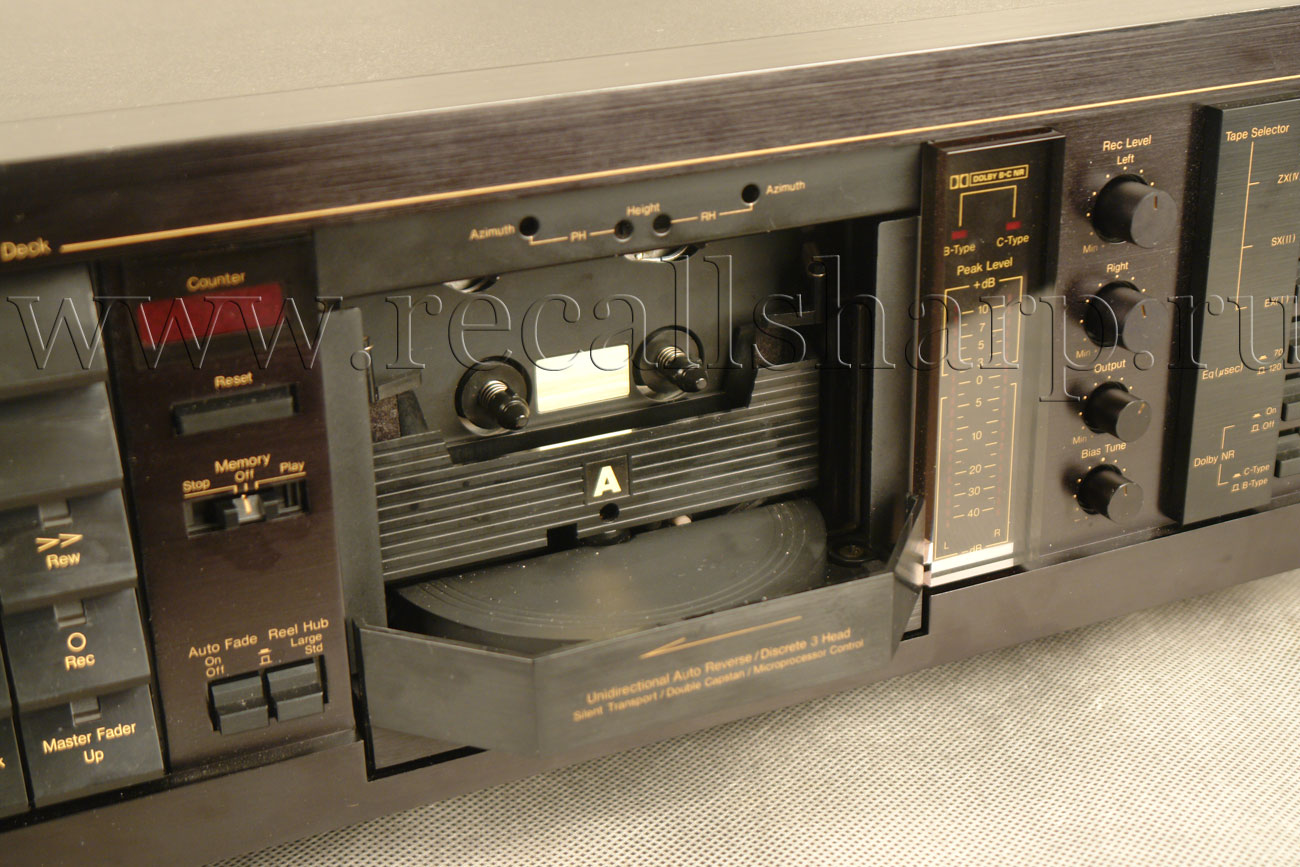

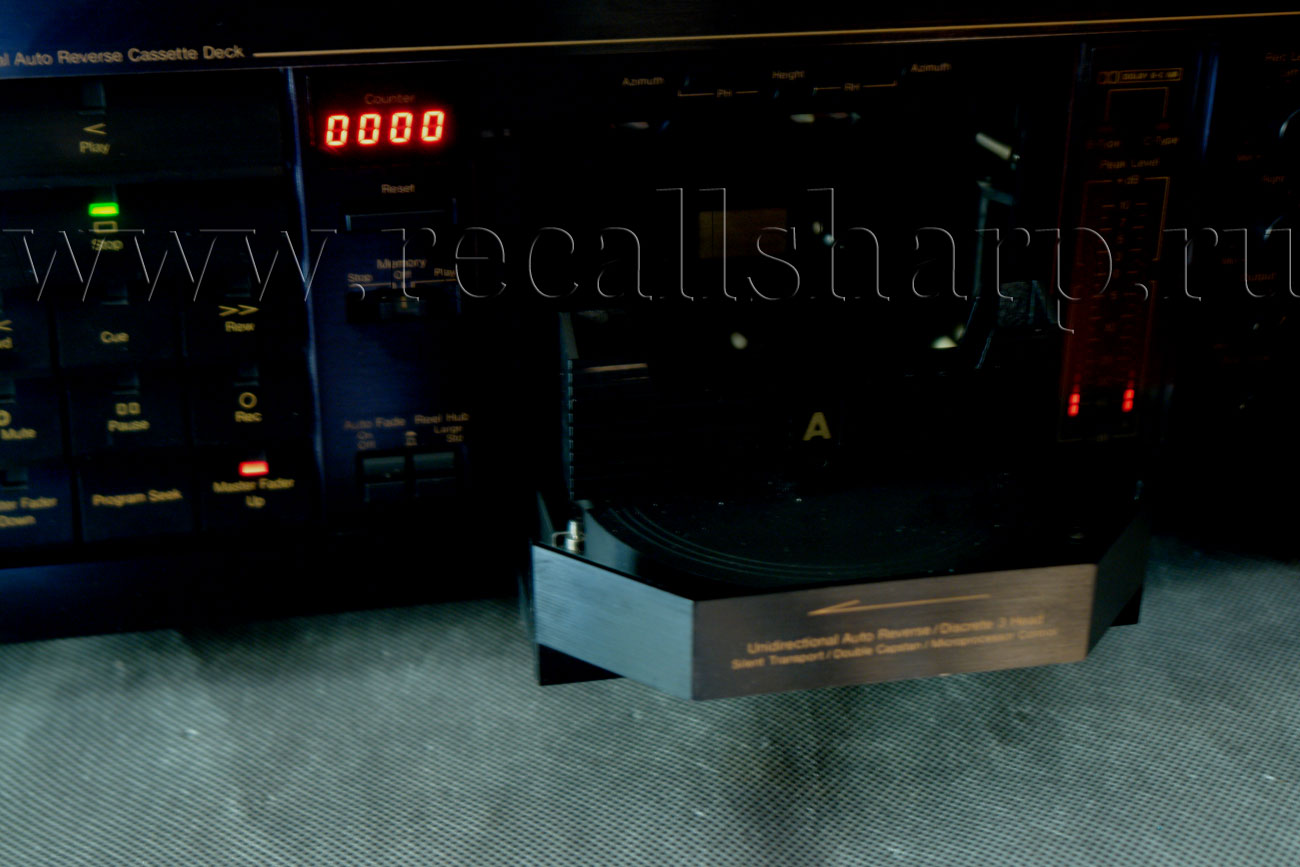

Nakamichi RX-505



: 1984


Specifications:
Track System: 4 track, 2 channel stereo system
Tape: Philips type cassette
Tape Speed: 4.76 cm/s ±1% (1-7/8 ips 1% )
Heads: 3 ( head for record head x 1,playback head x1,Erase head x1)
Motors: /Tape Transport/
PLLservomotor ( capstan drive) x1
DCmotor ( reel drive) x1
Wow & Flutter: Less than0.08% WTD Peak
Less than0.04% WTD RMS,
Power Requirements: 120V/220-240V , 50/60 Hz
Power Consumption: 33 Watts
Tape winding time: 60sec using a C-60 cassette tape

Frequency Response: 20to 20,000 Hz3 dB (recording level -20VU)



Signal to Noise Ratio: Dolby B-type NR switch ON:(70μs ,ZX tape)Better than 64 dB
Dolby C-type NR switch ON: (70μs ,ZX tape)Better than 70 dB
Total Harmonic Distortion: Less than 0,9% (400Hz,0 dB ,ZX tape)
Less than 1,0% (400Hz,0 dB ,SX, EX2 tape)

Input Line: 50 mV(Input impedance 40kohms)
Output Line:1V at 0 VU
. Required load impedance: More than 2.2 kohms
Phone: 12 mV/8 ohms at 0 VU


Dimensions: 450(W) x 144(H) x 300D) mm

Weight: 10.0 kg
