Aiwa 1951 . 1967 . 2002 Aiwa - Sony, .

, ...

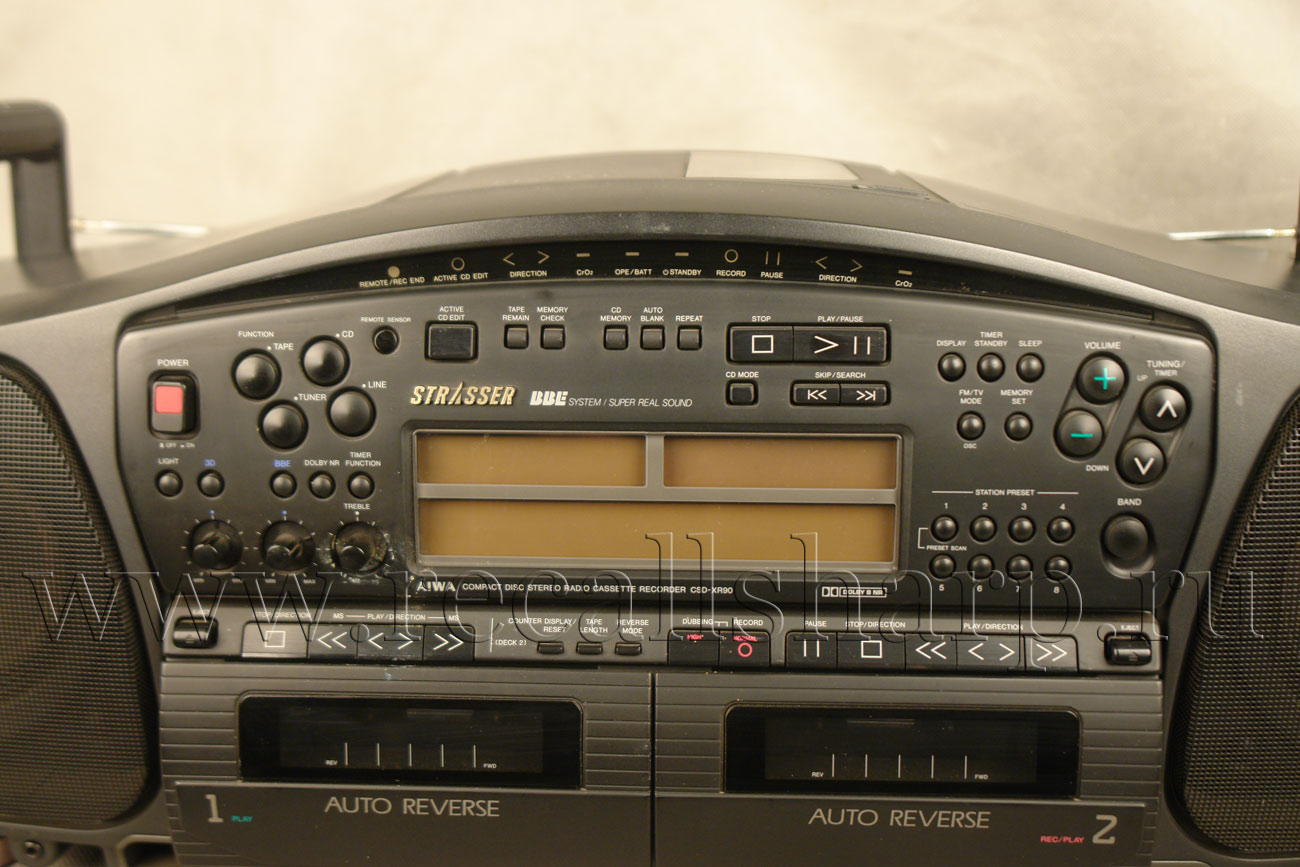

Aiwa CSD-XR90



: 1989


Radio Frequency range
FM 76-90.00 MHz
AM 522-1611 kHz
■ CD player
Sampling frequency 44.1kHz
Decoding 15 bit linear
Beam source Semiconductor laser (wavelength 780 nm)
No. of channels 2 channel, stereo
Frequency response 10 Hz-20 kHz
Wow and flutter Less than possible measurement data
D/A converter (15 bit linear)
■ Tape recorder
Track system 4 track, 2 channel, stereo
Recording system AC bias
Erasing system AC erase
Monitor system Variable sound monitor
Frequency range
Normal 40-12500 Hz (with normal tape)
Cr02 40-14000 Hz
(with CrO2 tape)
Metal 40-16000 Hz
(with Metal tape)
■ General
Power requirement
AC 100 V, 50/60 Hz,
Power consumption; 32 W
Battery 15 V (Ten UM-1, R20/LR20 batteries)
Memory back-up for computer/clock
4.5 V (Four UM-3, R6/LR6 batteries)
Speakers
Cone type 120mm x 2


Cone type for deep bass 80mm x1

Jacks Input MIC; 2.5 mV (4.7 kΩ)
AUX; 200mV(47kΩ)
Output HEADPHONES; 32Ω
CD OUT; 1.2V(CD 0dB)
Dimensions (WXHXD) (Top panel closed) 720x247x304 mm
Weight 10 kg with batteries
