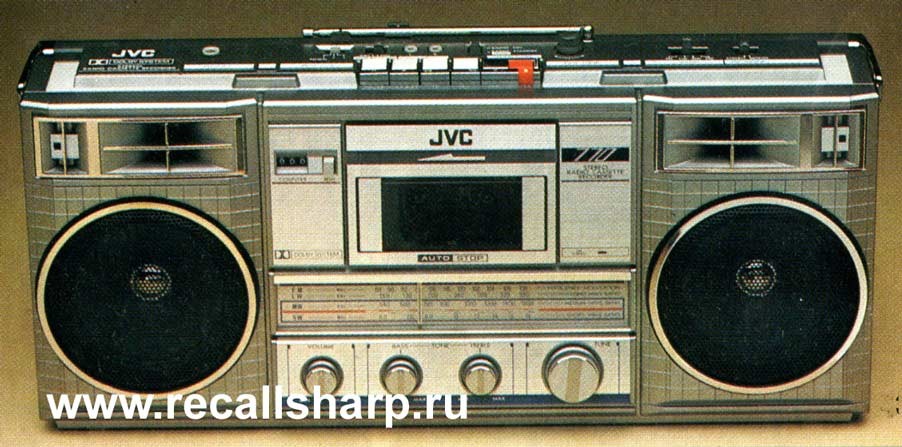

JVC RC-770 L



: 1983


Specifications


Speakers : 1 2 cm (3.2 Ω)x2, 2 cmx2

Tuner section
Frequency ranges : FM 88 —108 MHz
MW 540- 1600 kHz

LW 150-350 kHz

SW 6-18 MHz
Antennas : Telescopic antenna for FM & SW
Ferrite core antenna for MW & LW

Tape recorder section
Track system : 4-Track 2-Channel stereo
Frequency response : 80—12,000 Hz

Wow & flutter :0.19% (WRMS)
S/N ratio : 54 dB (Normal tape)
Rewind time : Approx. 120 sec. (C-60 cassette)
Fast forward time : Approx. 120 sec. (C-60 cassette)
Head : Permalloy Head for Playback/Recording 2-Gap permalloy
Head for erasure

Motor : Electronic DC motor x 1

Amplifier section
Power output : Max. 6 W (3 W + 3 W) at 3.2
Ω
2.2 W per channel at 10% THD

Input jacks : Mic x 2 (1 mV, - 60 dBV,
200 - 2
)

Output jacks : Headphone x 1
Power supply : DC 9 V (6 "R20" batteries)
Car battery (DC 9 V)
AC 240/220/110 V, 50/60 Hz

Power consumption : 10 W (RC-770LB), 9 W (RC-
770L/LD)

Dimensions : 520(W) x 239(H) x 136(D) mm
(20-1/2"x9-1/2"x5-3/8")

Weight : Approx. 3.2 kg (7.0 lbs)
(without batteries)
Design and specifications subject to change without notice.



:
