Ãîä íà÷àëà âûïóñêà: 1984
Ðåãèîí: Åâðîïà
SPECIFICATIONS
General

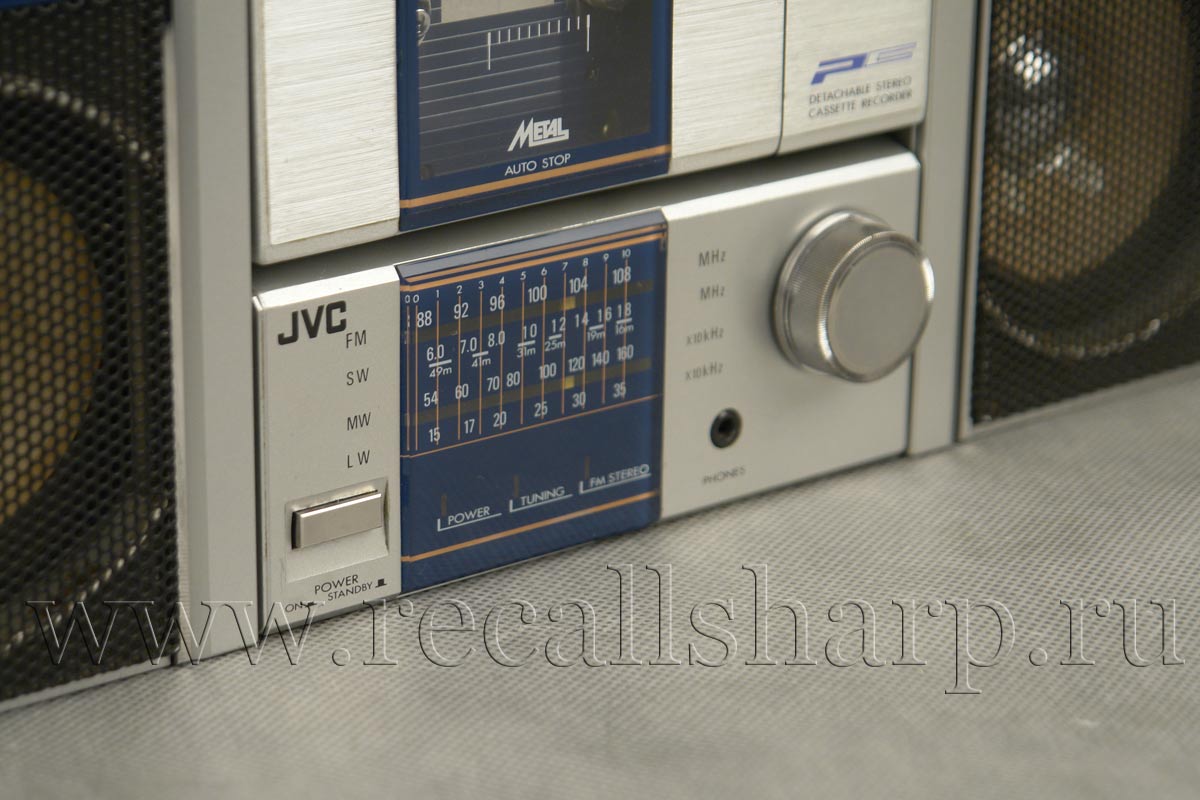

Frequency ranges : FM 88 - 108 MHz (L/LB/LD)
65 - 73 MHz (LE)
MW 540-1600 kHz
SW 6-18 MHz
LW 150-350 kHz
Antennas : Telescopic antennas for FM & SW
Built-in ferrite bar antenna for MW & LW
Input jacks : AUX IN (mini-plug 3.5 mm dia.) x 2
Minimum input level 78 mV
Input impedance 20 kΩ
Output jacks : EXT SPK (4-pin) x 2, 4 W (3.2 Ω)
Matching impedance 3.2 — 8Ω
PHONES (Stereo mini-plug 3.5 mm dia.) x 1, 0 -50mW (32 Ω)
Matching impedance 8 — 32 Ω
Power output : Max. 10 W (5 W + 5 W) at 3.2Ω
4W per channel at 10%THD
Power supply : AC 240/220/110 V, 50/60 Hz
DC 12 V (R14 ("C") battery x 8),
Car battery through a car battery adapter
Power consumption :16W
Dimensions : 350(W) x 194(H) x 135(D) mm
(13-3/8" x 7-3/4" x 5-3/8") (with antennas retracted and handle folded back)
Weight : Approx. 3.6 kg (7.9 lbs) (including
batteries)

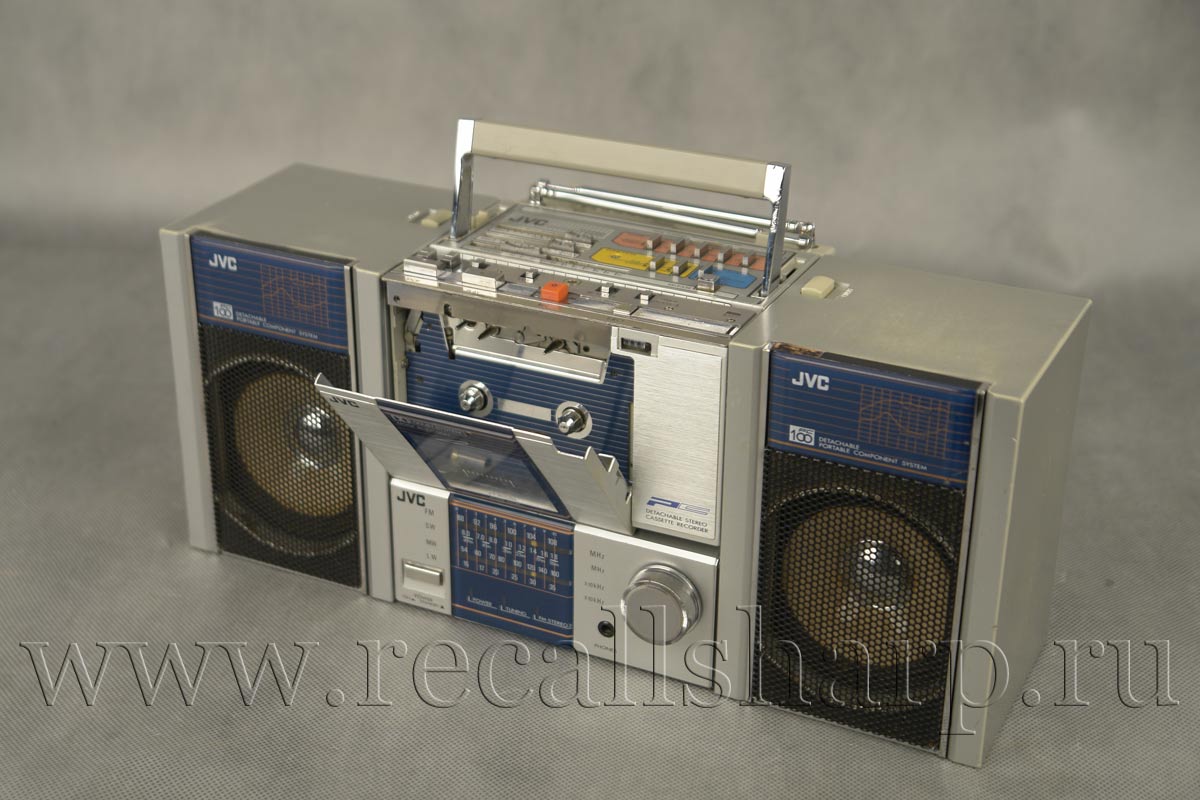

Cassette deck section
Track system : Stereo
Heads : 2 Gap ferrite + magnet head for
easure, METAPERM head for recording/playback
Wow and flutter : 0.2 % (WRMS)
Fast forward time : Approx. 105 sec. (C-60 cassette)
Rewind time : Approx. 105 sec. (C-60 cassette)
Frequency response : 60 - 14,000 Hz (Metal)
60- 13,000 Hz (Normal)
Input jacks : EXT MIC (mini-plug 3.5 mm dia.)
x2,
Minimum recording input level 0.78 mV <-62dBV),
Matching impedance 200Ω — 2 kΩ
Output jacks : PHONES (stereo mini-plug 3.5 mm
dia.) x 1,
Matching impedance 16 — 32Ω
Power output : Total 30 mW (15 mW + 15 mW)
(32 Ω)
Power supply : DC 3 V (R6 ("AA") battery x 2)
Dimensions : 142(W) x 87.5(H) x 36(D) mm
(5-5/8" x 3-3/8" x 1-1/2") (including pads and controls)
142(W) x 82.5(H) x 36(D) mm (5-5/8" x 3-1/2"x 1-1/2") (excluding pads and controls)
Weight : Approx. 380 g (0.8 lb) (including
batteries)

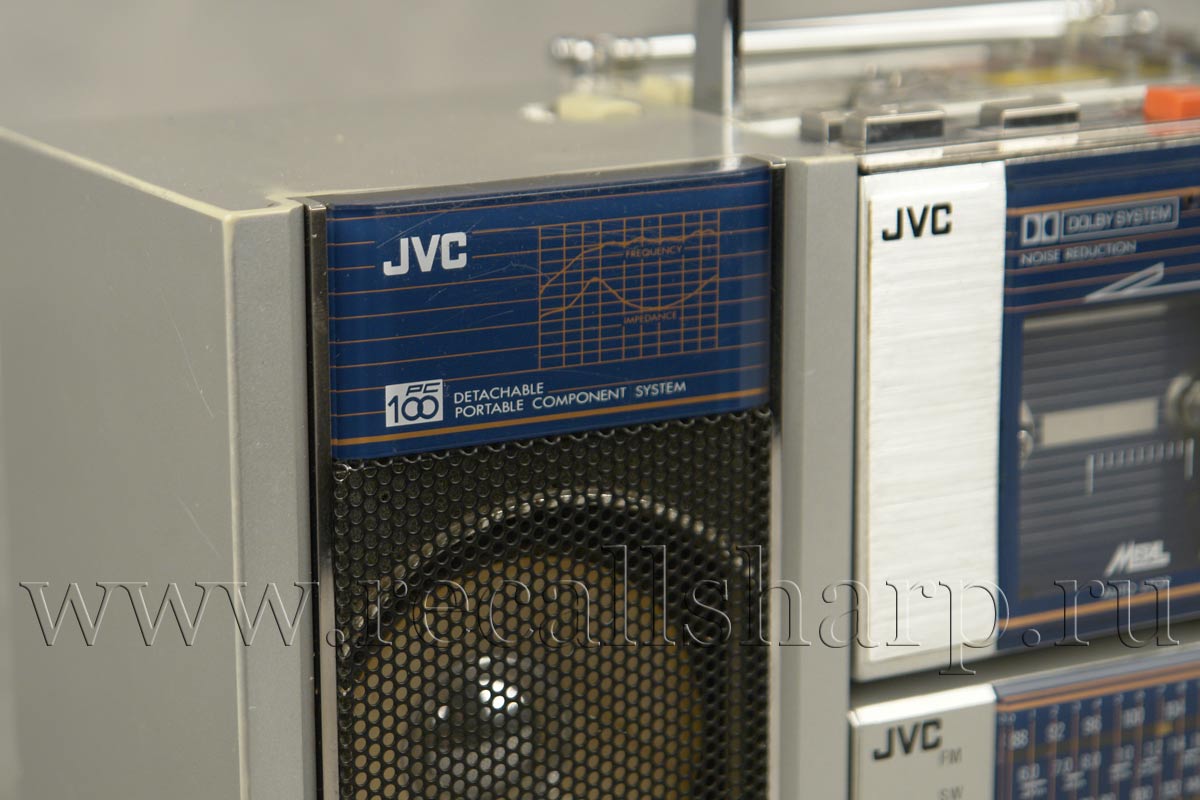

Speaker section
Type : Full-range bass reflex system (book-
shelf type)
Speaker units : 9.2 cm (3-5/8") cone x 1
Impedance : 3.2Ω
Rated input : 4 watts
Dimensions : 104(W) x 150(H) x 99(D) mm
(4-1/8" x 6" x 4") including pads
Weight : Approx. 930 g (2 lbs) (with batteries)
Design and specifications are subject to change without notice for improvement.
|
