JVC 1927 . : ,

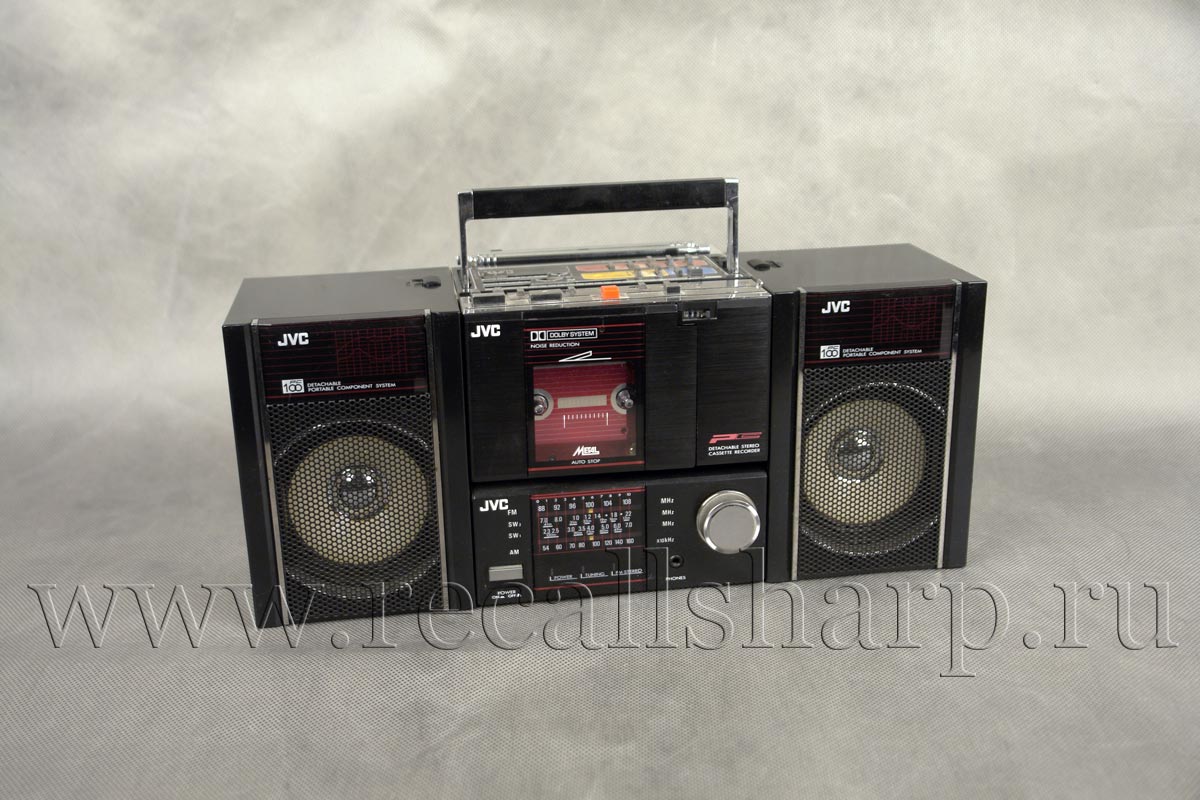

JVC PC-M100 JW black



: 1984


SPECIFICATIONS
General
Frequency ranges : FM 88 - 108 MHz

AM 540-1600 kHz

SW2 7-22 MHz
SW 1 2.3-7 MHz

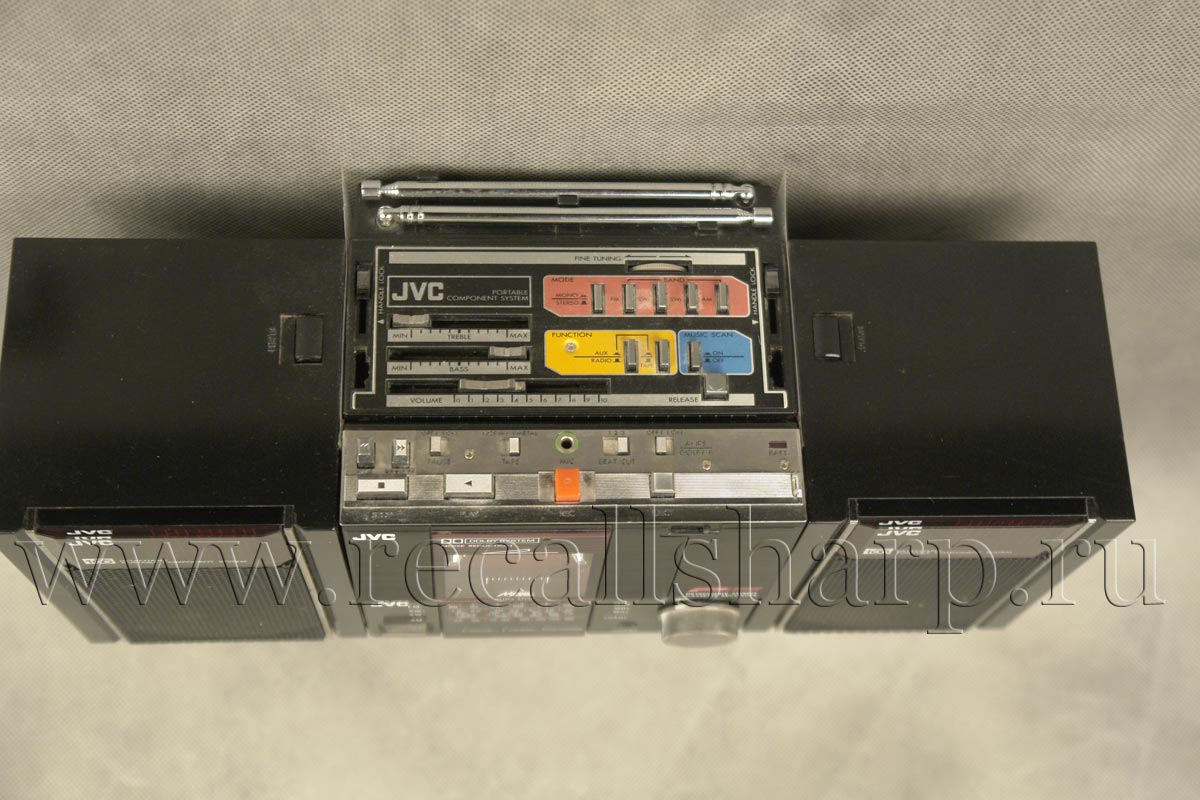

Antennas : Telescopic antennas for FM & SW
Built-in ferrite bar antenna for MW & LW

Input jacks : AUX IN (mini-plug 3.5 mm dia.) x 2
Minimum input level 78 mV

Input impedance 20 kΩ

Output jacks : EXT SPK (4-pin) x 2, 4 W (3.2 Ω)
Matching impedance 3.2 — 8
Ω

PHONES (Stereo mini-plug 3.5 mm dia.) x 1, 0 -50mW (32 Ω)

Matching impedance 8 32 Ω

Power output : Max. 10 W (5 W + 5 W) at 3.2Ω
4W per channel at 10%THD

Power supply : AC 240/220/120 V, 120 pre-set 50/60 Hz
DC 12 V (R14 ("C") battery x 8),

Car battery through a car battery adapter

Power consumption : 16W
Dimensions : 350(W) x 194(H) x 135(D) mm
(13-3/8" x 7-3/4" x 5-3/8") (with antennas retracted and handle folded back)

Weight : Approx. 3.6 kg (7.9 lbs) (including
batteries)

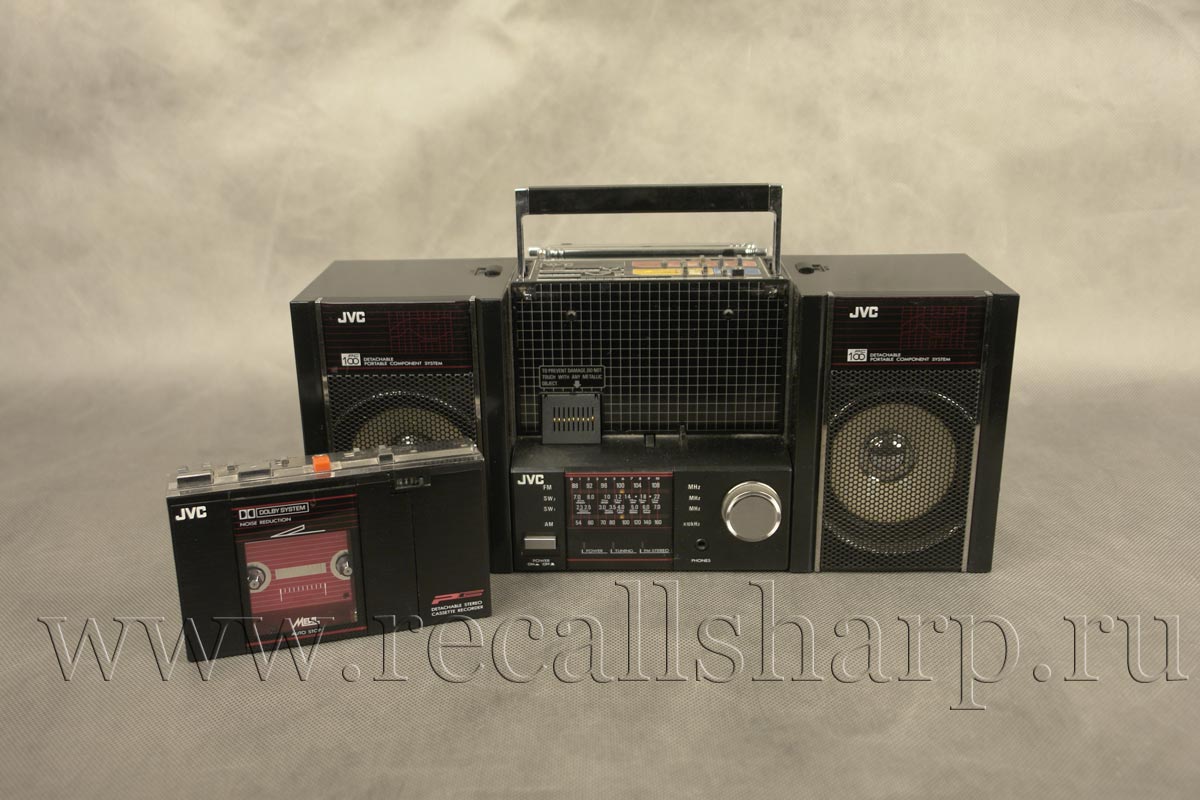

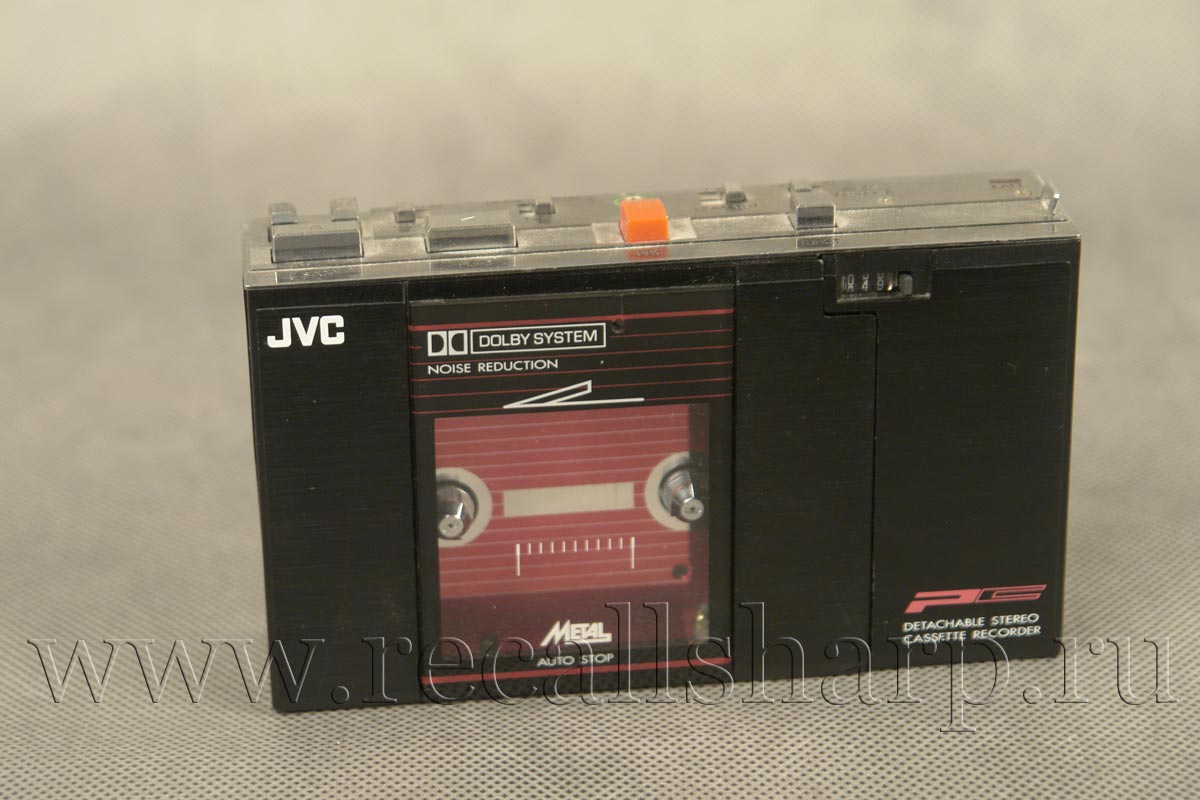

Cassette deck section

Track system : Stereo
Heads : 2 Gap ferrite + magnet head for
easure, METAPERM head for recording/playback

Wow and flutter : 0.2 % (WRMS)
Fast forward time : Approx. 105 sec. (C-60 cassette)

Rewind time : Approx. 105 sec. (C-60 cassette)

Frequency response : 60 - 14,000 Hz (Metal)

60- 13,000 Hz (Normal)
Input jacks : EXT MIC (mini-plug 3.5 mm dia.)
x2,

Minimum recording input level 0.78 mV <-62dBV),

Matching impedance 200Ω 2 kΩ

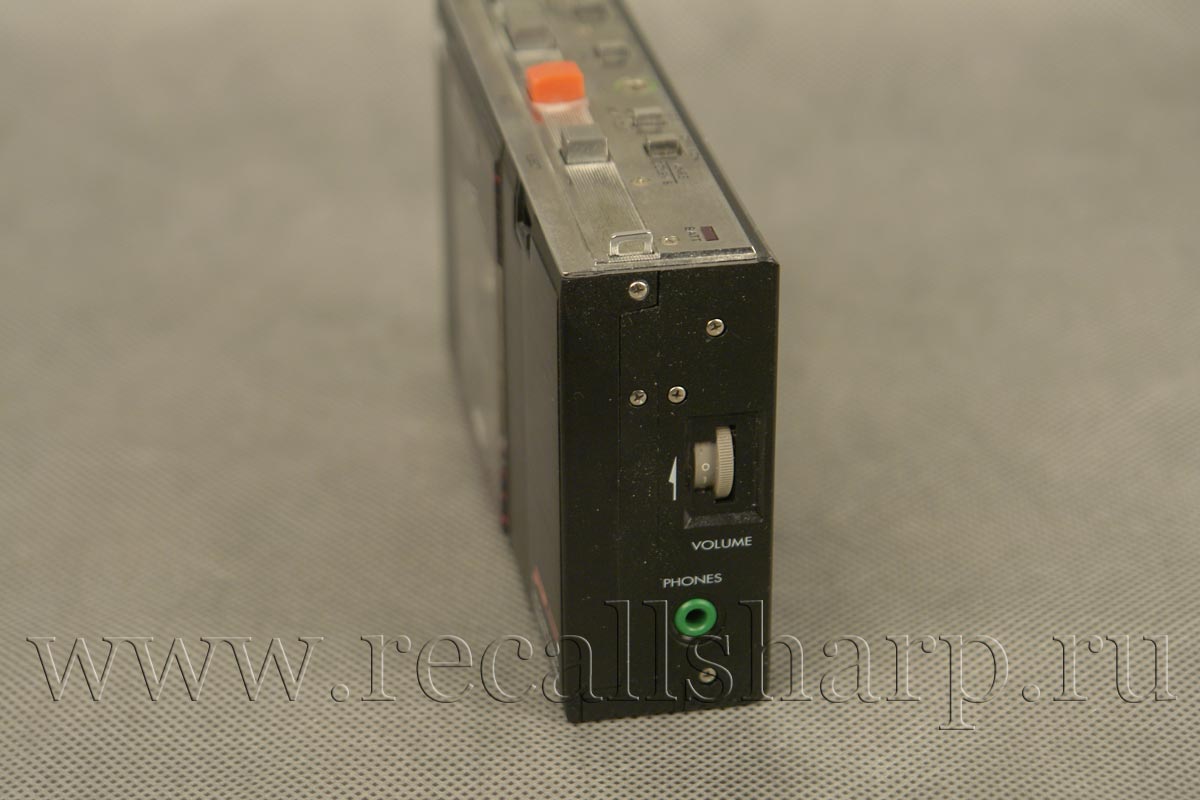

Output jacks : PHONES (stereo mini-plug 3.5 mm
dia.) x 1,

Matching impedance 16 32Ω
Power output : Total 30 mW (15 mW + 15 mW)
(32
Ω)
Power supply : DC 3 V (R6 ("AA") battery x 2)
Dimensions : 142(W) x 87.5(H) x 36(D) mm
(5-5/8" x 3-3/8" x 1-1/2") (including pads and controls)

142(W) x 82.5(H) x 36(D) mm (5-5/8" x 3-1/2"x 1-1/2") (excluding pads and controls)
Weight : Approx. 380 g (0.8 lb) (including
batteries)
Speaker section
Type : Full-range bass reflex system (book-
shelf type)
Speaker units : 9.2 cm (3-5/8") cone x 1
Impedance : 3.2
Ω
Rated input : 4 watts
Dimensions : 104(W) x 150(H) x 99(D) mm
(4-1/8" x 6" x 4") including pads
Weight : Approx. 930 g (2 lbs) (with batteries)
Design and specifications are subject to change without notice for improvement.


:
