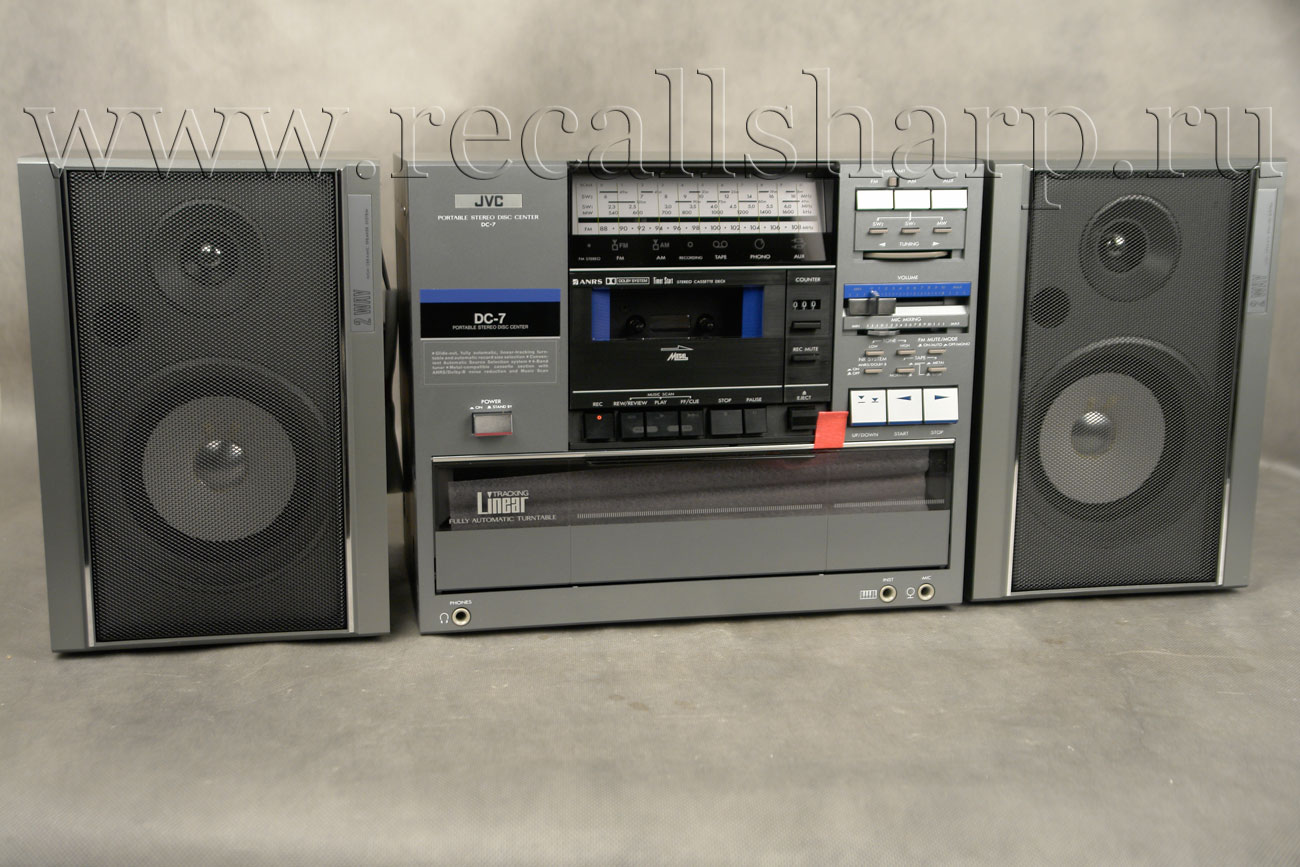

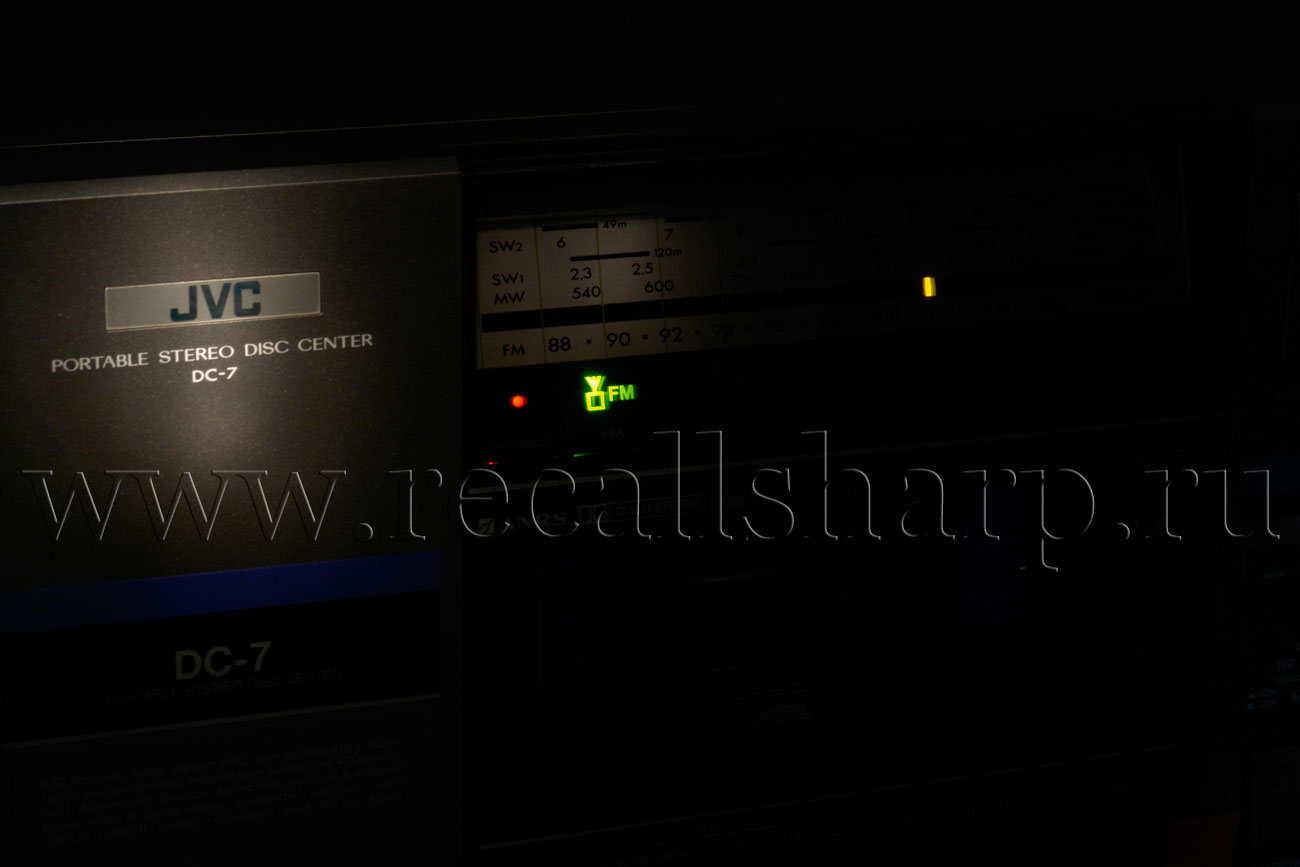

JVC DC-7



: 1983


SPECIFICATIONS
AMPLIFIER:
Type: Power Amplifier with Bass and Treble Controls
Continuous Power: 10 watts RMS (DIN)per channel at 6 ohms

20 watts music

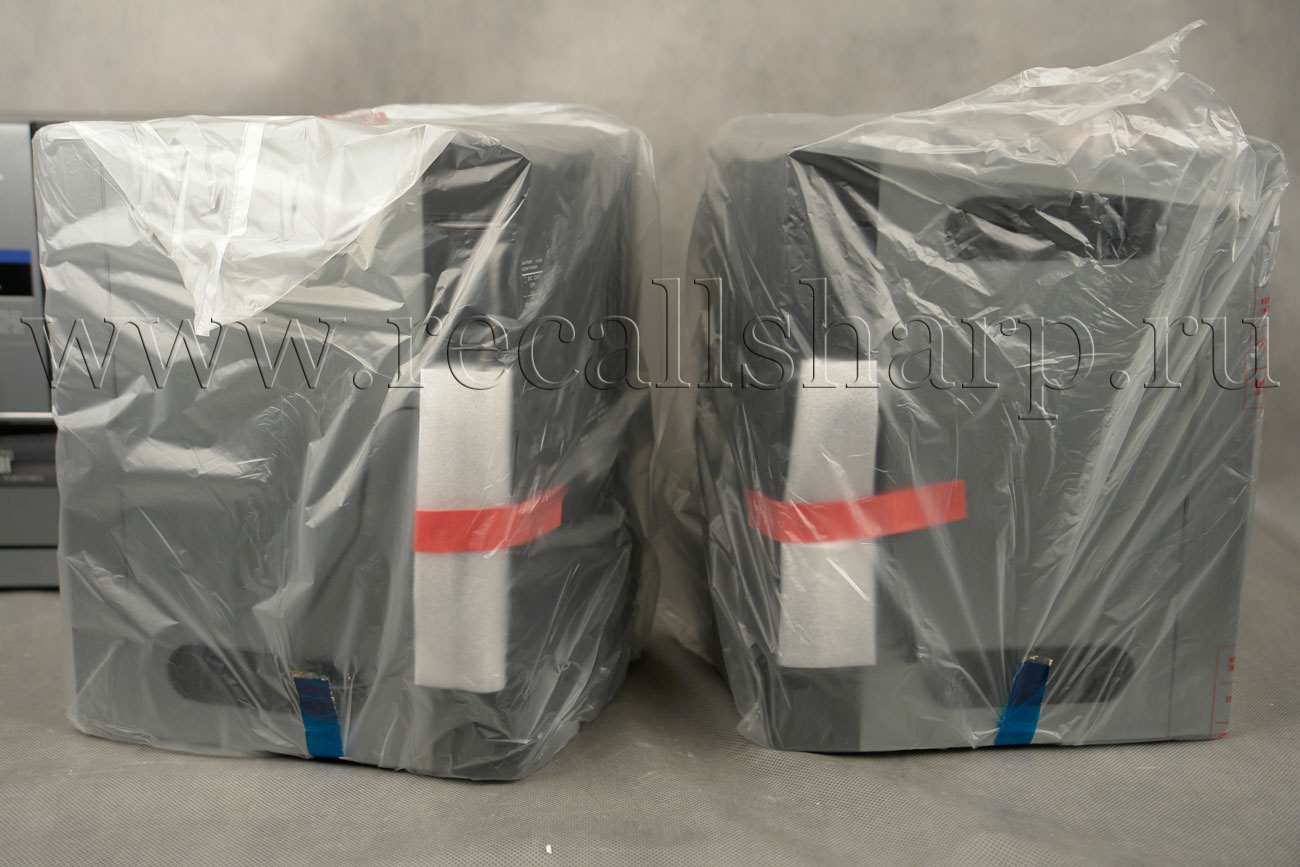

Speakers : 12 cm x 2,
2 cm x 2

TUNER:
Type: 4-band (FM/MW/SW1/SW2)
FM Stereo Tuner with PLL IC Multiplex
Tuning Range: FM 88-108MHz
MW540-1605kHz
SW1 2.3-6MHz
SW2 6- 18MHz
Stereo Separation: 35dB
CASSETTE DECK:
Type: Stereo Cassette Deck with Fully Automatic Stop and Super ANRS
Track System: 4-track, 2-channel stereo Bias & Erase: AC bias and AC erase
Heads: METAPERM Head for Record/Play Ferrite Head for Erase
Frequency Response: (Normal) 30-15,000Hz
(Chrome)30-16,000Hz

(Metal) 30-17,000Hz
Wow and Flutter: 0.05% (WRMS)

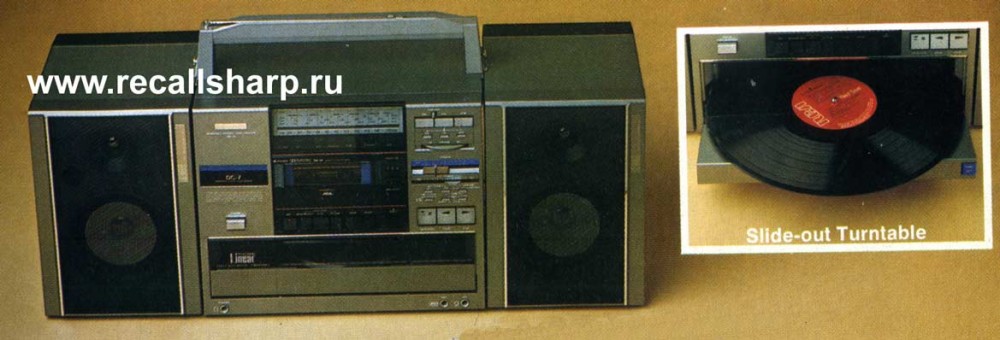

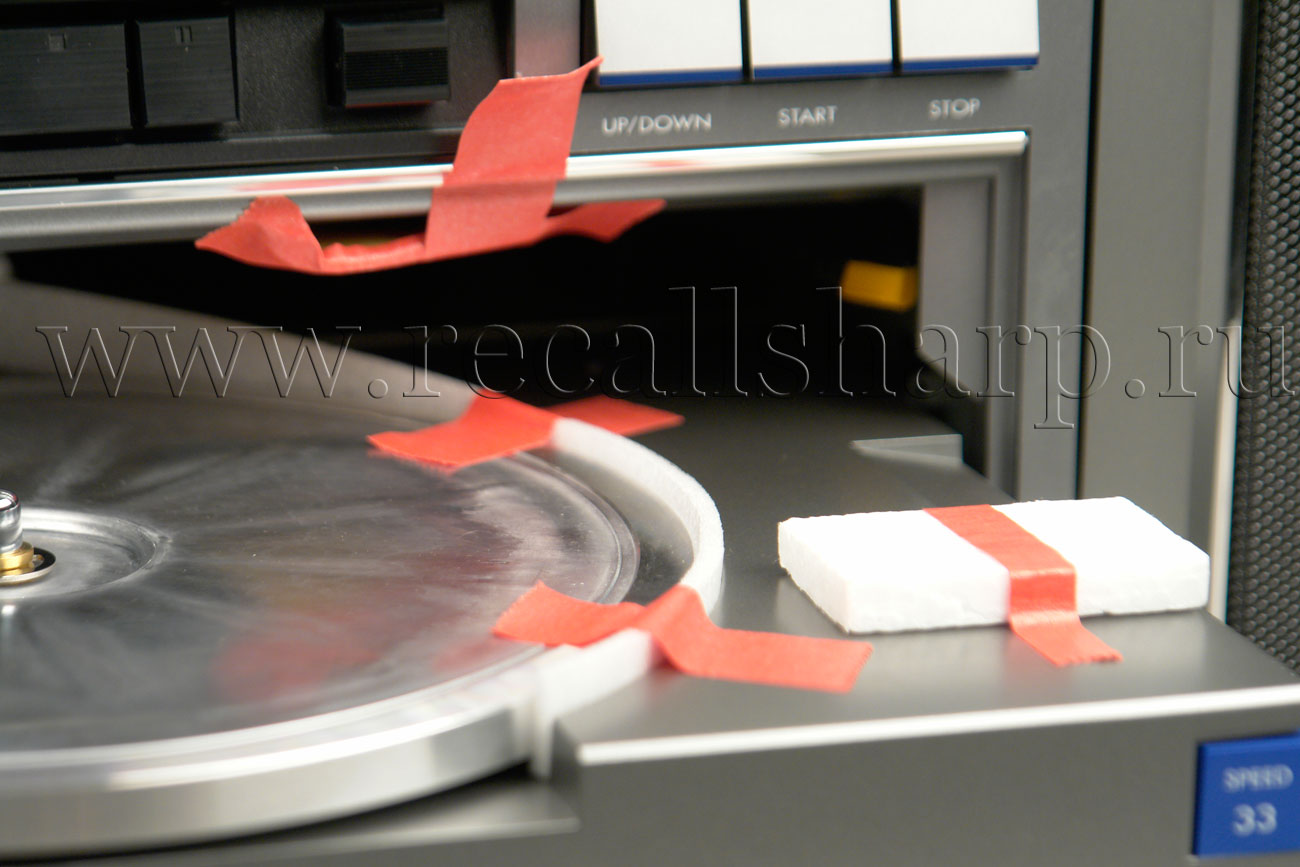

TURNTABLE:
Type: Belt Drive Turntable with
Auto Return Mechanism Speeds: 33-1/3,45rpm

Frequency Response: 30-20000Hz
Platter diameter: 190mm
Motor: DC Servo
Cartridge: Moving Magnet
GENERAL:
Power Source: 110/120/ 220/ 240V, 50/60 Hz 48W DC 12V 8batteries "D" size
Dimensions: W x H x D: 72.7 x 35 x 23.7 cm
Weight: 16.6kg



:
