JVC 1927 . : ,

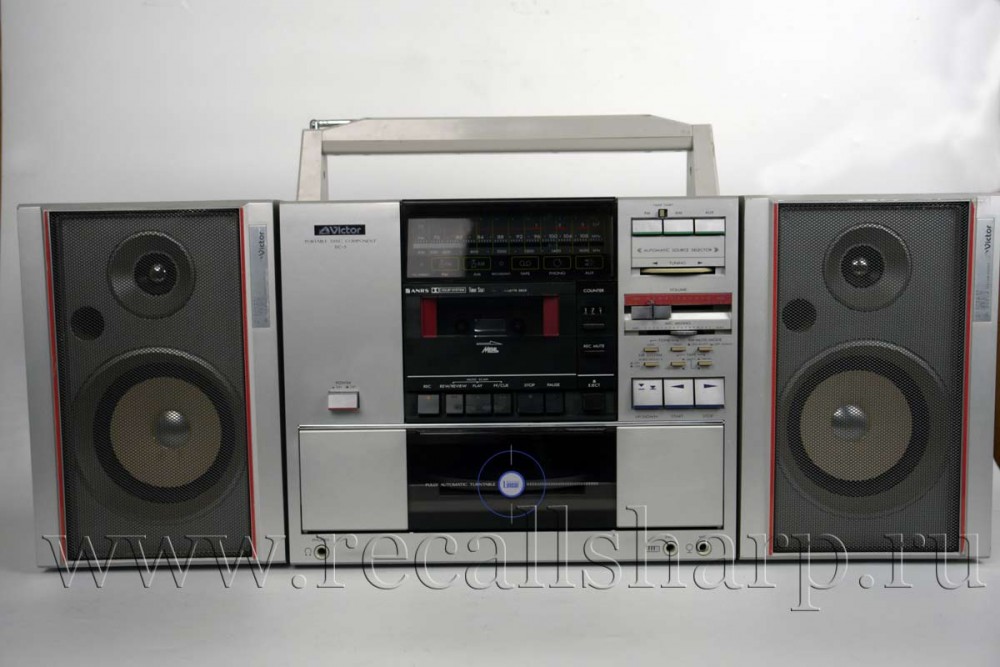

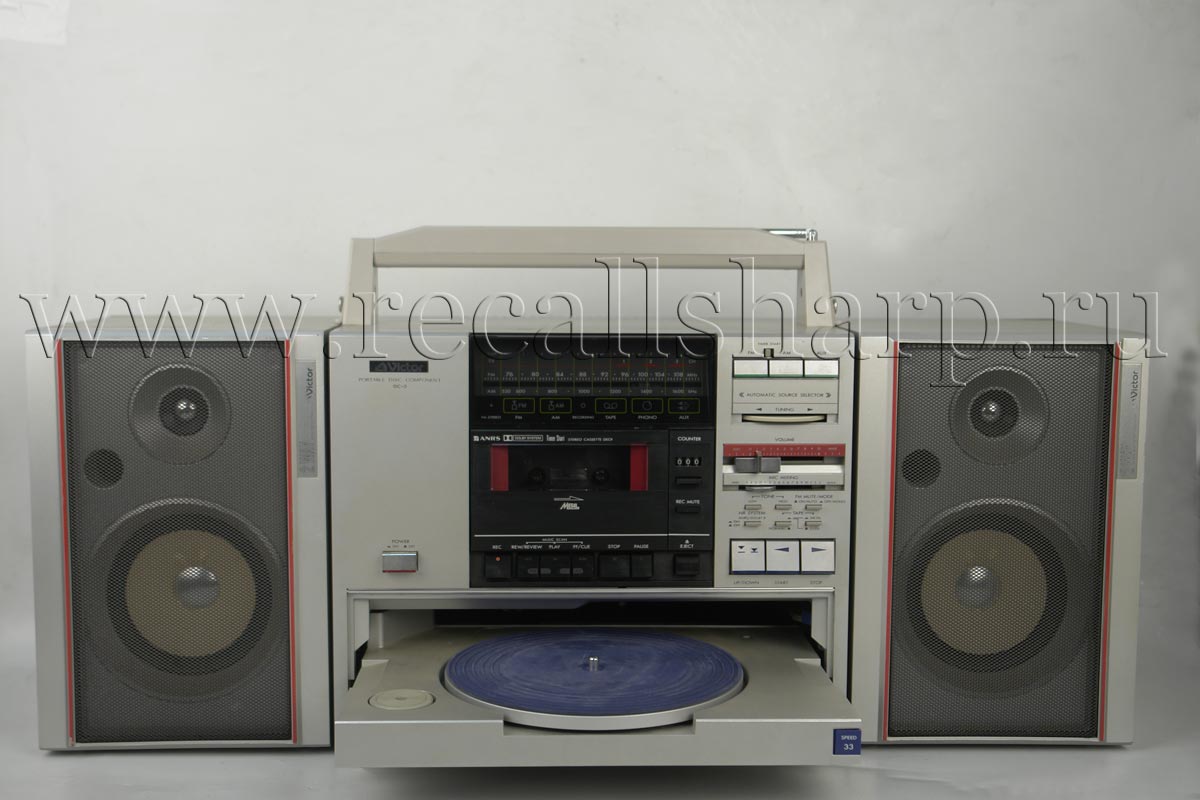

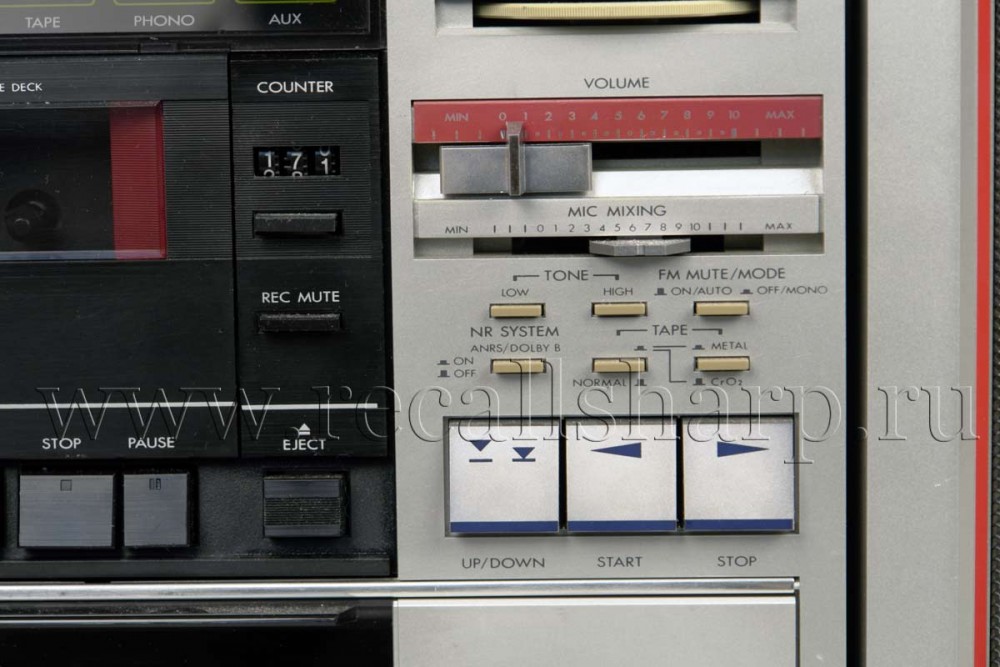

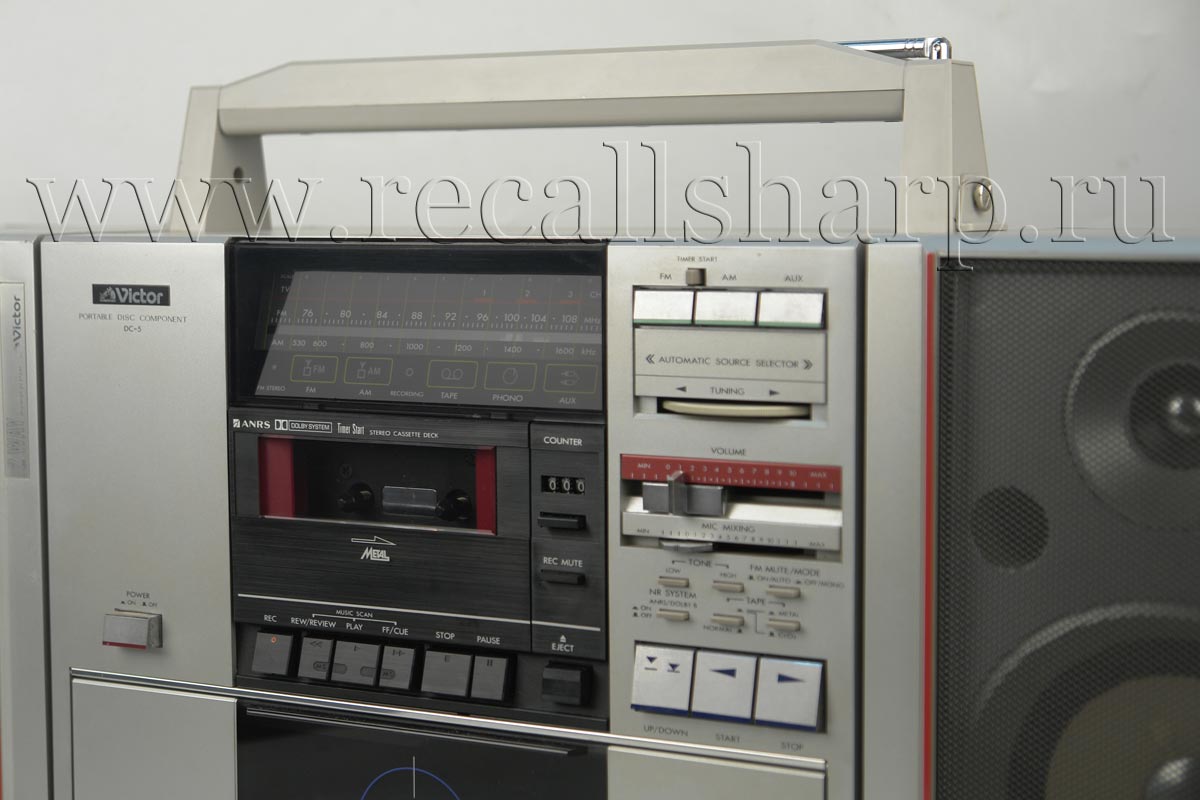

Victor DC-5



: 1983


SPECIFICATIONS
AMPLIFIER:
Type: Power Amplifier with Bass and Treble Controls
Continuous Power: 10 watts RMS (DIN)per channel at 6 ohms

20 watts music

Speakers : 12 cm x 2,
2 cm x 2

TUNER:
Type: 2-band (FM/AM)
FM Stereo Tuner with PLL IC Multiplex
Tuning Range: FM 76-108MHz
AM540-1605kHz

Stereo Separation: 35dB
CASSETTE DECK:
Type: Stereo Cassette Deck with Fully Automatic Stop and Super ANRS
Track System: 4-track, 2-channel stereo Bias & Erase: AC bias and AC erase
Heads: METAPERM Head for Record/Play Ferrite Head for Erase
Frequency Response: (Normal) 30-14,000Hz (EIAJ)
(Chrome)30-15,000Hz(EIAJ)

(Metal) 30-16,000Hz(EIAJ)


Wow and Flutter: 0.05% (WRMS)
TURNTABLE:
Type: Belt Drive Turntable with
Auto Return Mechanism Speeds: 33-1/3,45rpm

Frequency Response: 30-20000Hz
Platter diameter: 190mm
Motor: DC Servo
Cartridge: Moving Magnet DT-41

Tracking Force : 2,5±0.5g
GENERAL:
Power Source: 100V, 50/60 Hz 37W DC 12V 8batteries "D" size
Dimensions: W x H x D: 72.7 x 35 x 23.7 cm
Weight: 15.8kg



:
JVC DC-7
Victor DC-5 gray
