SANYO " "-, . 1947 . , 40- , 50- . , , . SANYO -, .

SANYO 100 . : "" . 1980 . SANYO . -152 .

SANYO : -; ; (LSI Chip), : : , .

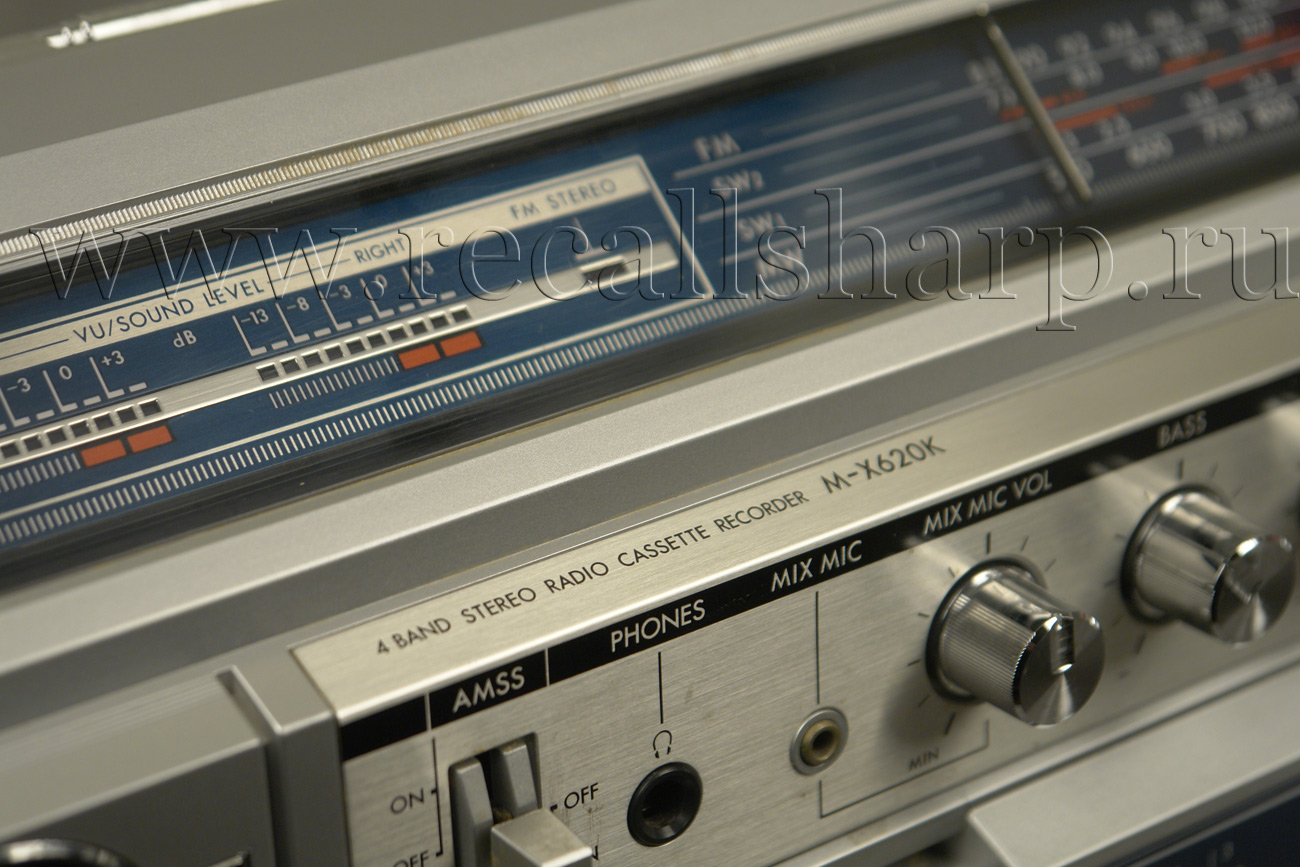

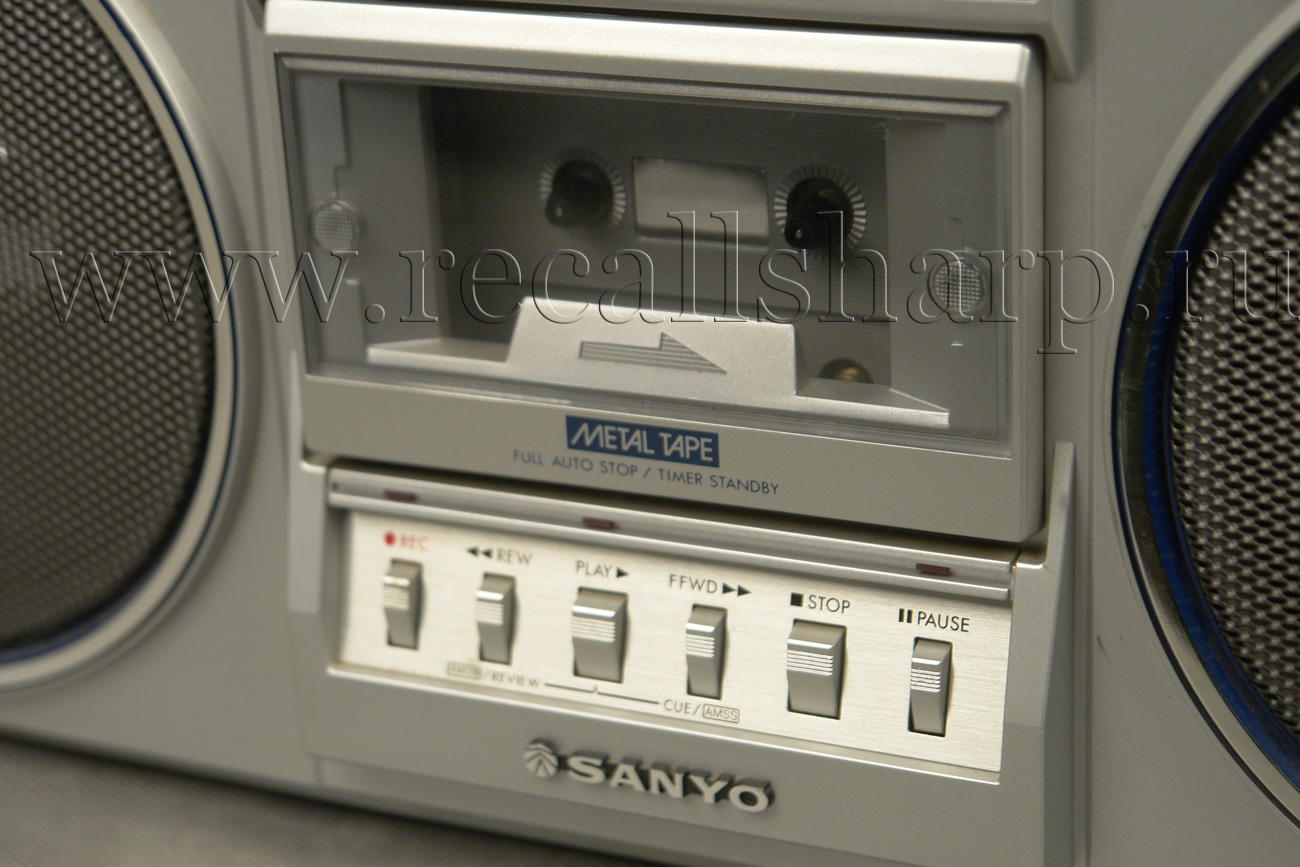

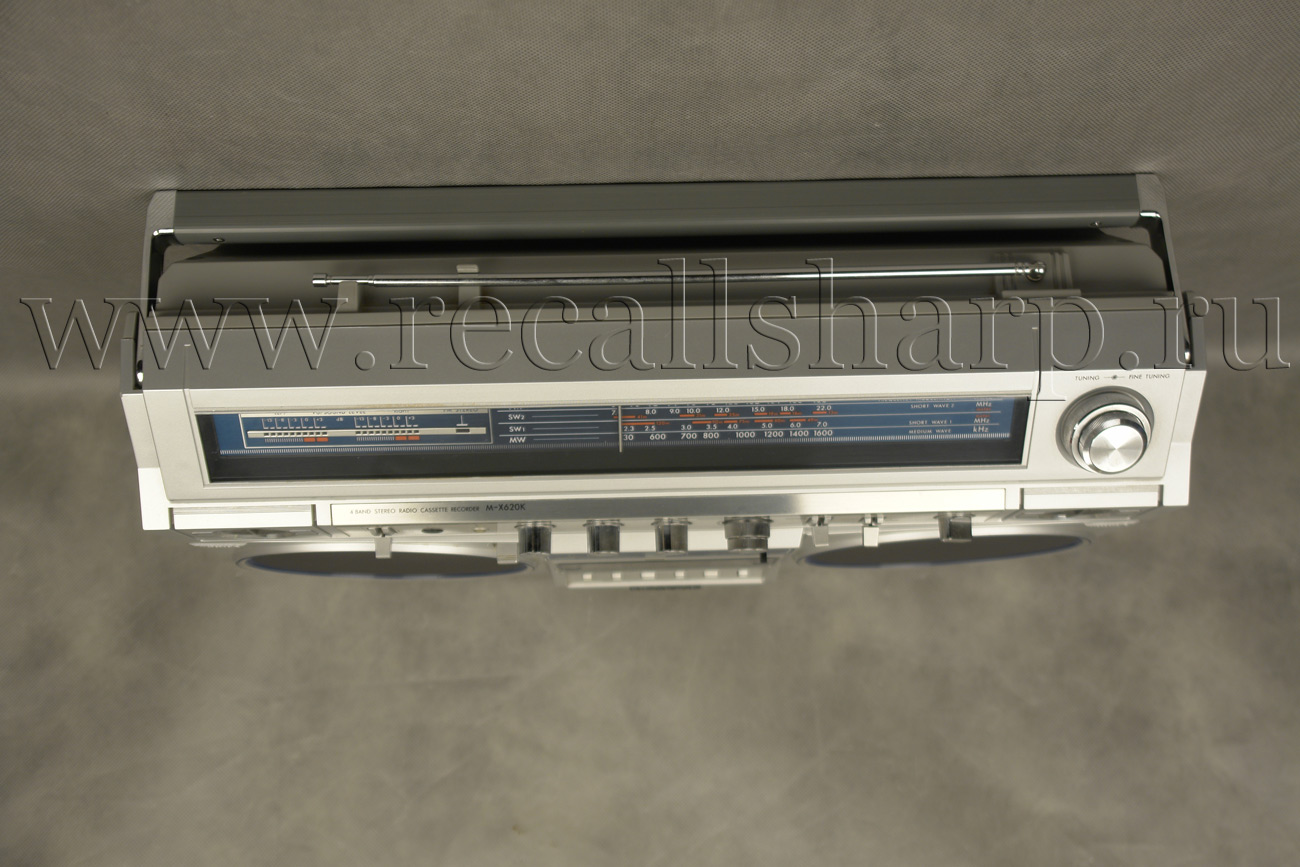

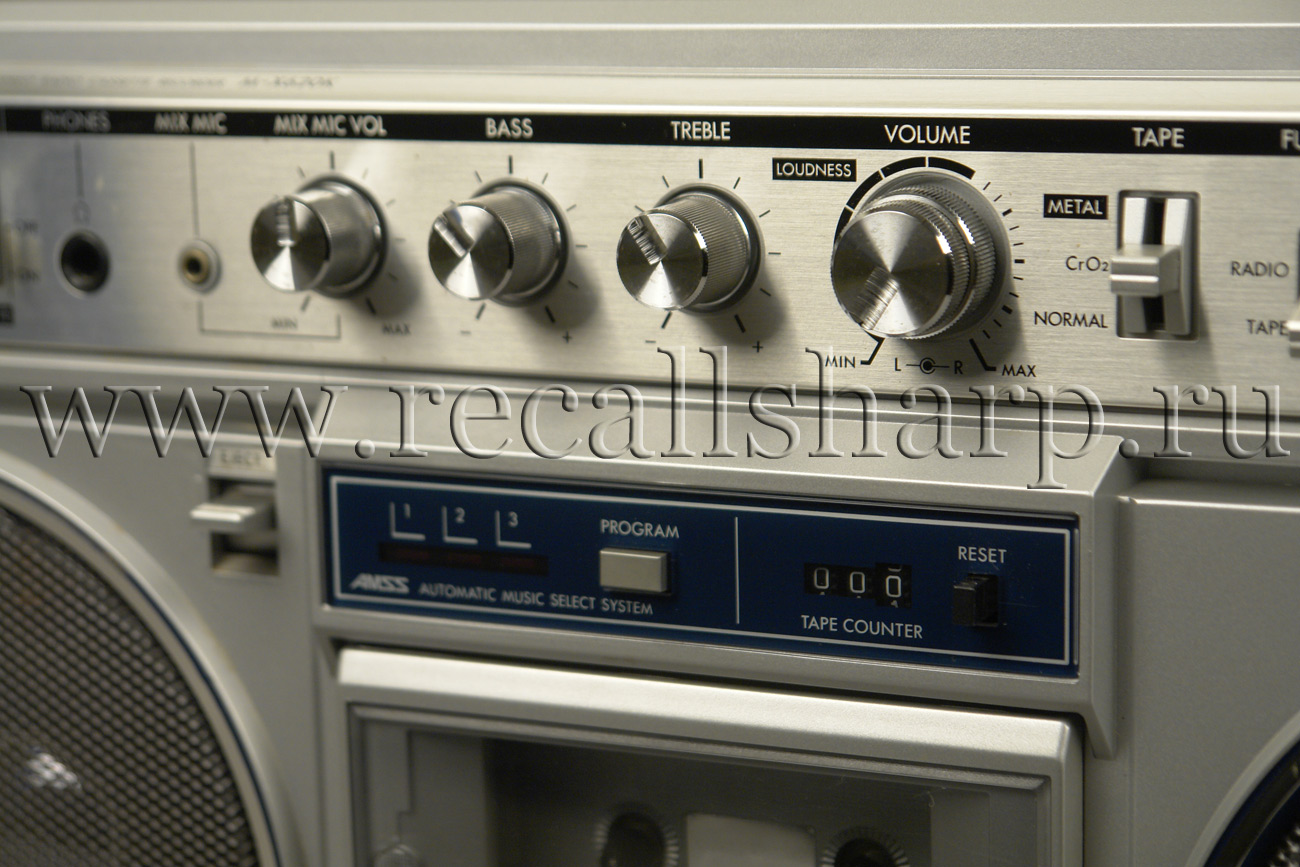

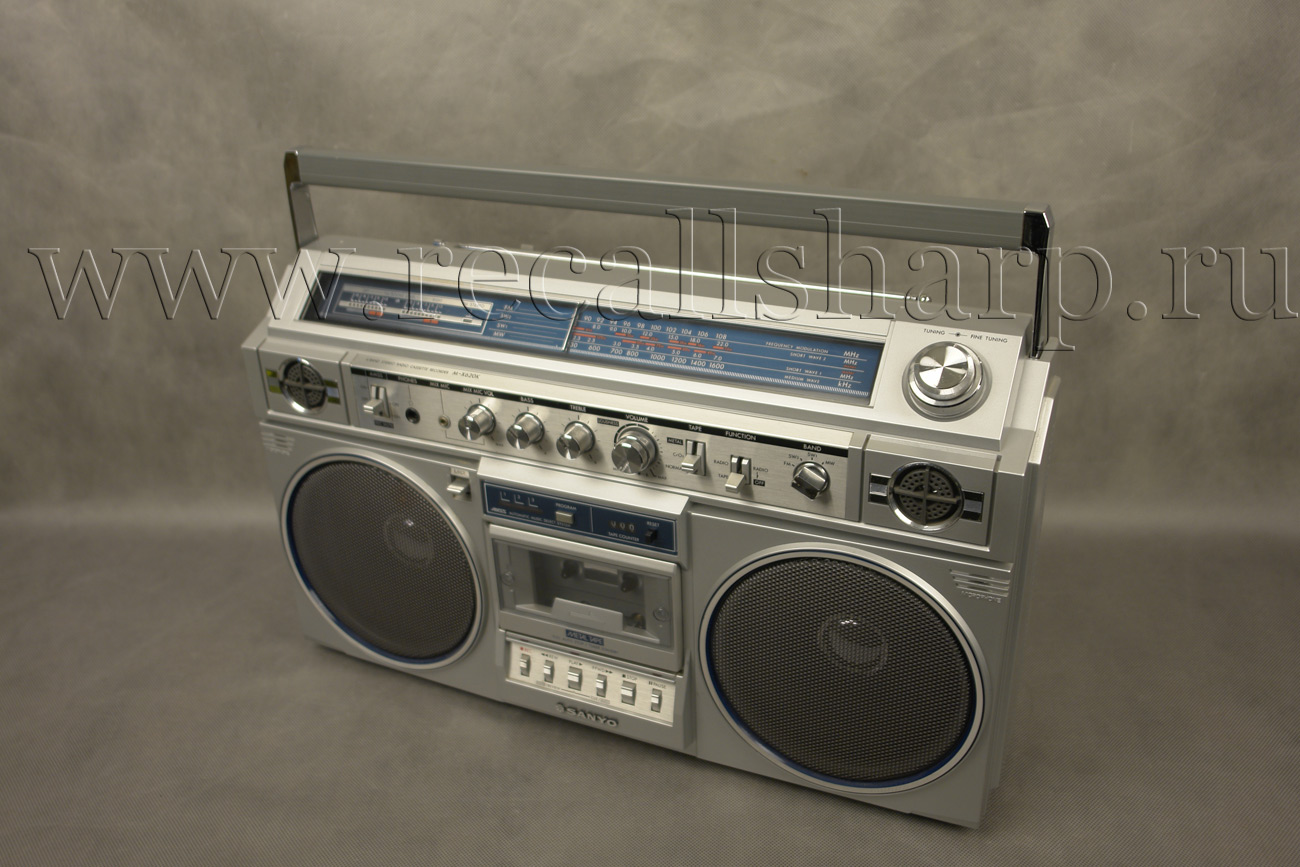

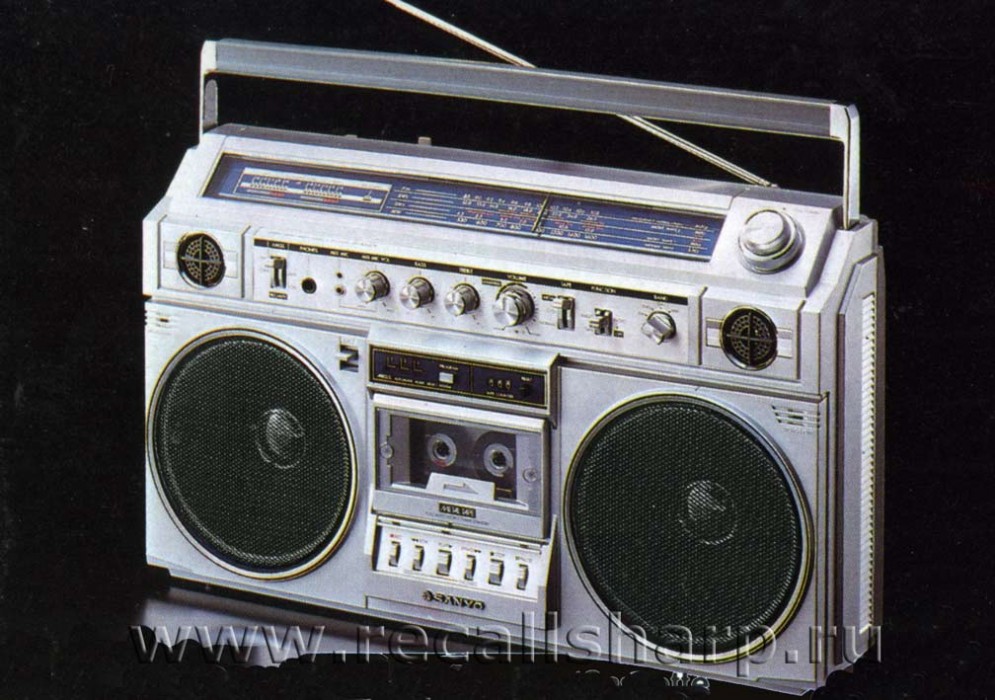

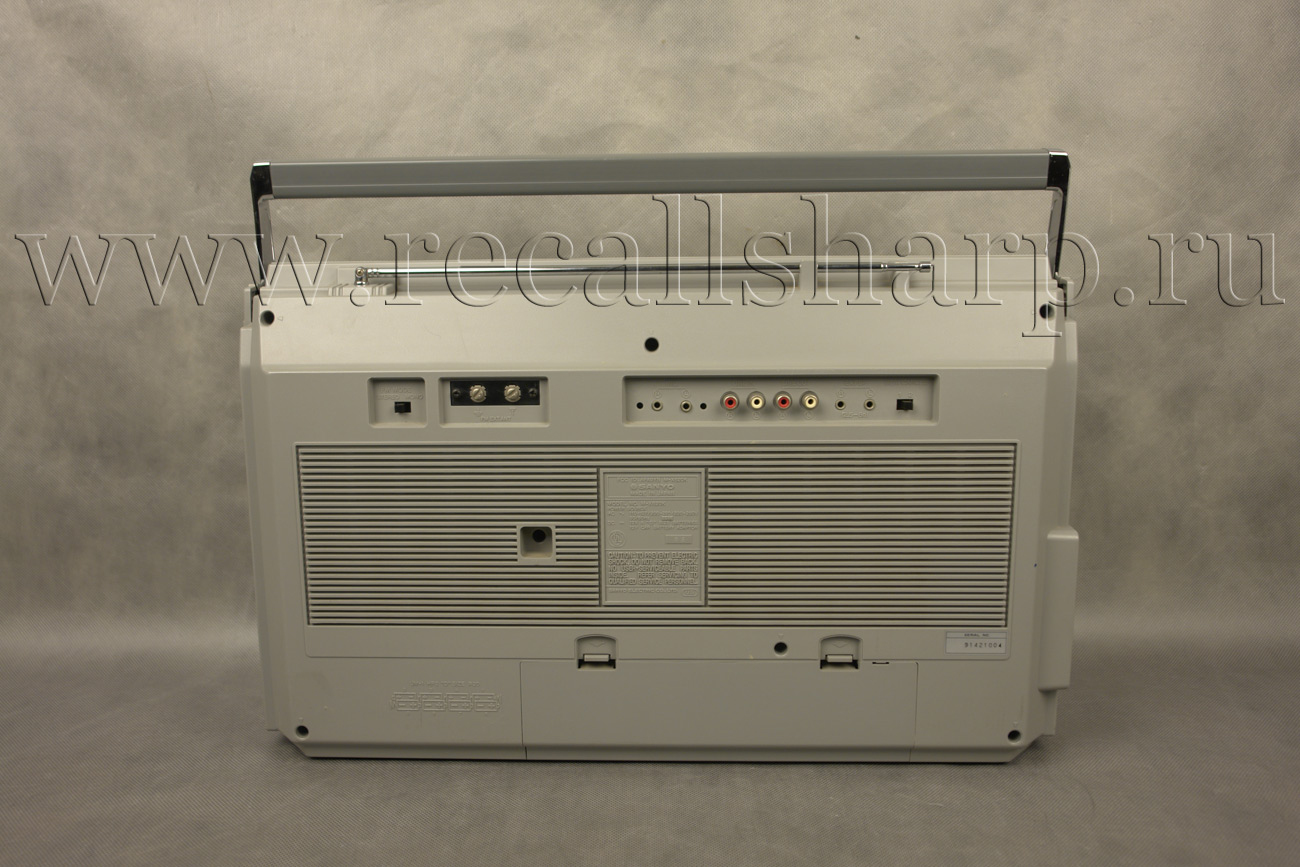

Sanyo M-X 620 K



: 1981


Specifications

Tuning ranges AM 530-1.605 kHz

FM 87.5-108 MHz

SW1 2.3-7.0MHz

SW2 7.0-22MHz

Antennas Ferrite bar and telescopic antennas

Cassette Section

Recording system AC bias. 4-track

Erasing system AC erase 2-trak

Tape speed 17/8 ips (4. 75cm/sec )

F.forward 120 sec (C-60 tape)

Frequency response

50- 15.000HZ (Metal tape)

50-14,000Hz(CrO2 tape)

50- 13.000Hz (Normal tape)


General

Output power 2x6 W (max)


Power source AC 110-127/200-220/230-250V, 50/60HZ 120V preset

DC 12V("UM-1"DX8)

Loudspeakers : 16cm wooferx2, 3 ohms impedance

5cm tweeter x 2. 4 ohms impedance

Terminals Inputs MIX MIC 2k ohms

Ext MIC 1 K ohms

Line In 820 Kohms

Outputs Phones 8 ohms

Ext speaker 2.5 - 8 ohms

Line Out 2.7 Kohms

Dimensions 570(W)X322(H)X161(D)mm

Weight 6.5 kg approx.



:
