Год начала выпуска: 1981
Регион: Европа
Specifications
Tuning ranges AM 530-1.605 kHz
FM 87.5-108 MHz
SW1 2.3-7.0MHz
SW2 7.0-22MHz
Antennas Ferrite bar and telescopic antennas

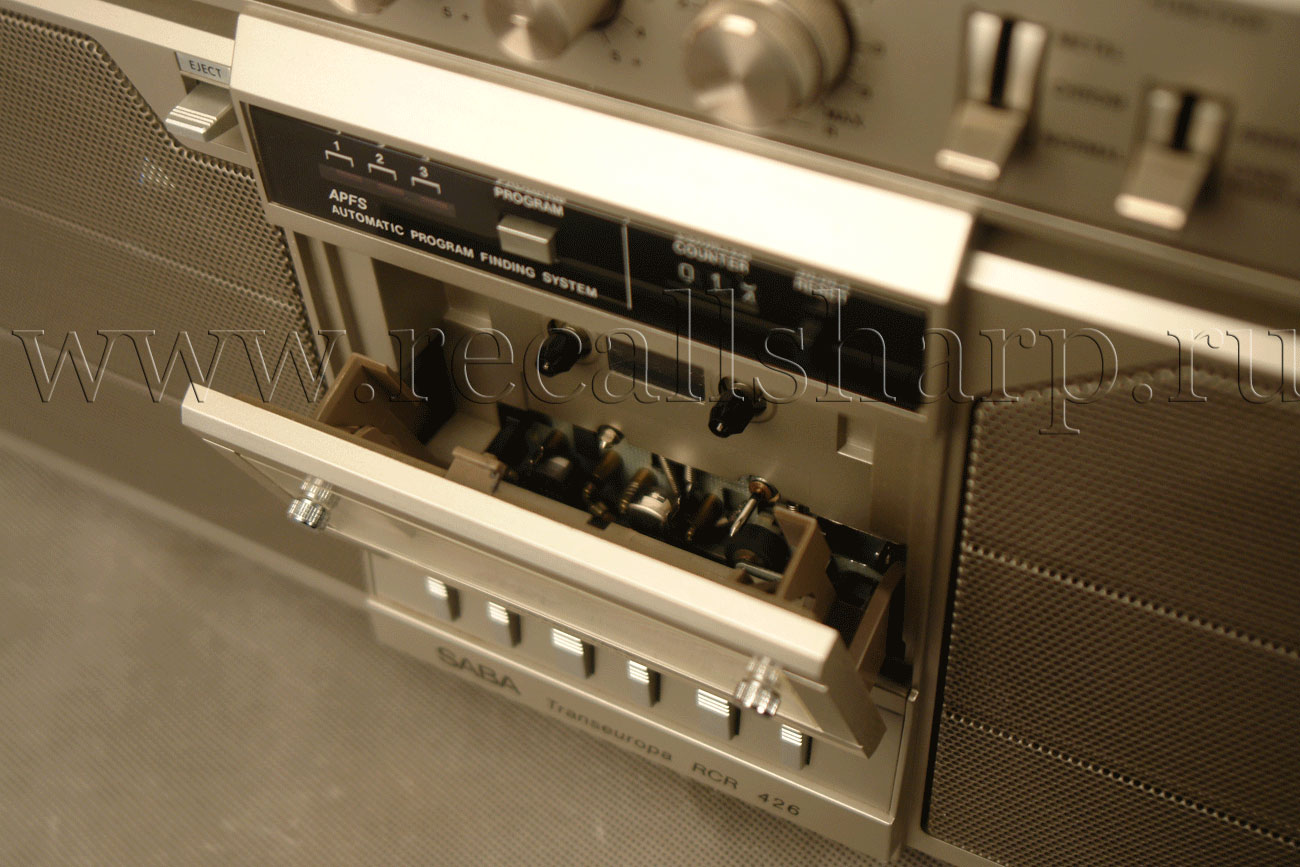

Cassette Section Recording system AC bias. 4-track
Erasing system AC erase 2-trak
Tape speed 17/8 ips (4. 75cm/sec )
F.forward 120 sec (C-60 tape)
Frequency response
50- 15.000HZ (Metal tape)
50-14,000Hz(CrO2 tape)
50- 13.000Hz (Normal tape)
General
Output power 2x6 W (max)
Power source AC 220V, 50HZ 29W
DC 12V("UM-1"DX8)
Loudspeakers : 16cm wooferx2, 3 ohms impedance
5cm tweeter x 2. 4 ohms impedance
Terminals Inputs MIX MIC 2k ohms
Ext MIC 1 K ohms
Line In 820 Kohms
Outputs Phones 8 ohms
Ext speaker 2.5 - 8 ohms
Line Out 2.7 Kohms
Dimensions 520(W)X300(H)X140(D)mm
Weight 5.8 kg approx.
|
