SPECIFICATIONS

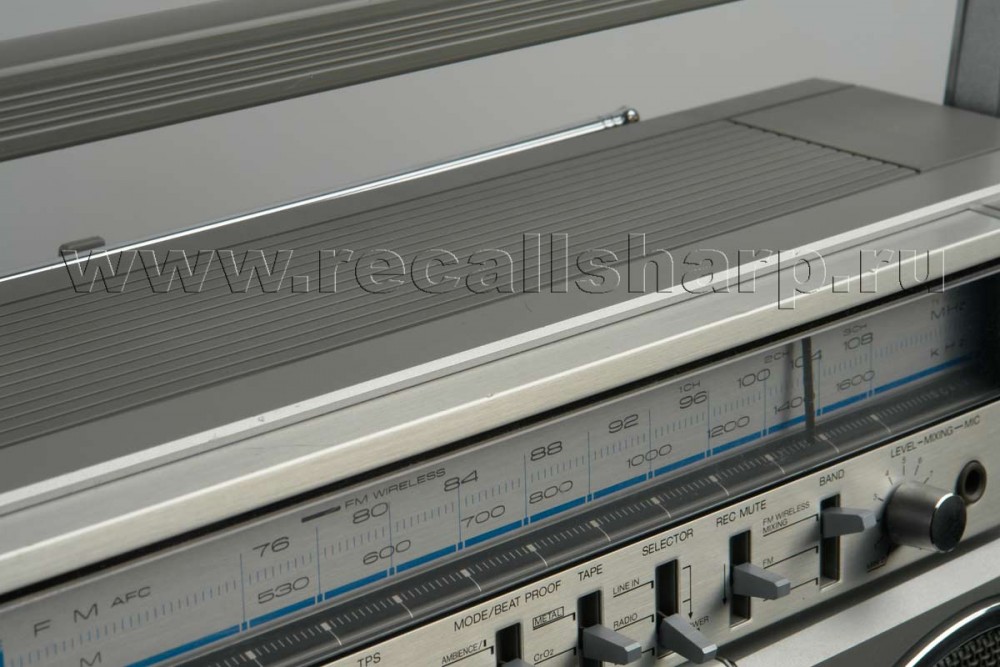

RADIO FREQUENCY RANGE: FM; 76-108 MHz
AM; 530-1600 kHz
POWER REQUIREMENT: AC; 100 50/60 Hz
Power consumption; 14 W
Battery; 12 V (eight-UM-1, "D" size batteries)
POWER OUTPUT: 24 W (12 Wx2)... PMPO
15 W (7.5 Wx2)... RMS (max.)
SPEAKERS: Woofer; 16 cm PM dynamic speaker
Tweeter; 3 cm
FREQUENCY RANGE: 60-14,000 Hz (with normal tape)
60-15,000 Hz (with Cr02 tape)
60-17,000 Hz (with Metal tape)

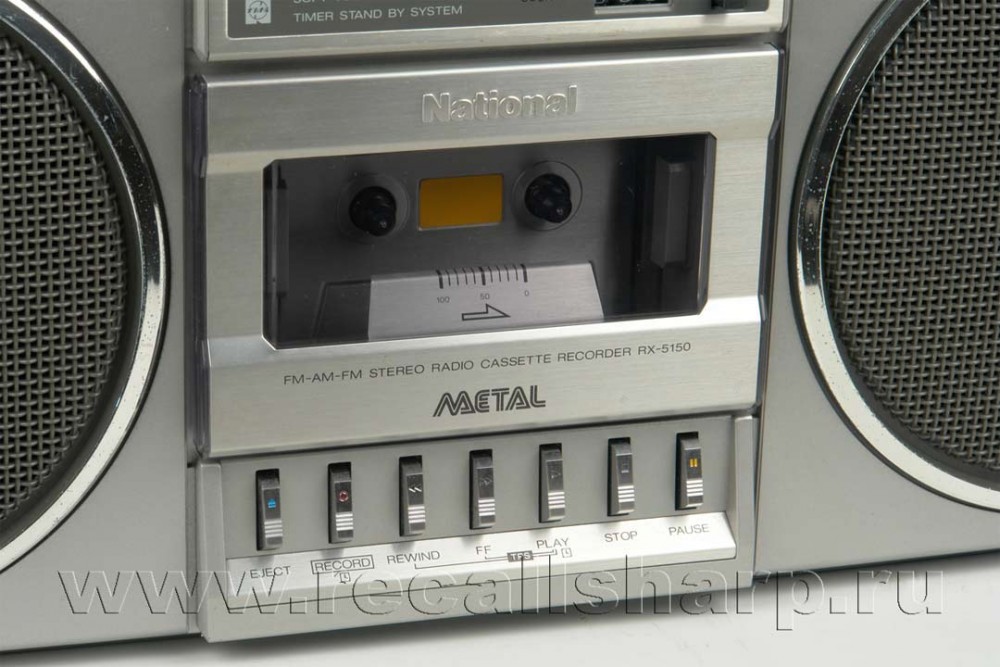

RECORDING SYSTEM: AC bias, AC erase
TAPE SPEED: 4.8cm/s
PROGRAM TIME: 1 hour with C-60 cassette tape
FAST FORWARD and
REWIND TIME: Approx. 90 seconds with C-60 cassette tape
TRACK SYSTEM: 4-track 2-channel stereo recording and playback
JACKS:
INPUT; MIC; sensitivity 0.25 mV/applicable microphone impedance
200Ω-600Ω(recommended microphone RP-8135)
LINE IN; sensitivity 200 mV/47 kΩ over
OUTPUT; LINE OUT; sensitivity 420 mV/10 kΩ under
EXT SP; 3-8Ω HEADPHONES; 8Ω
OTHERS; DC IN; 13.2 V
AC IN
EXT ANTENNA and EARTH
DIMENSIONS: 50.4cm (W)x28.1 cm (H)x17.5cm (D)
WEIGHT: 5.9 kg (13 lbs) without batteries
