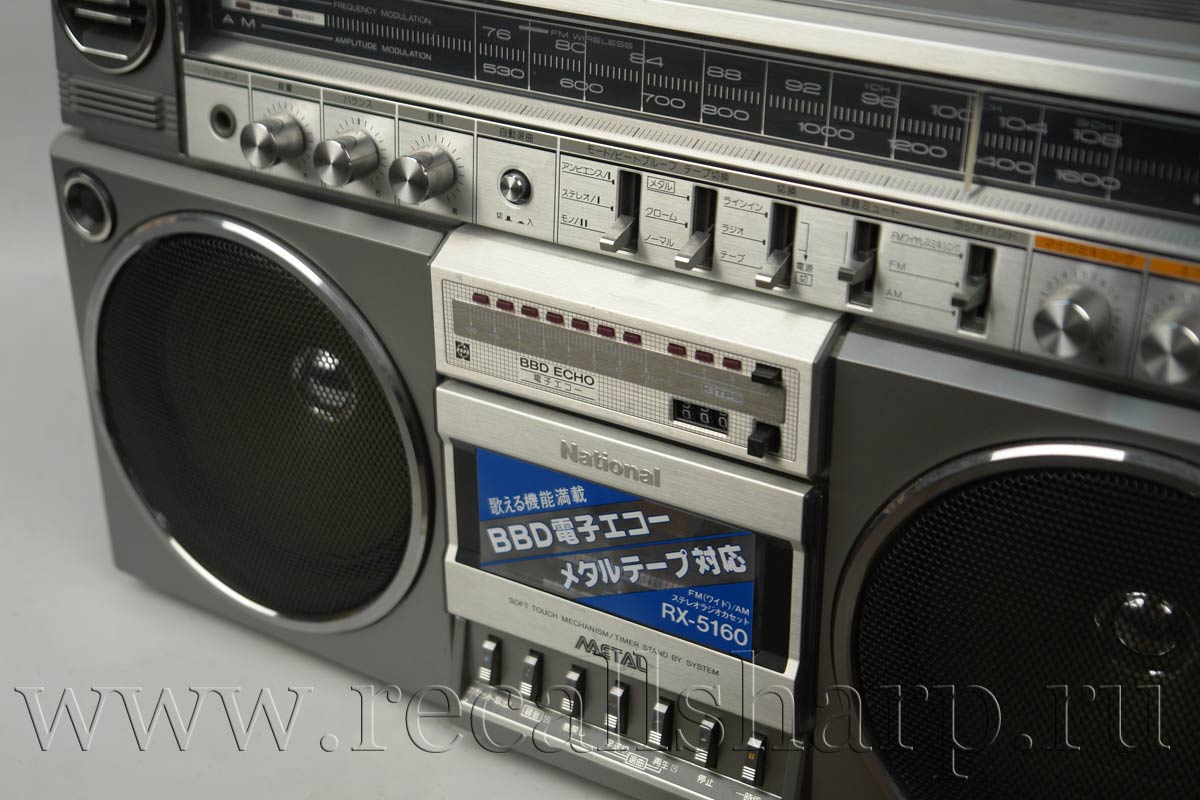

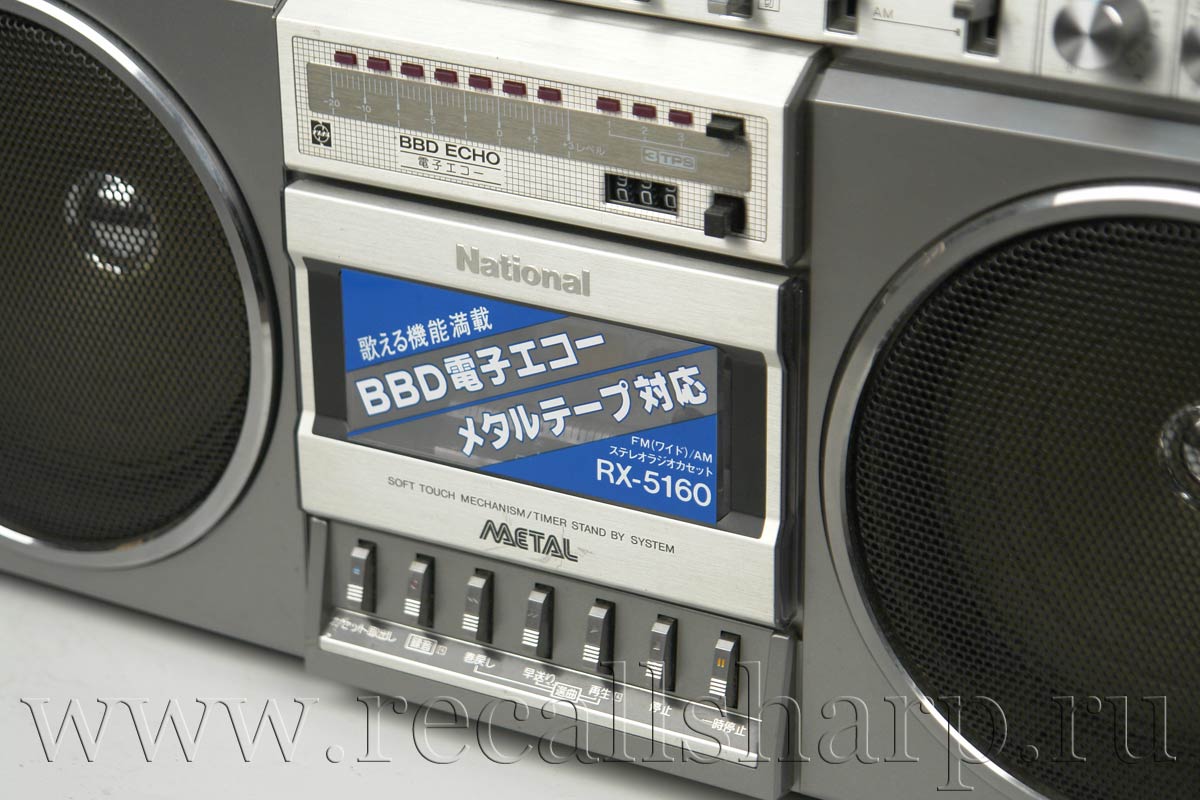

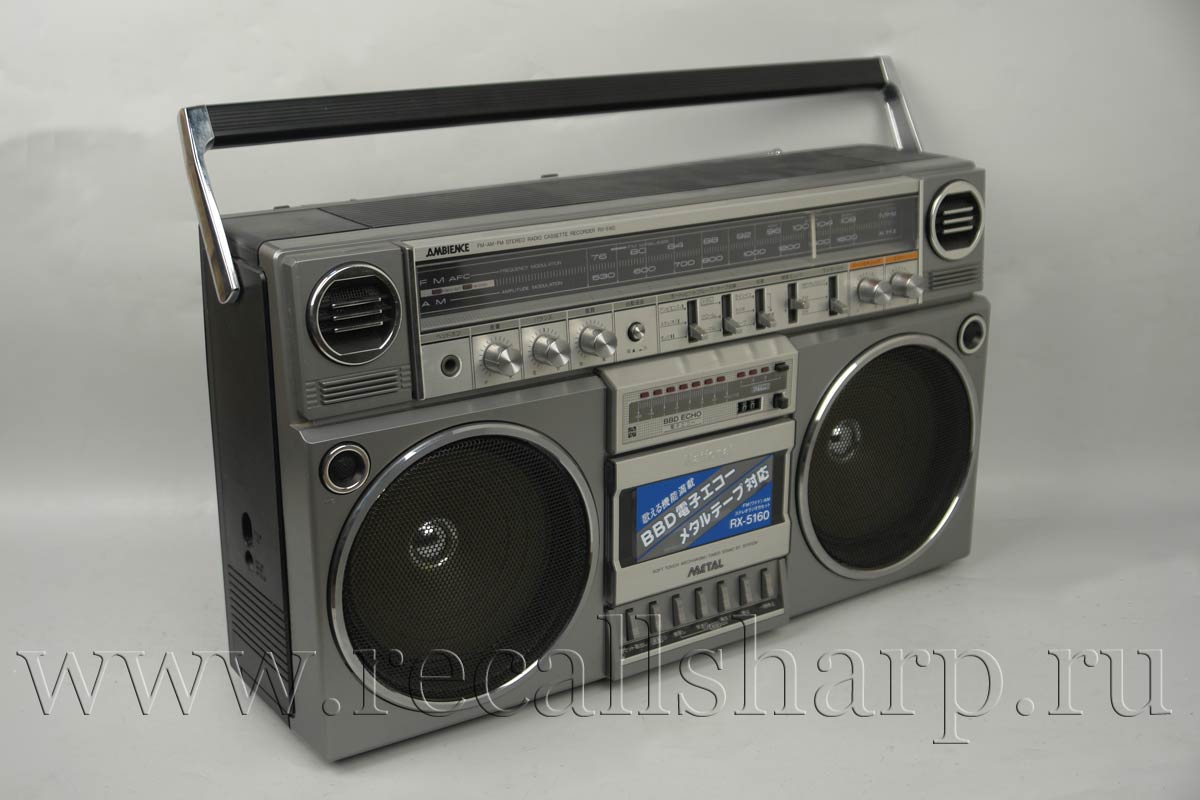

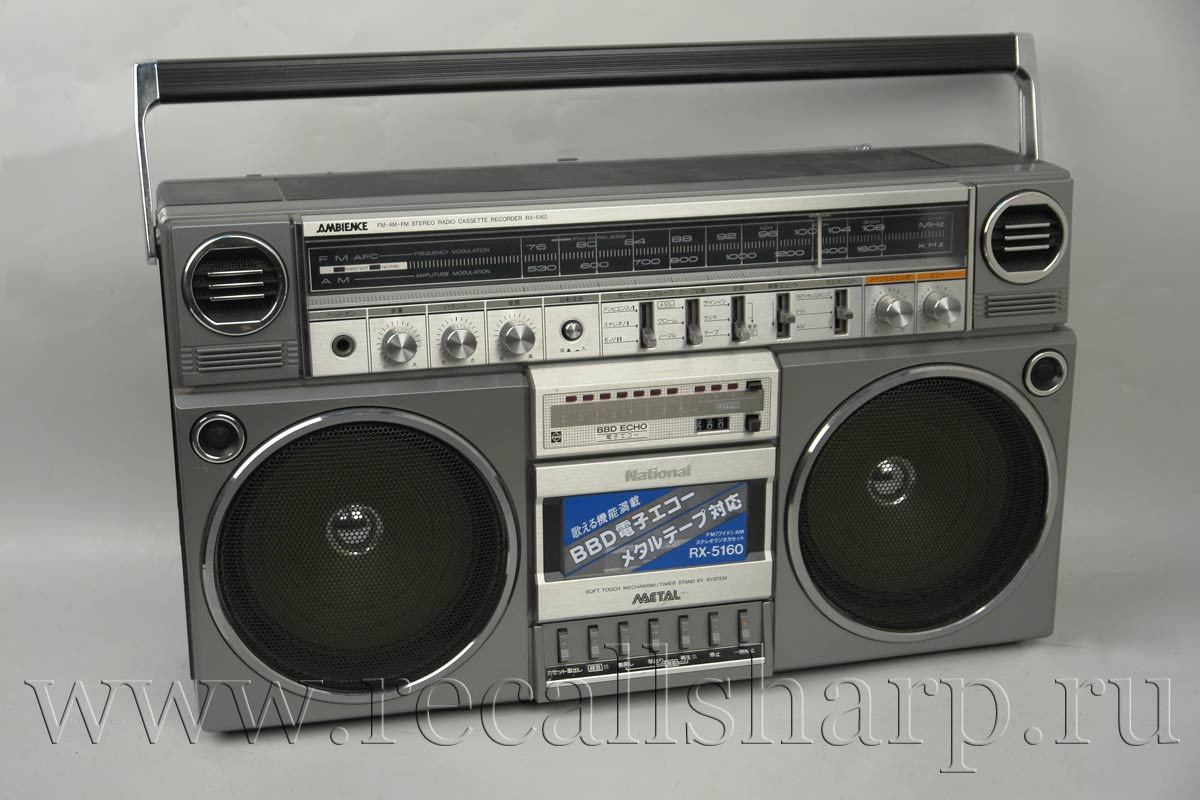

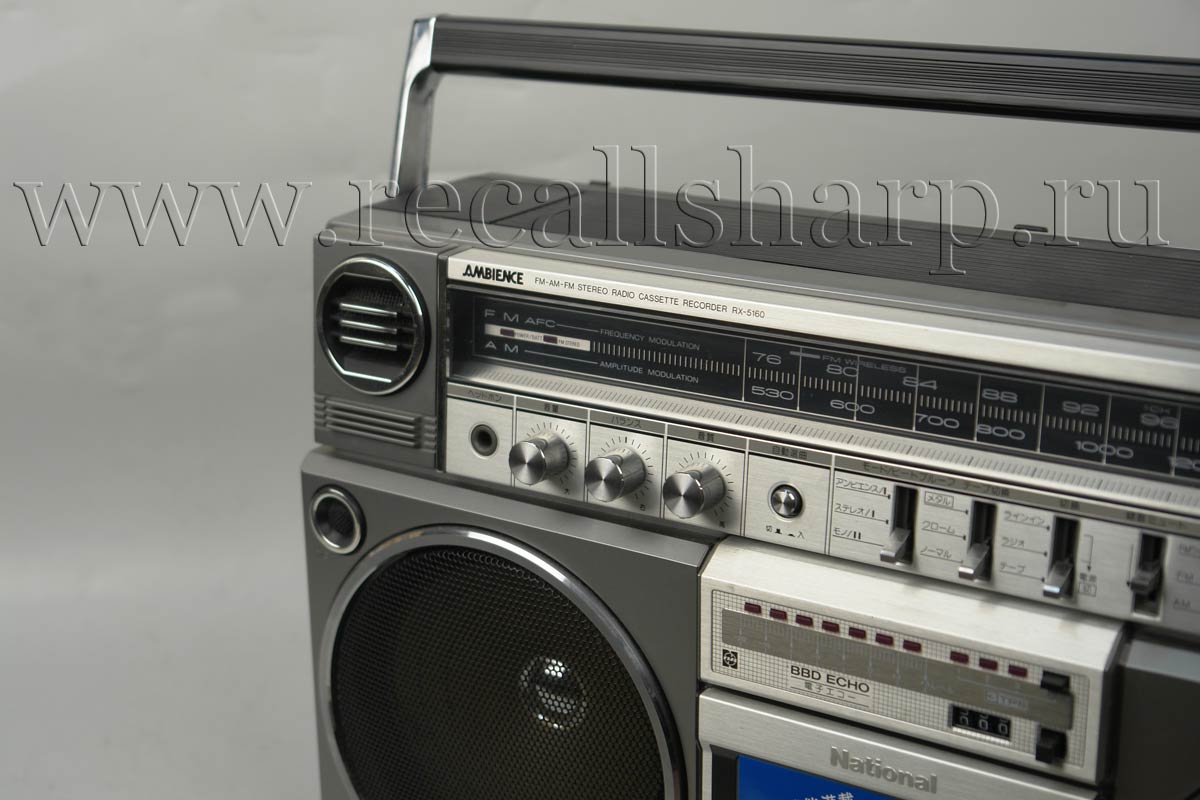

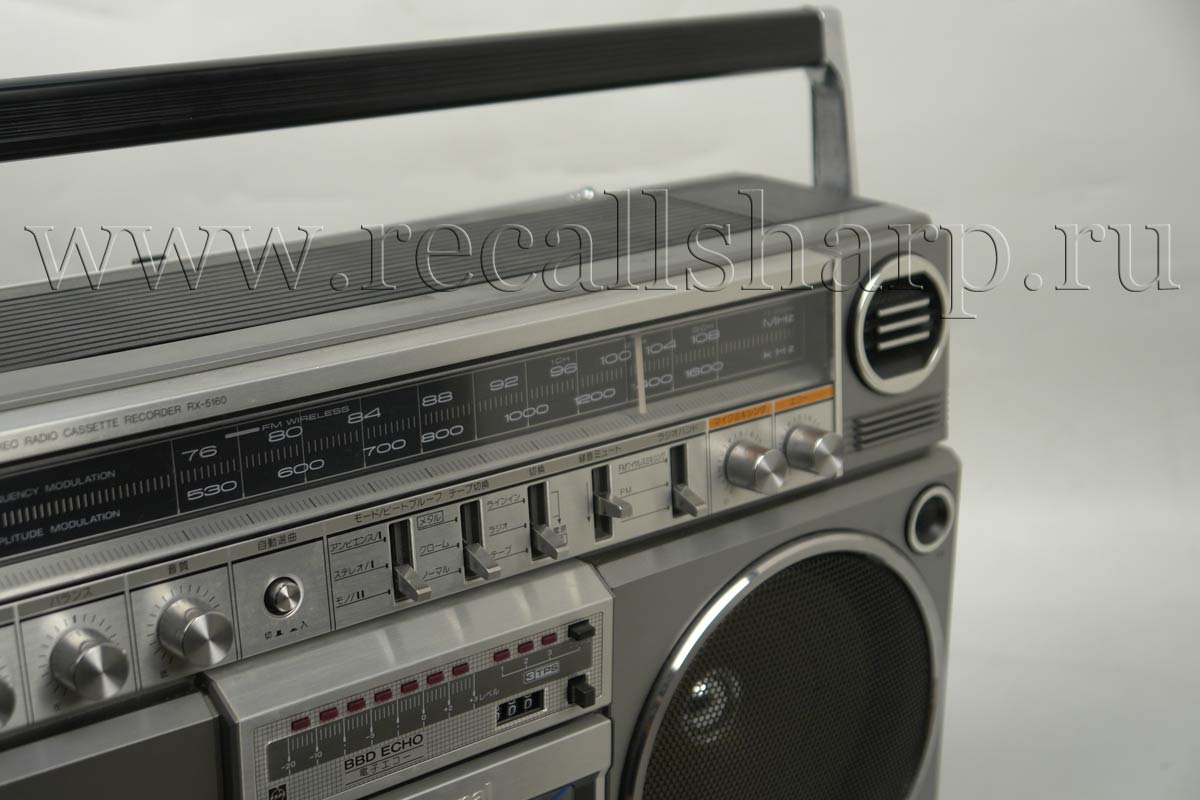

National RX-5160



: 1981


SPECIFICATIONS

RADIO FREQUENCY RANGE: FM; 76-108 MHz

AM; 530-1600 kHz

POWER REQUIREMENT: AC; 100 50/60 Hz

Power consumption; 14 W

Battery; 12 V (eight-UM-1, "D" size batteries)

POWER OUTPUT: 24 W (12 Wx2)... PMPO

15 W (7.5 Wx2)... RMS (max.)

SPEAKERS: Woofer; 16 cm PM dynamic speaker

Tweeter; 3 cm

FREQUENCY RANGE: 60-14,000 Hz (with normal tape)

60-15,000 Hz (with Cr02 tape)

60-17,000 Hz (with Metal tape)

RECORDING SYSTEM: AC bias, AC erase

TAPE SPEED: 4.8cm/s

PROGRAM TIME: 1 hour with C-60 cassette tape

FAST FORWARD and

REWIND TIME: Approx. 90 seconds with C-60 cassette tape

TRACK SYSTEM: 4-track 2-channel stereo recording and playback

JACKS:

INPUT; MIC; sensitivity 0.25 mV/applicable microphone impedance

200Ω-600Ω(recommended microphone RP-8135)

LINE IN; sensitivity 200 mV/47 kΩ over

OUTPUT; LINE OUT; sensitivity 420 mV/10 kΩ under

EXT SP; 3-8Ω HEADPHONES; 8Ω

OTHERS; DC IN; 13.2 V

AC IN

EXT ANTENNA and EARTH

DIMENSIONS: 50.4cm (W)x28.1 cm (H)x17.5cm (D)


WEIGHT: 5.9 kg (13 lbs) without batteries


:
