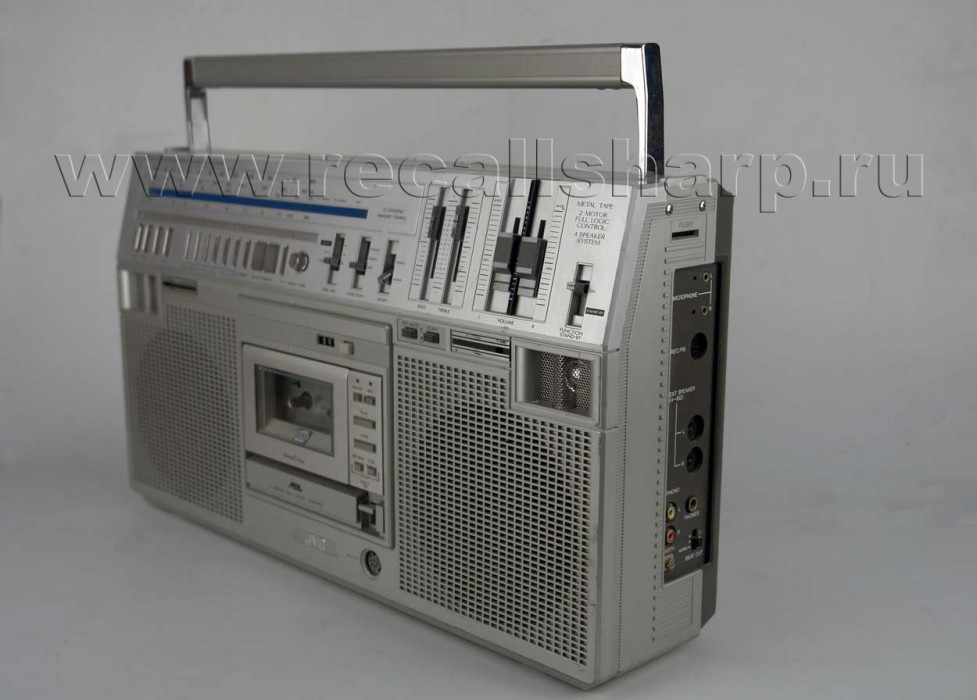

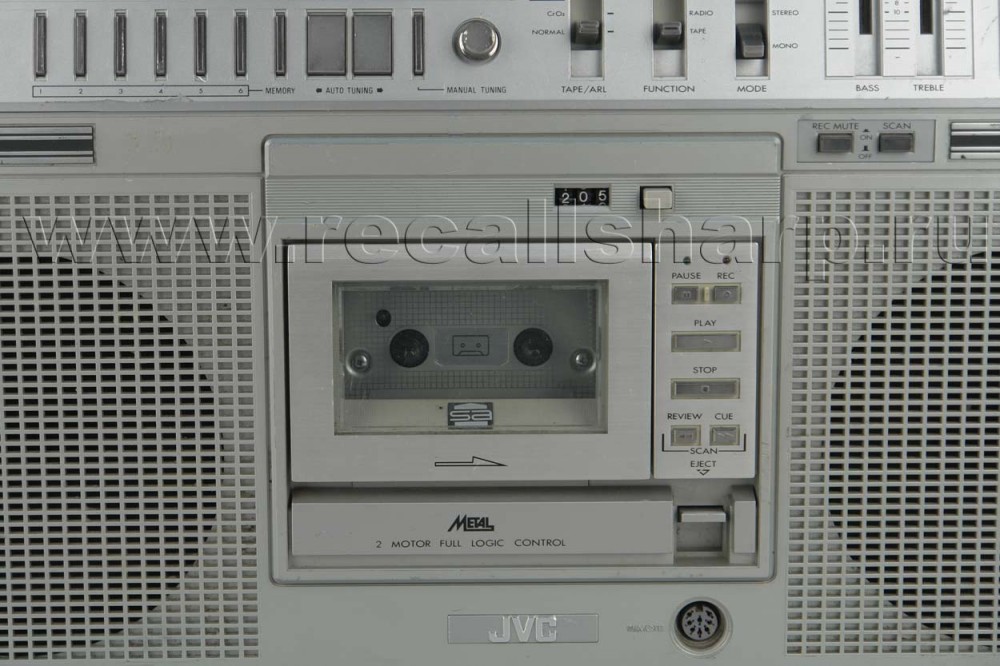

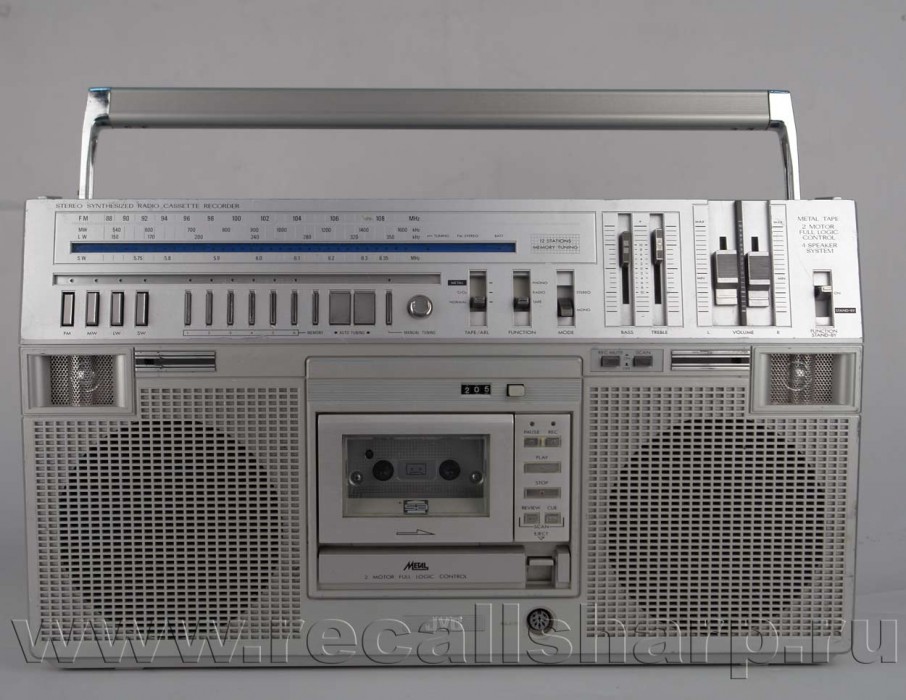

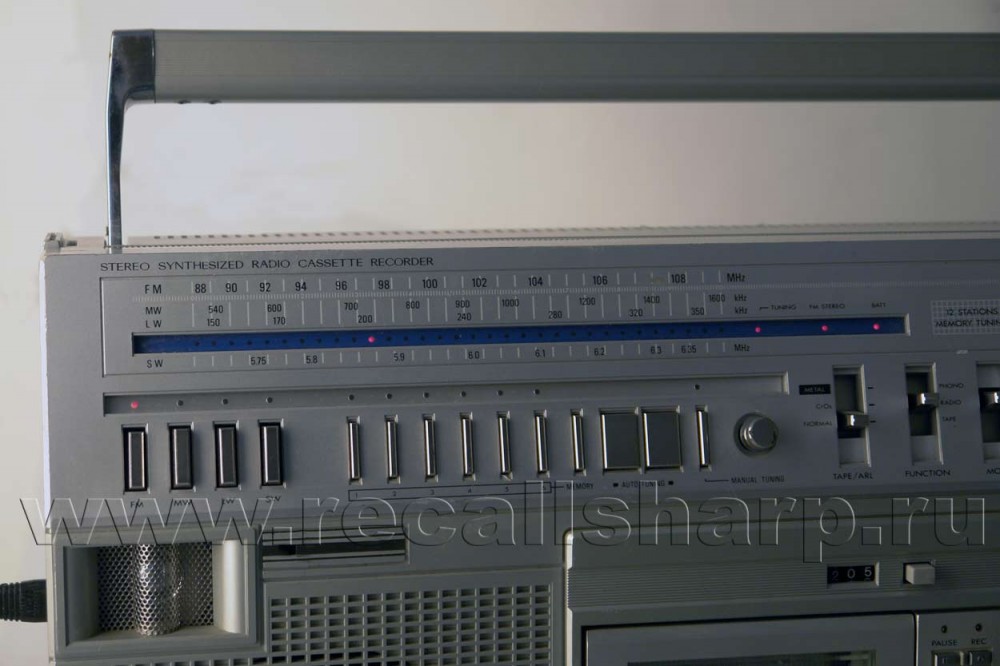

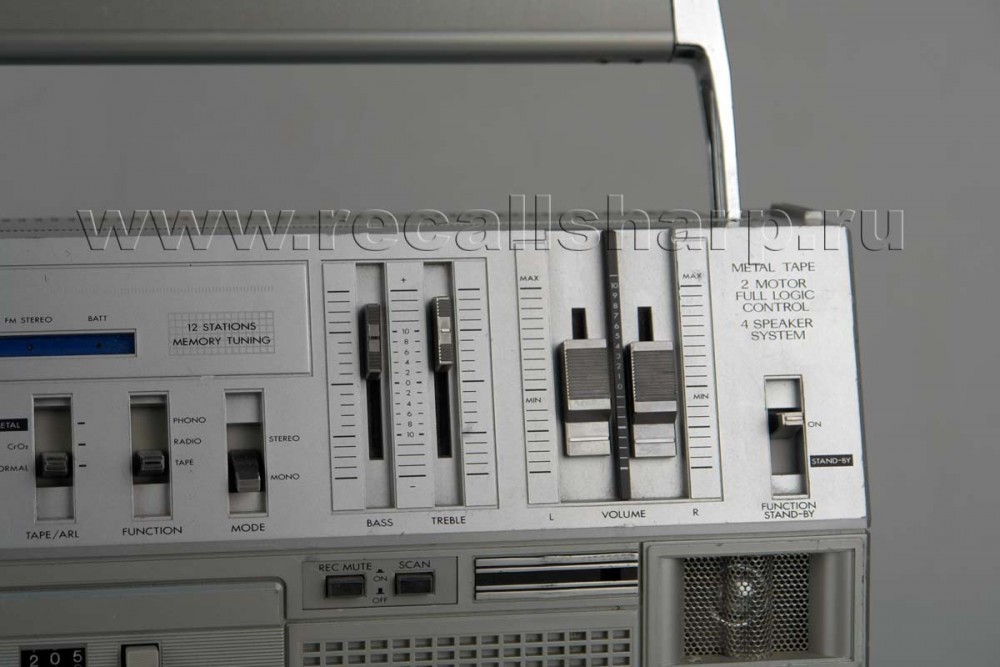

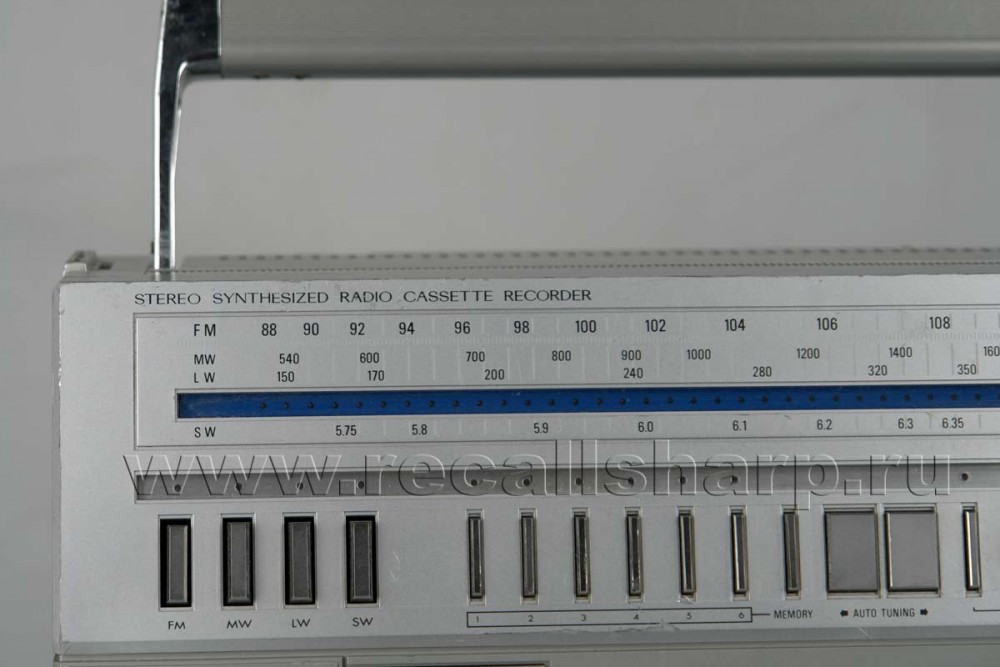

JVC RC-M 80 L
 ìîþ êîëëåêöèþ    Ñðàâíèòü


Ãîä íà÷àëà âûïóñêà: 1980
Ðåãèîí: Åâðîïà

Specifications (JVC RC-M80 L/LB)

DIMENSIONS:                                    521 mm(W) x 301 mm(H) x 137mm(D)

WEIGHT:                                             Approx. 8.3 kg (with batteries) 7.5 kg w/o batt

TUNER SECTION

Frequency Ranges :                           FM 88 - 108 MHz

                                                           MW 540 -1600 kHz

                                                           LW 150-350 kHz

                                                           SW 2.3 -6.0 MHz

Tape recorder section

Track system :                                   4-Track 2-channel stereo
Frequency response :                       30-17,000Hz (with metal tape)
                                                          30-16,000Hz (with chrome tape)
                                                          30-15,000Hz (with normal tape)
Wow & flutter :                                  0.055% (WRMS)
Heads:                                              SEN ALLOY head for recording/playback
                                                         2 GAP SEN ALLOY head for erasure
Motors:                                             Electronic governed DC motor for capstan DC motor for real
S/N ratio :                                         50dB
Rewind time :                                   Within 90sec. (C-60 cassette)
Fast forward time :                           Within 90sec. (C-60 cassette)

PowerOutput :
                                                        Max. 18W (9W + 9W) 4 Ohm

Speakers                                                   16 cm (6-1/2") x 2,

                                                         5 cm (2")        x 2

Input Jacks

Phono

Output Jacks Headphones (8 - 32 Ohms)

                Input/Output Jack DIN

POWER CONSUMPTION:             28 W (L), 26 W (LB)

SEMICONDUCTORS

Transistors :                                   92 (includes 2 for motor governor)

POWER SOURCE DC :                                              15 V, 10 "D", "R20"cells or equivalent
AC :                                               240/220/110V.
50/60Hz

AMPLIFIER SECTION

ICs : 12 (includes microphones) : Ext. Speaker x 2 (8 Ohms) x 2 (3 mV, 47 kOhms)


Ïîõîæèå ìîäåëè:
JVC RC-M80 R
Àíäðåé Áàéãåðè÷ Äàòà: 28.03.2012 11:58:38
700 åâðî ñ îðèãèíàëüíûì ðåìíåì íà ïëå÷î, ìàíóàëêîé è ñèíåé ðîäíîé ñóìêîé. Âíåøíå ñîñòîÿíèå íîâîãî. Êàññåòà íå ðàáîòàåò, íàâåðíîå ïàñèêè ïîòîìó ÷òî ìîòîð÷èê ïàøåò.
Àðòåì Äàòà: 31.08.2013 13:17:36
Äîáðîãî âðåìåíè ñóòîê. Èíòåðåñóåò àïïàðàò JVC RC-M 80 L åñòü ëè ó âàñ â íàëè÷èè?
