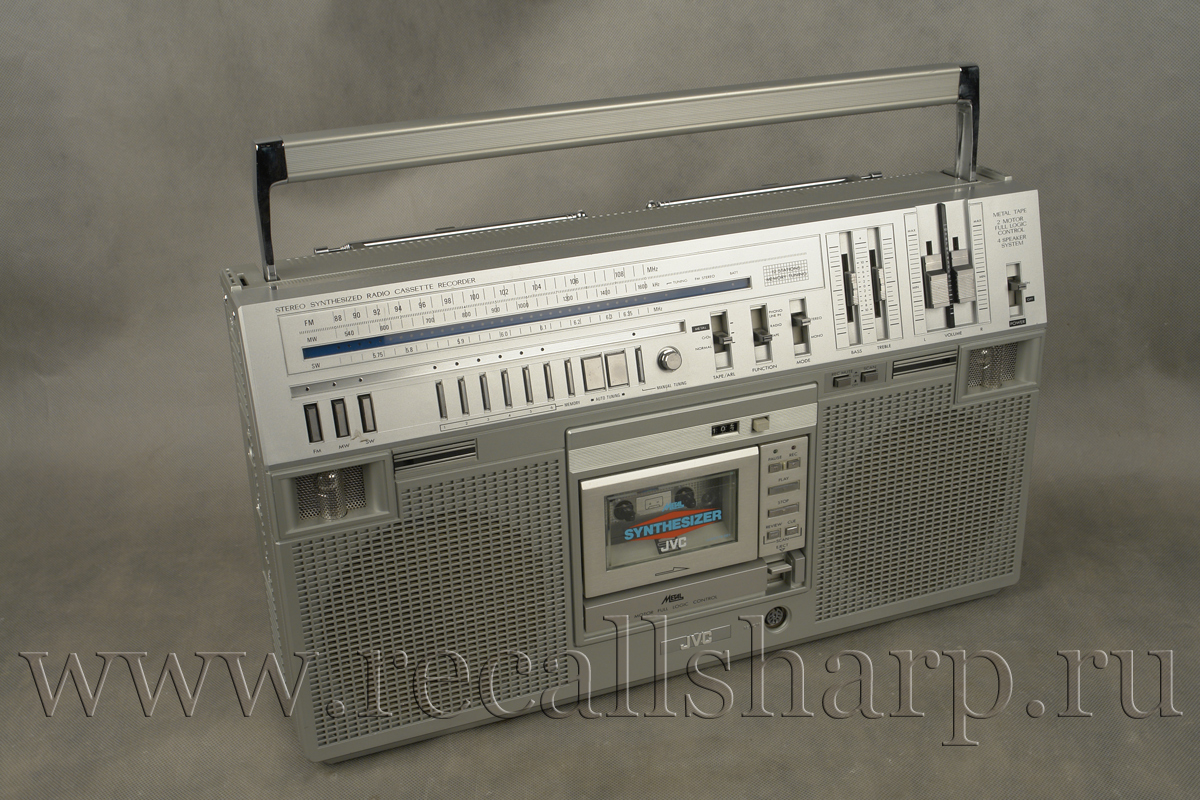

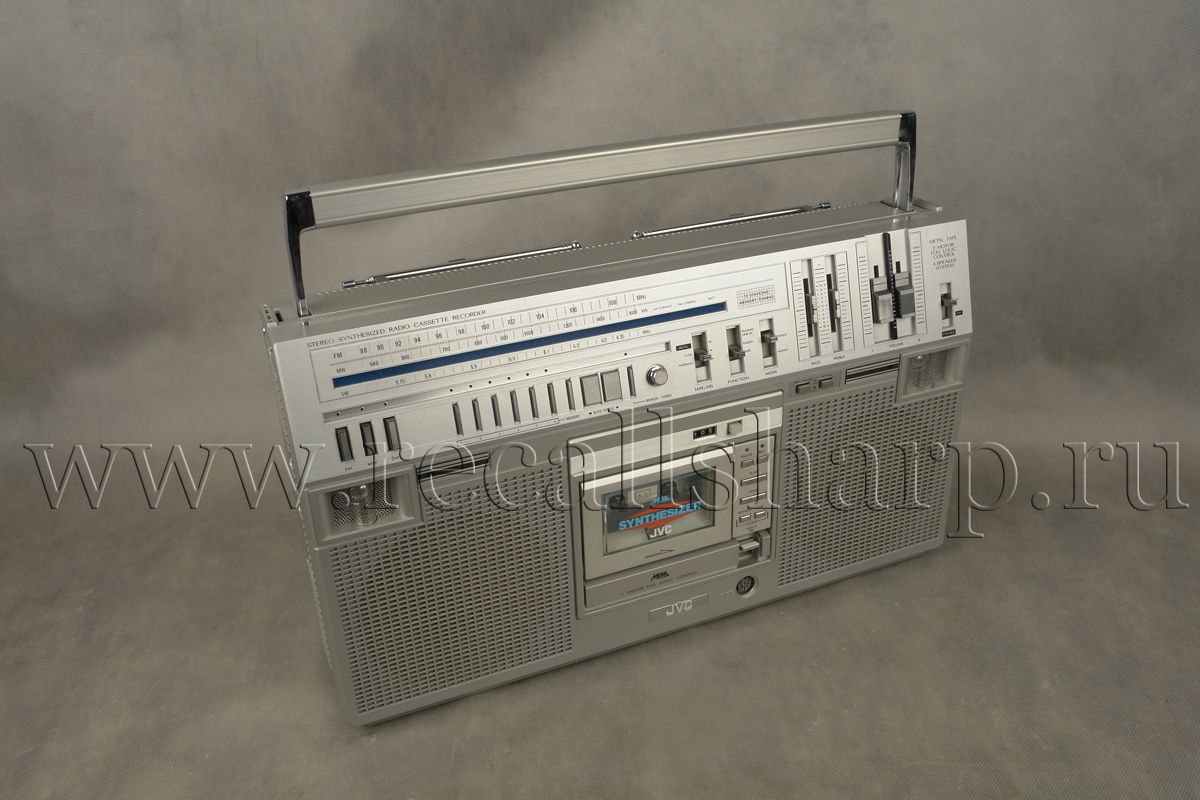

JVC RC-M80 R



: 1980


Specifications (JVC RC-M80 L/LB)

DIMENSIONS: 521 mm(W) x 301 mm(H) x 137mm(D)

WEIGHT: Approx. 8.3 kg (with batteries) 7.5 kg w/o batt

TUNER SECTION

Frequency Ranges : FM 88 - 108 MHz

MW 540 -1600 kHz

LW 150-350 kHz

SW 2.3 -6.0 MHz

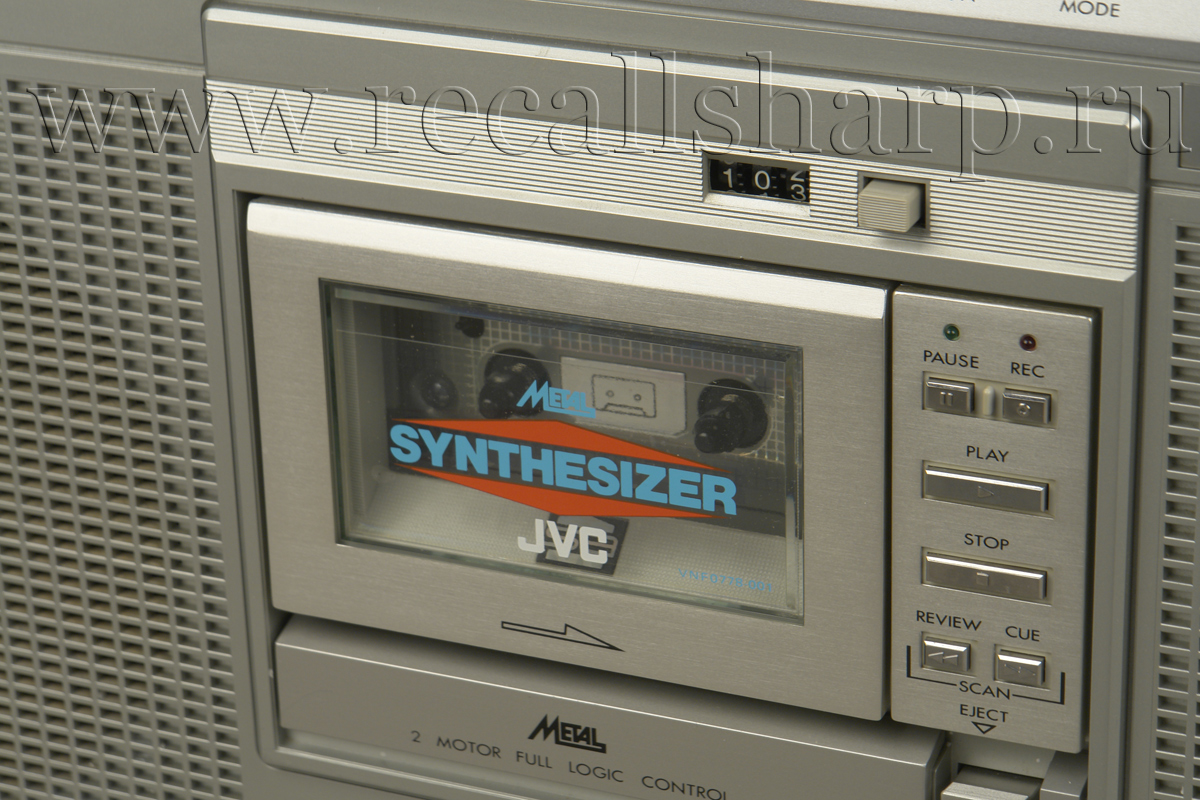

Tape recorder section

Track system : 4-Track 2-channel stereo
Frequency response : 30-17,000Hz (with metal tape)
30-16,000Hz (with chrome tape)
30-15,000Hz (with normal tape)
Wow & flutter : 0.055% (WRMS)
Heads: SEN ALLOY head for recording/playback
2 GAP SEN ALLOY head for erasure
Motors: Electronic governed DC motor for capstan DC motor for real
S/N ratio : 50dB
Rewind time : Within 90sec. (C-60 cassette)
Fast forward time : Within 90sec. (C-60 cassette)

PowerOutput :
Max. 18W (9W + 9W) 4 Ohm

Speakers 16 cm (6-1/2") x 2,

5 cm (2") x 2

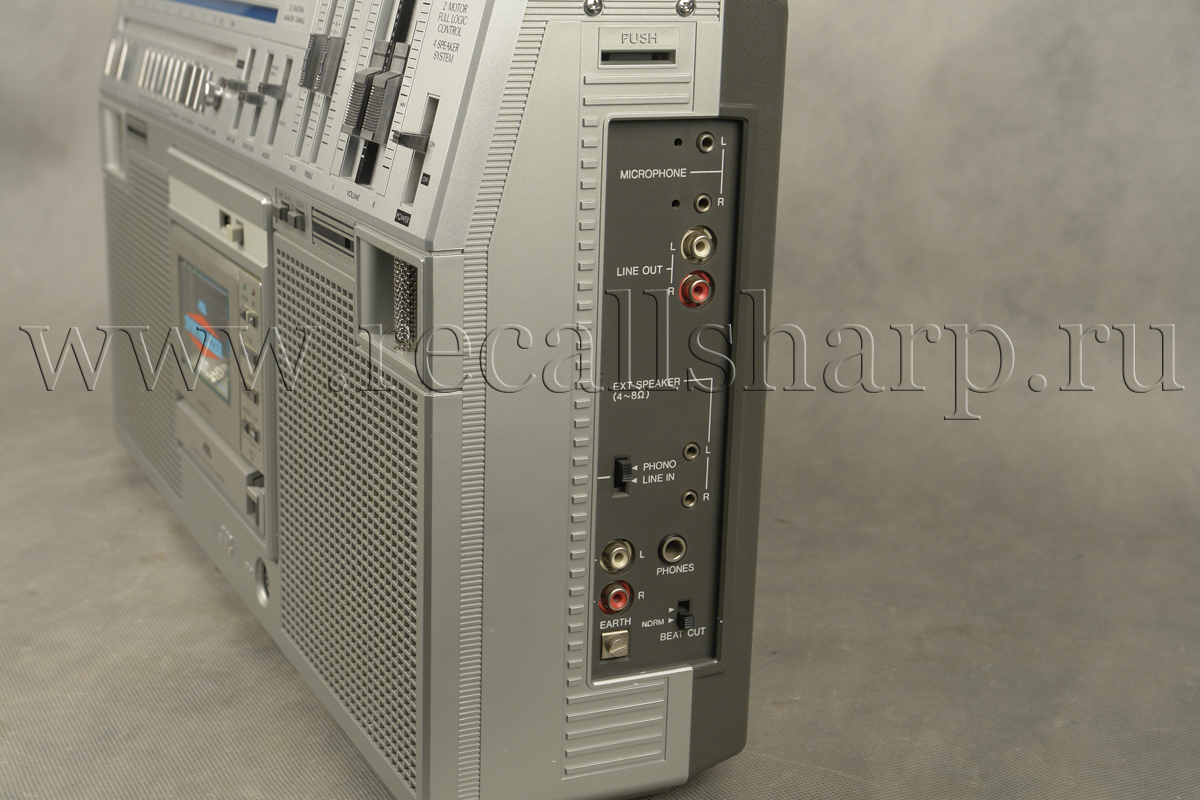

Input Jacks

Phono

Output Jacks Headphones (8 - 32 Ohms)

Input/Output Jack DIN

POWER CONSUMPTION: 28 W (L), 26 W (LB)

SEMICONDUCTORS

Transistors : 92 (includes 2 for motor governor)

POWER SOURCE DC : 15 V, 10 "D", "R20"cells or equivalent
AC : 240/220/110V.
50/60Hz

AMPLIFIER SECTION

ICs : 12 (includes microphones) : Ext. Speaker x 2 (8 Ohms) x 2 (3 mV, 47 kOhms)


:
JVC RC-M 80 L
