Год начала выпуска: 1981
Регион: Европа
SPECIFICATIONS

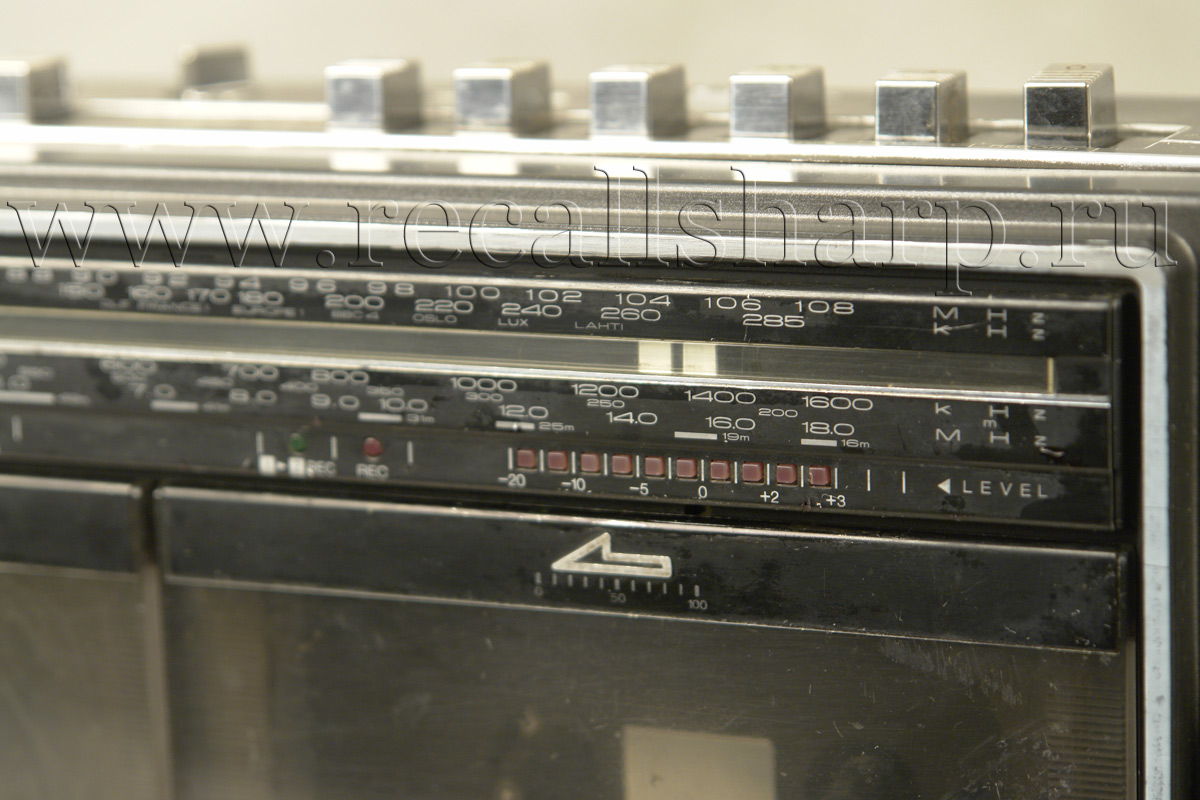

RADIO FREQUENCY RANGE: FM 87.5 -108MHz
LW 150-285kHz,
MW 520- 1,610kHz
SW 5.9-10 MHz
POWER REQUIREMENT: AC 110-115V/115-127V/200-220V/230-250V 50/60Hz
Power consumption; 16 W)
Battery; 9 V (six UM-1, "D" size batteries)
Car battery; with optional car adaptor RP-917
POWER OUTPUT: 7 W(3.5 Wx2.
SPEAKERS: Woofer; 10 cm PM dynamic speaker 3Ω
Tweeter; 2 cm ceramic speaker 2kΩ
FREQUENCY RANGE: Tape 1 playback only
30-14000 Hz normal
30-15000 Hz Chrome, Metal
Tape 2 playback, recording
40-13000 Hz normal
40-14000 Hz Chrome
40-14000 Hz Metal
RECORDING SYSTEM: AC bias, AC erase
TAPE SPEED: 4.8cm/s
Wow&Flutter 0.11%(WRMS)
TRACK SYSTEM: 4-track 2-channel stereo

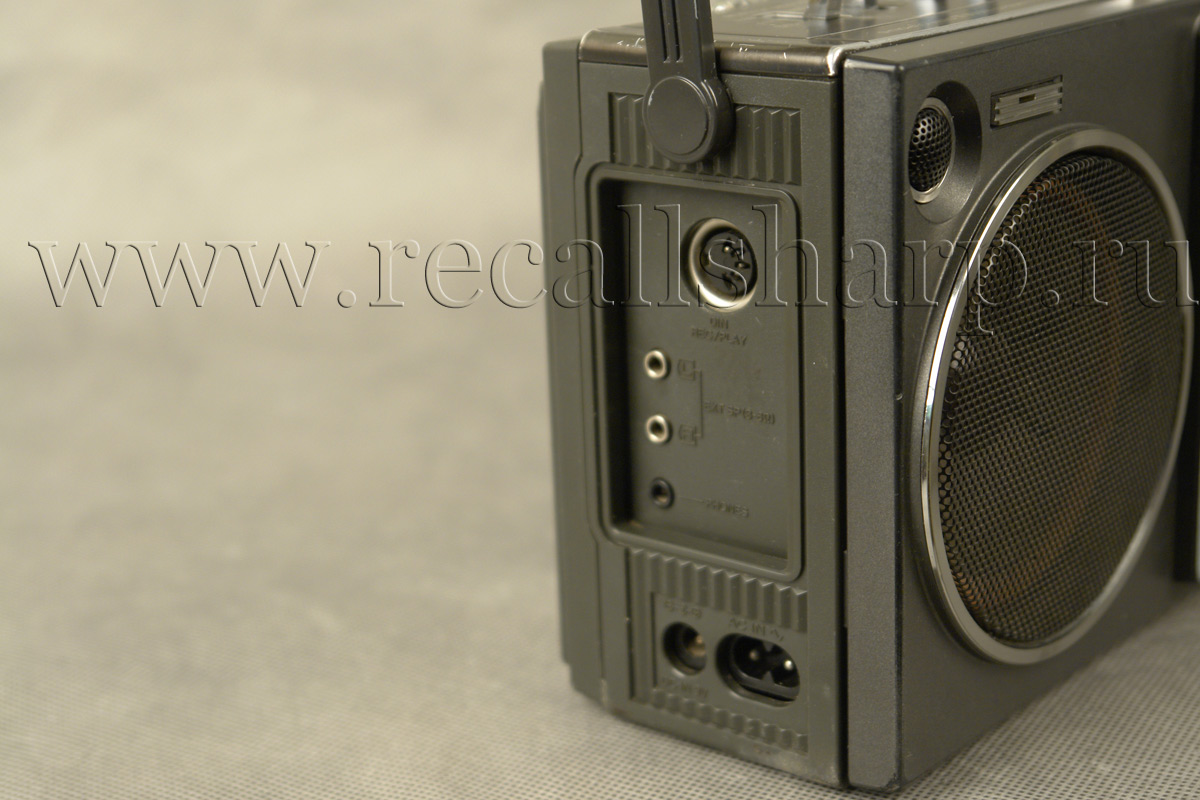

JACKS:
INPUT; MIXING MIC; sensitivity 5 mV applicable microphone
impedance 200Ω-600Ω (recommended microphone RP-V305)
LINE IN; sensitivity 224 mV/47 kΩ
OUTPUT; HEADPHONES; 32 Ω
Ext.Speakers 3 Ω- 8 Ω
DIMENSIONS: W50.7 x H15.4 x D11.7cm
Weight: 3.9kg (without batteries)
|
