Год начала выпуска: 1983
Регион: Европа
Specifications
General
Power requirement: AC;110-115/115-127/200-220V,
230-250V 50Hz\60Hz
Battery; 12V (eight- "C" size Flashlight batteries)
Car/boat battery; with optional car/boat
adaptor RP-952
Power consumption; 25 W (AC only)
Power output: 20W (10Wx2) ... RMS (max)
20W (10Wx2) ... MPO (max)
Speakers: 9cm PM dynamic speaker (6Ω)
Input: MIC; sensitivity 0.25mV/applicable microphone
impedance 200-600Ω
LINE IN; sensitivity 200mV/50kΩ
DC IN:12V
Output: LINE OUT;sensitivity 420mV/47kΩ
EXT SP:3-8Ω
HEADPHONES; 32Ω
Dimensions: 418mm(W) x 220mm(H) x 110mm(D)
Weight: 4.15kg (without batteries)
Radio section
Radio frequency range: FM; 87.5MHz ~ 108MHz
LW 150-285kHz (2000 ~1060m)
MW; 520-1610kHz(577m ~ 186m)
SW; 5.9MHz~18MHz(50.8m ~ 16.7m)
Intermediate Frequency (IF): FM 10.7MHz
AM(LW/SW/MW) 455kHz
AM(LW/SW/MW) 470kHz (U.K. only)
Sensitivity: FM 1.8μV /500mW output
LW 178μV /50mW output
M W 141μV/50mW output
SW 8.9μV /50mW output

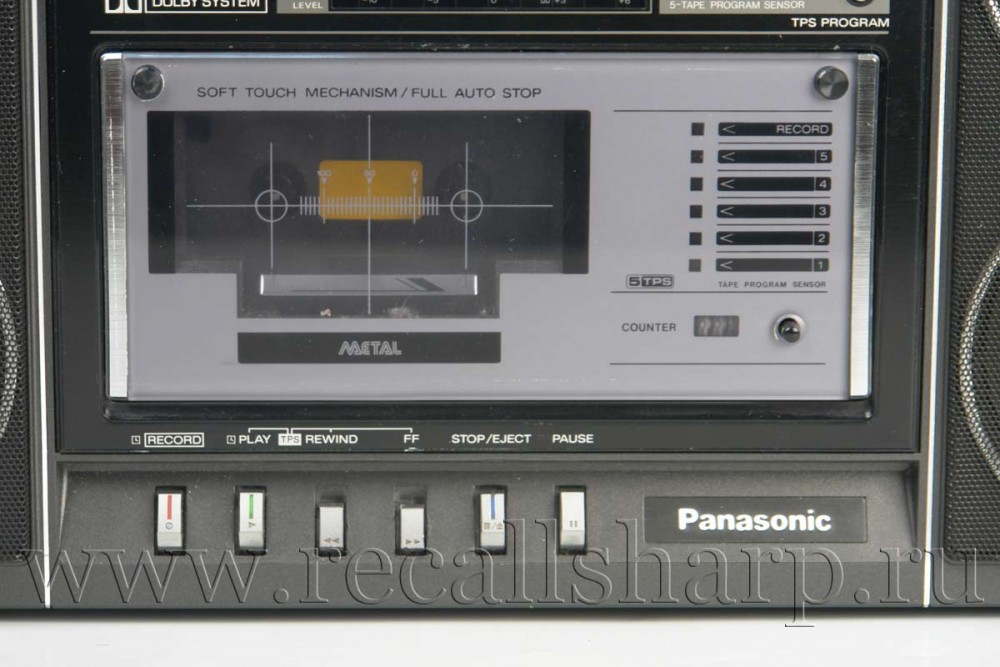

Tape Deck Section
Frequency range:
60-14,000Hz (with Metal tape)
60-12,000 Hz(with normal tape)
Recording system; AC bias, AC erase
Tape speed: 4.8cm/s
Wow&Flutter 0.2%(WRMS)
Program time: 1 hour with C-60 cassette tape
Track system: 4-track stereo recording and playback
|
