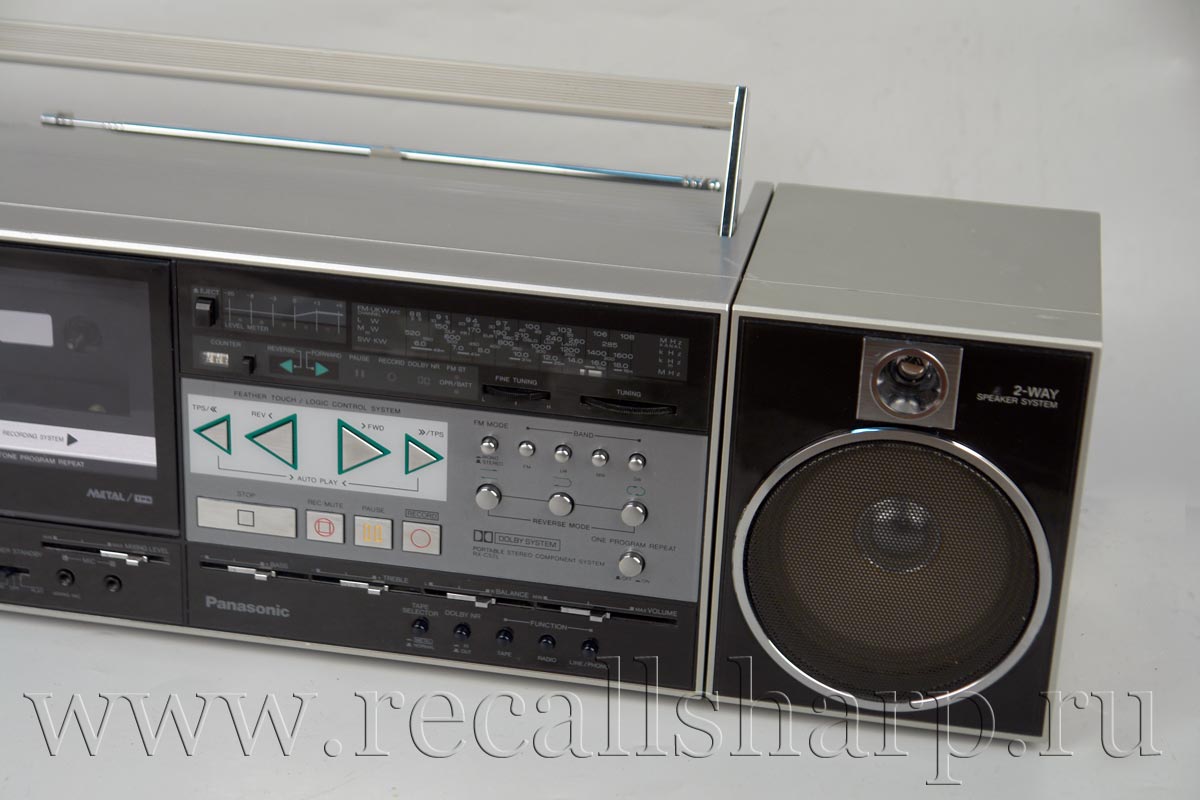

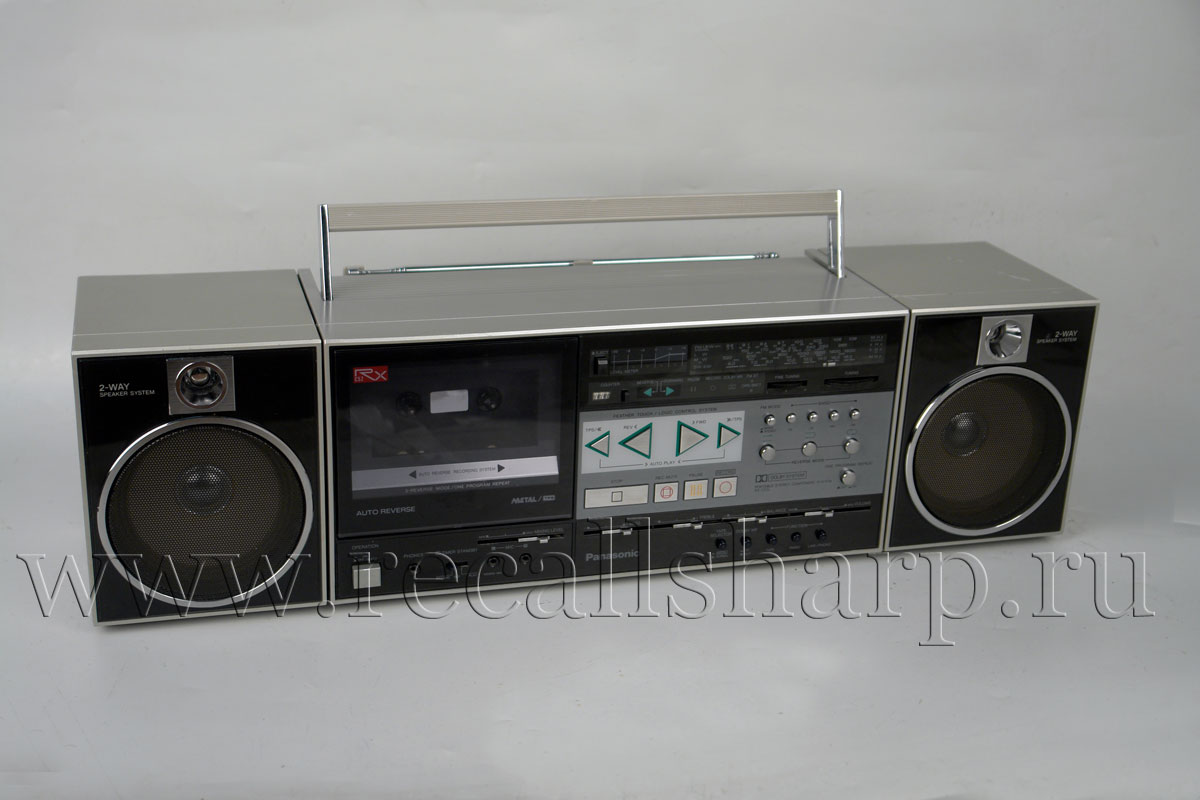

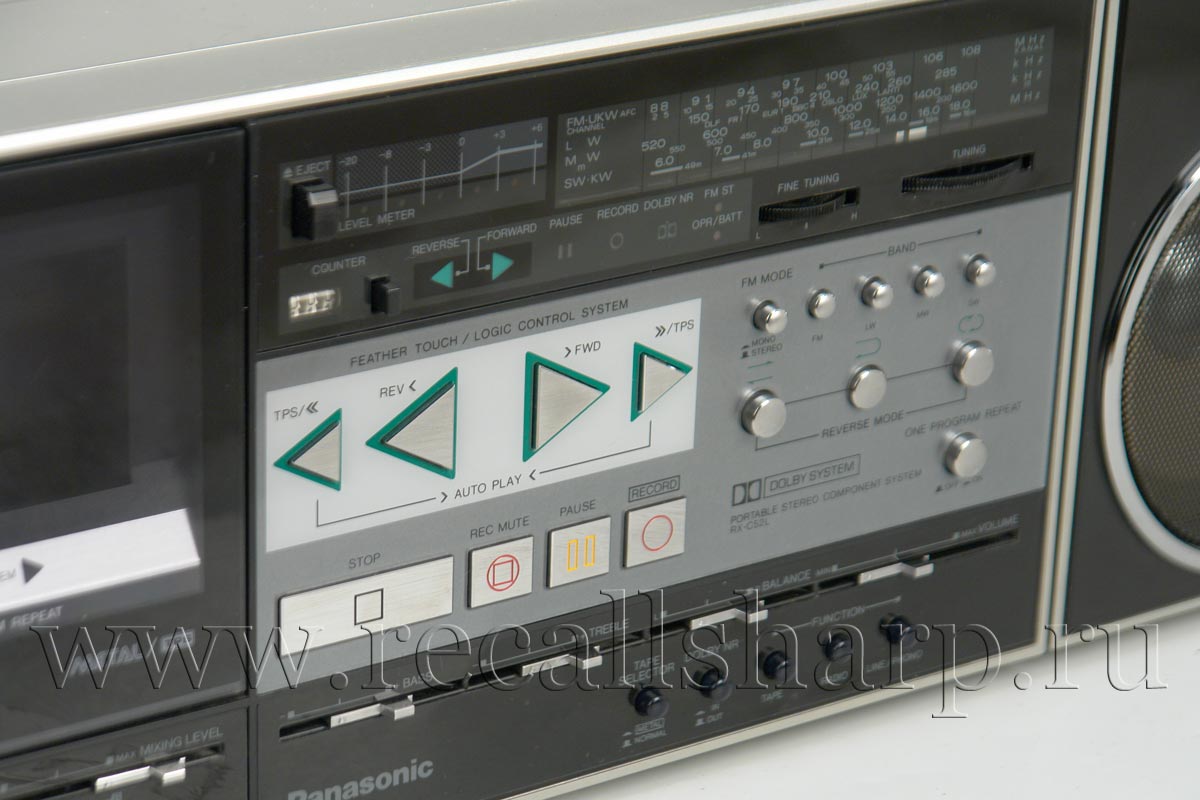

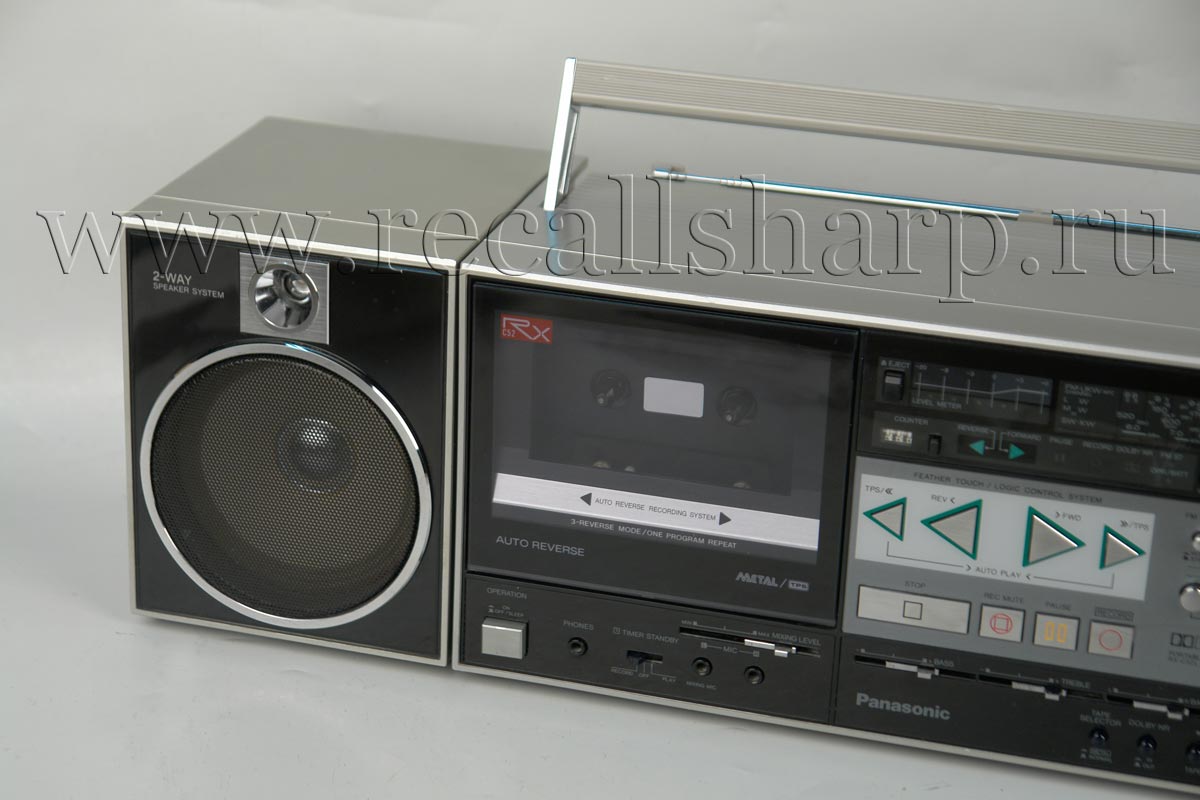

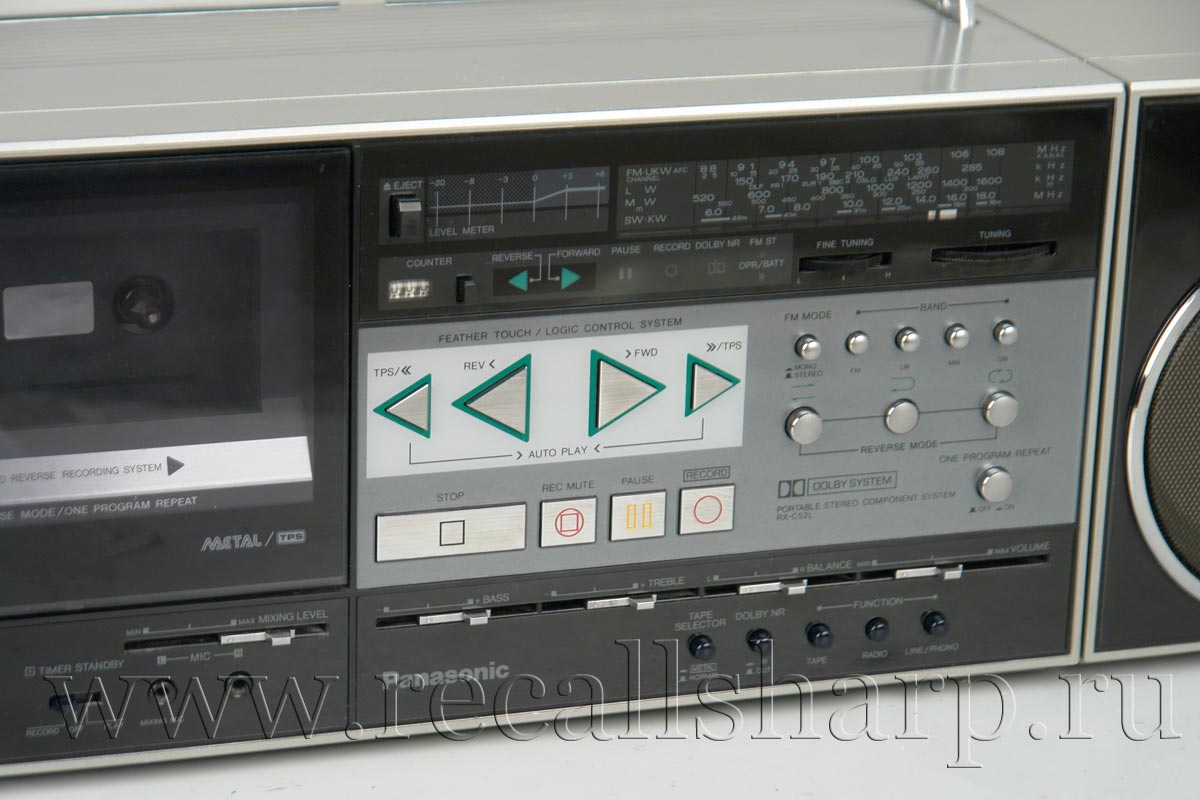

Panasonic RX-C52 L



: 1984


SPECIFICATIONS

<RADIO>
Radio Frequency Range:
FM; 87.5-108 MHz
LW; 150-285 kHz
MW; 520-1610 kHz
SW; 5.9-18.0 MHz


Frequency Range:
40-12,000 Hz (with normal tape)
40-16,000Hz(with Metal tape)
Recording System: AC bias,

Erasing system AC erase
Track System: 4-track 2-channel stereo recording and playback

Tape speed: 4.8 cm/s

PROGRAM TIME: 1 hour with C-60 cassette tape

FAST FORWARD and
REWIND TIME: Approx. 110 seconds with C-60 cassette tape

Power Requirement:
<GENERAL>
Power Requirement:
AC; 220 V, 50 Hz

Power consumption; 23W (AC only)

Battery; 12 V (eight "UM-1", D size batteries)

Car Battery; with optional car battery cord RP-952

Power Output: 15W (7.5Wx2)…( max)

Speaker: Woofer;10cm PM Dynamic Speaker 3Ω
Tweeter; 3cm Ceramic Speaker(400Ω)

Jacks:
Input;
MIC; sensitivity 0.25 mV/applicable microphone impedance

200-600 Ohm

PHONO; sensitivity 5mV/47kΩ over

DC IN;13.2V

LINE IN; sensitivity 200 mV/47 kOhm.

Output; LINE OUT; sensitivity 360 mV/4.7 kOhm
EXT SP; 3-8 Ohm
HEADPHONES; 32 Ohm

Dimensions: Total Size
(WxHxD) 549x153x152 mm
Main unit
321(W)x153(H)x152(D)
Speaker Box
120(W)x153(H) x134(D)

Weight: 5.2 kg without batteries
(not included)


:
Panasonic RX-C52
Anatoliy : 25.03.2011 17:50:28
Normal 40-12,000Hz
Metal  40-16,000Hz

; 0.08%{WMRS}
