Panasonic Corporation крупная японская машиностроительная корпорация, один из крупнейших в мире производителей бытовой техники и электронных товаров. В 2007 году компания заняла 59-е место по объёму выручки в глобальном рейтинге компаний Fortune Global 500. До 1 октября 2008 года носила название Matsushita Electric Industrial Co., Ltd.
Подробнее о производителе
Глоссарий аббревиатур
|
|
|
Год начала выпуска: 1988
Регион: Европа

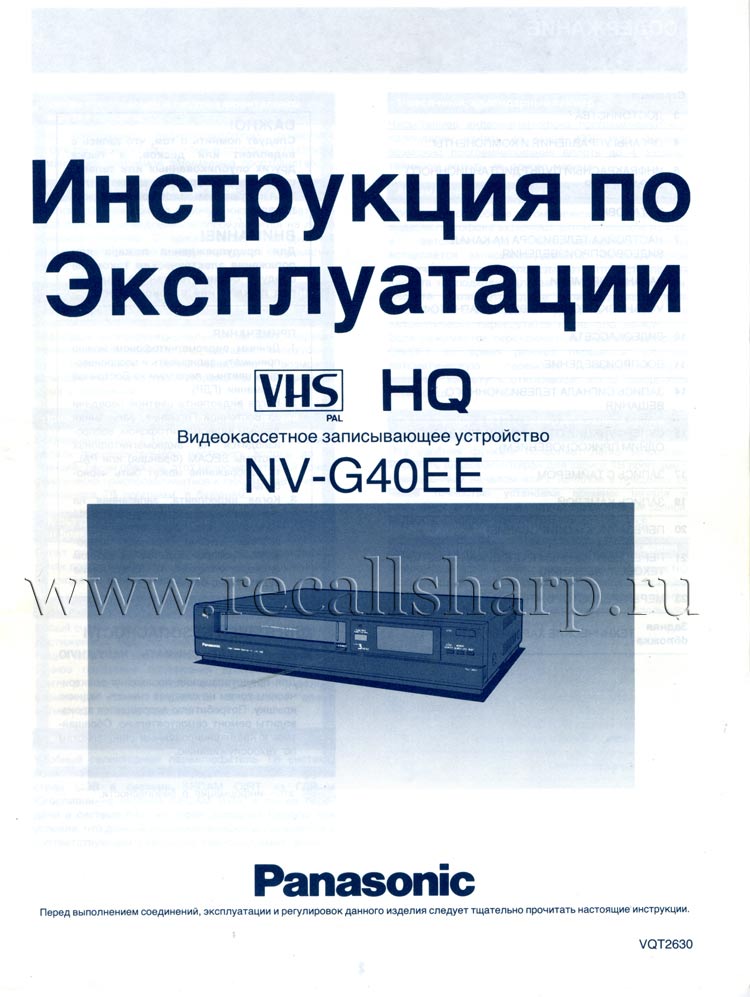

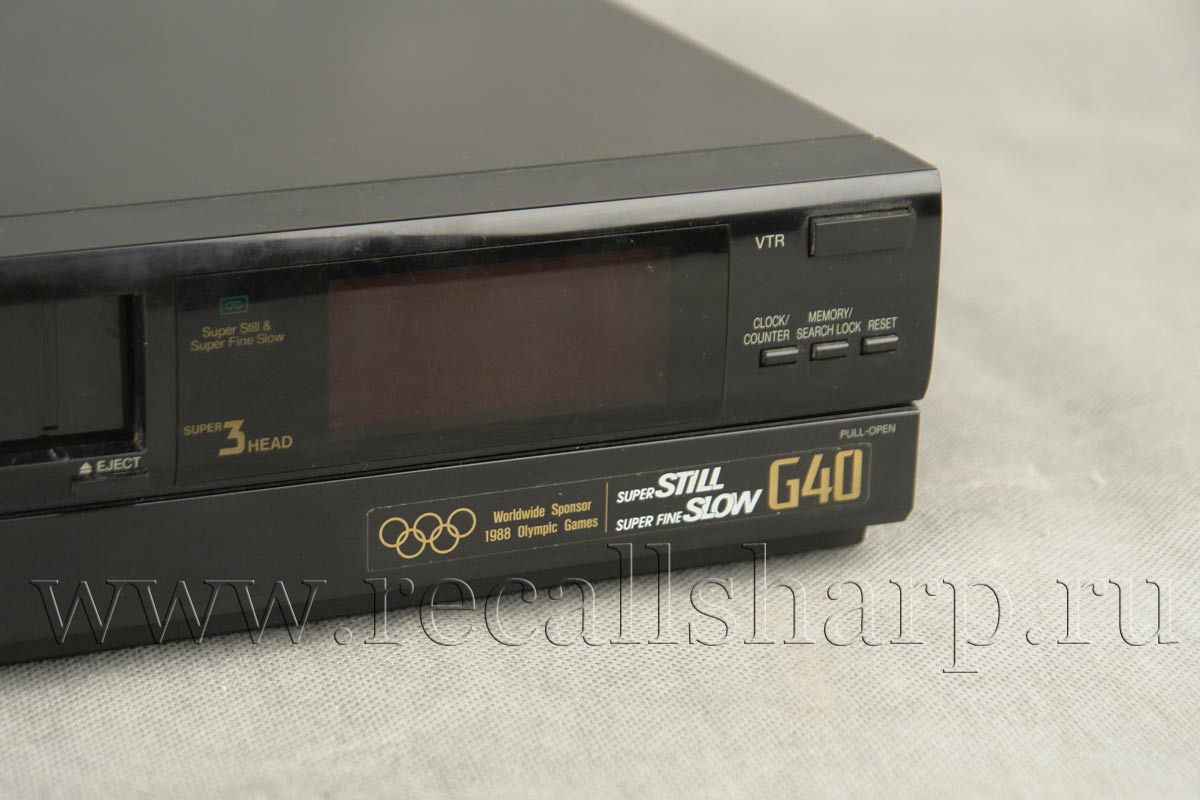

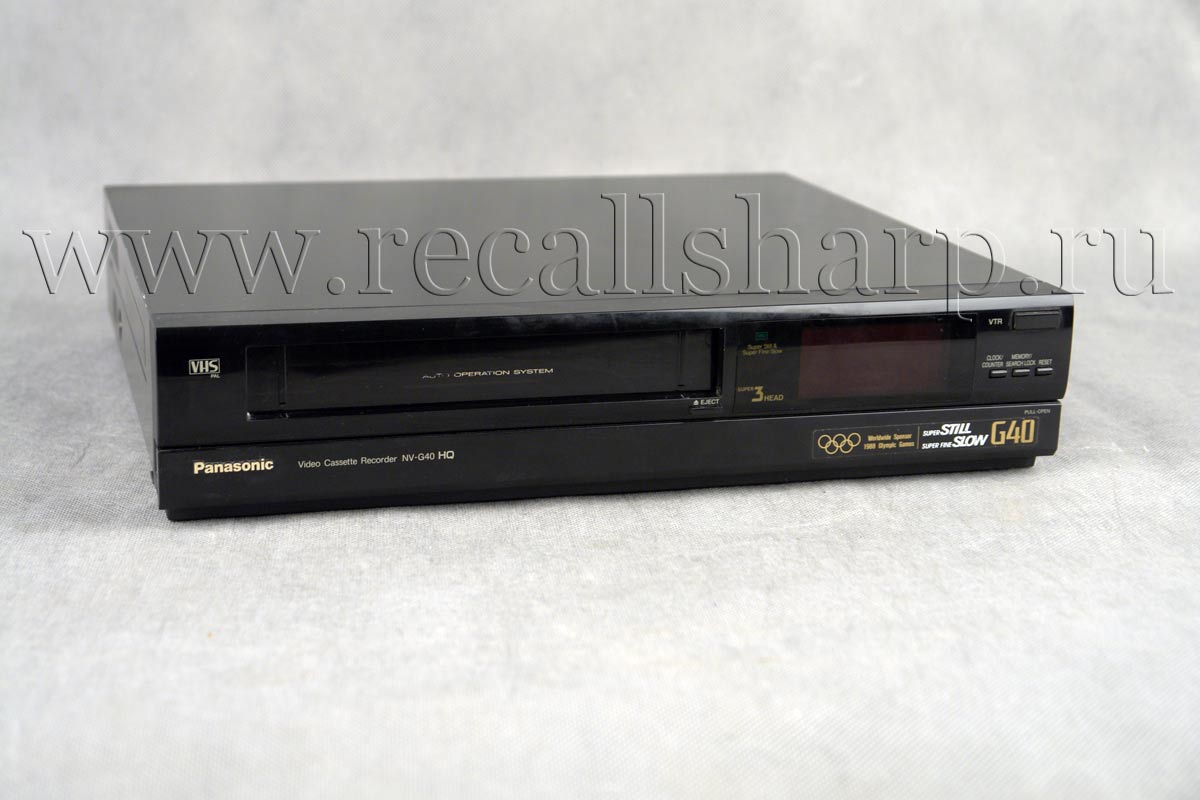

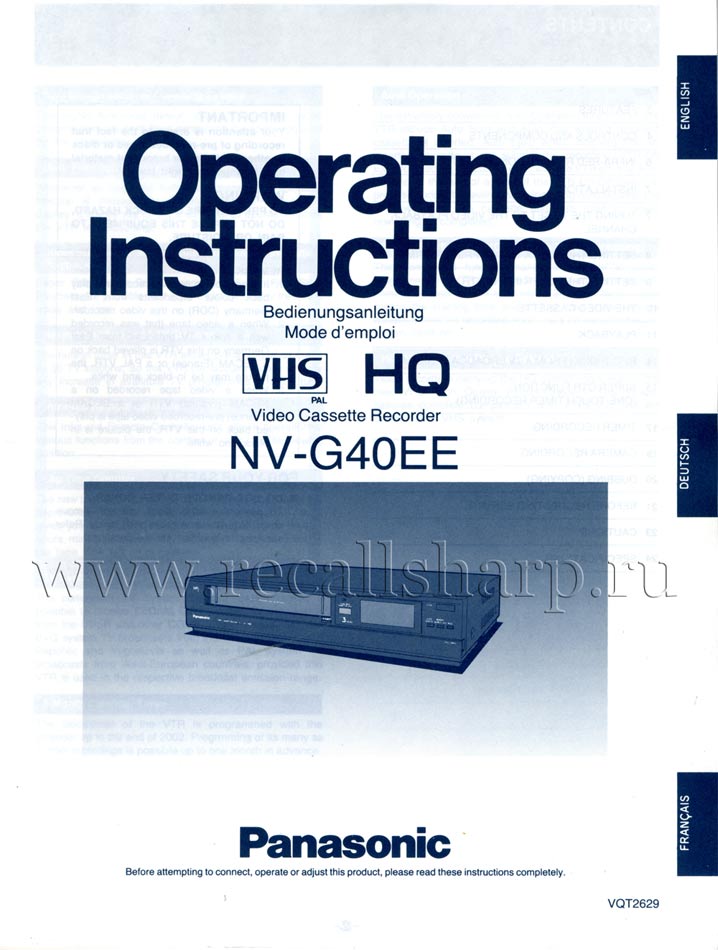

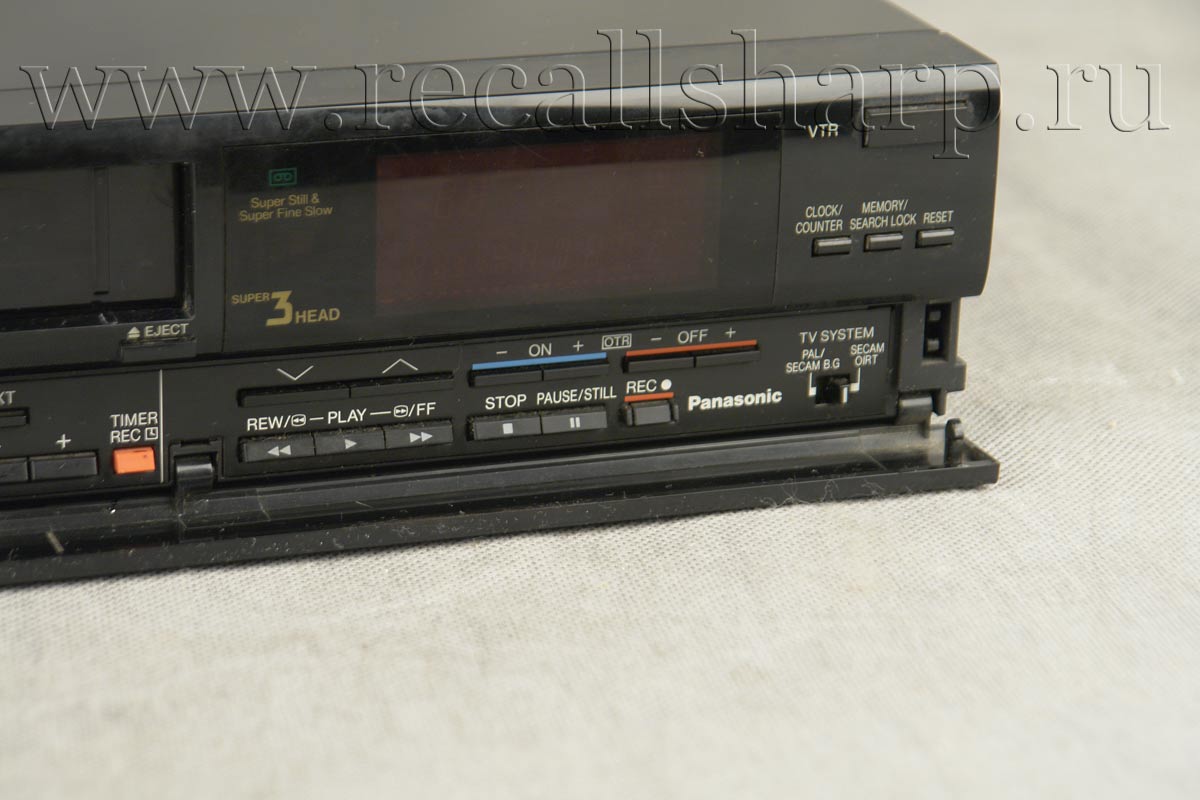

NV-G40EE
Power Source: 220 V AC 50-60 Hz
Power Consumption: Approx. 23 watts
Video Recording System: 2 rotary heads, helical scanning system
Tape Speed: 23.39 mm/sec.
Tape Format: VHS tape
Record/Playback Time: 240 min. with NV-E240
FF/REW Time: Less than 5.5 min. with NV-E180
VIDEO Television System: CCIR; 625 lines, 50 fields, PAL/SECAM B«G, SECAM OIRT colour signal
Modulation System: Luminance; FM azimuth recording

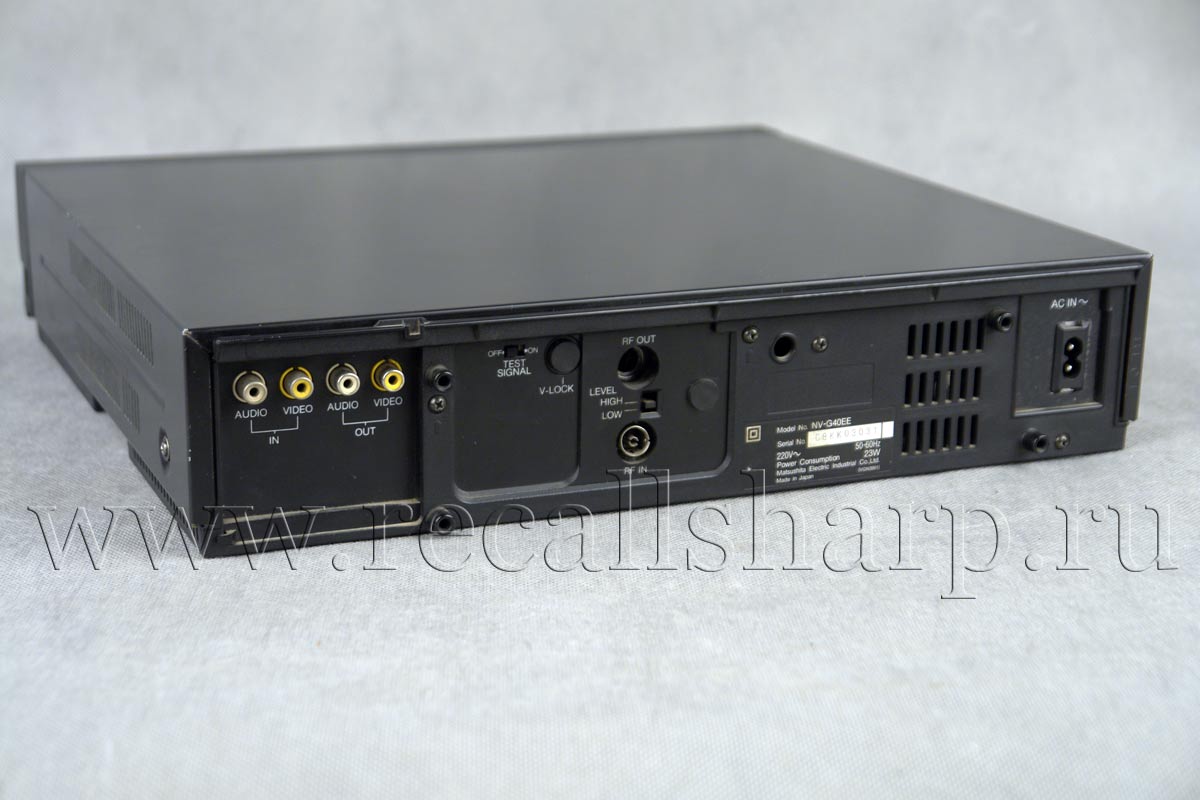

Colour signal; converted subcarrier phase shift recording Input Level: VIDEO IN (PHONO); 1.0Vp-p, 75 ohm, unbalanced
Output Level: VIDEO OUT (PHONO); 1.0Vp-p, 75 ohm, unbalanced
RF Modulated; UHF channel 36 (±4), 75 ohm, unbalanced
AUDIO Input Level: AUDIO IN (PHONO); -10 dB, more than 50 kohm, unbalanced
Output Level: AUDIO OUT (PHONO); -8dB, less than 1 kohm, unbalanced
Audio Track: 1 track (Normal-mono only)
Video Horizontal Resolution: Colour; more than 240 lines
Signal-to-Noise Ratio: Video; more than 43 dB
Audio; more than 43 dB
Audio Frequency Response: 80 Hz-10 kHz
Operating Temperature: 5°C-40°C
Operating Humidity: 35%-80%
Weight: 5.0 kg
Dimensions: 380 (W) x 82 (H) x 343 (D) mm
Standard Accessories: 1 pc. DIN-DIN Coaxial Cable

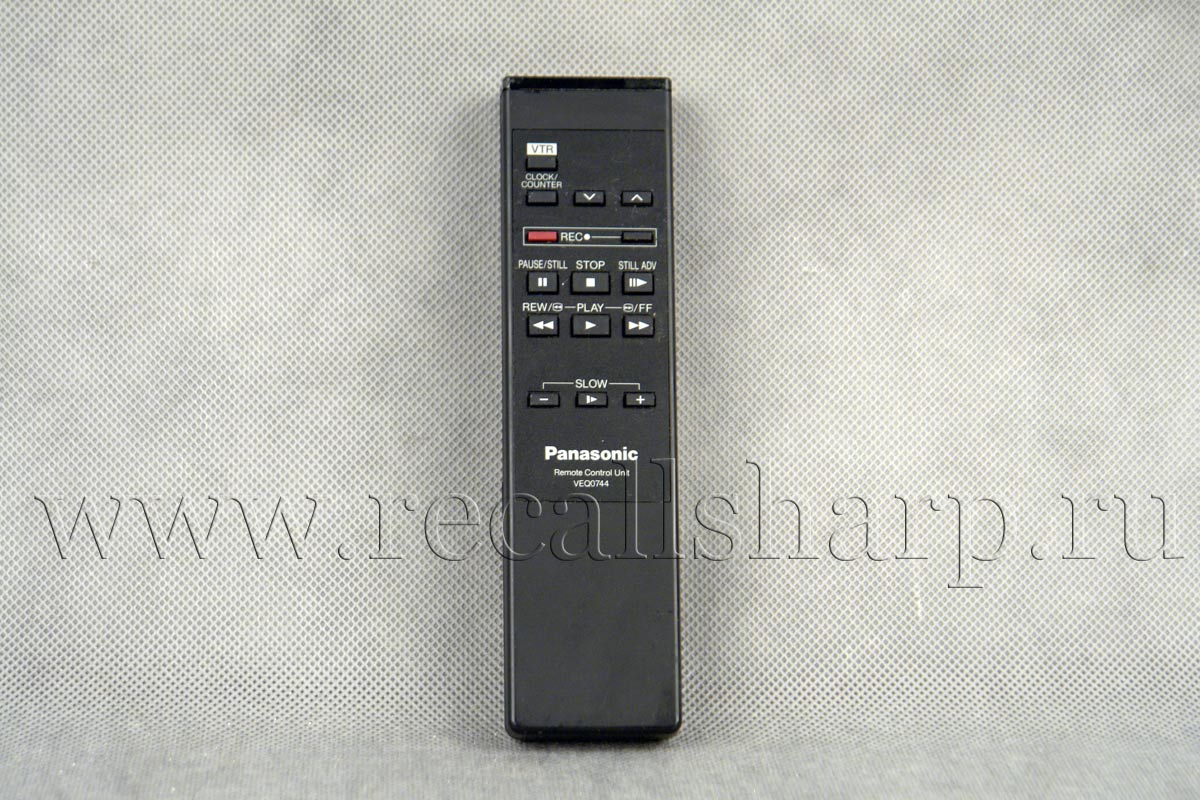

1 pc. Infra-red Remote Controller
2 pcs. "R6" size batteries 1 pc. AC Mains Lead
Weight and dimensions shown are approximate. Specifications are subject to change without notice.
|
|
|
|
|
