SPECIFICATIONS

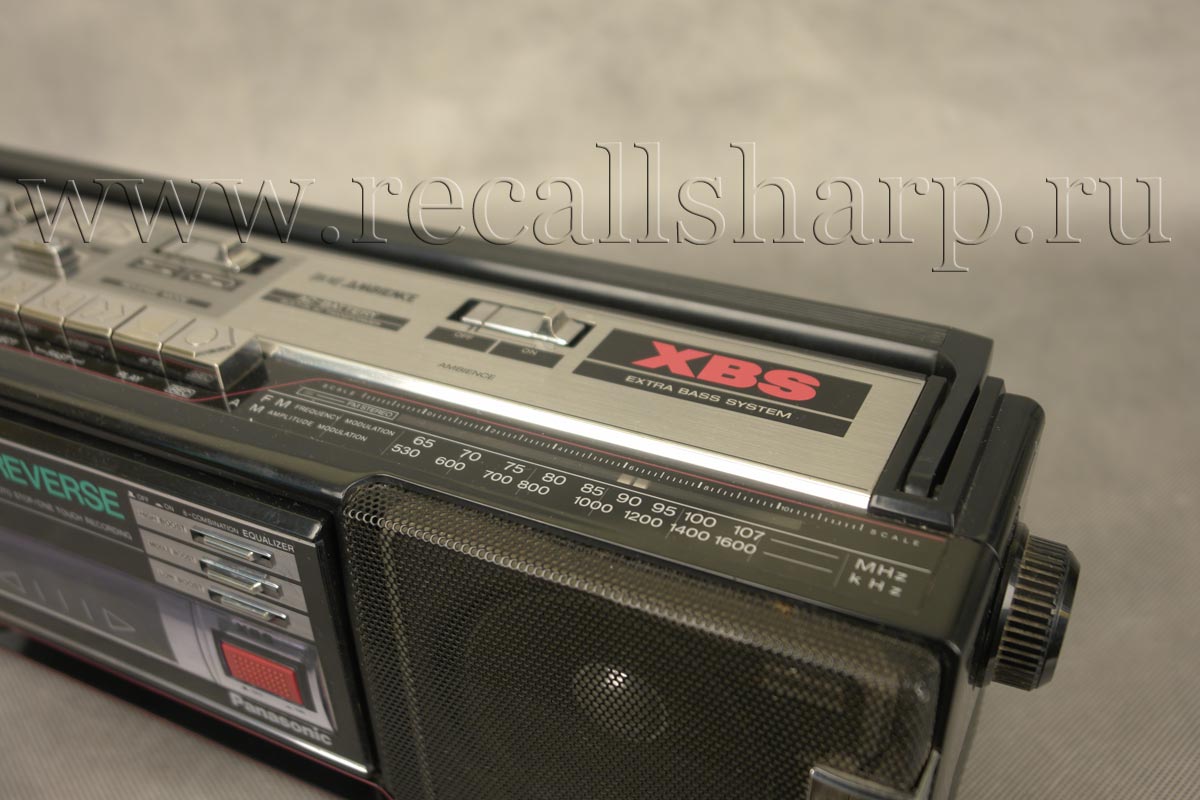

RADIO FREQUENCY RANGE: FM; 65-107 MHz
AM; 525-1610 kHz
POWER REQUIREMENT: AC; 110-127/200-220/230-250 V, 50/60HZ
Power consumption; 17 W (240 V, 50 Hz Power consumption; 17 W)
Battery; 9 V (six UM-1, "D" size batteries)
POWER OUTPUT: 8 W(4 Wx2)...PMPO

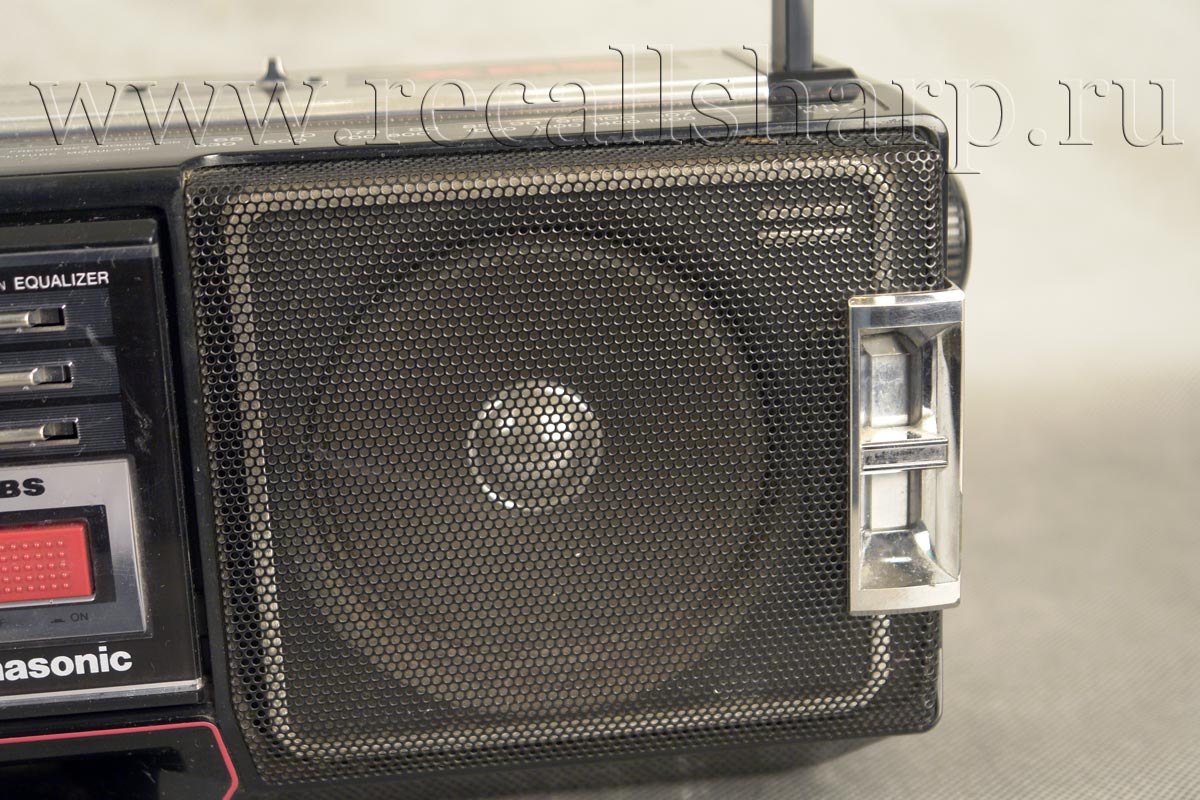

SPEAKERS: Woofer; 10 cm PM dynamic speaker 3Ohm
Tweeter; 2 cm speaker ceramic 1kOhm
Subwoofer 13x6cm PM dynamic speaker 8Ohm
FREQUENCY RANGE: 150-8000 Hz
RECORDING SYSTEM: AC bias, Magnet erase
TAPE SPEED: 4.8cm/s
TRACK SYSTEM: 4-track 2-channel stereo
JACKS:
INPUT;
MIXING MIC; sensitivity 5 mV applicable microphone impedance 200Ω-600Ω
LINE IN; sensitivity 224 mV/47 kΩ
OUTPUT;
HEADPHONES; 32 Ω ∅3.5 mm
DIMENSIONS: (WxHxD) 496 x156 x148mm
WEIGHT: 3.1 kg without batteries
Design and Specifications are subject to change without notice.
|
