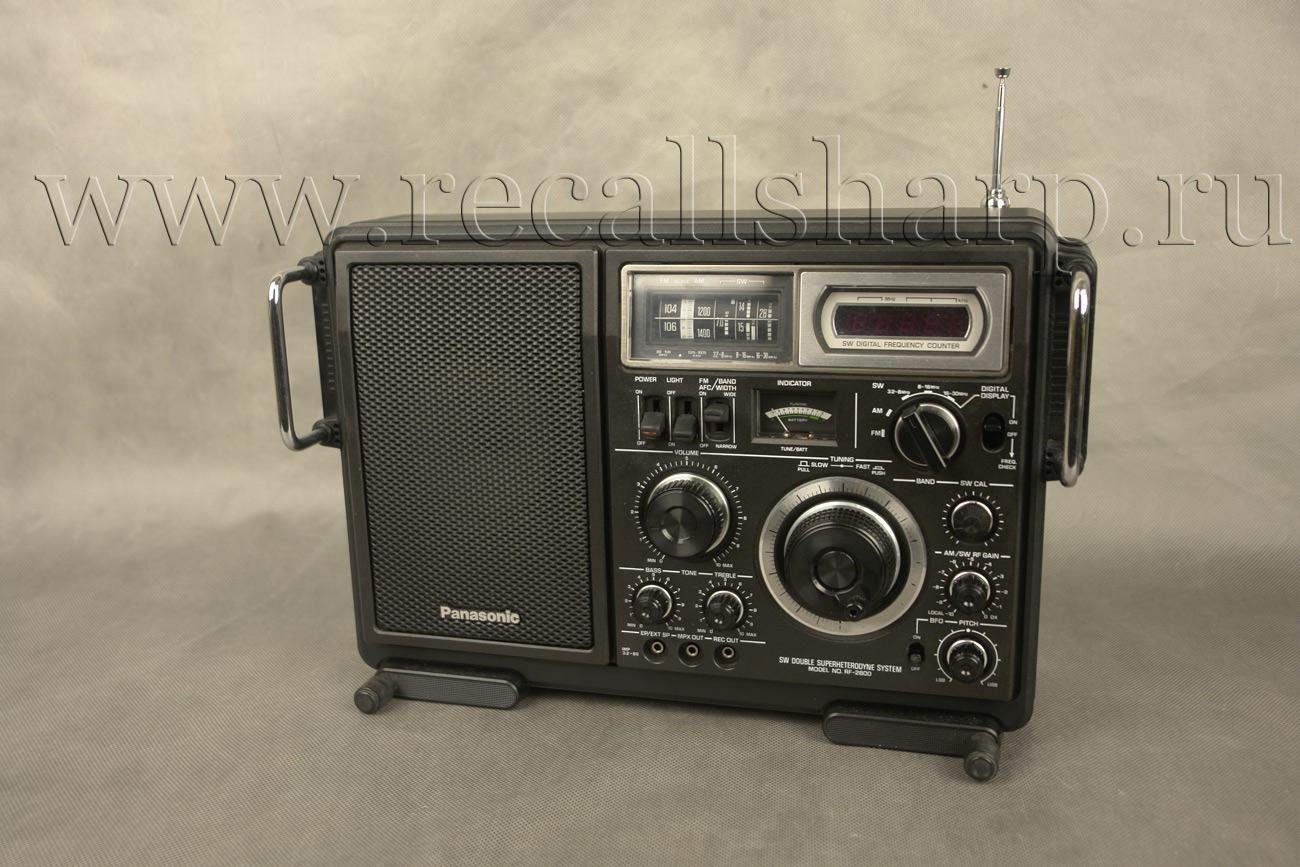

Panasonic RF-2800 DR 28



: 1977


SPECIFICATIONS
Radio Frequency Range;
FM; 88-108MHz
MW; 525~1605kHz (571187m)
SW1; 3.2~8MHz (93.837.5m)
SW2; 8~16MHz (37.518.8m) ..
SW3; 16~30MHz (18.810m) ..

Intermediate Frequency: FM; 10.7 MHz
MW\SW 2nd 455kHz
SW 1st 2 MHz

Sensitivity: FM: 3.0μV (S/N 10dB)
MW; 60μV/m (S/N 10dB)
SW1; 1μV (S/N 10dB)
SW2; 1.3μV (S/N 10dB)
SW3; 0.8μV (S/N 10dB)


Power Requirement; AC; 120V 60Hz
Battery; 9V (6 "D" Size Flashlight Batteries)
(National UM-1 or equivalent)

Power Consumption: 7W(AC only)

Power Output: 2.5W (max.)

Speaker: 10cm(4") PM Dynamic Speaker 3.2Ω

Impedance; FM EXT.ANT ….300Ω
AUX jack...... 300kΩ(20mV)
FM/AM.. 75Ω
MPX OUT... 10kΩ
REC OUT jack...6kΩ/(400mV) /
Earphone jack/EXT SP; .........3.2-8Ω

Dimensions: 381mm(Wide)x246mm(High)x120(Deep) mm

Weight: 3.9 kg without batteries

:
Panasonic RF-2800 LBE DR 28
