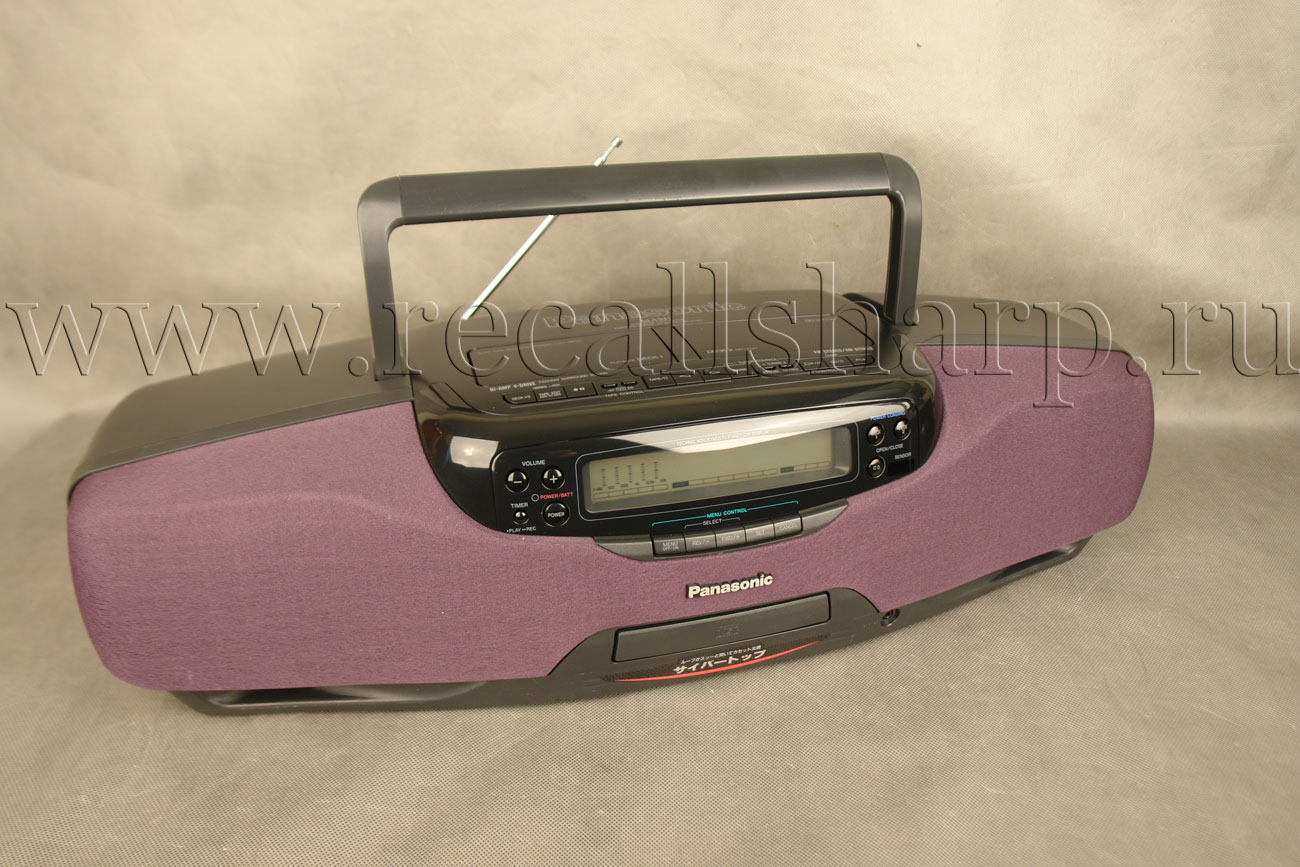

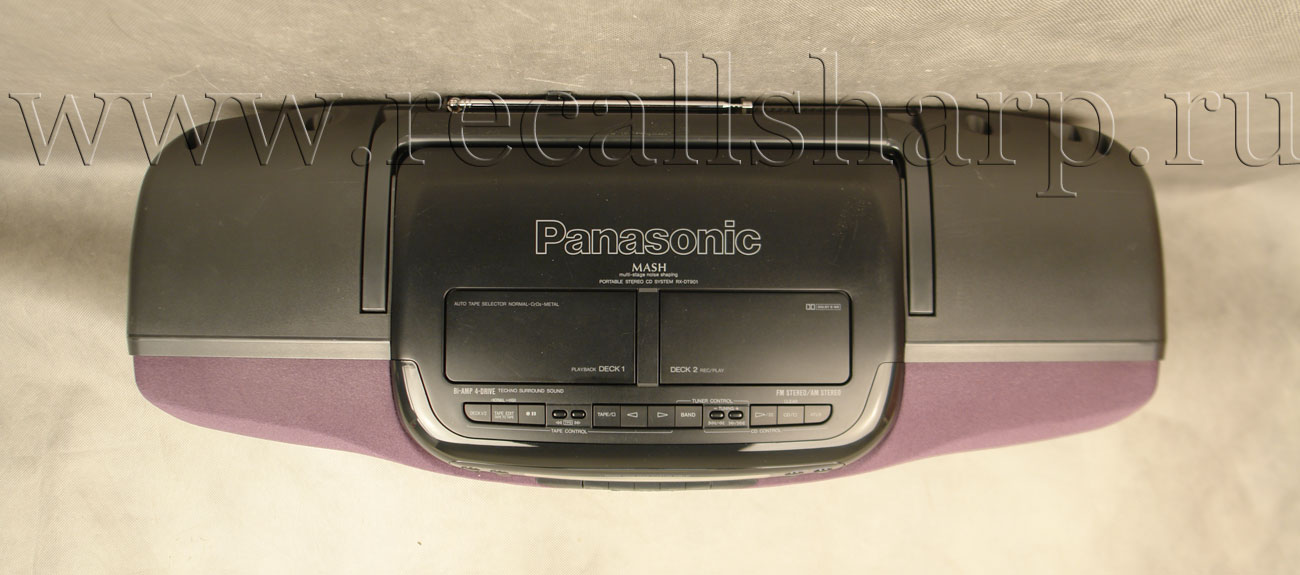

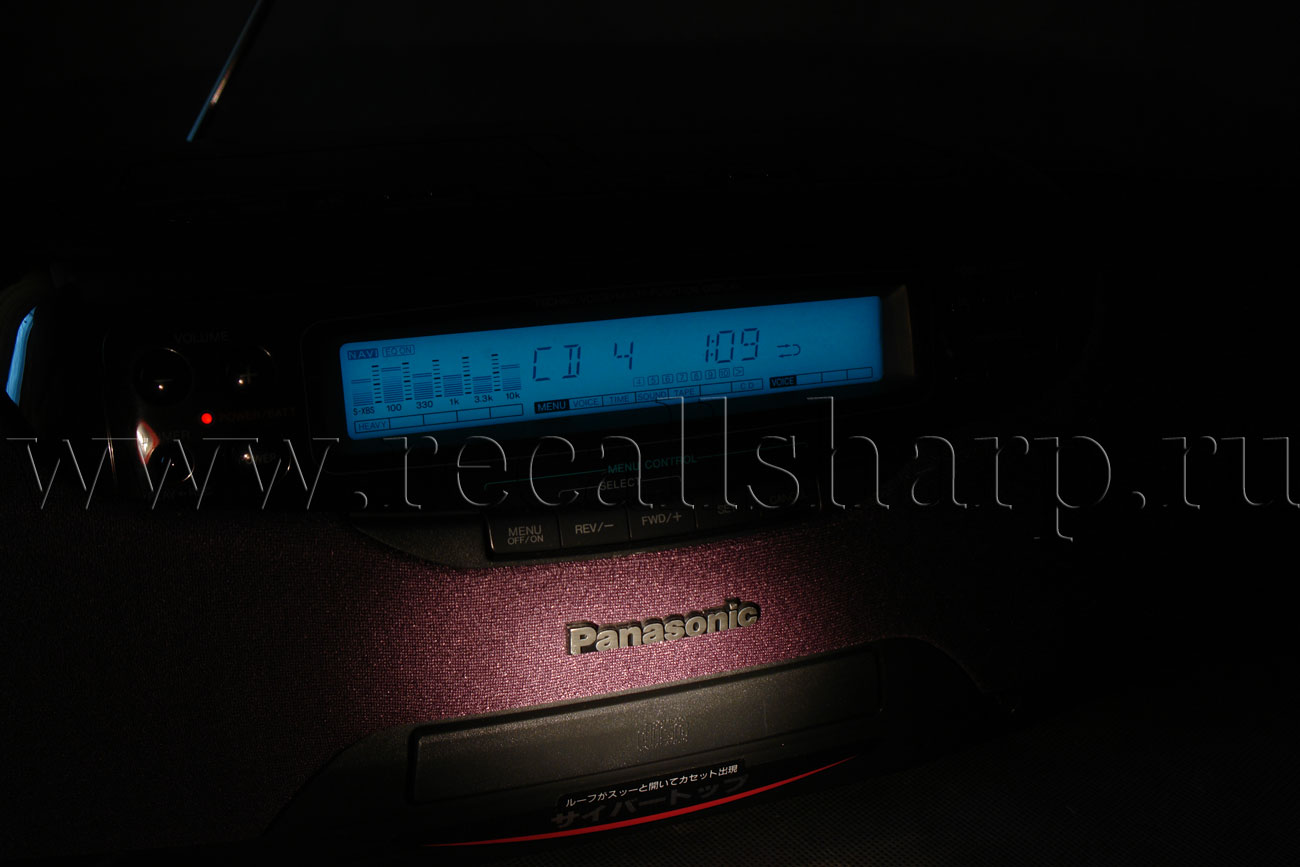

Panasonic RX-DT901



: 1992


Radio Frequency range
FM 76-108.00 MHz
AM 522-1611 kHz
■ CD player
Sampling frequency 44.1kHz
Decoding 16 bit linear
Beam source Semiconductor laser (wavelength 780 nm)
No. of channels 2 channel, stereo
Frequency response 20 Hz-20 kHz
Wow and flutter Less than possible measurement data
D/A converter MASH (1 bit DAC)

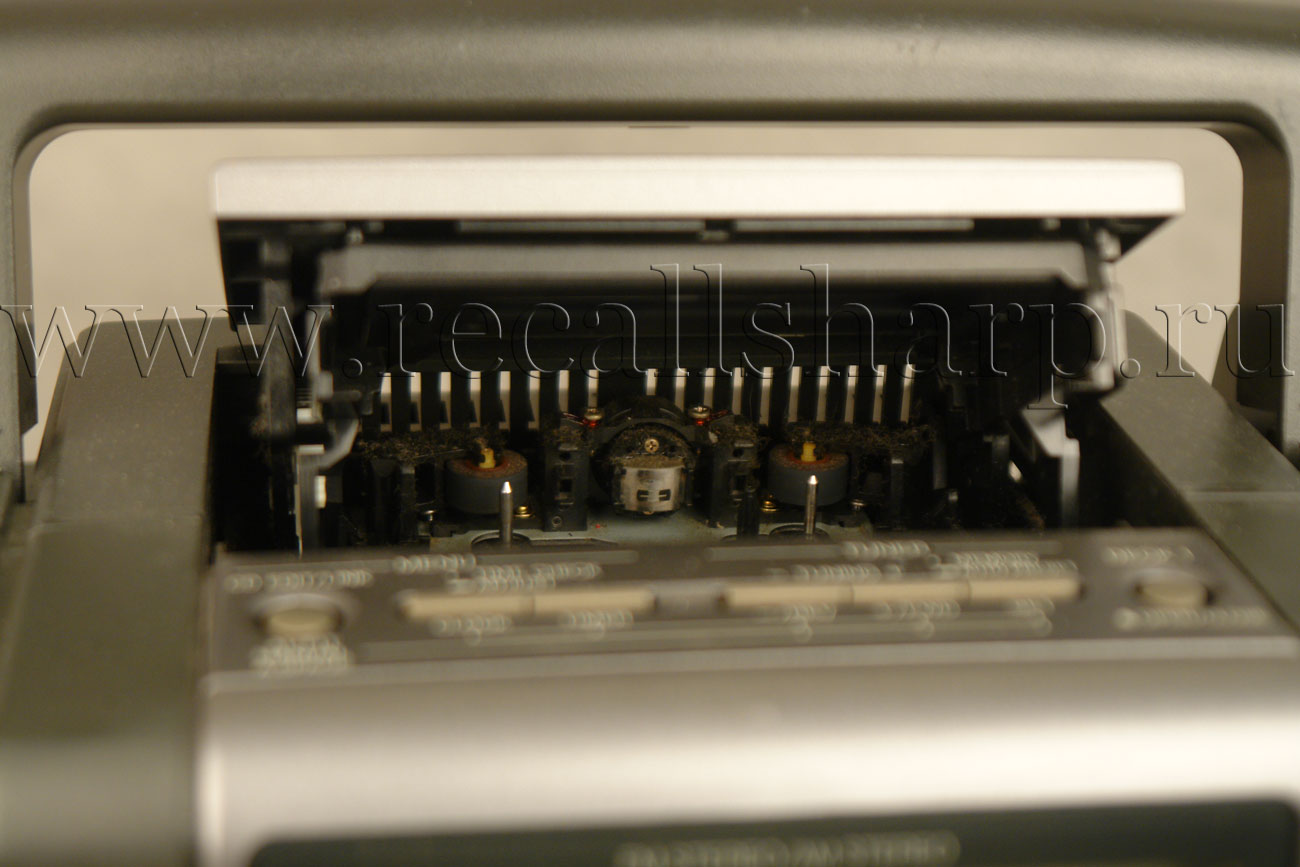

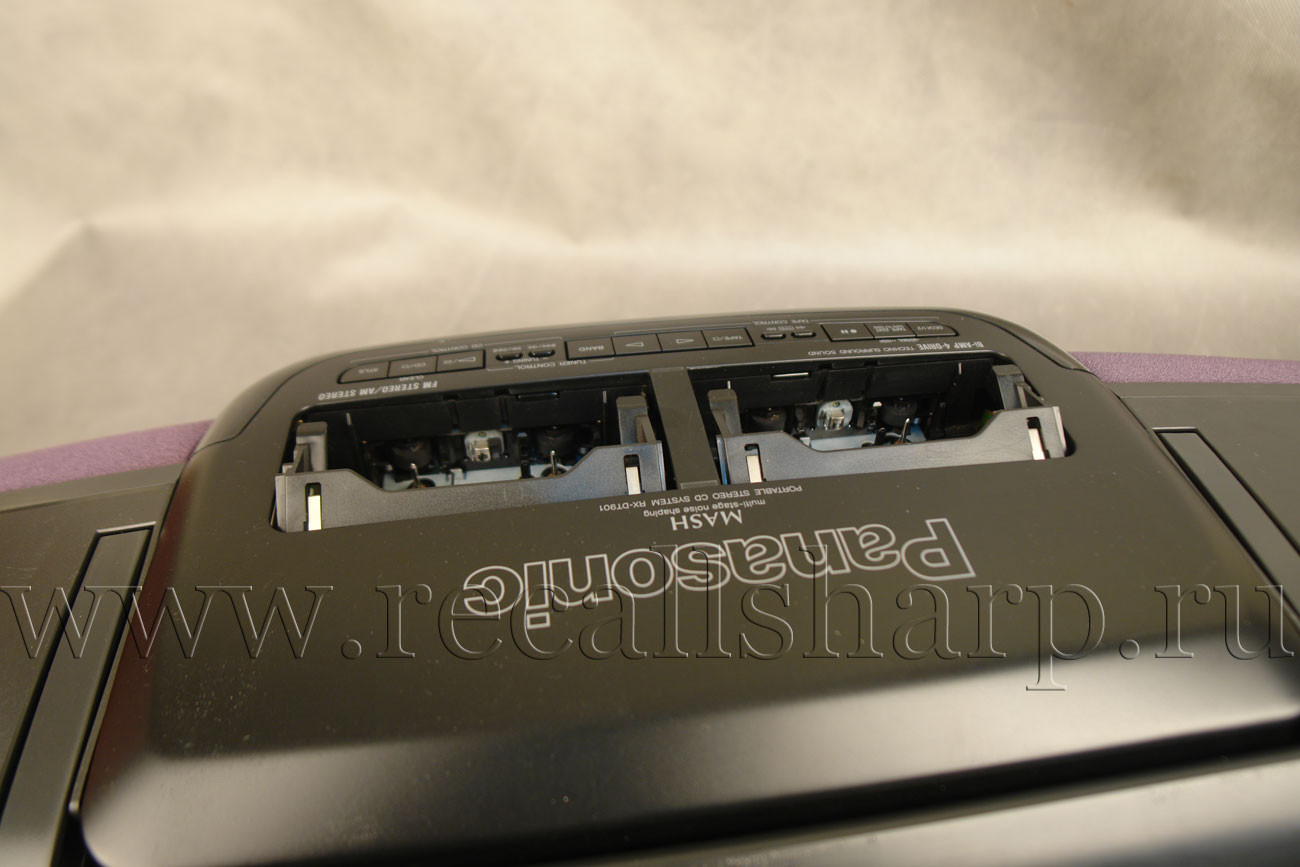

■ Tape recorder
Track system 4 track, 2 channel, stereo
Recording system AC bias
Erasing system AC erase
Monitor system Variable sound monitor
Frequency range
Normal 30-16000 Hz (with normal tape)
Cr02 30-17000 Hz
(with CrO2 tape)
Metal 30-18000 Hz
(with Metal tape)


■ General
Power requirement
AC
100 V, 50/60 Hz
Power consumption; 38W
Battery 15 V (Ten UM-1, R20/LR20 batteries)
Memory back-up for computer/clock
6 V (Four UM-3, R6/LR6 batteries)
Speakers
2 10 cm 2.7
Ω
2 67 cm 6
Ω

Power Output ; 7W+7W(3W+3W)....EIAJ
Jacks Input MIC; 2.5 mV (4.7 kΩ)
AUX; 200mV(47kΩ)
Output HEADPHONES; 32Ω
CD OUT; 1.0V(CD 0dB)
Dimensions (WXHXD) 710x187x271 mm
Weight 8.0 kg without batteries
