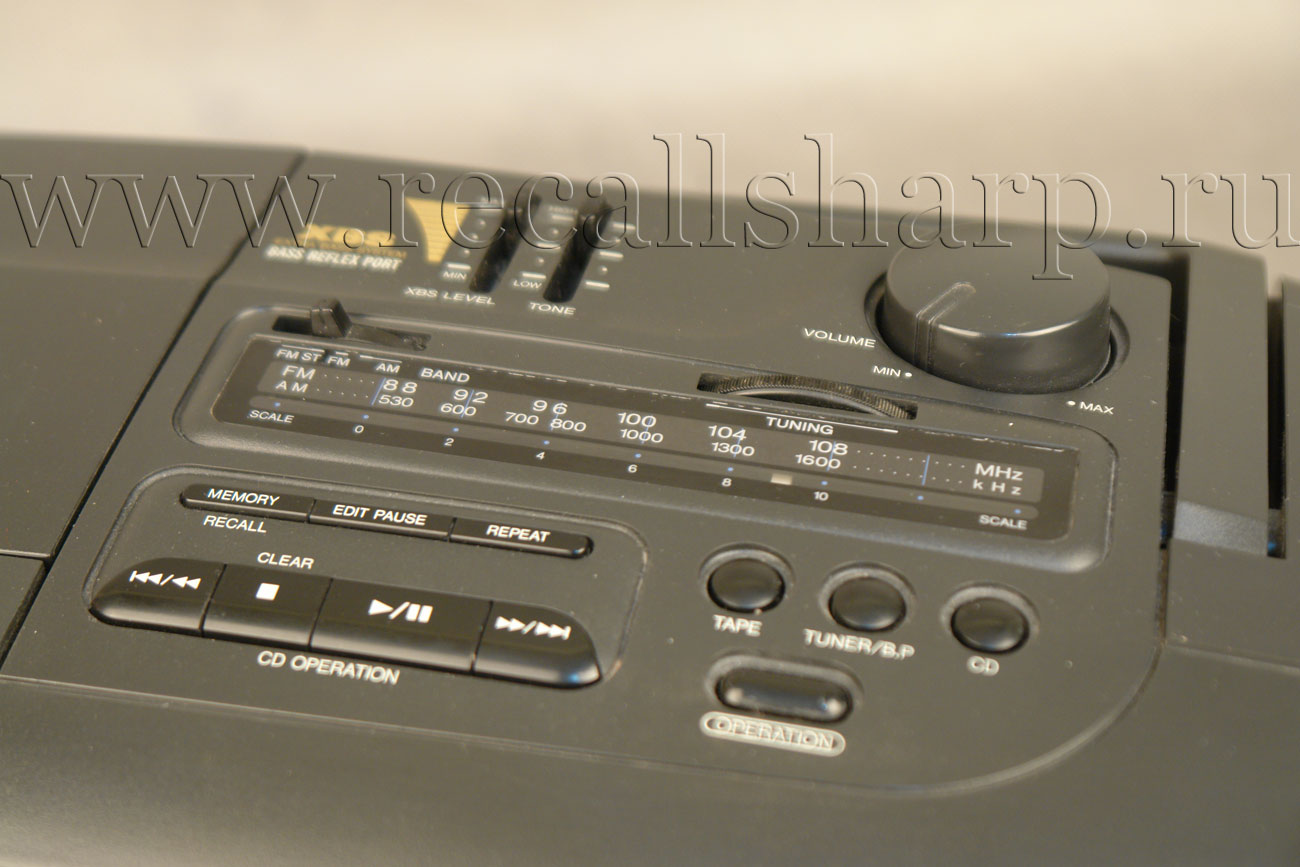

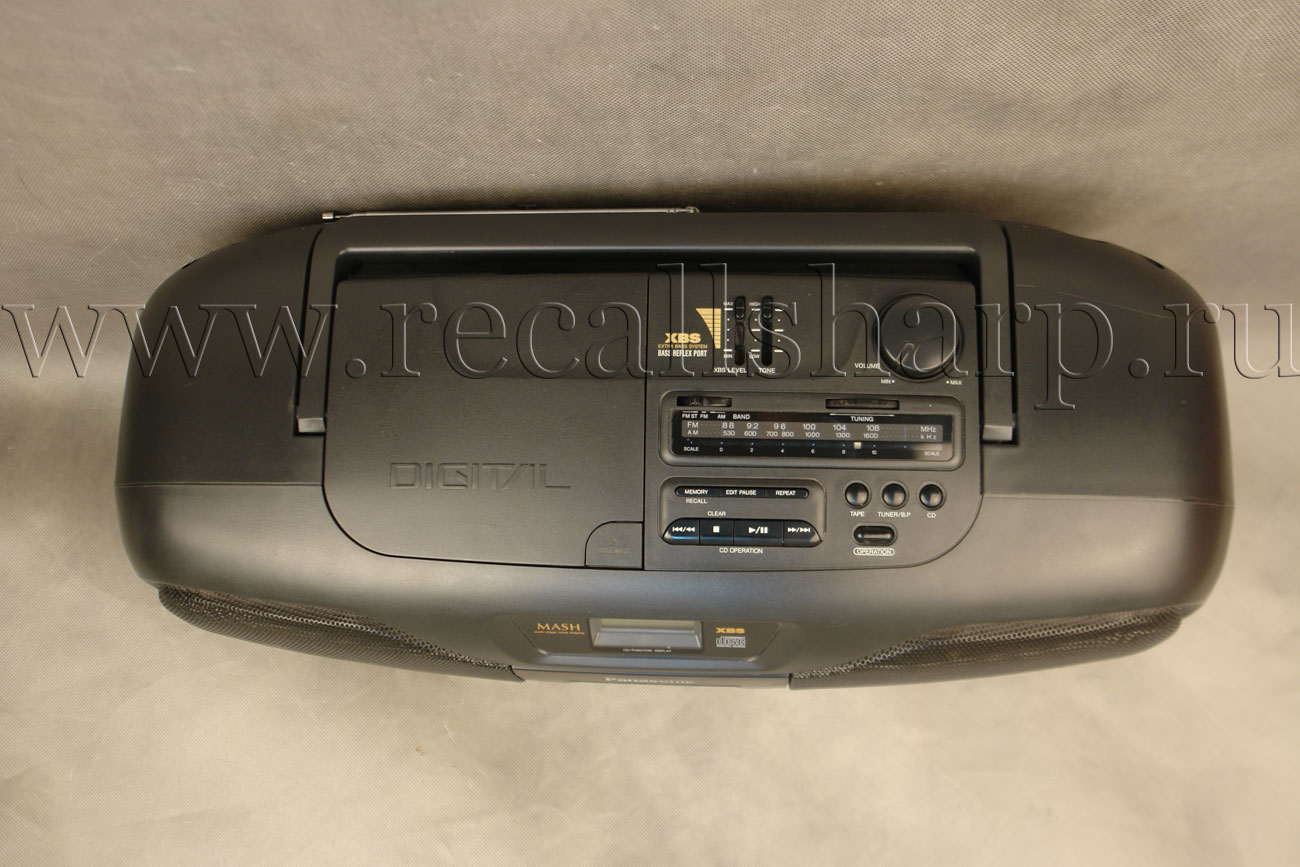

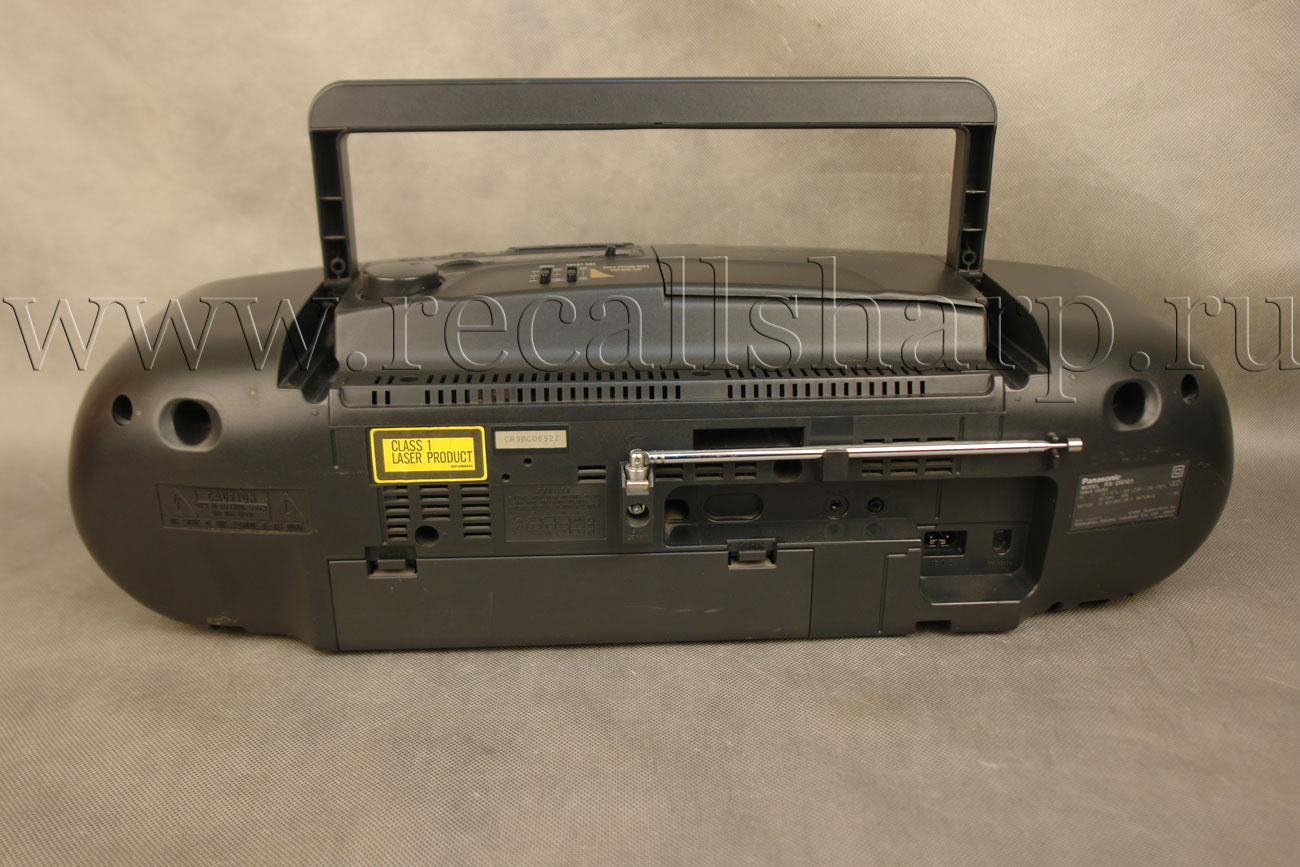

Panasonic RX-DS 101



: 1992


Radio Frequency range
FM 87.50-108.00 MHz

AM 530-1611 kHz


CD player
Sampling frequency 44.1kHz
Decoding 16 bit linear
Beam source Semiconductor laser (wavelength 780 nm)
No. of channels 2 channel, stereo
Frequency response 20 Hz-20 kHz
Dynamic range; 86dB
S/N 75dB
Wow and flutter Less than possible measurement data


Tape recorder
Track system 4 track, 2 channel, stereo
Recording system AC bias
Erasing system AC erase
Monitor system Variable sound monitor


Frequency range
Normal 40-14000 Hz


General
Power requirement
AC 110-127/200-220/230-250 V, 50/60 Hz,
Battery ; 15 V (Ten UM-1, R20/LR20 batteries)
DC in 15V
Power Consumption; 55 W (AC only)

Power Output ; 45W(22.5Wx2)....PMPO

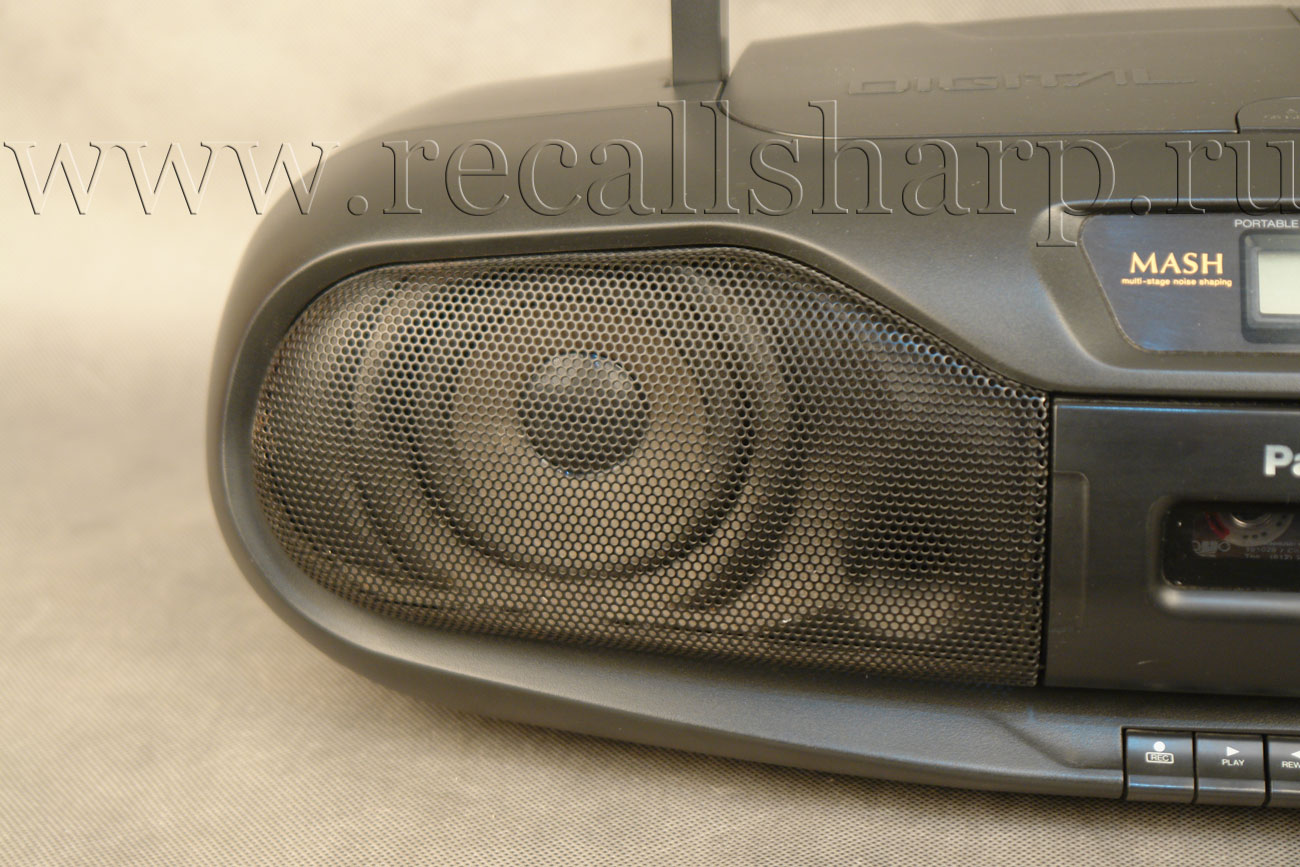

Speakers
Woofer 10 cm x2 (2.7
Ω)


Jacks Input Mix. MIC; 5 mV (200-600Ω)
Output HEADPHONES; 32Ω(3.5)

Dimensions (WXHXD) 610x184x266 mm
Weight 5.4 kg without batteries
