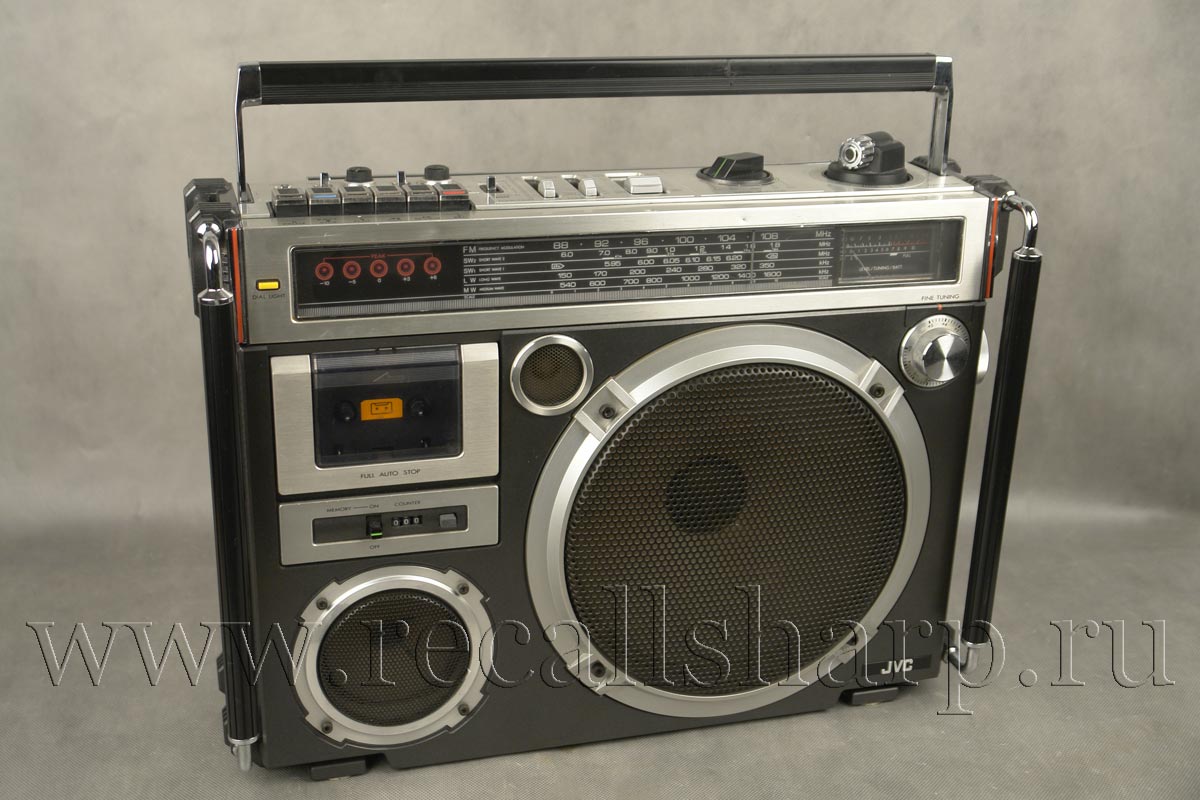

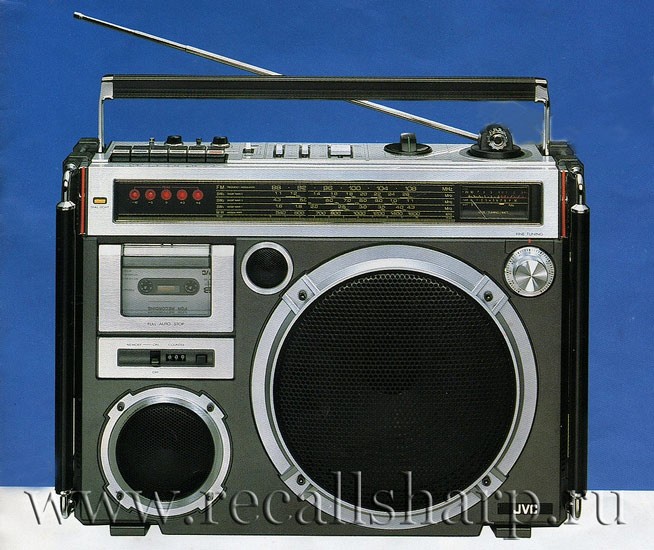

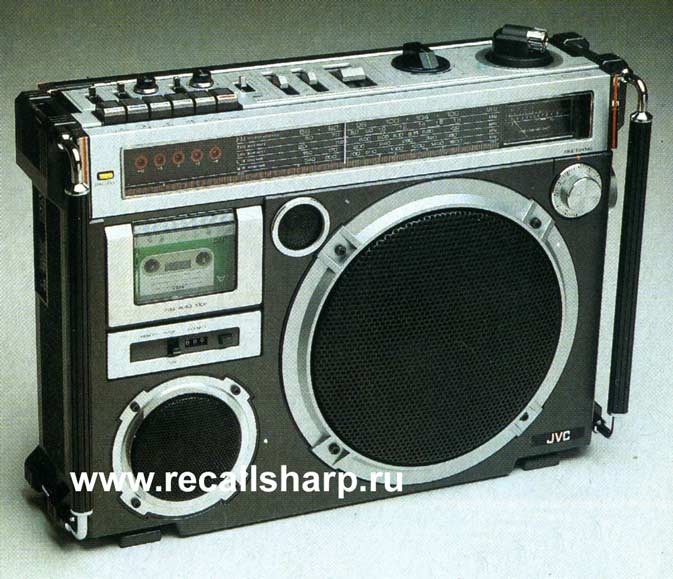

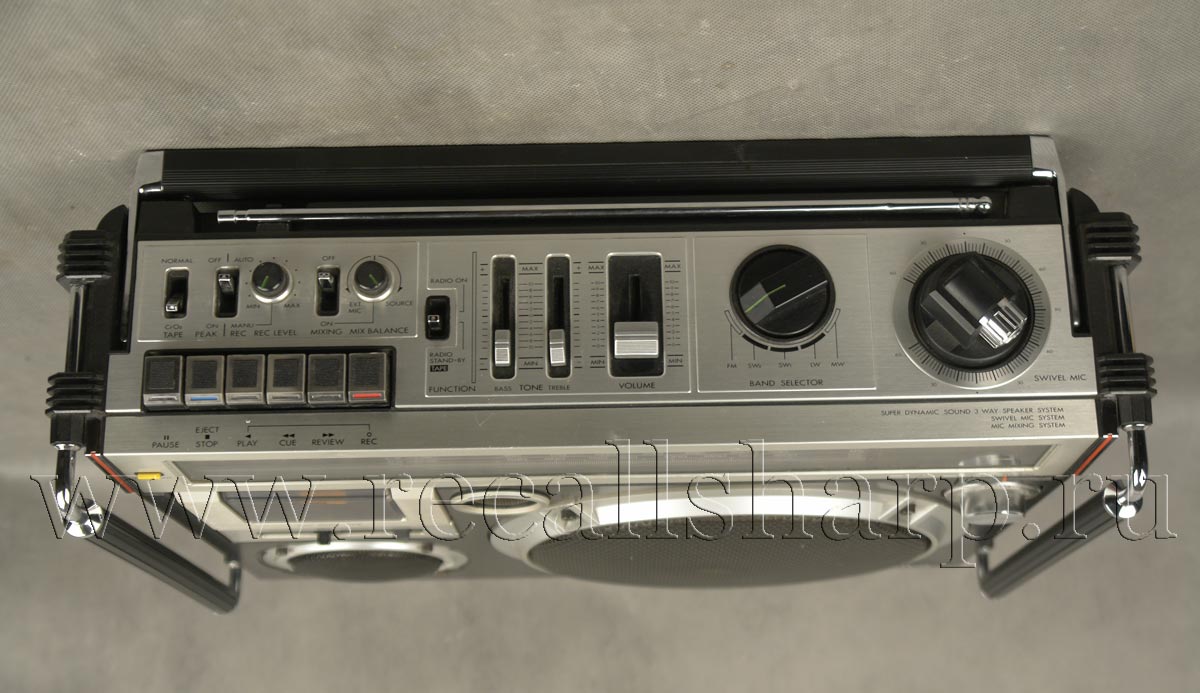

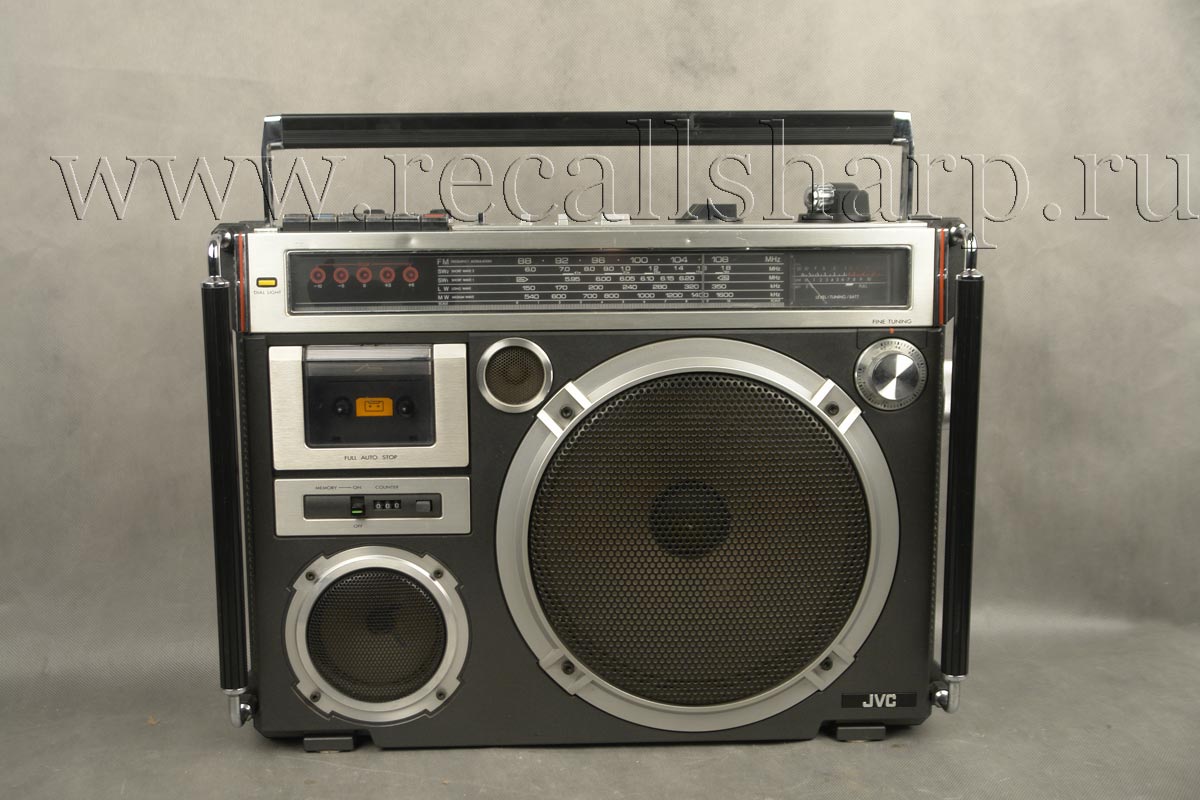

JVC RC-550 L



: 1978


SPECIFICATION
Semiconductors: 6 ICs, 22 transistors;Diodes 21

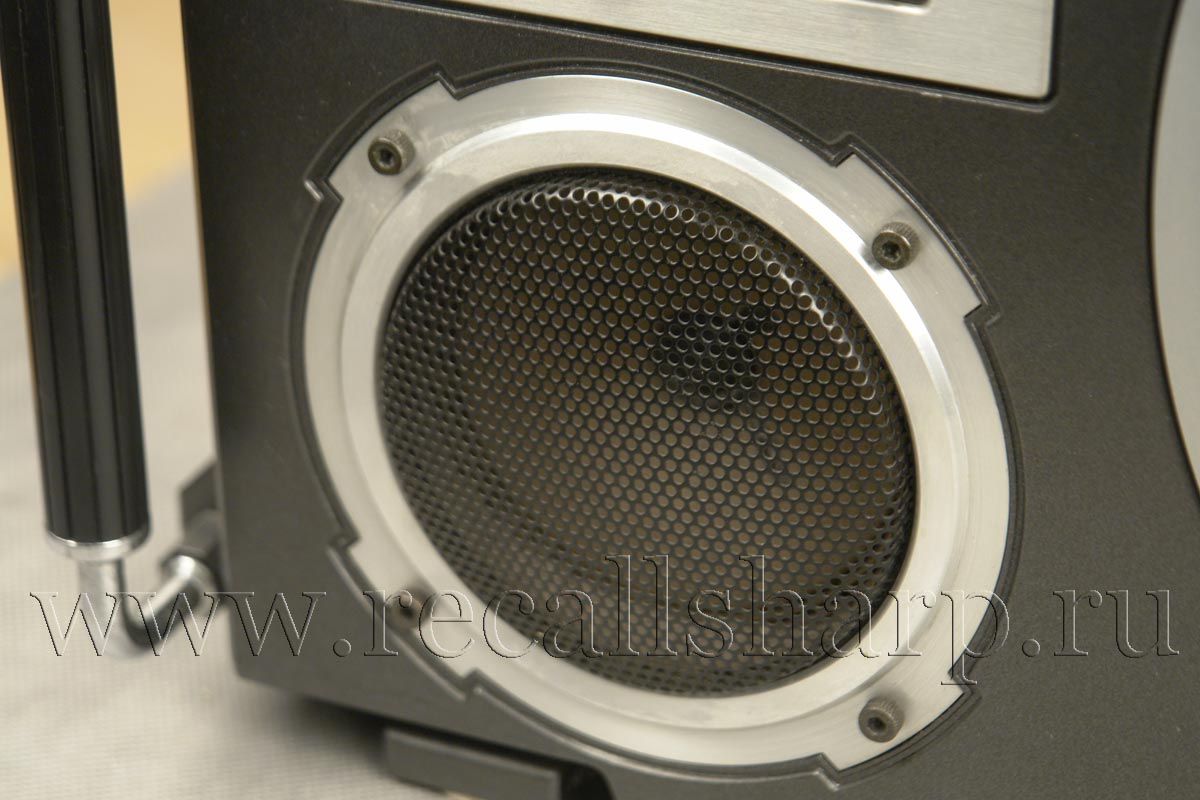

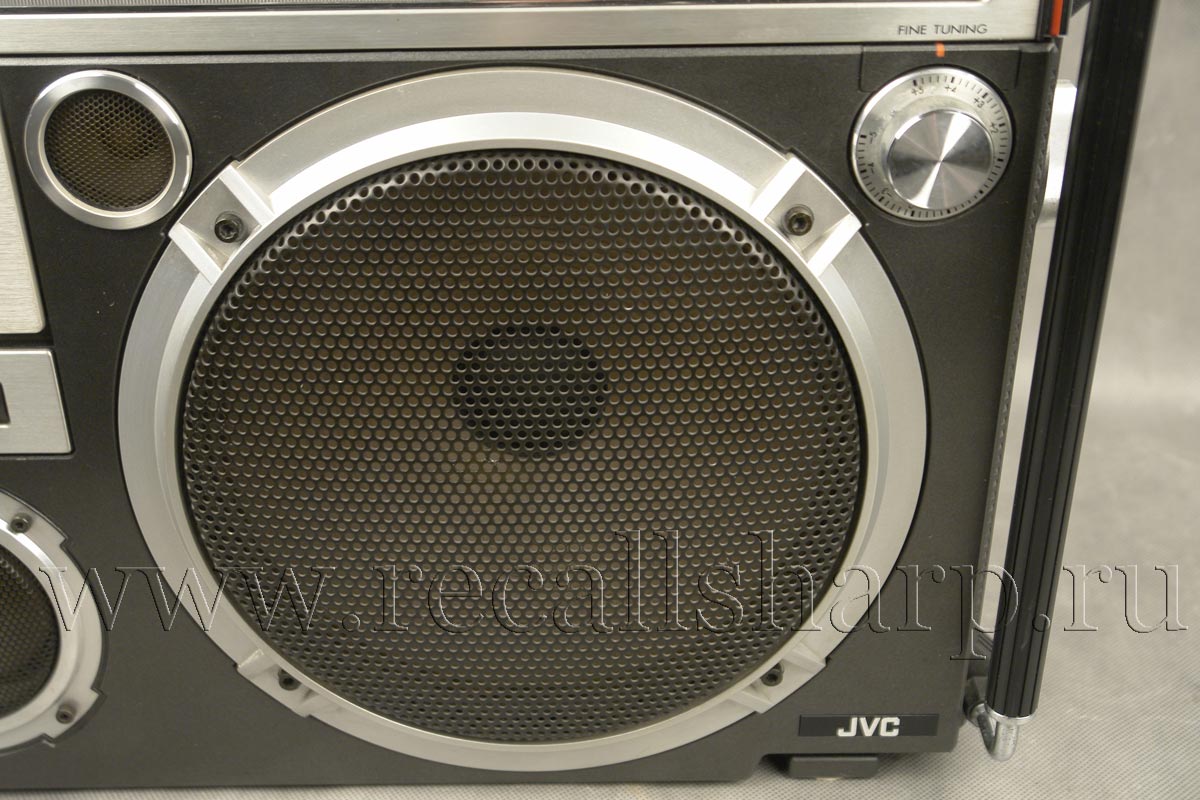

Speakers: Woofer 25cmx1,

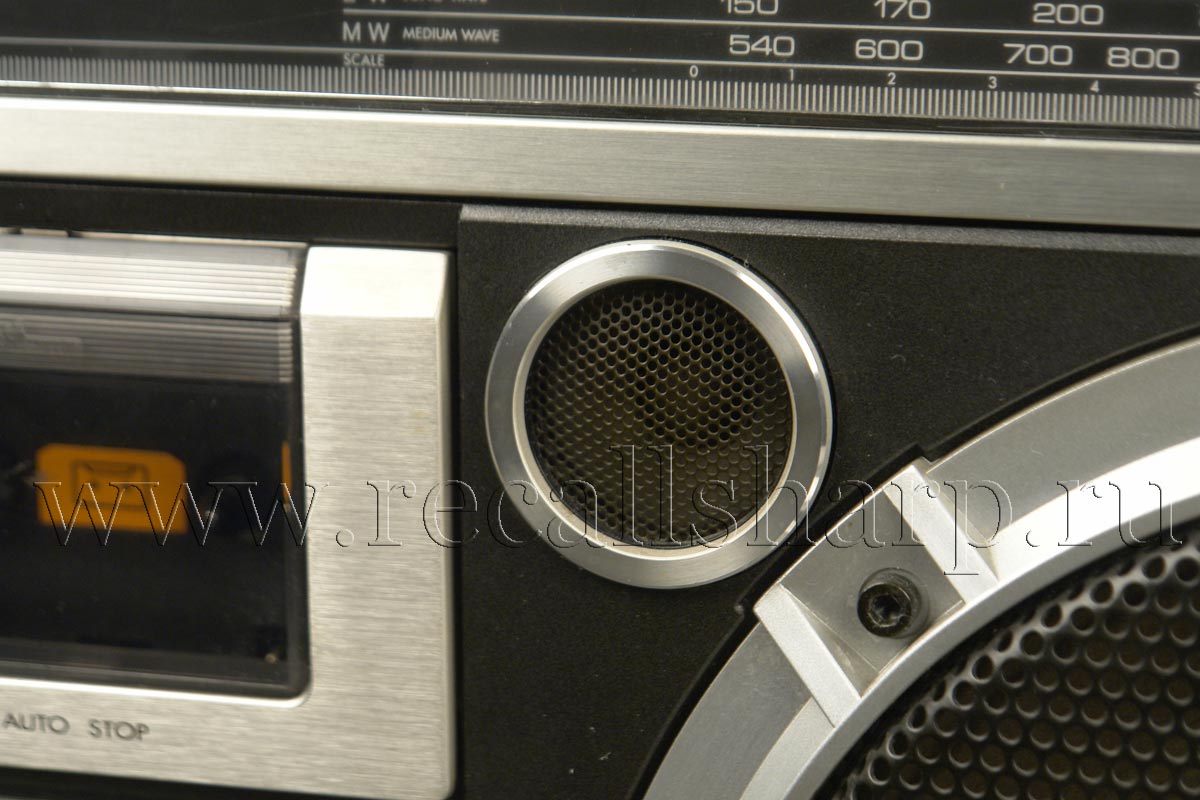

Mid-range 10cm x 1

Tweeter 5cm x1

TUNER SECTION
Frequency ranges:
FM 88-108Mhz,

LW 150-350kHz

MW 540-1600kHz ,

SW1 5.95-6.2MHz,

SW2 6-18.0MHz,


Antennas: Telescopic antennas for FM & SW

Ferrite core antenna for MW &LW

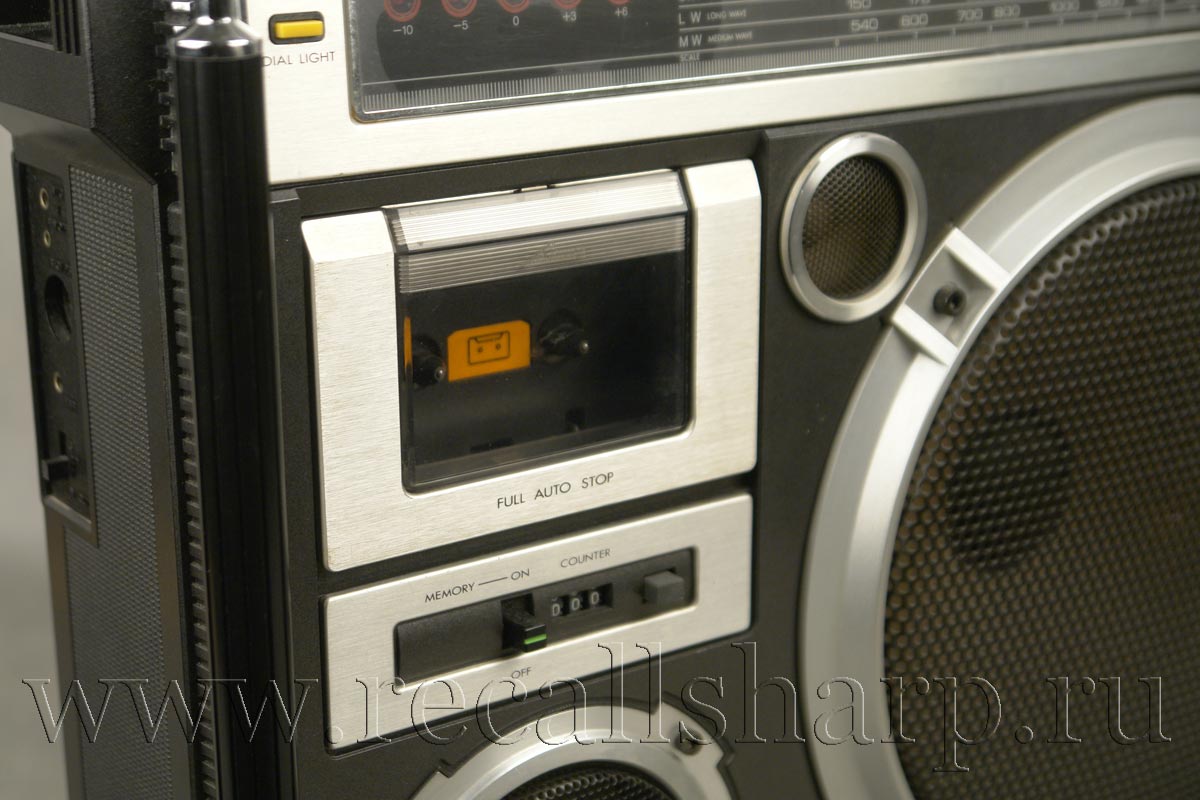

RECORDER SECTION
Track system: 2-Track monarual

Wow & flutter: 0.17% (WRMS)
S/N ratio: 52dB
Rewind time: Within 100 sec. (C-60 cassette)
Fast forward time: Within 100 sec. (C-60 cassette)

AMPLIFIER SECTION
Power output: Max. 14Watts 10 Watts at 10% THD
Input jacks:

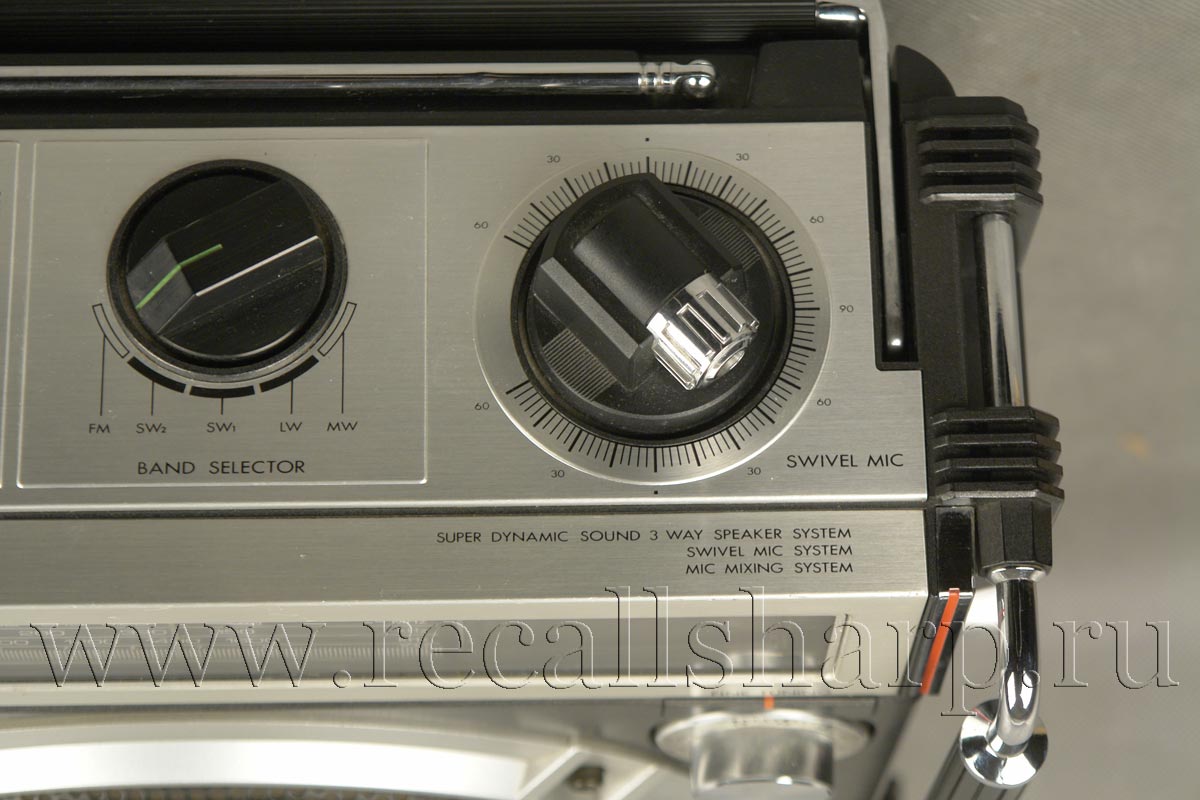

Mic x 1 (low impedace)


DC in x 1


Output jacks: DIN

Earphone (load impedance 8Ω)

Line out x 2 (300mV, impedance; less than 10kΩ)
Power supply: DC 12V (UM/SUM-1 "D" size 8 "R20" cells)

Car battery through a car battery adapter AC

240/220/110 V, 50/60 Hz 25W

Dimensions: 49.8(W)x35.6(H)x15.6(D)cm

Weight: 7.8kg with batteries


:
JVC RC-550 W
Victor RC-550
