JVC 1927 . : ,

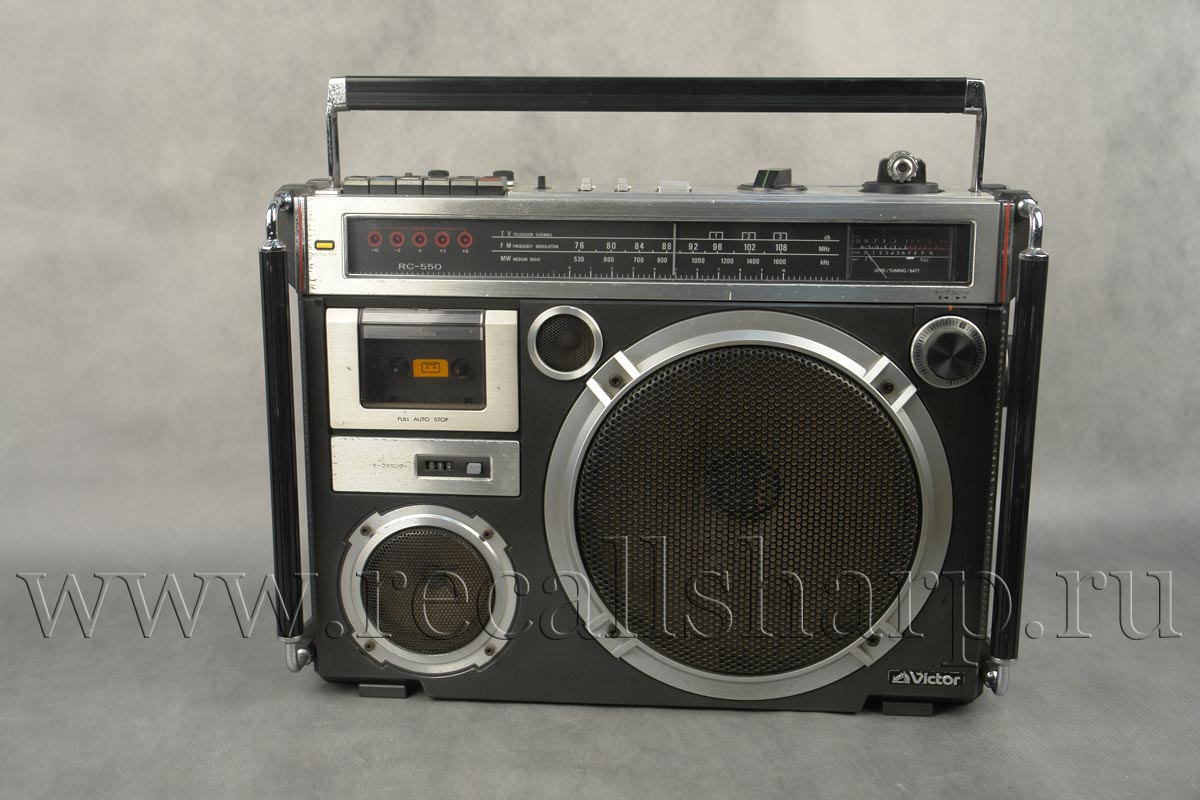

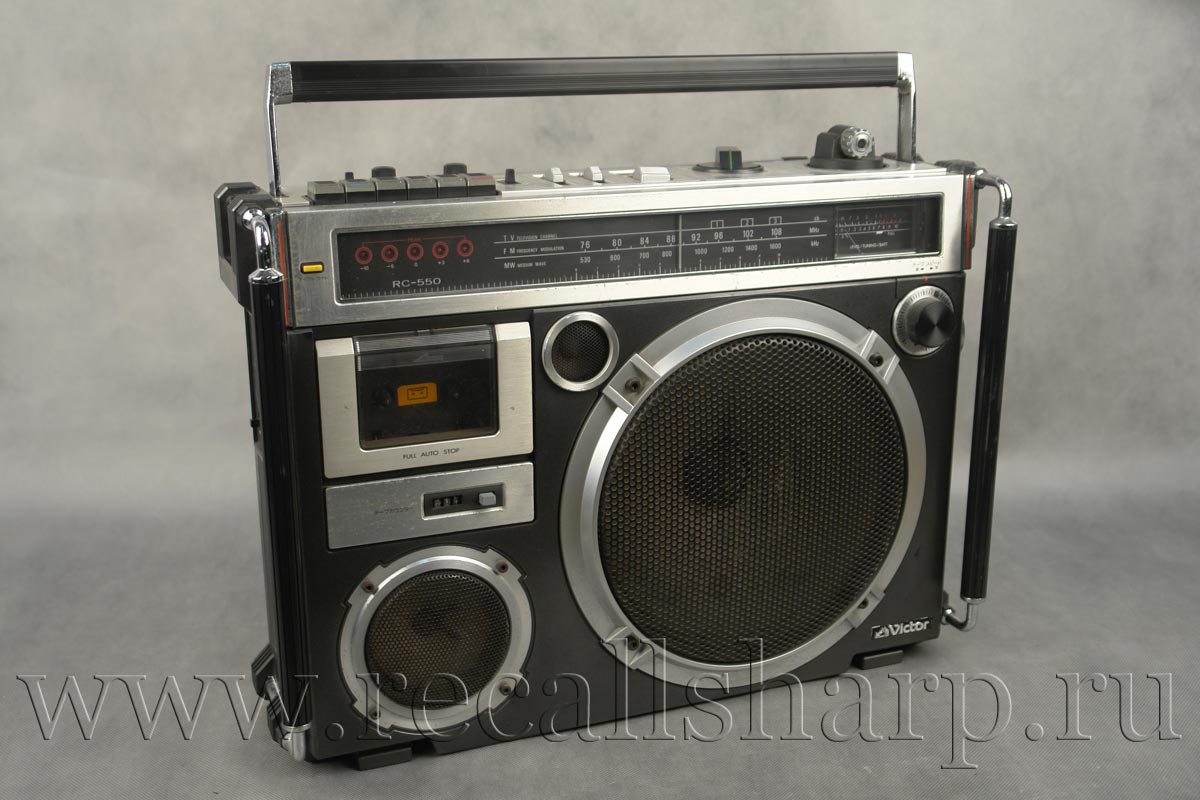

Victor RC-550



: 1978


SPECIFICATION
Semiconductors: 6 ICs, 20 transistors;Diodes 21
Speakers: Woofer 25cmx1,

Mid-range 10cm x 1

Tweeter 5cm x1

TUNER SECTION

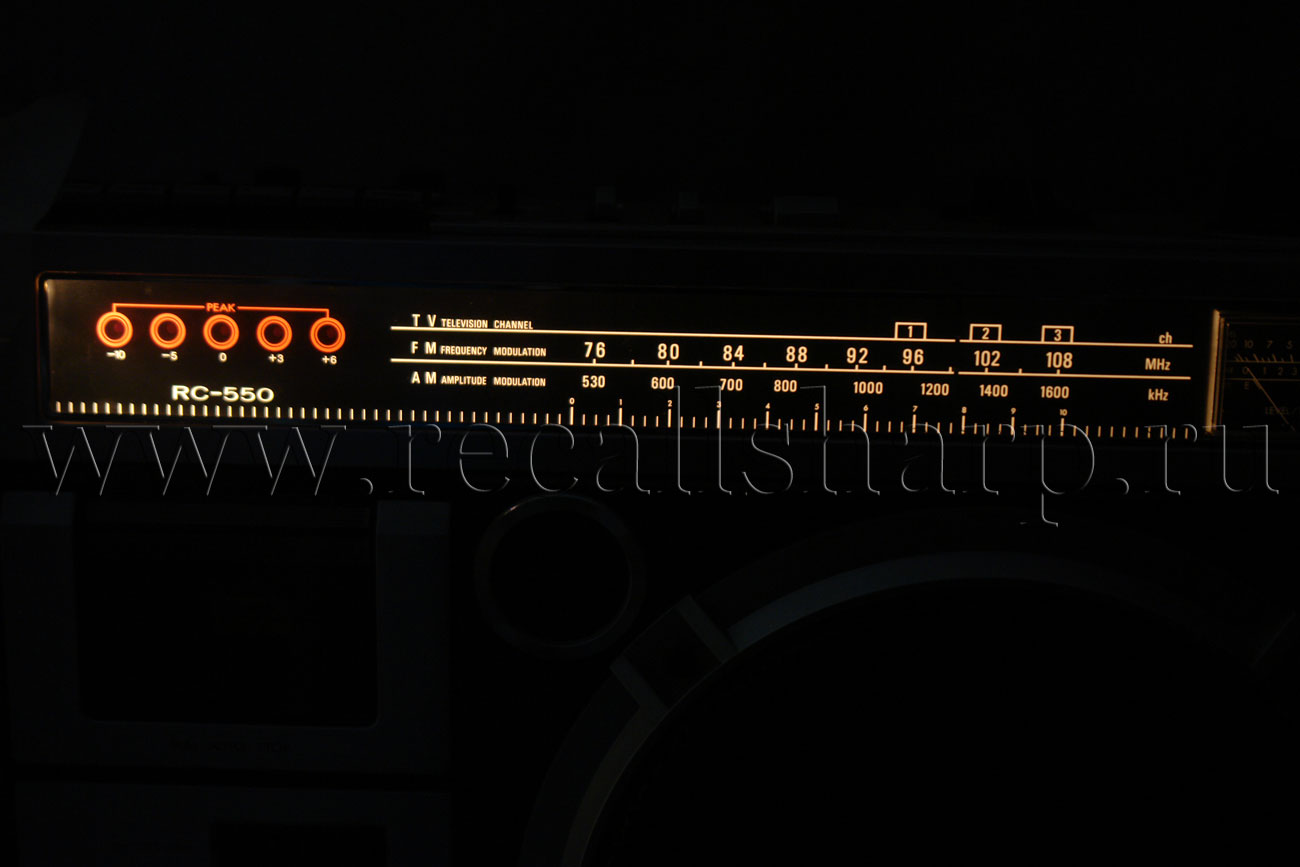

Frequency ranges:
FM 76-108Mhz,

AM 530-1600kHz

TV 1-3ch

Antennas: Telescopic antennas for FM

Ferrite core antenna for MW

RECORDER SECTION
Track system: 2-Track monarual

Wow & flutter: 0.17% (WRMS)
S/N ratio: 52dB
Rewind time: Within 100 sec. (C-60 cassette)
Fast forward time: Within 100 sec. (C-60 cassette)

AMPLIFIER SECTION
Power output: Max. 14Watts 10 Watts at 10% THD
Input jacks:
Mic x 1 (low impedace)


DC in x 1


Output jacks: DIN

Earphone (load impedance 8Ω)

Line out x 2 (300mV, impedance; less than 10kΩ)
Power supply: DC 12V (UM/SUM-1 "D" size 8 "R20" cells)

Car battery through a car battery adapter AC

100 V, 50/60 Hz 12W

Dimensions: 49.8(W)x35.6(H)x15.6(D)cm

Weight: 7.8kg with batteries


:
JVC RC-550 L
JVC RC-550 W
