Год начала выпуска: 1977
Регион: Европа
SPECIFICATIONS
Semiconductors : 6 ICs, 32 transistors
Speakers : 16cm (6-1/2") x 2,
5cm (2") x 2

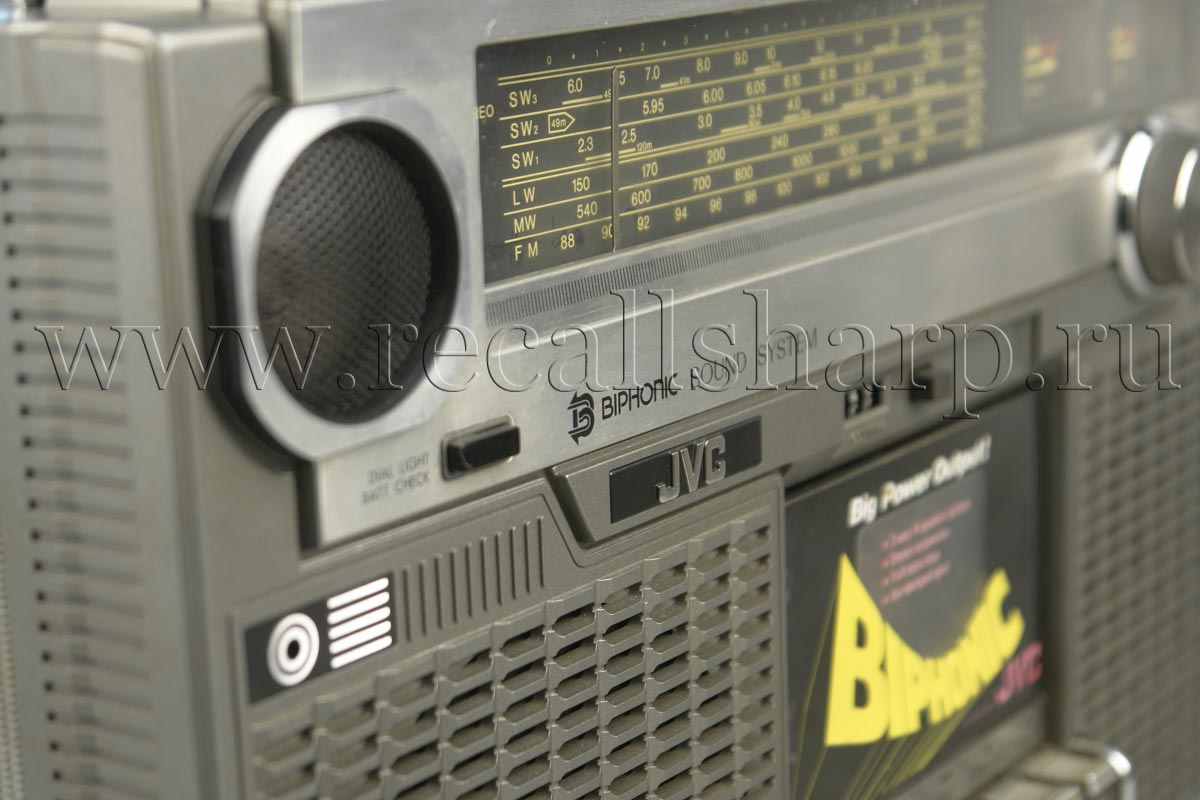

Tuner section
Frequency ranges :
FM 88-108MHz
SW1 2.3 - 6MHz
SW2 5.95-6.2MHz
SW3 6-18MHz
MW 540-1600kHz
LW 150-350kHz
Antennas : Telescopic antennas for SW
& FM
Ferrite core antenna for MW & LW

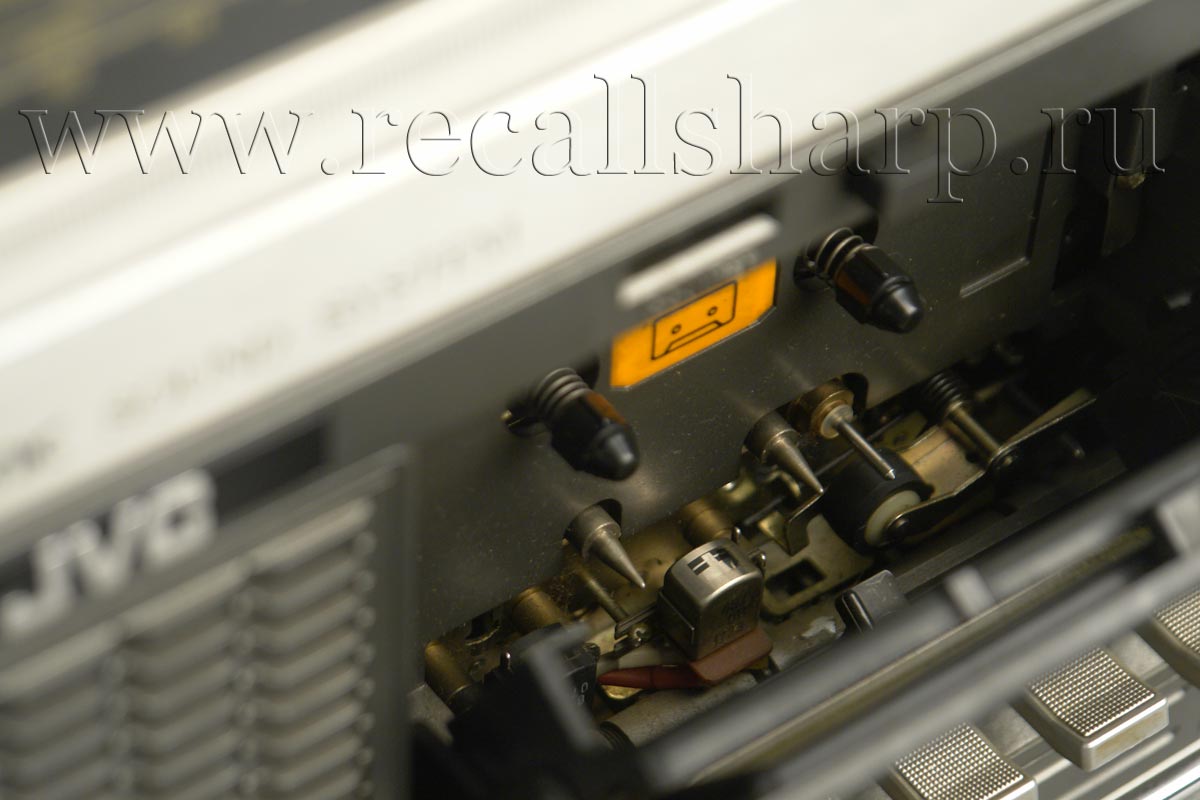

Tape recorder section
Track system : 4-Track 2-channel stereo
Frequency response :
40-13,000Hz (with chrome tape)
50-11,000Hz (with normal tape)
Wow & flutter : 0.09% (WRMS)
S/N ratio : 50dB
Rewind time : Within 110 sec. (C-60 cassette)
Fast forward time : Within 110 sec. (C-60 cassette)
Amplifier section
Power output : 6W (3W + 3W) (DC) at 10%THD Max. 8W (4W + 4W) (DC)
Input jacks : Mic x 2 (low impedance)
Output jacks : Ext. speaker x 2 (load impedance
dance 6 Omhs) Headphones (load impedance 8 Ohms)
Input/output jack : DIN jack
Power supply : DC 12V (8 "R20"(=U2) batteries)
Car battery through a car battery adapter AC 240/220/110V, 50/60Hz
Power consumption : 19W
Dimensions : 470(W) x 273(H) x 127(D)mm
(18-1/2" x 10-3/4" x 5")
Weight : Approx. 6.4kg (14.1 lbs.)
(with batteries)
|
