JVC 1927 . : ,

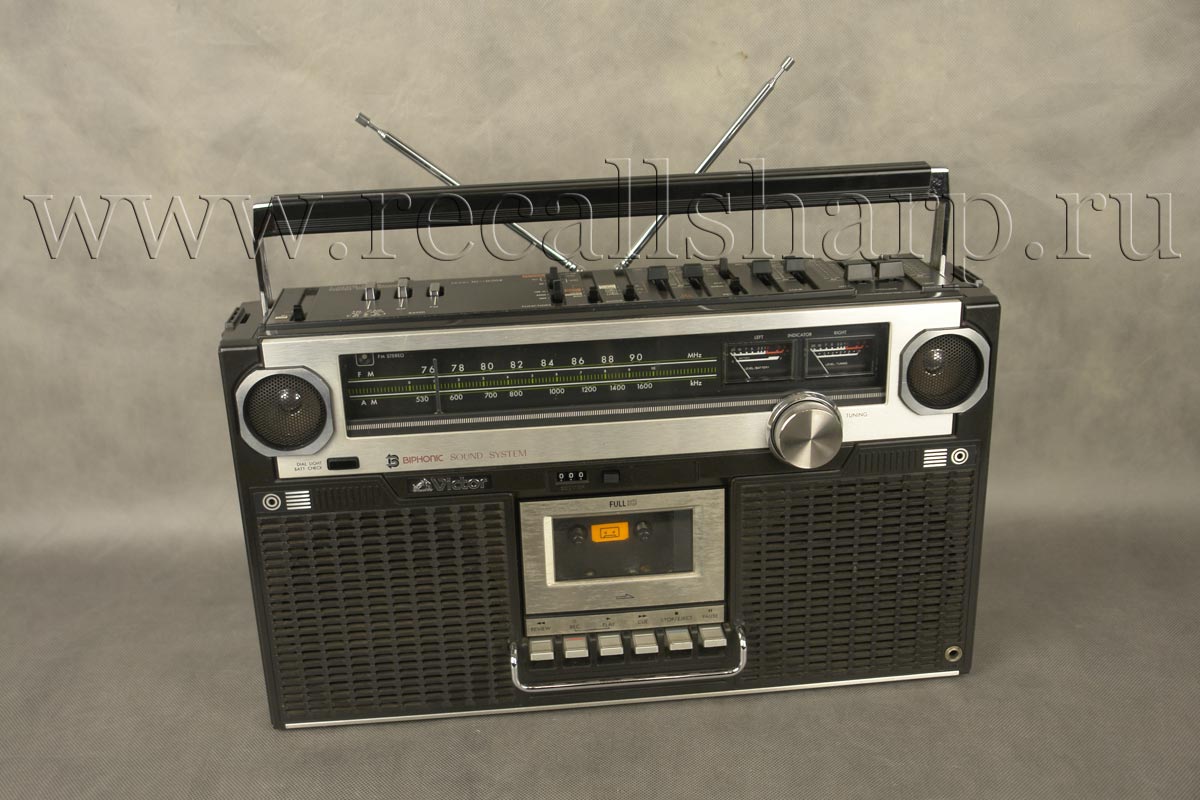

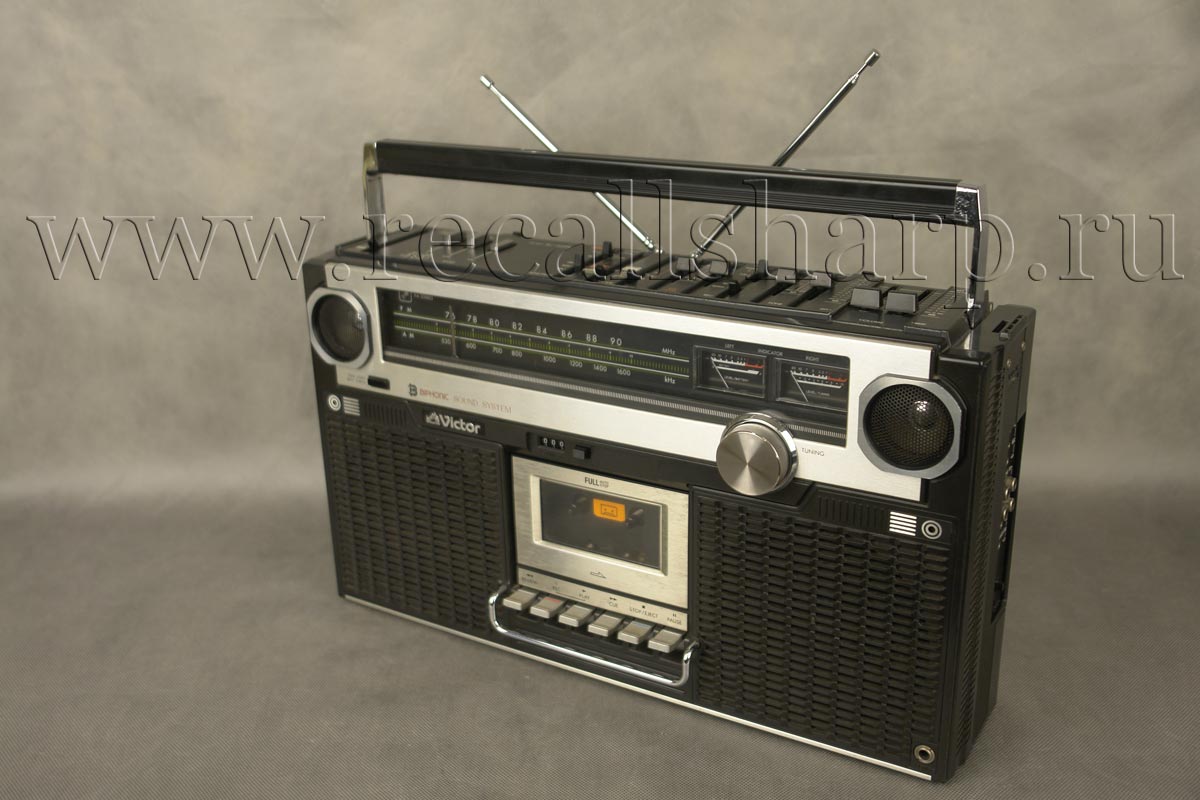

Victor RC-828 mark II



: 1979


SPECIFICATIONS

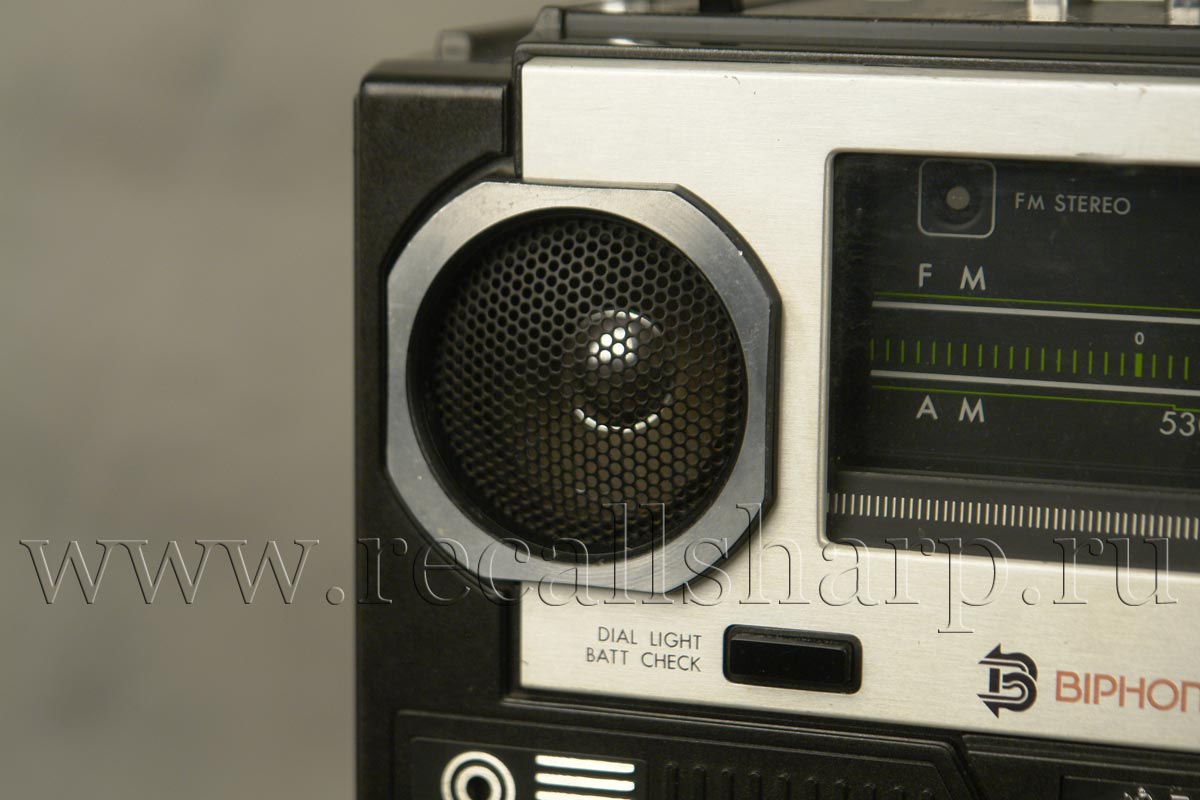

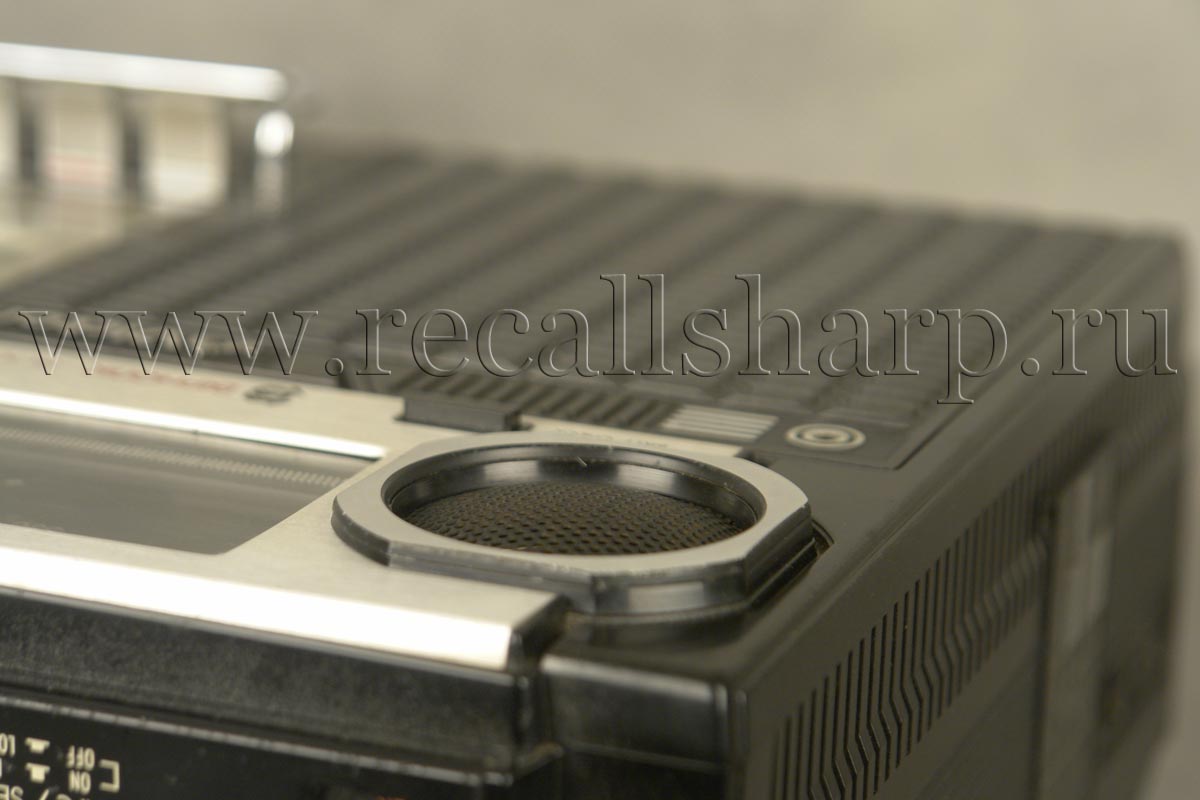

Speakers : 16cm (6-1/2") x 2,

5cm (2") x 2

Tuner section

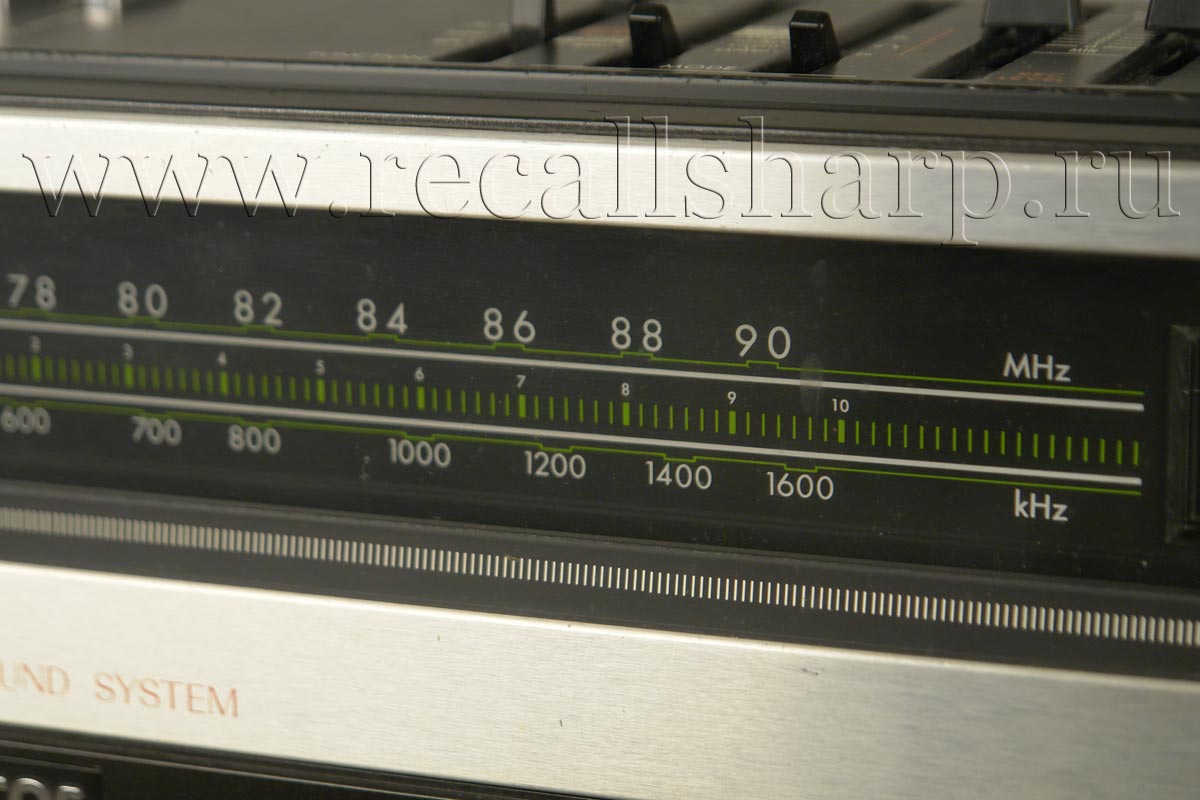

Frequency ranges : FM 76-90MHz

AM 530-1600kHz

Antennas : Telescopic antennas forFM

Ferrite core antenna for AM

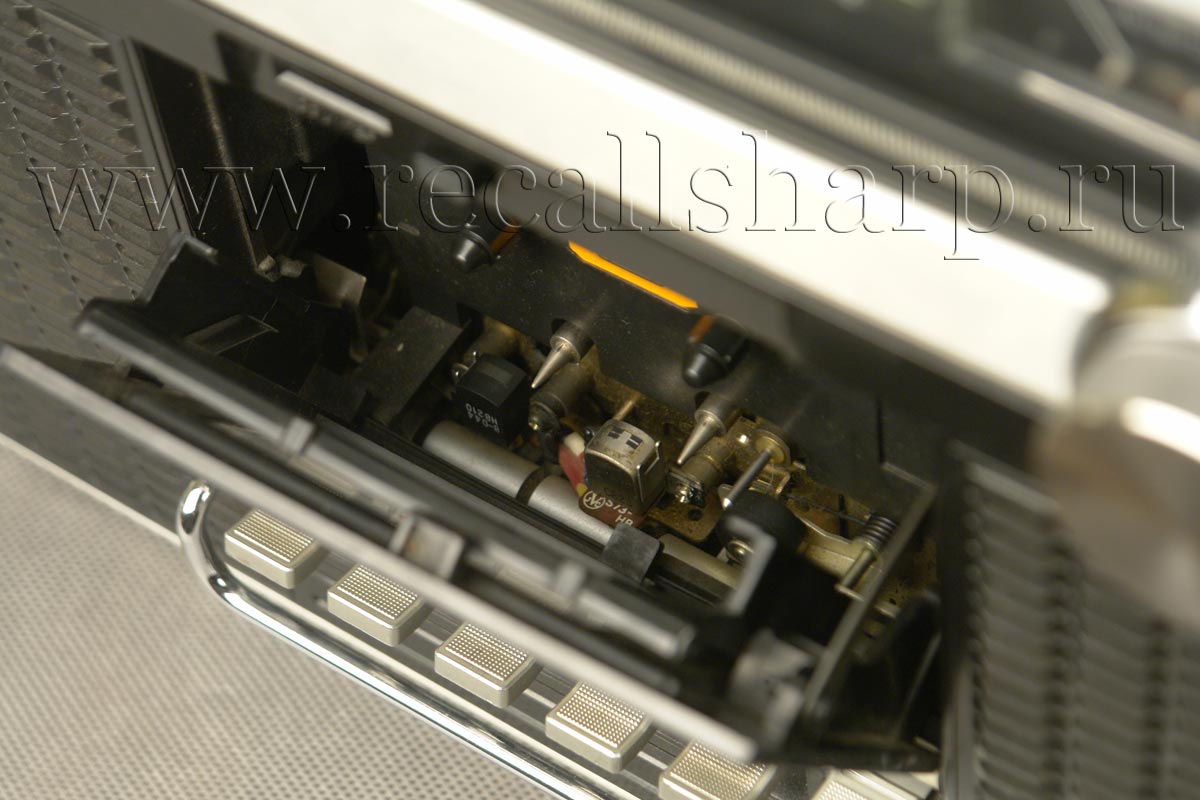

Tape recorder section

Track system : 4-Track 2-channel stereo

Frequency response : 40-13,000Hz (with chrome tape)

50-11,000Hz (with normal tape)

Wow & flutter : 0.09% (WRMS)

S/N ratio : 50dB

Rewind time : Within 110 sec. (C-60 cassette)

Fast forward time : Within 110 sec. (C-60 cassette)

Amplifier section

Power output : 2.3W per channel (FTC)

Input jacks : Mic x 2 (low impedance) Line IN x 2(input level 130 mV min, impedance; more than 100kΩ) DC in x1

Output jacks : Ext. speaker x 2 (load impedance4 Omhs)

Headphones (load impedance 8 Ohms)

Line out x 2 ( 300mV impedance ; less than 10kΩ)

Power supply : DC 12V (8 "D"cells)

Car battery through a car battery adapter

AC 100V, 50/60Hz )

Power consumption : 14W

Dimensions : 470(W) x 273(H) x 127(D)mm

(18-1/2" x 10-3/4" x 5")

Weight : Approx. 6.4kg (14.1 lbs.)

(with cells)


:
