Год начала выпуска: 1978
Регион: Великобритания

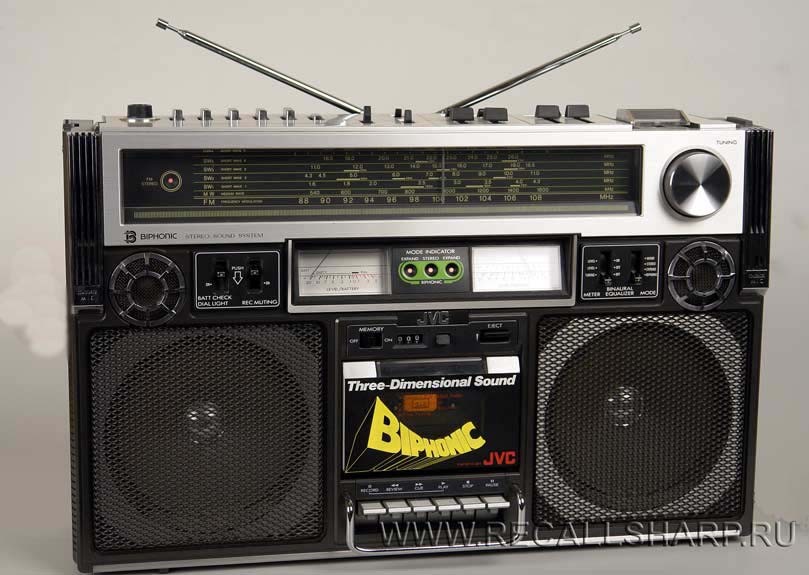

SPECIFICATION (JVC RC- 838)
Semiconductors: 11 ICs, 30 transistors;
Speakers: 16cm x 2, 5cm x 2
TUNER SECTION
Frequency ranges:
FM 88-108Mhz,
MW 540-1600kHz ,
SW1 1.6-4.3MHz,
SW2 4.3-11.0MHz,
SW3 11.0-18.5MHz
SW4 18.5-26.0MHz
Antennas: Telescopic antennas for FM & SW2-SW4 Ferrite core antenna for MW &SW1
TAPE RECORDER SECTION
Track system: 4-Track 2-channel stereo
Frequency response:
40-13,000Hz (with chrome tape)
40-12,000Hz (with normal tape)
Wow & flutter: 0.07% (WRMS)
S/N ratio: 50dB
Rewind time: Within 110 sec. (C-60 cassette)
Fast forward time: Within 110 sec. (C-60 cassette)
AMPLIFIER SECTION
Power output: Max. 10W (5W +5W)
Input jacks:
Mic x 2 (low impedace)
Line in x2 (input level 100mV min., impedance;
47kΩ)
DC in x 1 Phono in x 2 (input level 3mV min., impedance; 47kΩ)
Output jacks: Ext. speaker x 2 (load impedance 3.2Ω)
Headphones (load impedance 8Ω)
Line out x 2 (300mV, impedance; less than 10kΩ)
Power supply: DC 12V (8 "R20" cells) Car battery through a car battery adapter AC 240/220/110 V, 50/60 Hz (RC-838W) 240 V, 50/60 Hz (RC-838WH)
Dimensions: 508(W)x316(H)x159(D)mm
Weight: 8.1kg with batteries
|
