Год начала выпуска: 1978
Регион: Америка
SPECIFICATIONS
Semiconductors : 11 ICs, 30 transistors
Speakers : 16cm (6-1/2") x 2, 5cm (2") x 2
Tuner section
Frequency ranges :
FM 88-108MHz
MW 540-1600kHz
SW1 1.6-4.3MHz
SW2 4.3-11.0MHz
SW3 11.0-18.5MHz
SW4 18.5-26.0MHz
Antennas : Telescopic antennas for FM & SW2-SW4
Ferrite core antenna for MW &SW1
Tape recorder section
Track system : 4-Track 2-channel stereo
Frequency response :
40—13,000Hz (with chrome tape)
45-12,000Hz (with normal tape)
Wow & flutter : 0.07% (WRMS)
S/N ratio : 50dB
Rewind time : Within 110 sec. (C-60 cassette) Fast forward time : Within 110 sec. (C-60 cassette)
Amplifier section
Power output : 2.4W per channel (FTC)

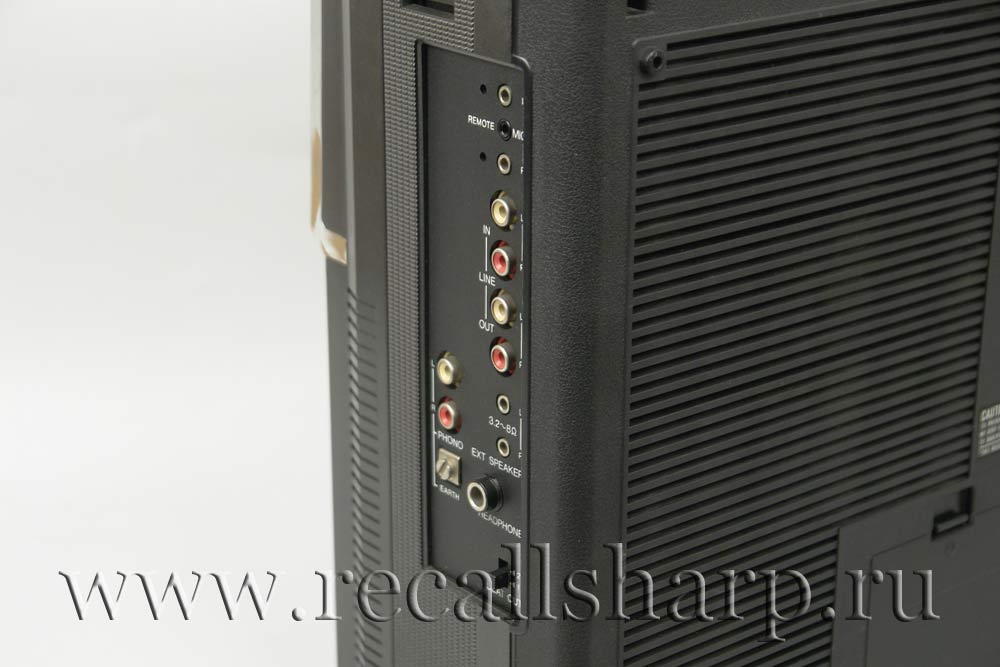

Input jacks : Mic x 2 (low impedance) Line in x 2 (input level 100mV min., impedance; 47kΩ
DC in x 1 Phono in x 2 (input level 3mV min., impedance; 47kΩ)
Output jacks : Ext. speaker x 2 (load impedance 3.2Ω)
Headphones (load impedance 8Ω)
Line out x 2 (300mV, impedance; less than 10kΩ)
Power supply : DC 12V (8 "D" cells)
Car battery through a car battery adapter AC 240/220/120V, 50/60Hz (RC-838JW) 120V, 60Hz (RC-838C)
Power consumption : 19W
Dimensions : 508(W) x316(H) x 159(D)mm
(20" x 12-1/2" x 6-1/4") Weight : 7.5 kg (16.5 Ibs)(without cells)
8.1 kg (17.8 lbs.)(with cells)
Design and specifications subject to change without notice.
|
|
|
|
| |
|
