Год начала выпуска: 1978
Регион: Япония
SPECIFICATION

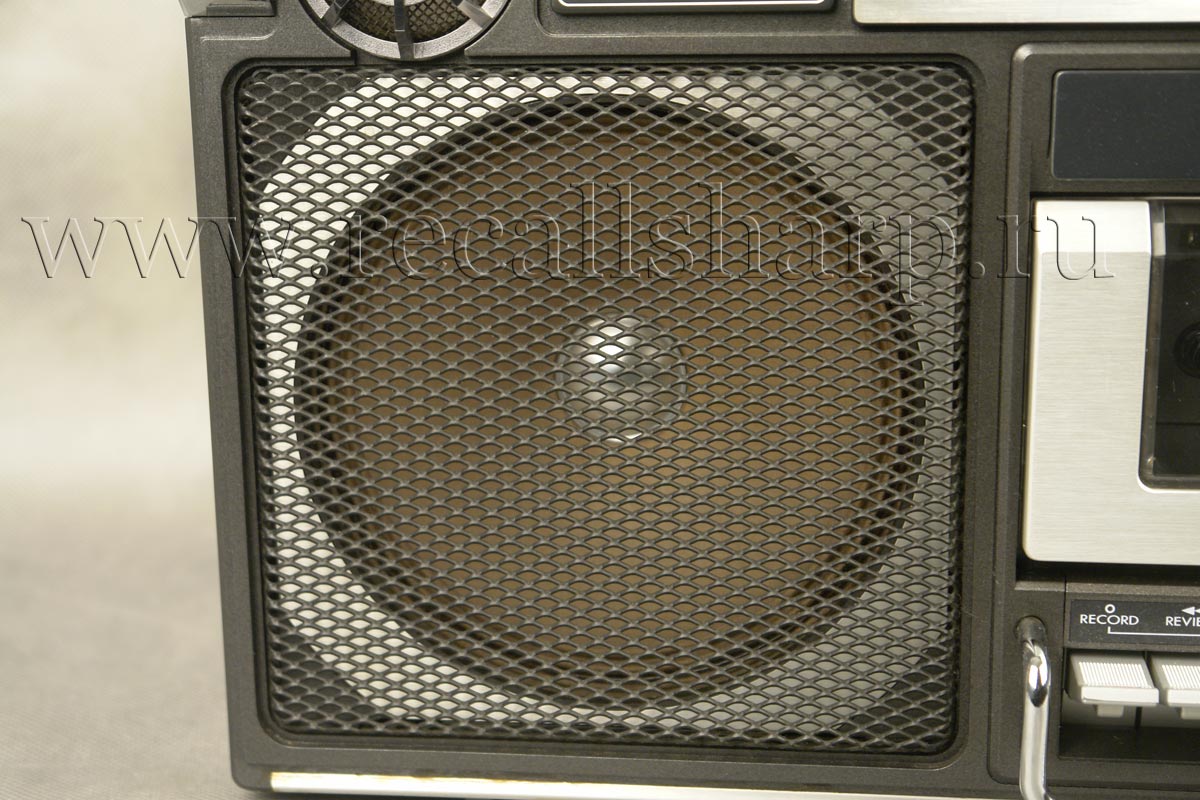

Speakers: 16cm x 2,
5cm x 2

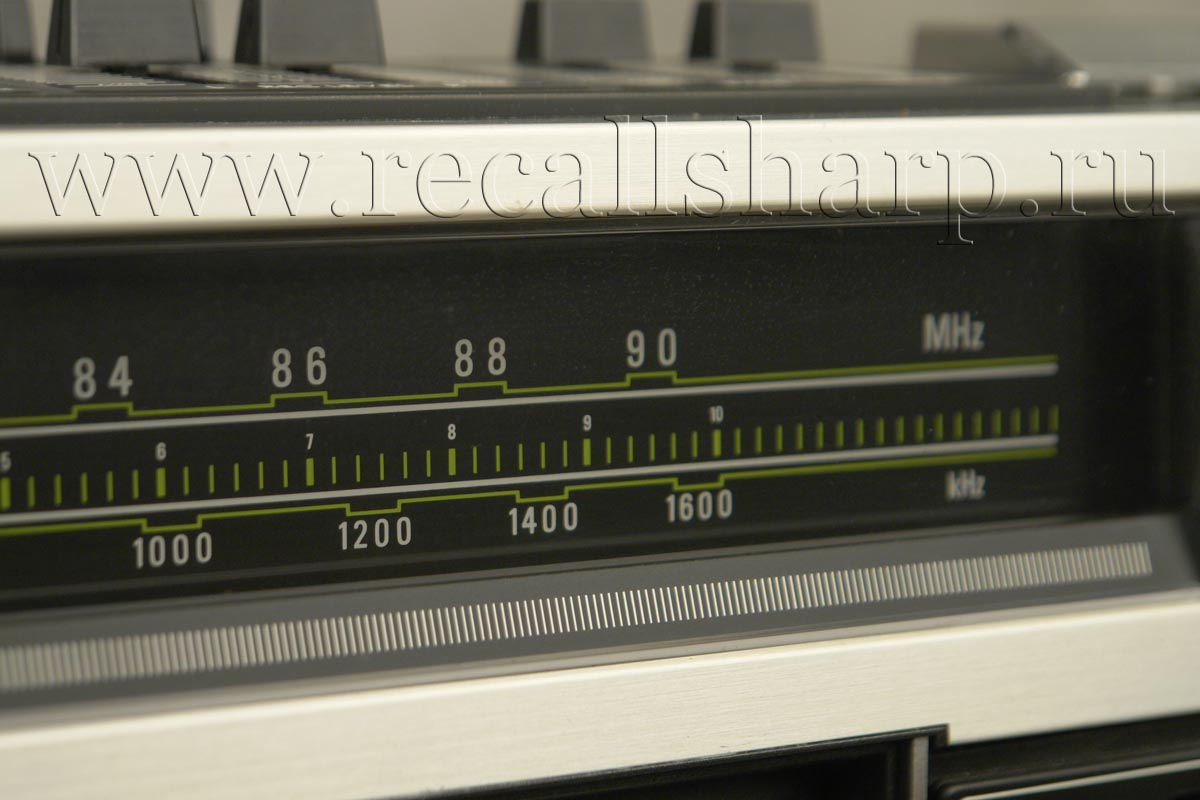

TUNER SECTION
Frequency ranges: FM 76-90Mhz,
AM 530-1600kHz ,

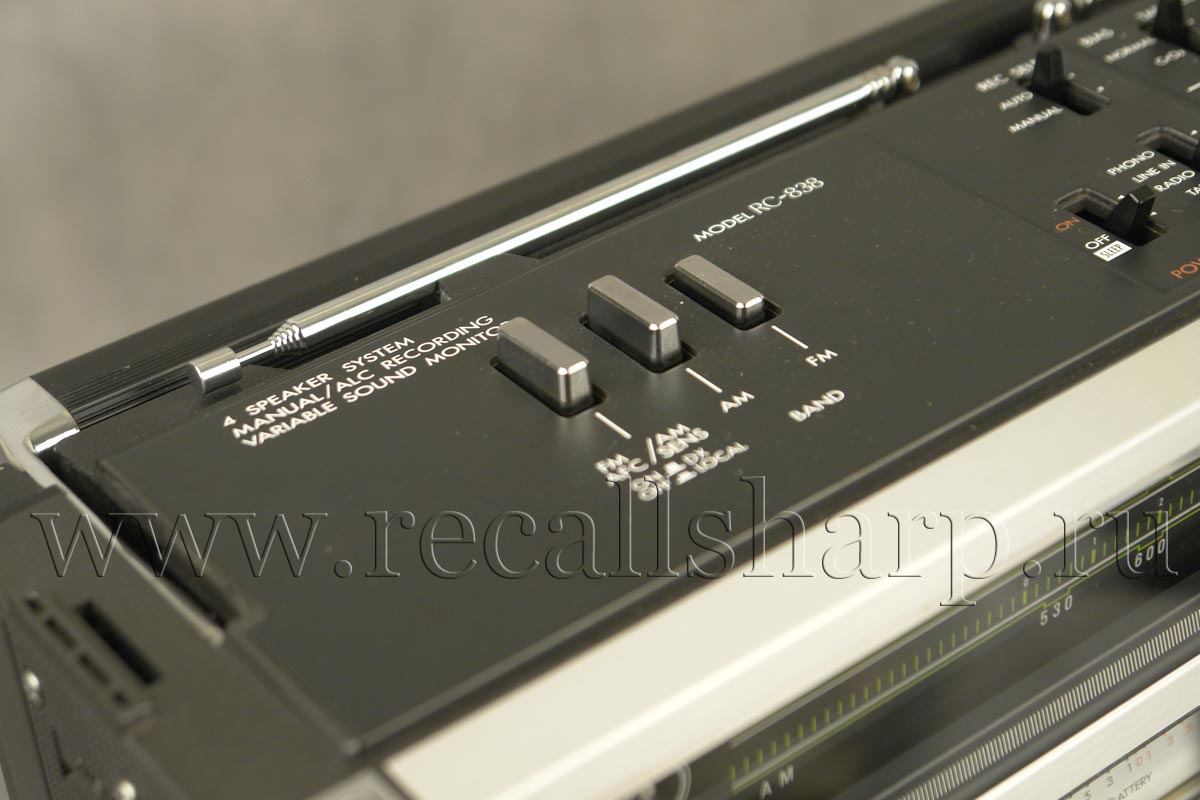

Antennas: Telescopic antennas for FM Ferrite core antenna for AM

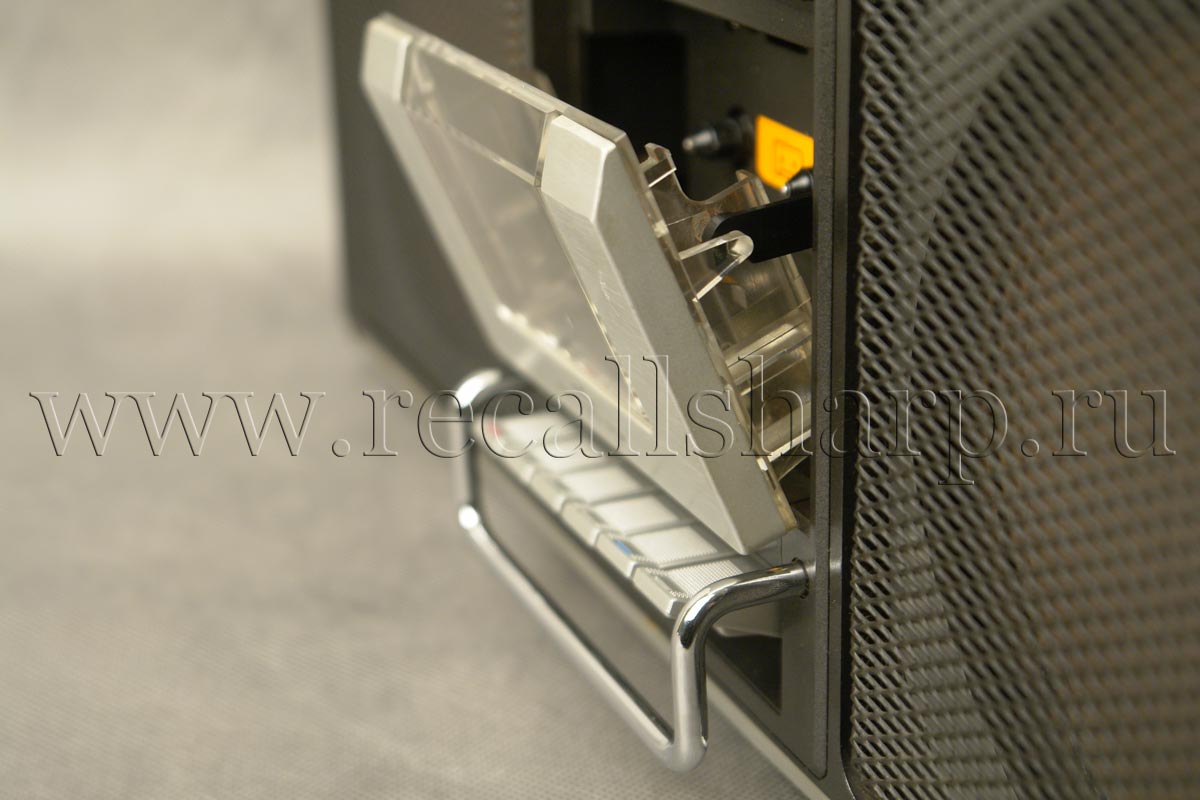

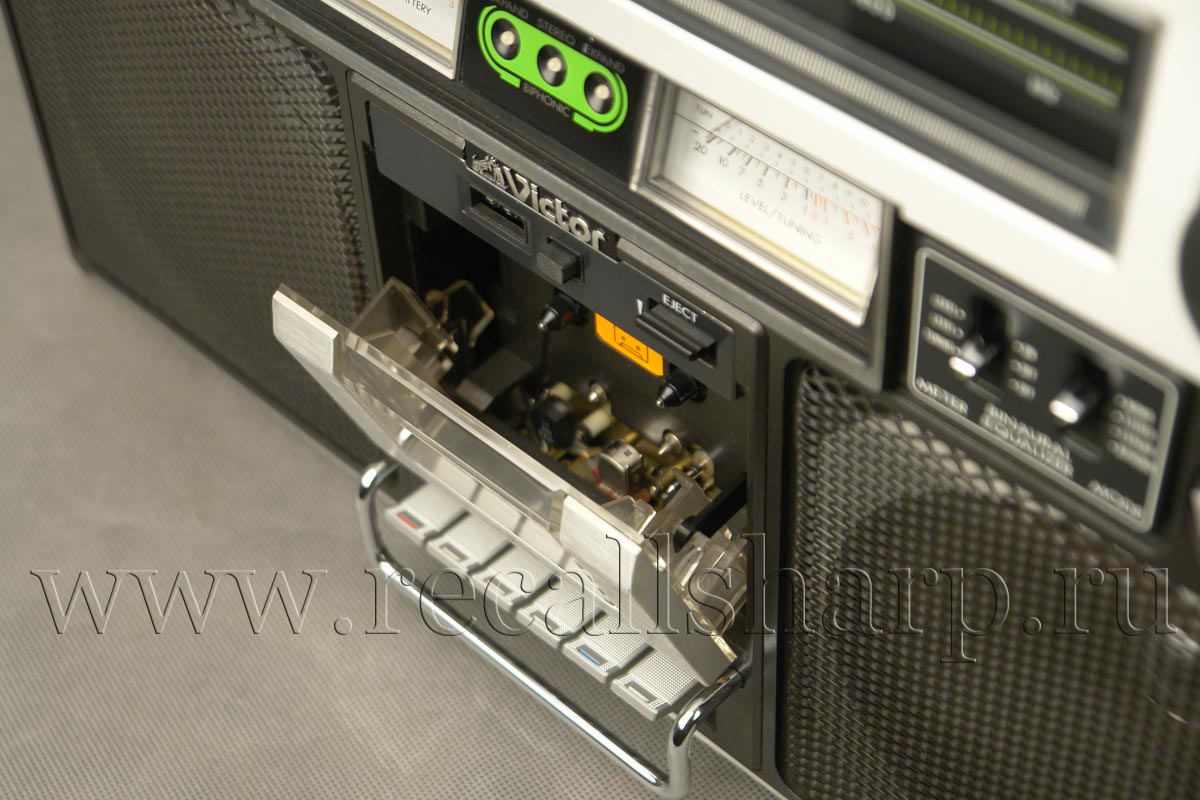

TAPE RECORDER SECTION
Track system: 4-Track 2-channel stereo
Frequency response:
40-13,000Hz (with chrome tape)
40-12,000Hz (with normal tape)
Wow & flutter: 0.07% (WRMS)
S/N ratio: 50dB
Rewind time: Within 110 sec. (C-60 cassette)
Fast forward time: Within 110 sec. (C-60 cassette)
AMPLIFIER SECTION
Power output: Max. 10W (5W +5W)

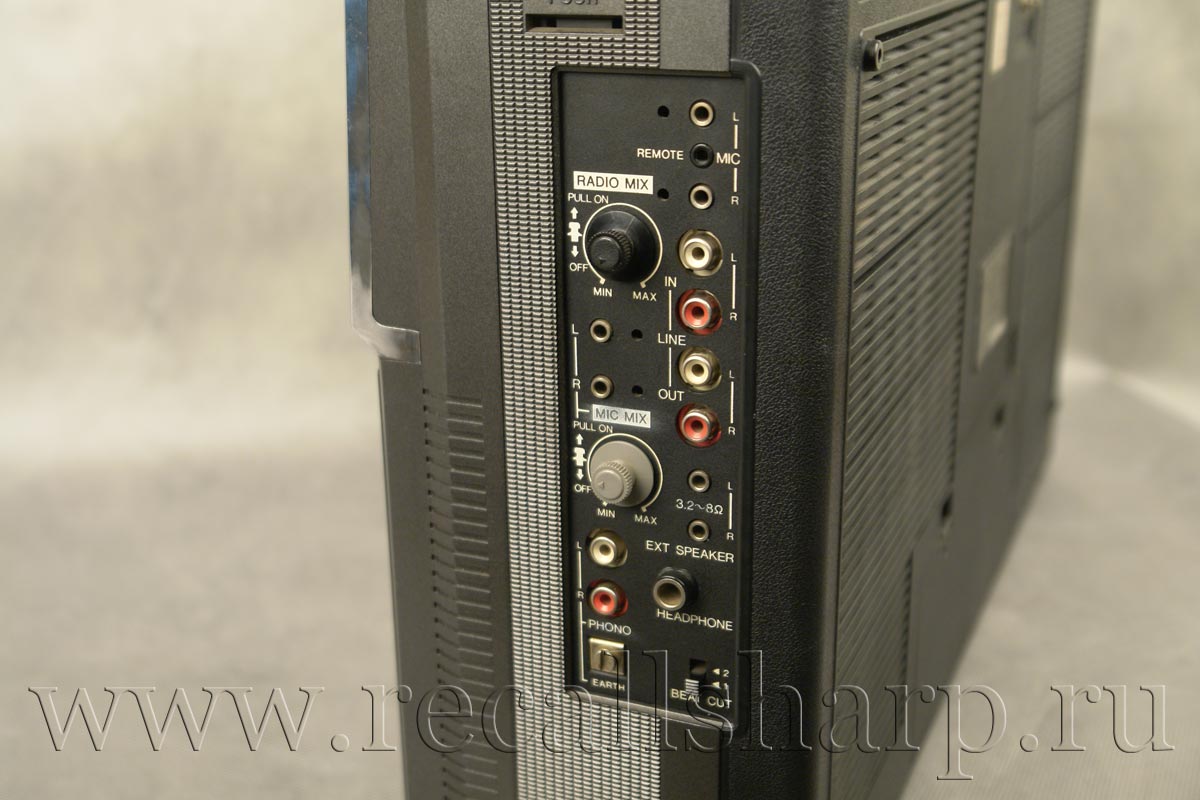

Input jacks:
Mic x 2 (low impedace)
Line in x2 (input level 100mV min., impedance;
47kΩ)
DC in x 1
Phono in x 2 (input level 3mV min., impedance; 47kΩ)
Output jacks: Ext. speaker x 2 (load impedance 3.2Ω)
Headphones (load impedance 8Ω)
Line out x 2 (300mV, impedance; less than 10kΩ)
Power supply: DC 12V (8 "R20" cells)
Car battery through a car battery adapter AC 100 V, 50/60 Hz 15.5W
Dimensions: 508(W)x316(H)x159(D)mm
Weight: 8.1kg with batteries
|
