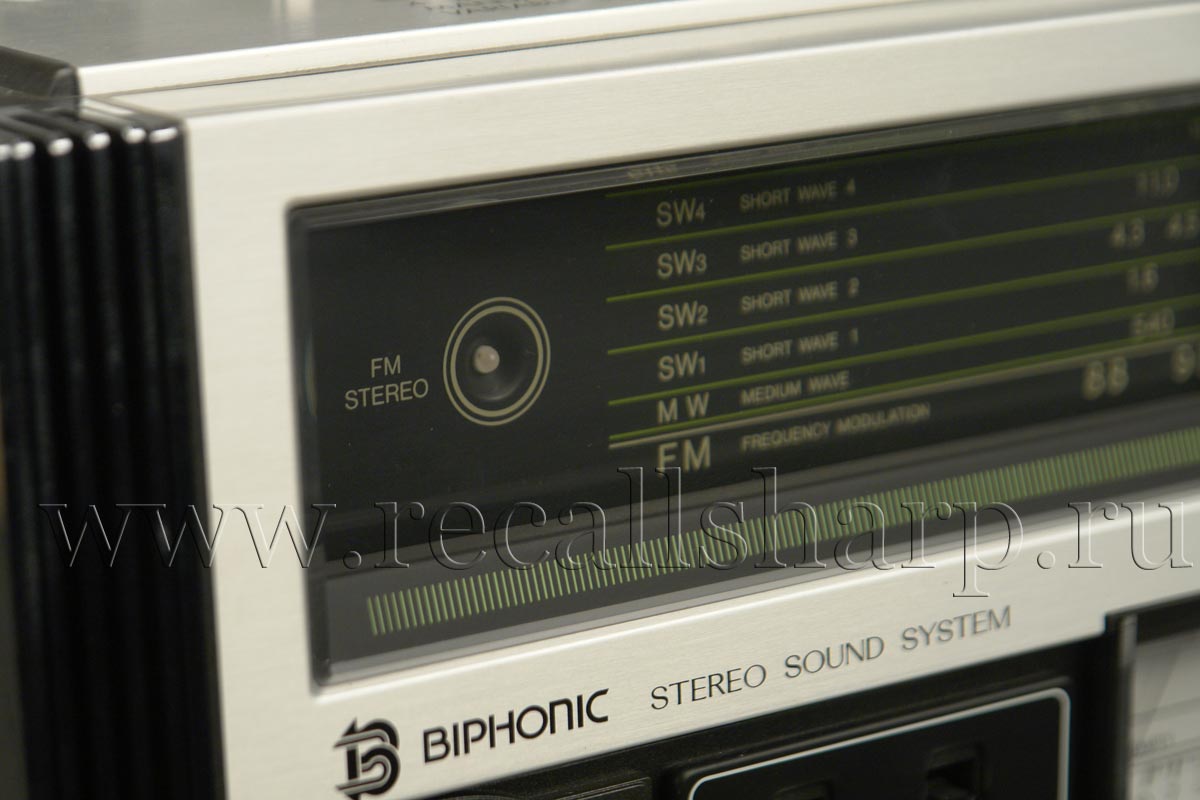

Antennas: Telescopic antennas for FM & SW2-SW4 Ferrite core antenna for MW &SW1

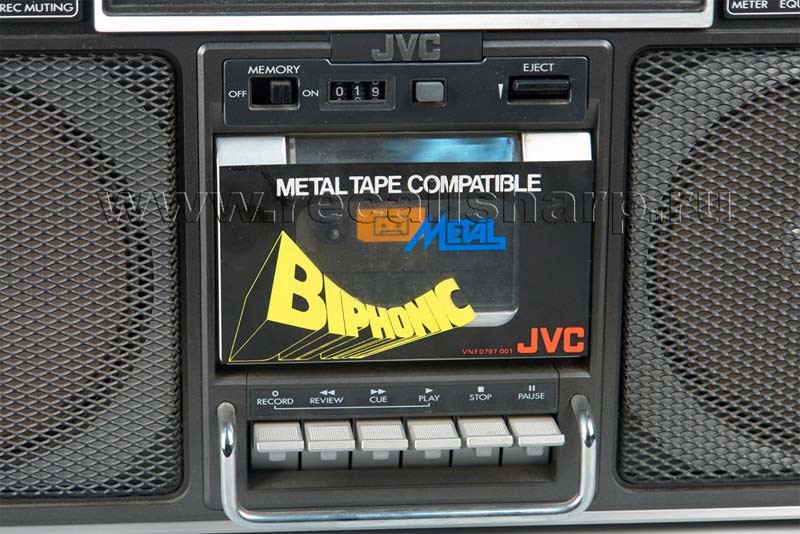

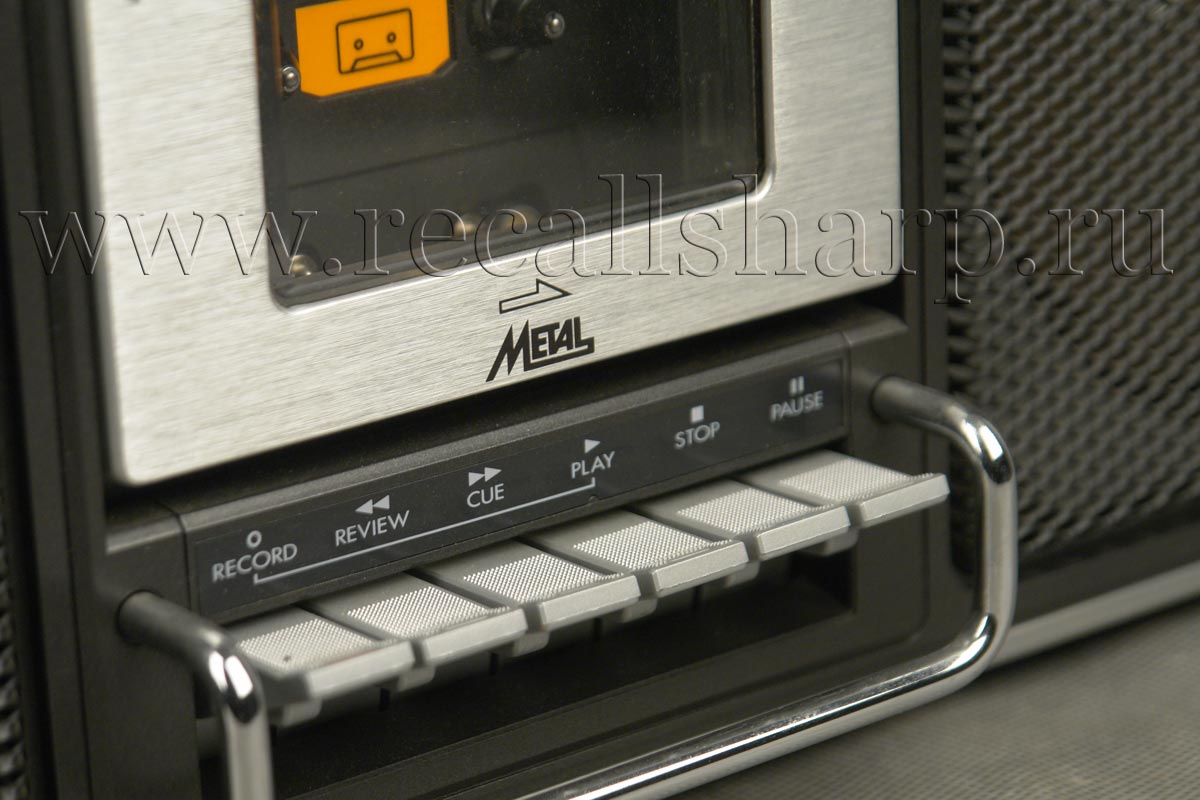

TAPE RECORDER SECTION
Track system: 4-Track 2-channel stereo
Frequency response:
40-15,000Hz (with metal tape)
45-12,000Hz (with normal tape)
Wow & flutter: 0.07% (WRMS)
S/N ratio: 50dB
Rewind time: Within 110 sec. (C-60 cassette)
Fast forward time: Within 110 sec. (C-60 cassette)
AMPLIFIER SECTION
Power output: Max. 4.8W (2.4W +2.4W)
Input jacks:
Mic х2 (low impedace)
Line in х 2 (input level 100mV min., impedance;
47kΩ)
DC in x 1
Phono in x 2 (input level 3mV min., impedance; 47kΩ)
Output jacks: Ext. speaker И 2 (load impedance 3.2Ω)
Headphones (load impedance 8Ω)
Line out x 2 (300mV, impedance; less than 10kΩ)
Power supply: DC 12V (8 "R20" cells) Car battery through a car battery adapter AC 240/220/110 V, 50/60 Hz (RC-838W) 240 V, 50/60 Hz (RC-838WH)
Dimensions: 508(W)x316(H)x159(D)mm
Weight: 8.1kg with batteries
